11/09 2016

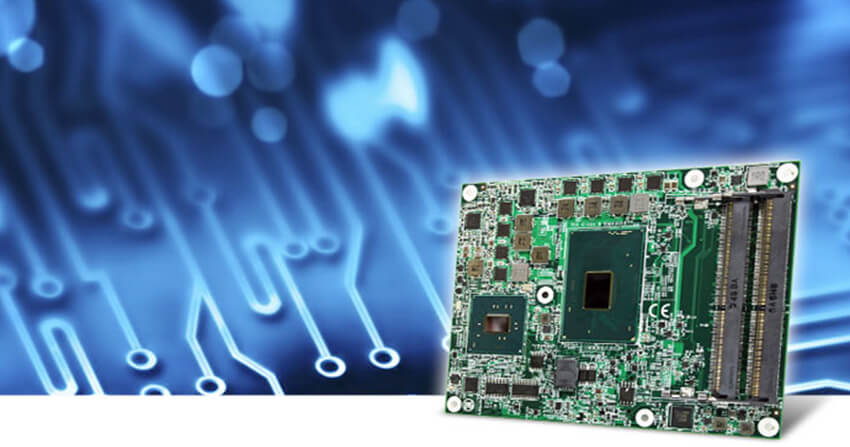

ARBOR Introduces the EmETXe-i89M0 COM Express® Type 6 Module with 6th Generation Intel® Core™ Processor

ARBOR Technology, a leading provider of embedded computing solutions, announces the release of the ARBOR EmETXe-i89M0 COM Express Type 6 Module. Built on Intel’s new 14nm process technology, the EmETXe-i89M0 is based on the Intel® 6th Generation Core™ processors (formerly codenamed “Skylake-H”), and supports the Intel ® Turbo Boost Technology. This increases the CPU processing speed to deliver breakthrough CPU performance, excellent graphic capability, as well as the enhancement in security and management functions. The above features make the module ideal for intelligent applications in several market segments, such as medical, digital surveillance, gaming, digital signage, communication and defense.
New Intel® HD Graphics 530 delivers stunning and responsive visuals in 6th generation Intel® Core™ processors, including Ultra HD/4K display and additional codec support. Enhanced security and manageability features help to drive down total cost and risk, protecting data and preventing malware threats.

Embedded computers allow the connection of up to three independent display interfaces via HDMI 1.4, LVDS and embedded DisplayPort (eDP). When using DisplayPort 1.2, the individual displays can be daisy chained to take advantage of simple wiring. Native USB 3.0 support provides fast data transmission with low power consumption. The two SODIMM sockets can be equipped with up to 32GB SODIMM DDR4 memory.

The strength of the EmETXe-i89M0 lies in the flexibility and customization for each particular application. It supports a wide range of I/O ports including eight USB 2.0 ports, four USB 3.0 SuperSpeed ports, one PCI Express x16 (generation 3), eight PCI Express lanes and four SATA ports with 6 Gb/s SATA RAID. Gigabit Ethernet support via the Intel® i219-LM GbE LAN controller (with AMT 11 support) which enables fast and flexible system extensions, completes the highly flexible design.

The EmETXe-i89M0 will be officially launched in December; please contact local sales support or visit us online at sales@arbor-technology.com
The following CPU variants are supported by this EmETXe-i89M0:
Processor Cores Cache Basic / Turbo Clock [GHz] TDP Remark
Intel® Core™ i7-6822EQ 4 8MB 2.0 / 2.8 25W
Intel® Core™ i5-6440EQ 4 6MB 2.7 / 3.4 45W
Intel® Core™ i5-6442EQ 4 6MB 1.9 / 2.7 25W
Intel® Core™ i3-6100E 2 3MB 2.7 / -- 35W
Intel® Core™ i3-6102E 2 3MB 1.9 / -- 25W
