12/06 2016

ARBOR Automated Conformal Coating Service

ARBOR provides the automated conformal coating service, an acrylic coating can be applied to the whole surface of the board except contact pins, to get the components & circuitry against dust, fungus, moisture and salt spray to prevent short circuits and corrosion of metal between conductors. ARBOR offers a complete conformal coating service using HumiSeal® coating materials for a stable quality and long pot life, as well as the X, Y, Z-axis spray coating equipment which features cost-effective, flexibility and versatility. ARBOR’s automated conformal coating is compliant with IPC-CC-830 Rev. B standard.

Coating Materials

  • HumiSeal® 1B31
  • HumiSeal® Thinner 521 EU

Coating Equipment

  • X*Y-axis Operation distance: 400 x 400 mm
  • Z-axis Operation distance: 100mm
  • Accuracy of repeat positioning: ±0. 025 mm
  • Driver system: X Y Z axis / servo motor + Screw ball
  • Displacement speed: 10 ~ 500 mm/s (programmable)

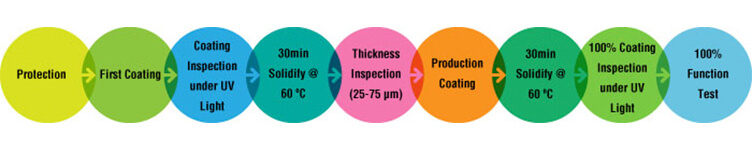

Coating Flow Chat

Coating Capability

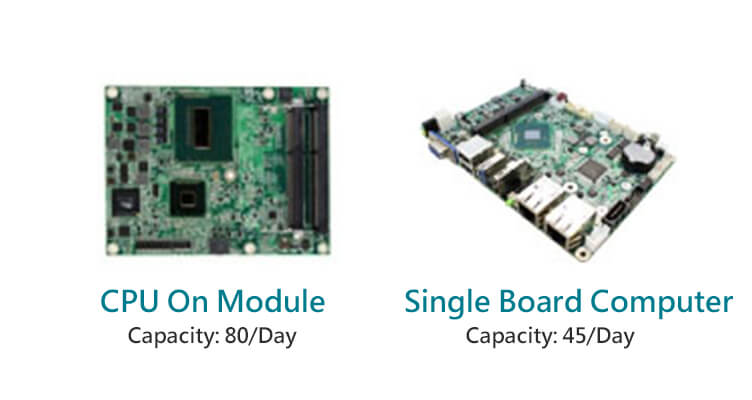

Coating Product
