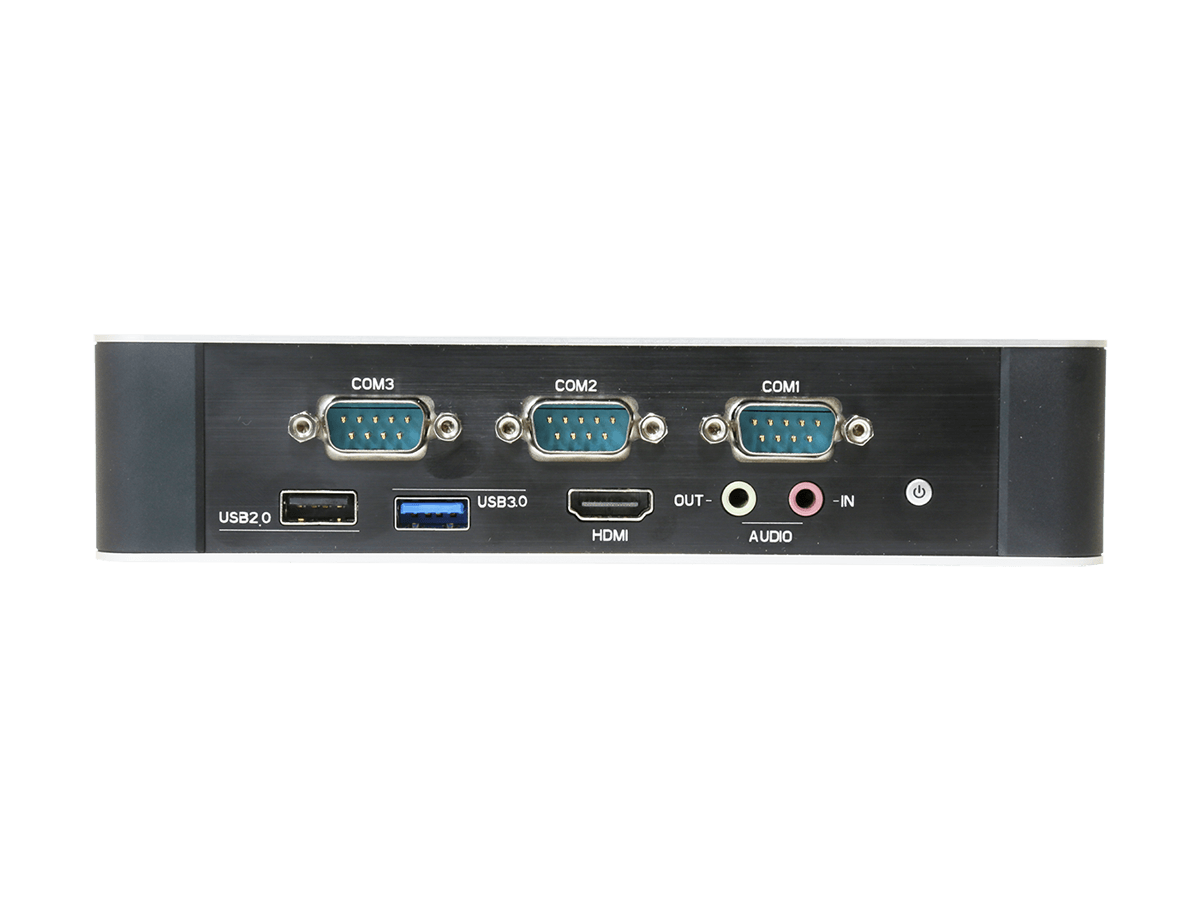

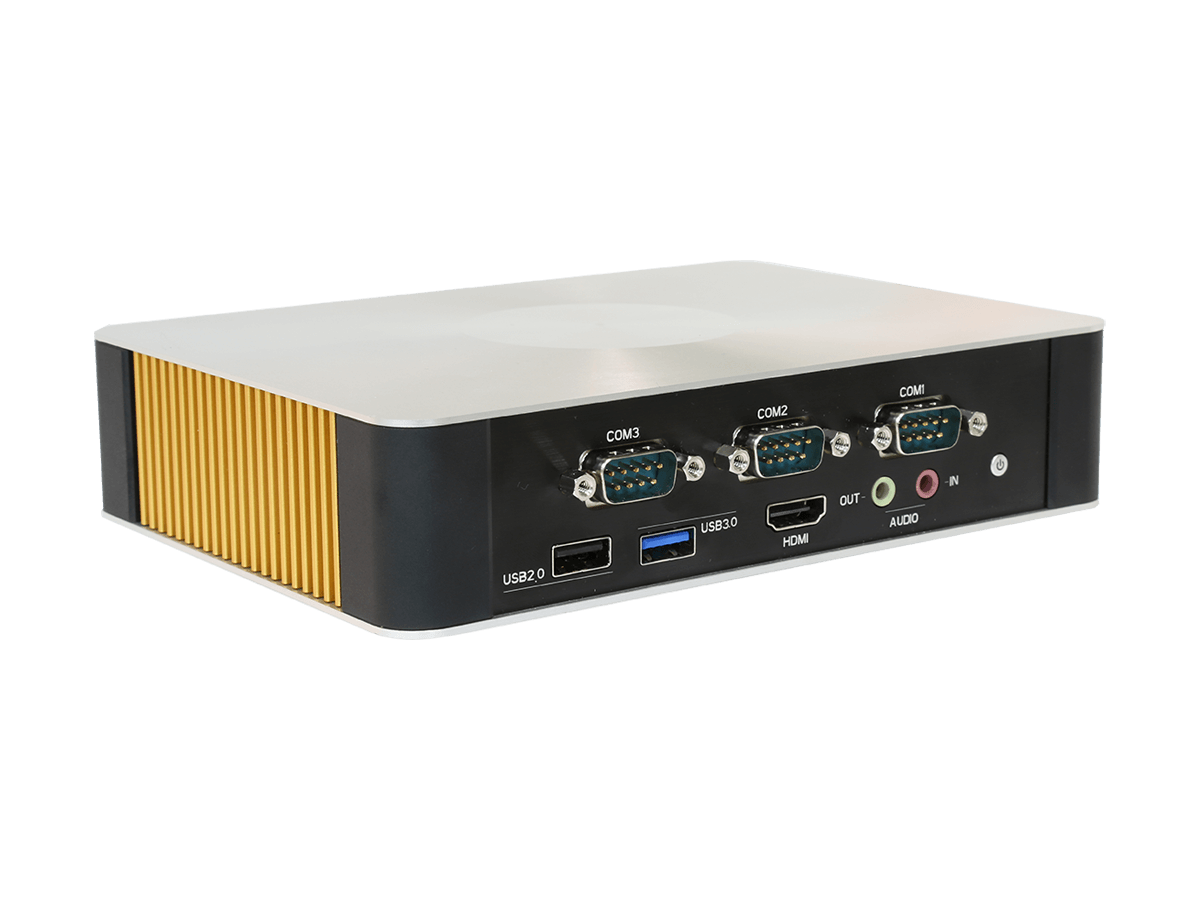

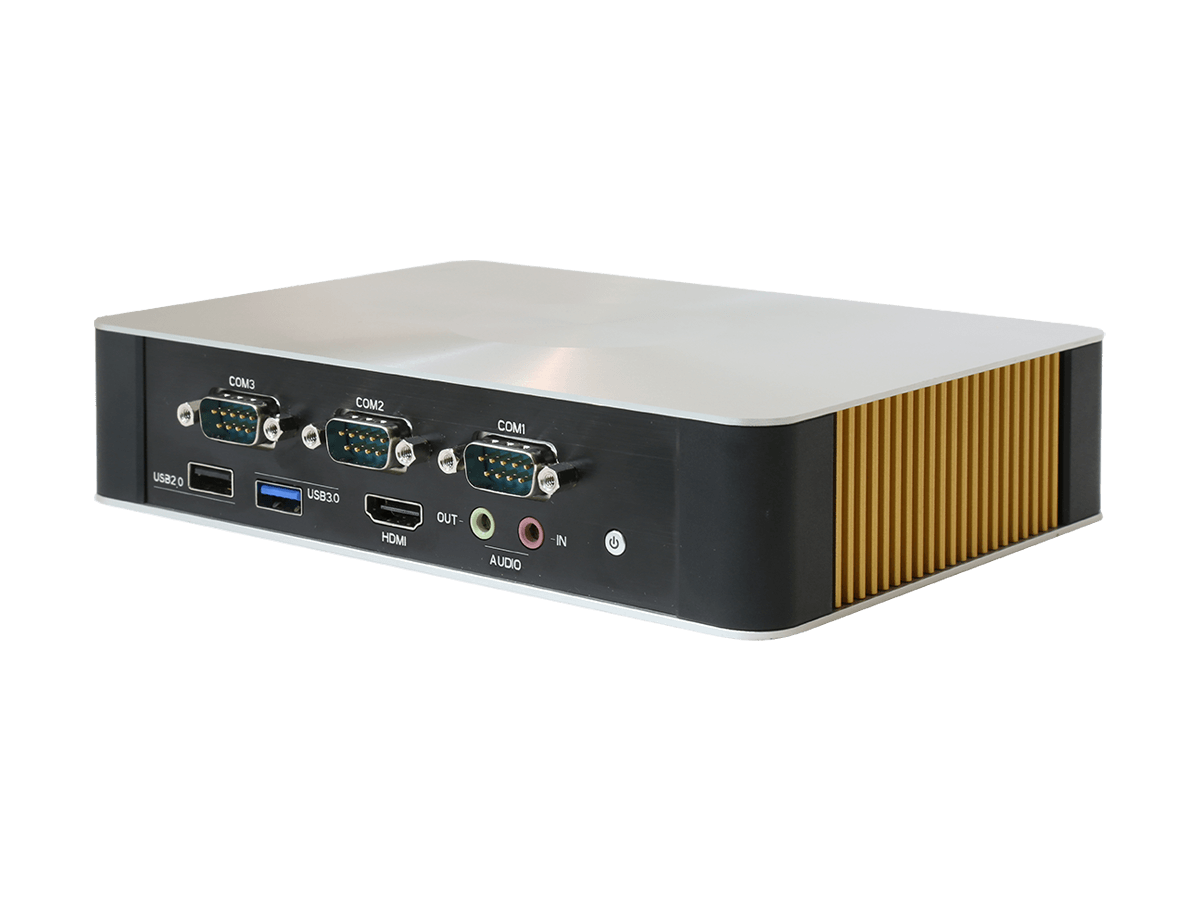

ARES-1230-POS
Fanless Embedded Controller with Intel® Bay Trail SoC Processor
ARES-1230-POS
Fanless Embedded Controller with Intel® Bay Trail SoC Processor
Features
- Intel® Celeron N2930 Quad Core™ 2.16 GHz SoC
- DDR3L 1600MHz SO-DIMM memory support up to 8GB
- Low Profile Enclosure (Aluminum alloy)
- 6 x COM ports (two w/ 5V or 12V, selectable)
- Support 1 x Full-size and 1 x half-size MiniPCIe
- Video display: HDMI + DVI-I
- 1 x Antenna hole for optional WiFi function
- Wall Mounting kit
Specification
System
| CPU | Intel® Celeron® Processor N2930 |
|---|---|
| Memory | 1 x SO-DIMM 204Pin modules supports up to 8GB DDR3L-1600MHz |
| Chipset | Intel® SoC |
| Graphics | Intel® HD Graphics |
| LAN Chipset | 2 x Intel® i210AT PCIe controller |
| Watchdog Timer | 1~255 levels reset |
I/O Interface
| Serial Port | COM 1~2: RS-232/422/485 (DB9, selectable, w/ 5V/12V) COM 3~6: RS-232/485 (DB9, selectable ) |
|---|---|
| USB Port | 1 x Type A USB2.0 ports 1 x Type A USB3.0/2.0 ports |
| LAN Port | 2 x RJ-45 ports for GbE |
| Video Port | 1 x DVI-I connector 1 x HDMI connector |
| Audio | Mic-in/Line-out |
| Expansion Bus | 1 x mSATA 1 x Full-Size mPCIE (PCIex1+USB2.0) 1 x Half-Size mPCIE (PCIex1 Lane only) 1 x SIM card socket |
Environmental
| Operating Temp. | -20 ~ 70°C (-4 ~ 158ºF), ambient with air flow |
|---|---|
| Storage Temp. | -40 ~70 °C (-40 ~ 158°F) |
| Operating Humidity | 10 ~ 95% @ 70°C (non-condensing) |
| Vibration | 5~500Hz 3G rms X,Y,Z axis w/SSD, according to IEC 68-2-64 |
| Shock | 40G peak acceleration (11 m sec. duration), operation 60G peak acceleration (11 m sec. duration), non operation According to IEC 68-2-27 |
OS Support
| System | Windows 7 / Windows 8.1 / Windows 10 |
|---|
Storage
| Type | 1 x mSATA for SATA interface SSD Supports 600MB/s HDD transfer rate |
|---|
Qualification
| Certification | CE, FCC Class A |
|---|
Power Requirement
| Power Input | DC 12V Input w/ DC-Jack |
|---|---|
| Power Consumption | 20W |
Mechanical
| Construction | Aluminum alloy |
|---|---|
| Mounting | Wall-mount |
| Weight | 933g (2.06lb) |
| Dimensions (W x H x D) | 180 x 130 x 40 mm (7.09” x 5.12” x 1.57”) |
Ordering Information
| ARES-1230-POS | Intel® Bay Trail Atom™ N2930 bare-bone, 12V Input / 6 x COM ports |
|---|
Accessories
Optional Configuration (*CTOS Kit)
-
32GB / 64GB SSD
mSATA MLC 32GB / 64GB -
PAC-P060W-04
60W AC/DC Adapter Kit (ARES-1230) -
WIFI-AT2130
Atheros AR9462 WiFi module w/ 10cm & 20cm internal wiring -
ANT-D11
1 x Wi-Fi Dual-band 2.4G/5G antenna -
MM-3C-2G/4G
Industrial DDR3L-1333 / 1600 2GB / 4GB SO-DIMM SDRAM
