ARTS-2870
Marine PC with Intel® Core™ i5-4402E
ARTS-2870
Marine PC with Intel® Core™ i5-4402E
Features
- Fanless and rugged design
- Isolated NMEA 0183
- Isolated RS-232/485 and DIO
- Support power on/off delay control
- Compliant with IEC-60945, IACS E10, DNV 2.4
- Support 3 Video outputs
- Support RAID 0/1
Specification
System
| CPU | Soldered onboard Intel® Core™ i5-4402E 1.6GHz |
|---|---|
| Memory | 1 x 204-pin SO-DIMM sockets, supporting DDR3L 1333/1600 MHz, up to 8GB SDRAM |
| Chipset | Intel® PCH QM87 |
| Graphics | Integrated Intel® HD Graphics 4600 |
| SATA | 2 x Serial ATA ports with 300MB/s HDD transfer rate 2 x Serial ATA ports with 600MB/s HDD transfer rate |
| LAN Chipset | 1x Intel® i217LM GbE PHY (iAMT 9.0 supported) 3 x Intel® i210IT GbE controllers |
| Watchdog Timer | 1~255 levels reset |
I/O Interface

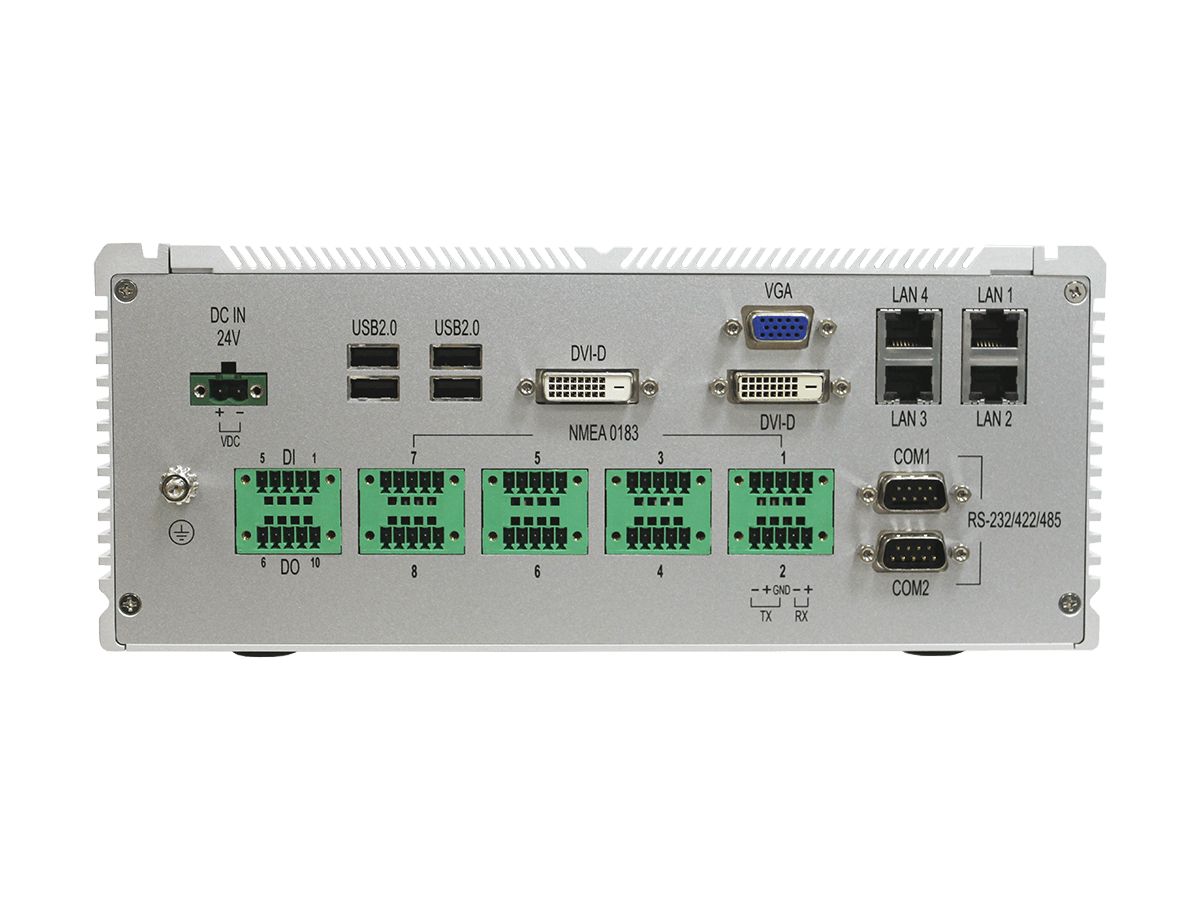

| Serial Port | 2 x RS-232/422/485 port w/ DB-9 connectors, rear side, 2 KV isolated protection 8 x NMEA 0183 ports, rear side 2 KV isolated protection |
|---|---|

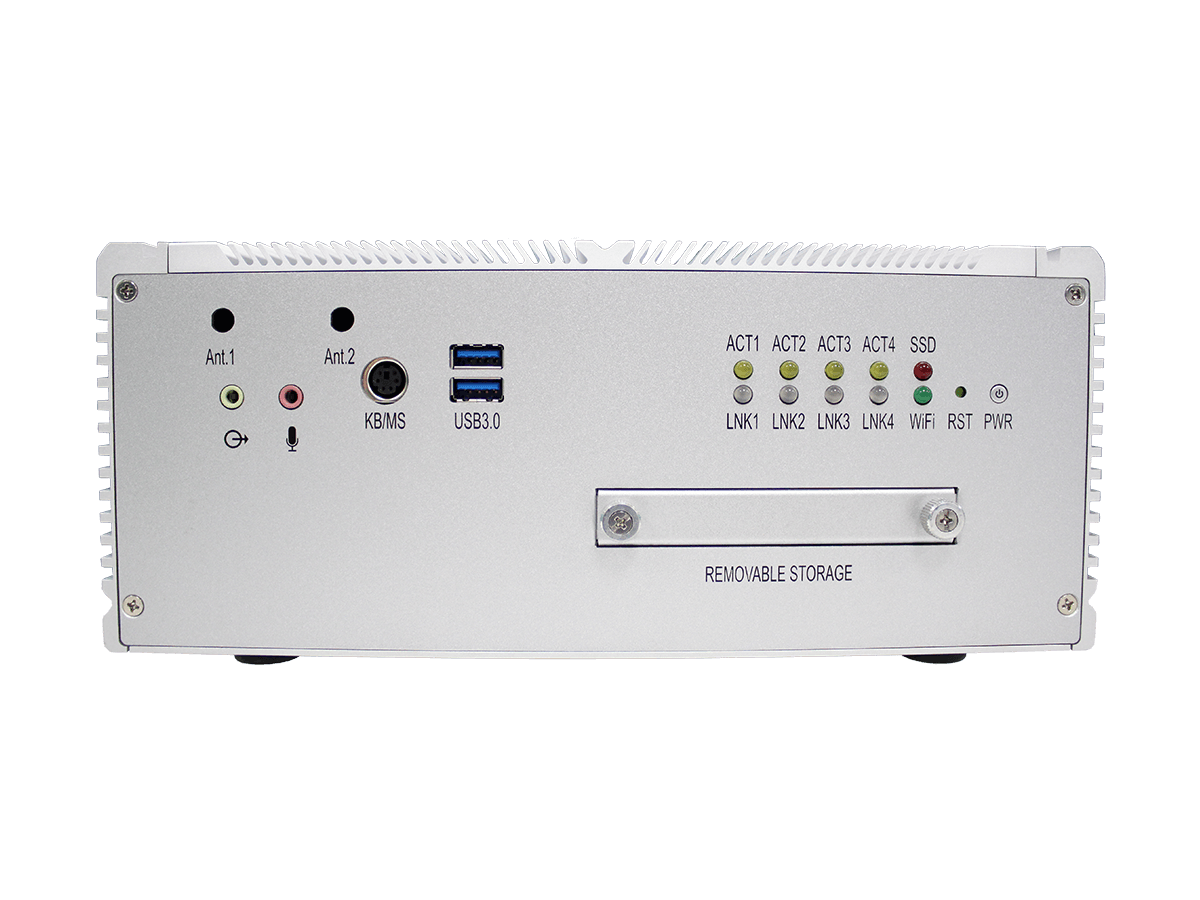

| USB Port | 2 x USB 3.0 ports type A connector, front side 4 x USB 2.0 ports type A connector, rear side |
| LAN | 4 x RJ-45 ports for Gigabit Ethernet |
| Video Port | 2 x DVI-D Female connector 1 x VGA DB-15 Female output |
| Digital I/O | 1 x 8-bit digital I/O, 4-in/4-out w/ 10-pin terminal block, 2KV isolated protection |
| Expansion Bus | 1 x Mini-PCIe slot (half-size) 1 x mSATA slot for internal mSATA SSD |
| Antenna | 2 x SMA-Female connectors’ holes for external antennas |
| Audio | 1 x Line-out with 3.5mm jack 1 x MIC-in with 3.5mm jack |
Environmental
| Operating Temp. | -25 ~ 55°C (-13 ~131°F ), ambient w/ air flow |
|---|---|
| Storage Temp. | -40°C ~85 °C (-40°F ~ 185°F) |
| Operating Humidity | 10 ~ 95% @ 55°C (non-condensing) |
| Vibration | 0.7 @ DNV 2.4 (Class A), sine wave, 2-100 Hz, 1 Oct./min., 1.5 hr per axis • 1 g @ DNV 2.4, random wave, 3-100 Hz, 2.5 hr per axis • 2.1 g @ DNV 2.4 (Class C), sine wave, 2-50 Hz, 1 Oct./min., 1.5 hr per axis |
| Shock | 50g @ IEC 60068-2-27, half sine wave, 11 ms |
Qualification
| Certification | CE, FCC Class A Compliant with IEC-60945, IACS E10, DNV 2.4 |
|---|
OS Support
| System | WS7E / W7 Pro / WE8 STD/ W8.1 Pro / Linux (Kernel: 3.1X) |
|---|
Storage
| Type | 2 x 2.5” drive bays for SATA SSD (1 x outside accessible SSD), support RAID 0/1 1 x mSATA |
|---|
Power Requirement
| Power Input | DC 24V input, 2KV isolated protection |
|---|---|
| Power Consumption | Max. 60W |
Mechanical
| Construction | Aluminum alloy with corrosion resistant |
|---|---|
| Mounting | Support wall-mount |
| Weight | 5.7 kg (12.56 lb) |
| Dimensions (W x D x H) | 270.4 x 110 x 240 mm (10.65” x 4.33” x 9.45”) |
Ordering Information
| ARTS-2870 | Marine Barebone System w/ Intel® Core™ i5-4402E, w/o memory and storage |
|---|
Accessories
Optional Accessories
-
PAC-P120W-FSP
120W AC/DC adapter kit
Optional Configuration (CTOS* Kit)
-
SSD-25032
Memoright 2.5” 32GB SATA II SSD kit -
MM-3CL-2G / 4G / 8G
DDR3L-1333 2GB / 4GB / 8GB SDRAM -
WIFI-AT2350
Atheros AR9462 WiFi module w/ 20cm & 30cm internal wiring -
ANT-D11
1 x Wi-Fi Dual-band 2.4G/5G antenna
