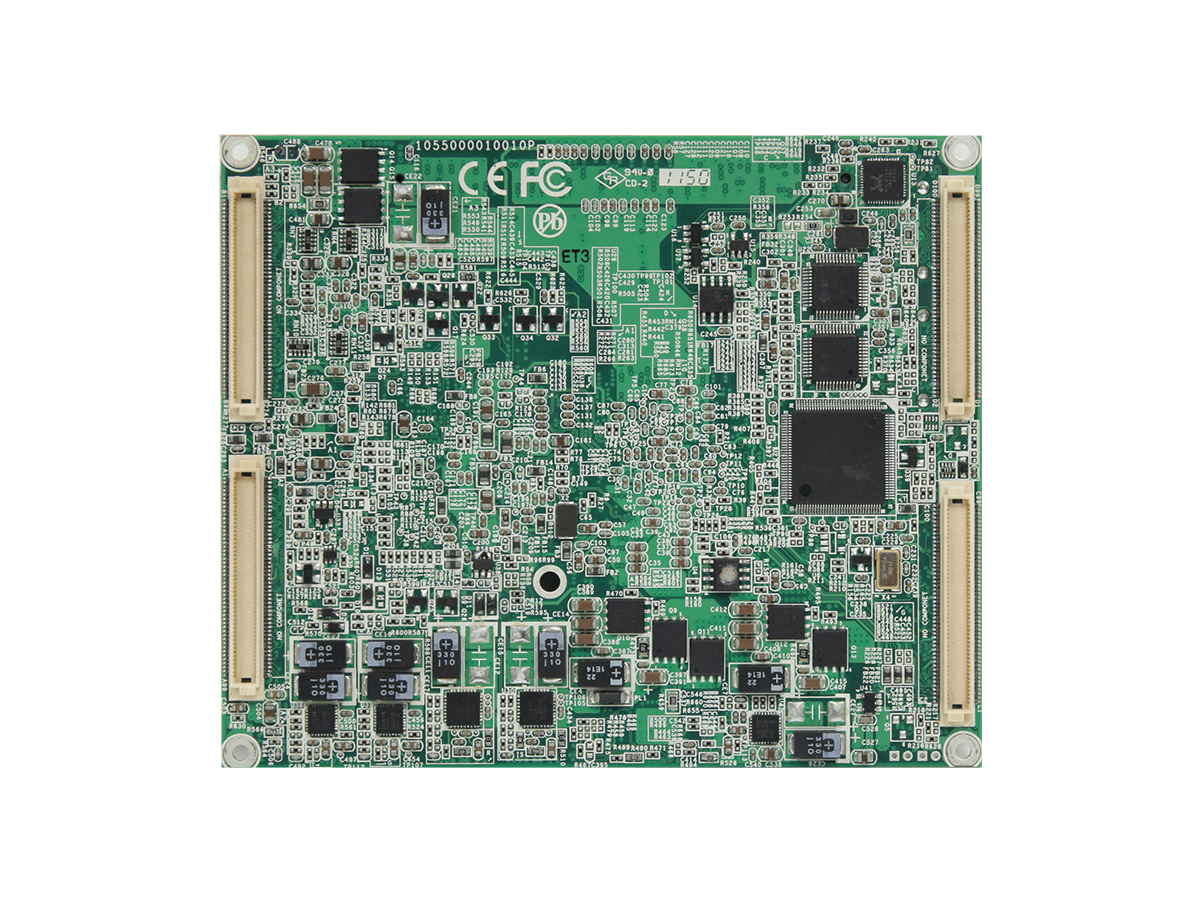

EmETX-a55E0
AMD G-series Processor G-T56N/G-T40N ETX CPU Module
EmETX-a55E0
AMD G-series Processor G-T56N/G-T40N ETX CPU Module
Features
- Soldered onboard AMD G-series APU G-T56N/ G-T40N
- LVDS, Analog RGB and DDI Port supported
- SATA RAID supported
- Extended Operating Temp.: -20 ~ 70°C
Specification
System
| CPU | Soldered onboard AMD G-series APU G-T56N dual-core 1.65GHz or G-T40N dual-core 1.0GHz |
|---|---|
| Memory | 1 x 204-pin DDR3 SO-DIMM socket, supporting 1066/1333MHz SDRAM up to 4GB |
| Chipset | AMD FCH A55E |
| BIOS | AMI UEFI BIOS |
| Watchdog Timer | 1~255 levels reset |
I/O Interface
| Super IO Chipset | Fintek F71869ED |
|---|---|
| Serial Port | 2 x COM ports |
| Parallel Port | SPP/EPP/ECP mode selectable |
| USB Port | 4 x USB 2.0 ports |
| KB/MS | PS/2 interface for keyboard and mouse |
| Serial ATA | 2 x Serial ATA ports with 600MB/s HDD transfer rate |
| Storage | 2 x Serial ATA ports with 600MB/s HDD transfer rate |
| Ethernet Chipset | 1 x Realtek 8105E PCIe 10/100Base-T Ethernet controller |
| Expansion | PCI (4 x PCI masters) and ISA bus LPC (Low Pin Count) connector SPI interface |
| Audio | Realtek ALC886 7.1 Channel HD Audio CODEC, Mic-in/ Line-in/Line-out |
Mechanical & Environmental
| Power Requirement | +5V, 5VSB |
|---|---|
| Power Consumption | 3.23A@+5V with G-T56N (Typical) |
| Operating Temp. | -20 ~ 70°C (-4 ~ 158°F) |
| Operating Humidity | 10 ~ 95% @ 70°C (non-condensing) |
| Dimension (L x W) | 114 x 95 mm (4.5” x 3.7”) |
Display
| Graphics Chipset | Integrated in AMD G-series APU |
|---|---|
| Graphics Interface | Analog RGB that supports resolution up to 2560x1600 LCD: Dual Channels 24-bit LVDS 1 x DDI port |
Ordering Information
| EmETX-a55E0-T56N | AMD G-series APU G-T56N Dual Core ETX CPU module |
|---|---|
| EmETX-a55E0-T40N | AMD G-series APU G-T40N Dual Core ETX CPU module |
Accessories
Optional Accessories
| HS-55E0-F2 | Heat spreader (114x95x8mm) |
|---|---|
| HS-0000-W4 | Universal evaluation heatsink kit with thermal pad (dimension: 125x95x22mm, only used on a flat type heat spreader) |
| PBE-1000 R2.1 | ETX® evaluation board in ATX form factor |
| CPF-0000-C1 | FAN, 4500RPM, 60x60x20mm |
| CBK-05-1000-00 | Cable kit: 3 x COM-port cables 1 x USB cable 2 x IDE cables |
