EmETXe-i87M0

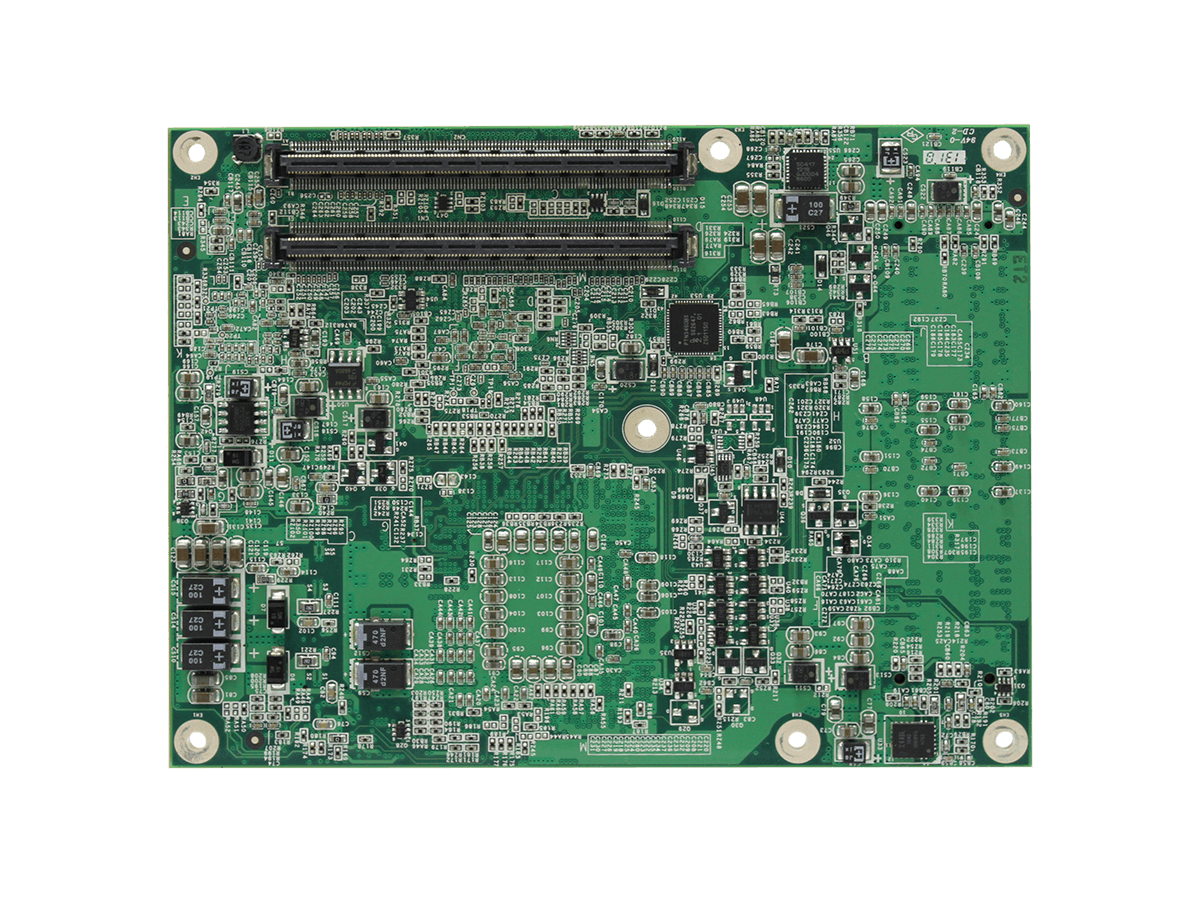

4th Generation Intel® Core™ Processor COM Express® Basic Type 6 CPU Module
EmETXe-i87M0
4th Generation Intel® Core™ Processor COM Express® Basic Type 6 CPU Module
Features
- Soldered onboard 4th Generation Intel® Core™ processor
- Integrated Gigabit Ethernet
- Dual channels 24-bit LVDS, Analog RGB, and 3 x DDI ports
- Support 3 independent displays
- RAID 0, 1, 5, 10 supported
- Support Intel® Active Management Technology (Intel® AMT)
- Extended Operating Temp.: -20 ~ 70°C
- Wide Range Operating Temp.: -40 ~ 85°C (WT series)
Specification
System
| CPU | Soldered onboard 4th Generation Intel® Core™ Processor i7-4700EQ 2.4GHz / i5-4402E 1.6GHz / i3-4102E 1.6GHz / i3-4112E 1.8GHz (Haswell Refresh) |
|---|---|
| Memory | 2 x DDR3L SO-DIMM sockets, supporting up to 16GB 1600MT/s SDRAM |
| Chipset | Intel® PCH QM87 |
| BIOS | AMI BIOS |
| Watchdog Timer | 1~255 levels reset |
I/O Interface
| USB Port | 8 x USB 2.0 ports 4 x USB 3.0 ports |
|---|---|
| Expansion Bus | 1 x PCIe x16 Generation 3 lanes 8 x PCIe x1 Generation 2 lanes |
| DIO | 8-bit programmable digital input/output |
| Storage | 2 x Serial ATA ports with 300MB/s HDD transfer rate 2 x Serial ATA ports with 600MB/s HDD transfer rate RAID 0, 1, 5, 10 supported |
| Ethernet Chipset | 1 x Intel® i217LM PCIe GbE PHY |
| Audio | HD Audio link |
Mechanical & Environmental
| Power Requirement | DC 12V, 5VSB |
|---|---|
| Power Consumption | 3.00A@12V (Typical, with PBE-1702) |
| Operating Temp. | -20 ~ 70°C (-4 ~ 158°F) -40 ~ 85°C (-40 ~ 185°F), WT series |
| Operating Humidity | 10 ~ 95% @ 70°C (non-condensing) 10 ~ 95% @ 85ºC (non-condensing), WT series |
| Dimension (L x W) | 125 x 95 mm (4.9" x 3.7") |
Display
| Graphics Chipset | Integrated Intel® HD Graphics 4600 |
|---|---|
| Graphics Interface | Analog RGB supporting up to 1920x1200 LCD: Dual Channels 24-bit LVDSLVDS, with resolution up to 1920x1200@60Hz(OEM request) 3 x DDI ports |
Ordering Information
| EmETXe-i87M0-4402E | 4th Generation Intel® Core™ i5-4402E/ QM87 COM Express® Basic Type 6 CPU module |
|---|---|
| EmETXe-i87M0-4700EQ (OEM request) | 4th Generation Intel® Core™ i7-4700EQ/ QM87 COM Express® Basic Type 6 CPU module |
| EmETXe-i87M0-4112E (OEM request) | 4th Generation Intel® Core™ i3- 4112E/ QM87 COM Express® Basic Type 6 CPU module |
| EmETXe-i87M0-4102E (OEM request) | 4th Generation Intel® Core™ i3- 4102E/ QM87 COM Express® Basic Type 6 CPU module |
| EmETXe-i87M0-WT-4402E(BTO) | 4th Generation Intel® Core™ i5-4402E / QM87 WT COM Express Basic Type 6 CPU module |
Accessories
Optional Accessories
| HS-87M0-F1 | Heat spreader 125x95x18mm, not compatible with WT series |
|---|---|
| HS-87M0-F2 | Heat spreader 95x95x11mm, not compatible with WT series |
| HS-0000-W4 | Universal evaluation heat sink kit with thermal pad 125x95x22mm, only used on a flat-type heat spreader |
| HS-87M2-C2 | Cooler 125x95x34mm |
| PBE-1702 | COM Express® Type 6 evaluation carrier board with Super IO F71869ED in ATX form factor |
| CBK-04-1702-00 | Cable kit 1 x USB cable 2 x COM port cables 1 x SATA cable |
