EmNANO-a56M0

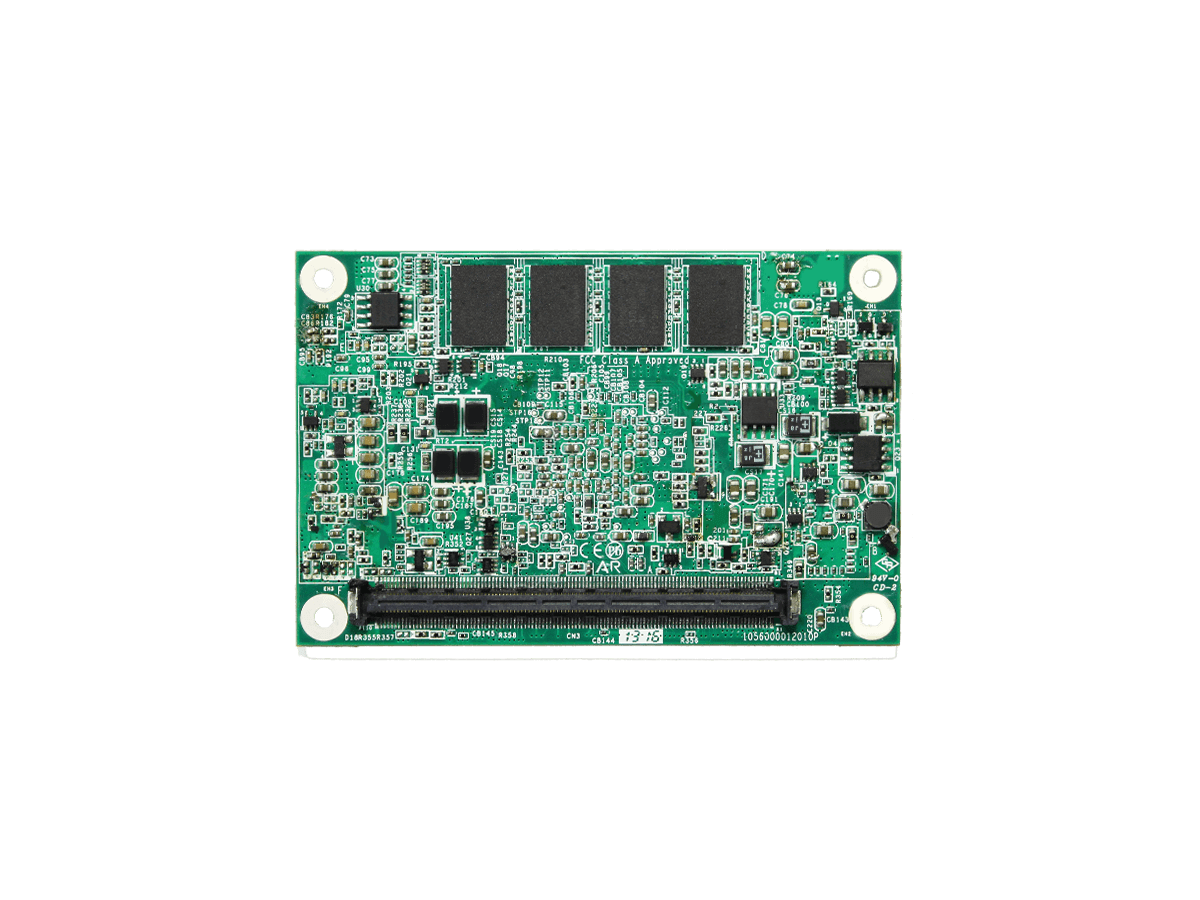

AMD G-Series Processor GX-210HA Dual Core COM Express® Mini Type 10 CPU Module
EmNANO-a56M0
AMD G-Series Processor GX-210HA Dual Core COM Express® Mini Type 10 CPU Module
Features
- Soldered onboard AMD G-Series SoC GX-210HA dual-core
- Integrated Gigabit Ethernet
- Single Channel 18-bit LVDS and DDI port
- Supporting Dual Independent Displays
- Extended Operating Temp.: -20 ~ 70°C
Specification
System
| CPU | Soldered onboard AMD G-Series SoC GX-210HA 1.0Ghz |
|---|---|
| Memory | Soldered onboard 2GB DDR3L SDRAM |
| BIOS | AMI UEFI BIOS |
| Watchdog Timer | 1~255 levels reset |
I/O Interface
| USB Port | 8 x USB 2.0 ports 2 x USB 3.0 ports |
|---|---|
| DIO | 8-bit programmable digital input/output |
| Expansion Bus | 3 x PCIex1, LPC |
| Storage | 2 x Serial ATA ports with 600MB/s HDD transfer rate |
| Ethernet Chipset | 1 x Realtek RTL8111E PCIe GbE controller |
| Audio | HD Audio link |
Mechanical & Environmental
| Power Requirement | DC 12V, 5VSB |
|---|---|
| Power Consumption | 1.08A@12V (Typical, with PBN-9007) |
| Operating Temp. | -20 ~ 70ºC (-4 ~ 158ºF) |
| Operating Humidity | 10 ~ 95% @ 70ºC (non-condensing) |
| Dimension (L x W) | 84 x 55 mm (3.30" x 2.17") |
Display
| Graphics Chipset | Integrated Radeon HD 8210E Graphics |
|---|---|
| Graphics Interface | LCD: Single Channel 18-bit LVDS, with resolution up to 1400x1050 Analog RGB by FPC conn. (OEM request) 1 x DDI port |
Ordering Information
| EmNANO-a56M0-210HA | AMD GX-210HA DC COM Express® Mini Type 10 module with 2GB memory soldered on CPU module |
|---|
Accessories
Optional Accessories
| HS-56M0-F1 | Heat spreader 84x55x11mm |
|---|---|
| HS-56M0-C1 | Heat sink with FAN 84x55x32.5mm |
| PBN-9007 | COM Express® Mini Type 10 carrier board |
| CBK-05-9007-00 | PBN-9007 cable kit 1 x USB cable 1 x Serial port cable 1 x SATA cable 1 x SATA Power cable 1 x PS/2 cable |
