18.5" Fanless Medical Infotainment Terminal


18.5" Fanless Medical Infotainment Terminal
  • Flush Front Bezel ID Design
  • ARM Quad-Core Cortex-A17 CPU 1.8GHz, Android-based
  • 18.5” LCD with 10-point Projected Capacitive Multi-Touch
  • Applicable for Bedside Infotainment, Self-registration
  • IEC & EN 60601-1 (Edition 3.1) and IEC & EN 60601-1-2 (Edition 4th) certified
  • Ventless Design, Water-proof, Dust Resistant
  • Patient Identification Through Integrated RFID & NFC, Barcode Scanner and Smart Card Reader
  • Light bar indicator for incoming call, reading light or nurse call alarm (optional)
  • Add To Compare


    CPU ARM Quad-Core Cortex-A17 CPU 1.8GHz, Android-based
    GPU Mali-T764
    Memory 2GB DDR3L memory soldered on board
    Storage 16GB eMMC Flash soldered on board

    Peripherals and Devices

    Camera 1 x 720p HD front-facing CCD camera
    WLAN & Bluetooth 1 x WLAN 802.11 a/b/g/n & Bluetooth 4.0 + BLE
    RFID & NFC 1 x 13.56MHz RFID & NFC reader with ISO 14443A/14443B/15693 support (optional)
    Smart Card Reader 1 x Smart Card Reader slot
    Barcode Scanner 1 x 1D/2D Barcode Scanner (optional)
    Phone 1 x VoIP phone blower (optional)
    Remote Controller 1 x wired remote controller with VoIP phone and function-key keypad (optional)

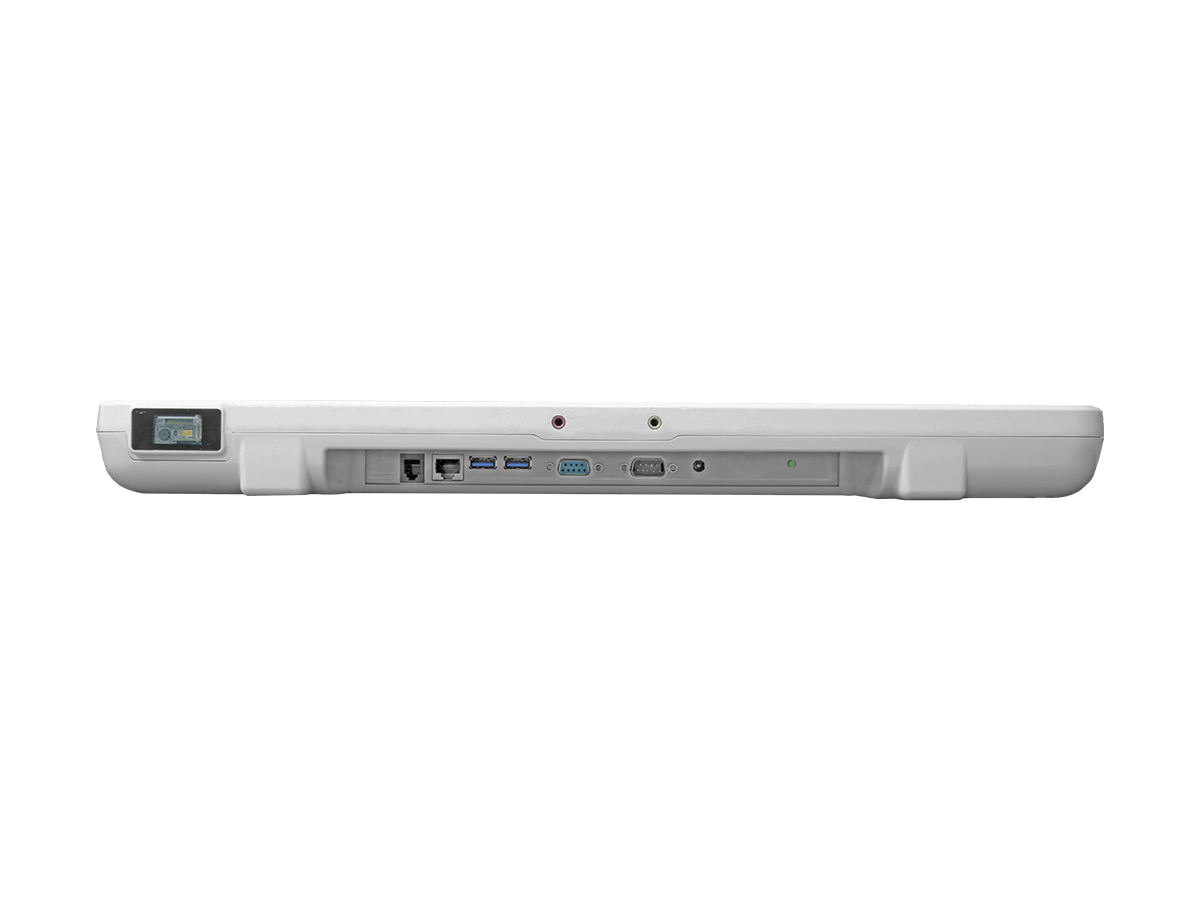

    I/O Interface

    Audio 2 x 3W speakers, 1 x built-in microphone
    1 x Mic-in, 1 x speaker-out on bottom Line
    LAN 2 x RJ-45 GbE connectors
    Serial Port 1 x RS-232 port on bottom Line (DB-9 connector)
    USB Port 3 x USB 2.0 ports
    1 x Micro USB 2.0 port
    SD Slot 1 x SD card slot (Max. 32GB)
    HDMI 1 x HDMI in port (optional)

    Touch Screen

    Type 10-point Projected Capacitive Multi-Touch (Flushmounted)
    Light Transparency 80% (typ.)

    LCD Display

    Size/Type 18.5" TFT color LCD
    Max. Resolution 1366 x 768 (WXGA) with 16.7M colors
    Luminance 250 nits (typ.)
    Contrast Ratio 1000 : 1 (typ.)
    Backlight Type LED
    View Angle (U/D/R/L) 80°/80°/85°/85° (typ.)

    Button & Indicator

    Button 1 x Power on/off button
    1 x Home button
    1 x Volume up button
    1 x Volume down buton
    1 x LCD on/off button
    1 x Channel up button
    1 x Channel down button
    1 x Phone on/off button
    1 x Reset button
    Indicator 1 x Light bar indicator for incoming call, reading light or/and nurse call alarm (optional)

    Power Requirement

    Adapter Input 100 ~ 240VAC (Full Range)
    Adapter Output DC 12~24V, 3.25A, 65W (Max.) with medical certificate

    OS Support

    Android™ 5.1.1 / Android™ 7.1

    Ordering Information

    M1861 18.5” fanless ARM Quad-Core Cortex-A17 CPU 1.8GHz, Medical PC with flush-mounted projected
    capacitive multi-touch screen

    Mechanical & Environmental

    Operating Temp. 0 ~ 40°C (32 ~ 104°F)
    Storage Temp. -20 ~ 60°C (-4 ~ 140°F)
    Operating Humidity 10 ~ 95% @ 45ºC (non-condensing)
    Dimensions (W x H x D) 499.7 x 336.4 x 45.3 mm (19.67" x 13.24" x 1.78")
    Net Weight 3.9 kg (8.59 lb)
    Vibration 1 Grms/ 5 ~ 500Hz/ random operation
    Shock 10G/peak (11ms)
    Mounting VESA-100 compatible (M6)
    IP Rating Compliance design with IP65 (front touch panel)
    Operational Altitude Below 2000m
    Regulatory CE, FCC Part 18 Subpart C
    IEC & EN 60601-1 Safety (Edition 3.1), IEC & EN 60601-1-2 EMC (Edition 4th)

    Standard Accessories

    • PAC-M065W
      65W medical-grade AC/DC adapter kit

    Optional Accessories

    • Phone-1858
      VoIP phone with RJ-11 cable
    • Remote Controller-1861
      Wired remote controller with VoIP phone and function-key keypad
    • ARM-Kits
      VESA-75/100 medical arms

    Optional Configuration (CTOS* Kit) (Not Sold Separately)

    • RFID & NFC-1860
      RFID & NFC module kit
    • BarC-1860
      Barcode scanner module kit
