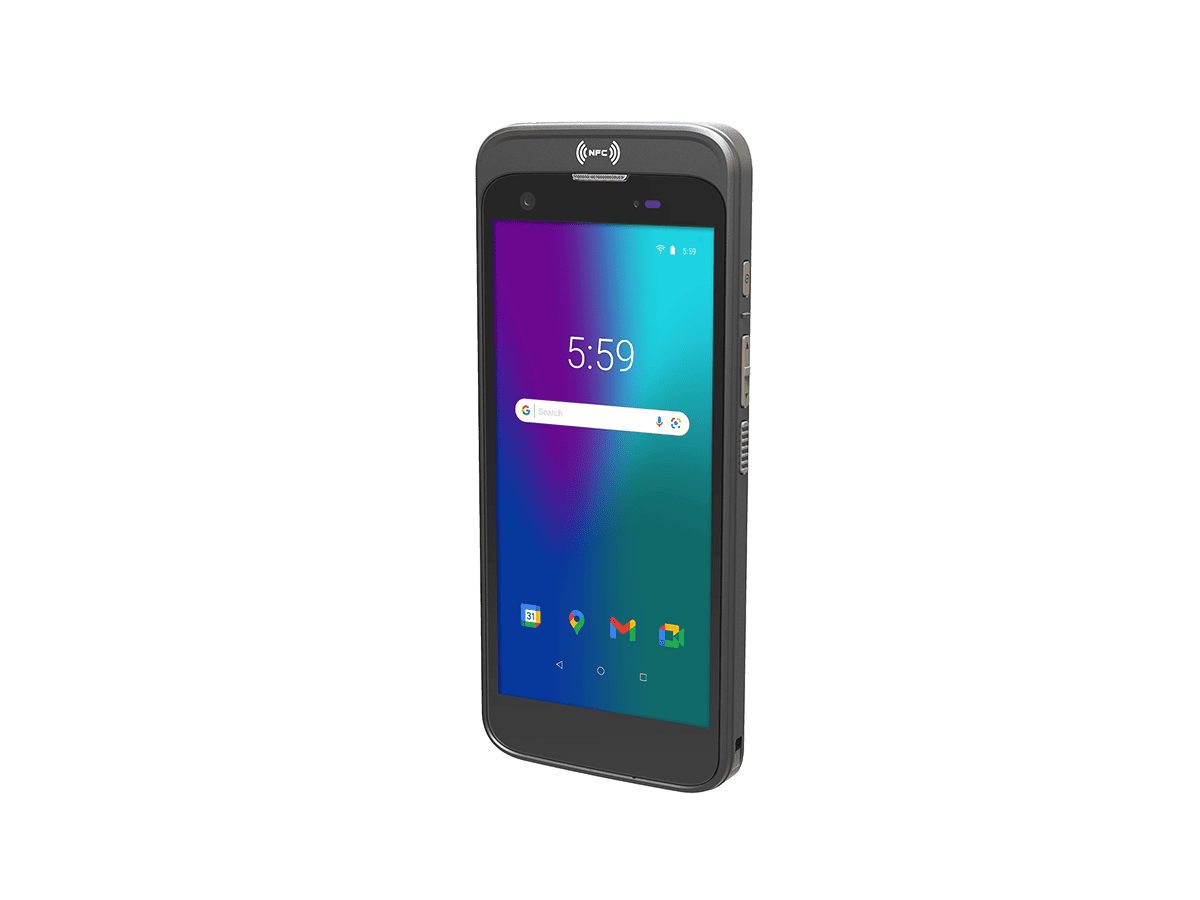

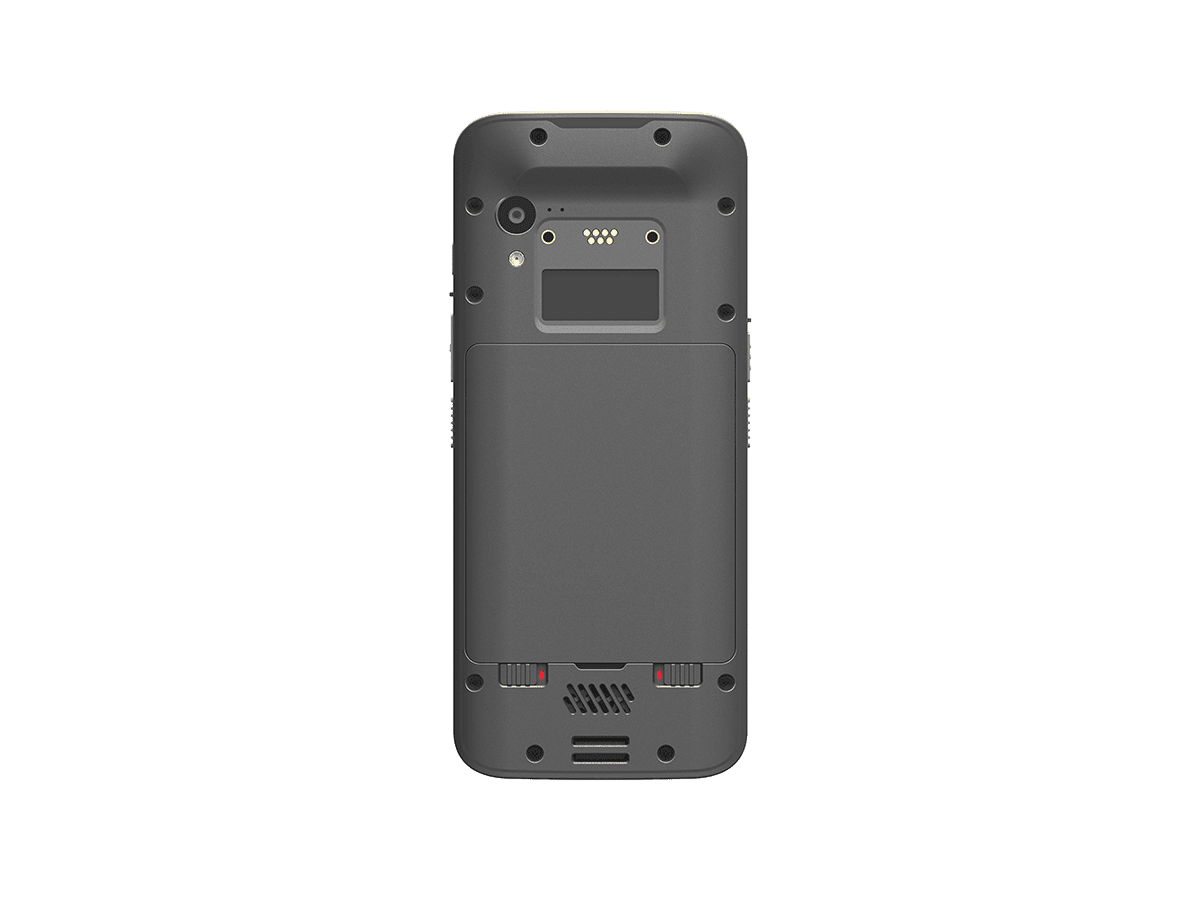

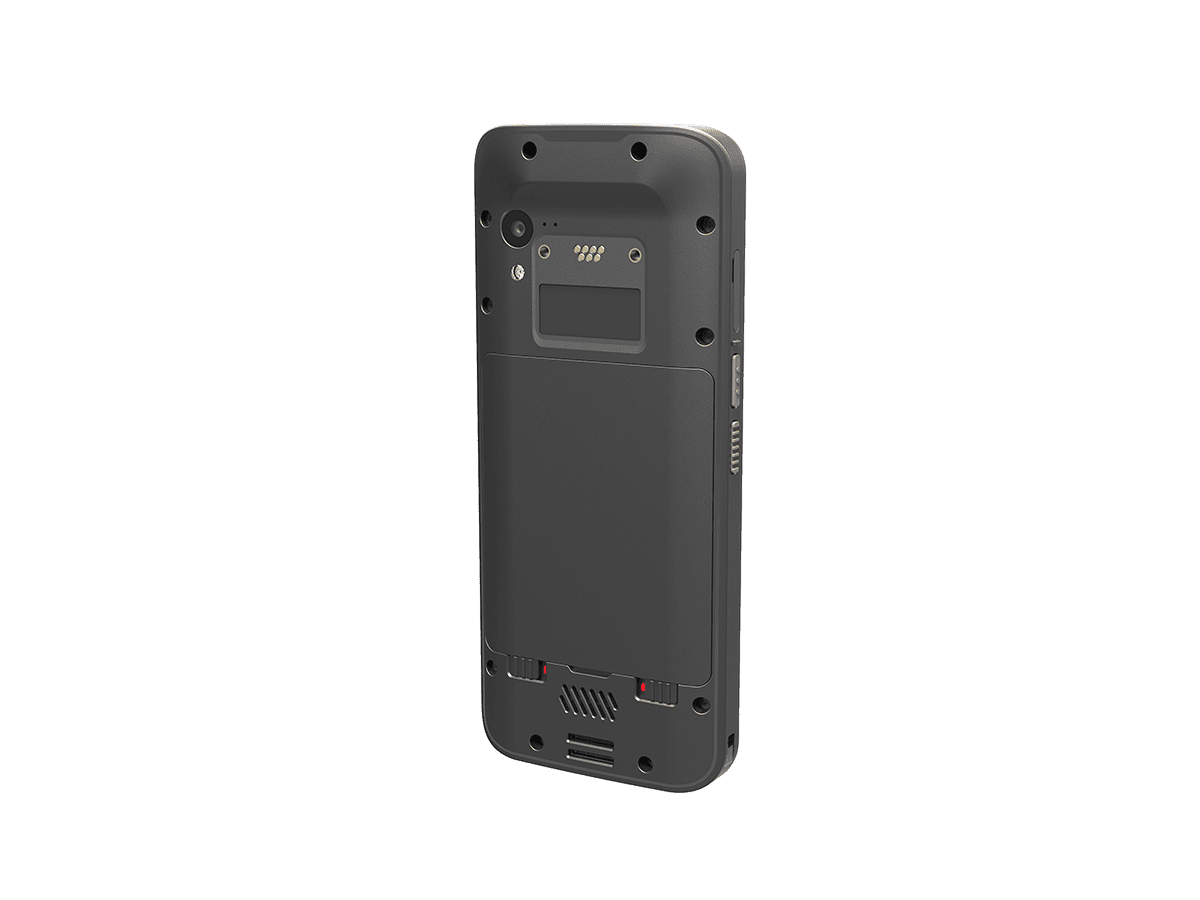

PD601
Appareil mobile durci 6"
Nouveauté
PD601
Appareil mobile durci 6"
Nouveauté
Caractéristiques
- MediaTek MT8781 Octa-core (2x Cortex A76 2.2GHz + 6x Cortex A55 2.0GHz)
- Prise en charge d’Android™ 13
- Écran IPS TFT LCD 5.99" 720 x 1440 (FHD)
- Prend en charge le toucher à l’écran et les applications de paiement
- Meilleure connectivité Wi-Fi en itinérance, adaptée aux environnements d’entrepôt
- Batterie remplaçable à chaud
- IP67 étanche à l’eau et à la poussière, 1.5M et 1.8M avec bumper
- Certifié GMS
Spécification
System |
|
| CPU | MediaTek MT8781 (2*A76 2.2GHz+6*A55 2.0GHz) |
|---|---|
| OS | Android 13 |
| Memory | 4GB RAM + 64GB Flash |
LCD Display |
|
| Size/Type | 6” IPS TFT LCD |
| Resolution | 720*1440 |
| Brightness(cd/m2) | > 550cd/m2 |
Power Supply |
|
| Battery | Main 5000mAh 2nd 180mAh (Hot Swappable) |
| Charging | USB Type-C, Pogo pin (Fast Charging) |
| Power Input | 9V/2A (Fast Charging) or 5V/3A (PD2.0/ PE2.0) |
Wireless |
|
| WWAN | 4G LTE (FDD): Bands 1, 2, 3, 4, 5, 7, 8, 12, 17, 19,
20, 28A, 28B LTE (TDD): Bands 34, 38, 39, 40, 41 4G LTE (FDD): Bands 1, 2, 3, 4, 5, 7, 8, 12, 17, 19, 20, 28A, 28B 3G WCDMA/UMTS/HSPA+: B1, 2, 5, 8 2G GSM/GPRS/EDGE (850/900/1800/1900 MHz) |
| WLAN | (Wi-Fi 5) 802.11 a/b/g/n/ac |
| NFC | ISO/IEC14443A/B; ISO/IEC15693; Tags T1/2/3/4/5 |
| Bluetooth | BT5.2 |
Peripherals and Devices |
|
| Camera | Front: 8Mpxl (FF) Rear: 13M AF(Default)/21M(Optional) with Flashlight |
| Sensor | Accelerometer (G-sensor) Magnetometer Gyroscope Ambient light sensor |
Peripherals and Devices |
|
| Navigation | AGPS/GPS/Glonass/Beidou/Galileo |
|---|---|
| Barcode Scanner | Zebra SE4710 |
| Audio & Vibrator | 2 x built-in microphone 1 x built-in speaker (2W) 1 x vibrator |
| OTG | Support |
I/O Interface |
|
| SD Slot | 1 x microSD card slot (max 512GB) |
| SIM Socket (Dual slot) | 2 x Nano SIM |
| USB Port | 1 x USB Type-C |
| HDMI | -- |
Durability Features |
|
| IP-67 certified | Support |
| Drop-resistance | 1.5m (4.92ft.) |
Qualification |
|
| Certification | CE, FCC, UKCA, CB, NCC & CCC |
Mechanical & Environmental |
|
| Operating Temp. | -10°C ~ 50°C (14°F ~ 122°F) |
| Storage Temp. | -30°C ~ 70°C (-22°F ~ 158°F) |
| Relative Humidity | 10% ~ 90% RH |
| Dimensions (W x D x H) | 184 x 81 x 15.8mm |
| Weight | 275 g |
Accessoires
Accessories
| Power Charger | 5V/9V; 2A (18W max) |
|---|---|
| Data cable | USBA to Type-C 1000mm |
| E- User Manual | 1 |
| Charging cradle (1+1) | Phone+battery cell |
| Ejector Pin | 1 |
| Phone Case & Straps (Optional) | 0 |
Optional Accessories
-
6910306000030M
PD601 2 Bay Cralde 100W US Power charger w connect kit for standard R1.0 -
6910306000040M
PD601 2 Bay Cradle 100W EU Power charger w connect kit for standard R1.0
