SM-181C
Écran industriel 18.5" True-Flat, tactile capacitif projecté 10 points
SM-181C Panel-PCs_Monitors
Écran industriel 18.5" True-Flat, tactile capacitif projecté 10 points
Caractéristiques
- Écran LCD FHD 18.5 pouces avec rétroéclairage LED et face avant parfaitement lisse certifiée IP66
- Structure en alliage d'aluminium pour plus de légèreté, une stabilité accrue et une meilleure dissipation thermique
- Écran tactile industriel capacitif projeté 10 touches
- Entrée DC 12V, connecteur Phoenix verrouillable
- Fixation standard VESA et encastrable en panneau
Spécification
LCD Display
| Size/Type | 18.5 inches TFT LCD Panel |
|---|---|
| Max. Resolution | 1920(H) x 1080(V) |
| Ratio | 16:9 |
| Luminance | 350 nits |
| Contrast Ratio | 1000:1 |
| Backlight Type | LED |
| Backlight Lifetime | 50,000 Hrs |
| View Angle | CR ≥ 10; θx 170°(H)/ θy 170°(V) |
Touch Screen
| Touch Type | Industrial-grade 10-point P-cap multi-touch |
|---|---|
| Touch | 35,000,000 times |
Power System
| Power Input | 12V DC-IN by 2-pin Phoenix connector |
|---|

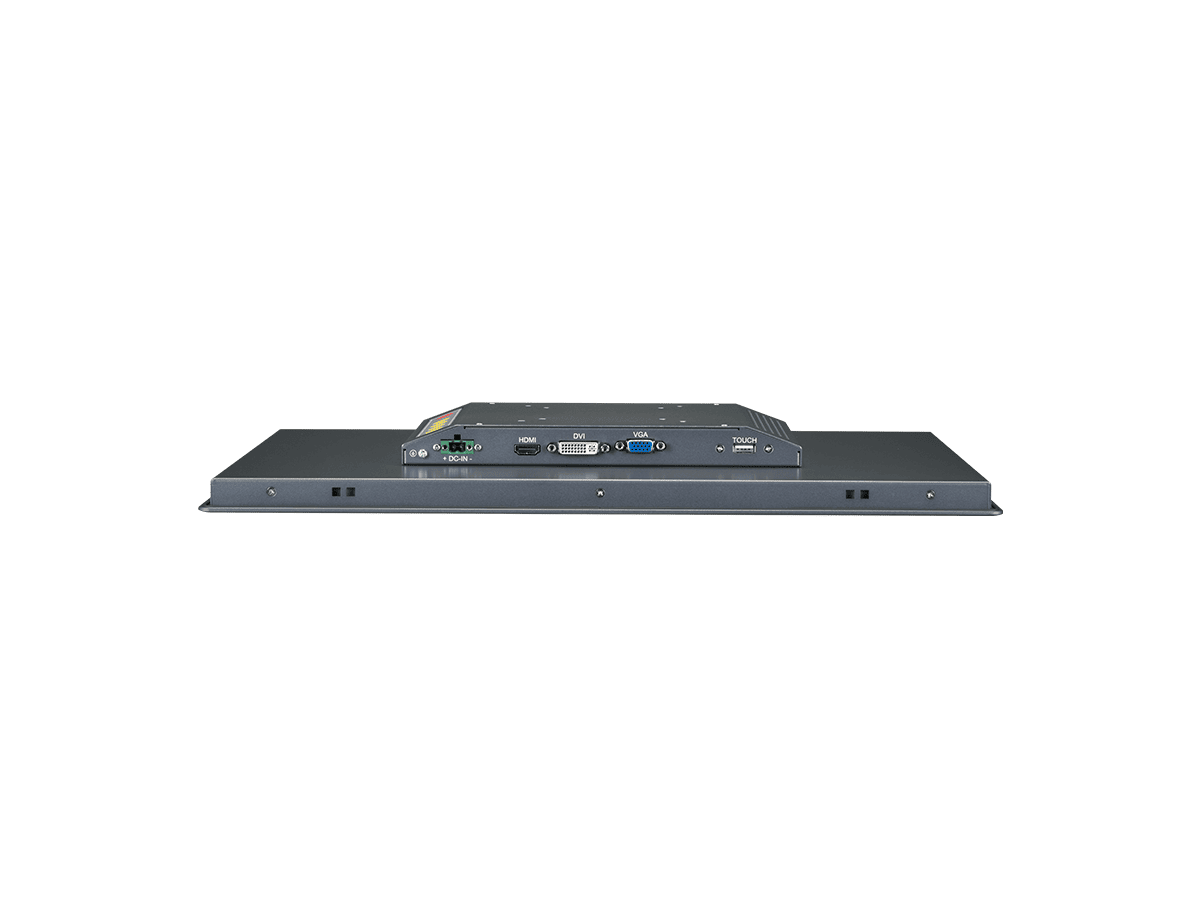

External I/O
| USB Ports | 1 x USB for Touch |
|---|---|
| Video Ports | 1 x HDMI 1 x VGA 1 x DVI |
Mechanical
| Front Panel | Aluminum alloy |
|---|---|
| Rear Cover | SECC |
| Mounting | Panel Mount, Wall and VESA-mount |
| Dimensions (W x H x D) | 470.5 x 295.6 x 45 mm |
| Cut out | 457.5 x 282.6 mm |
| Weight (Net) | 4.5 Kg |
| Ingress Protection | Front panel IP66 |

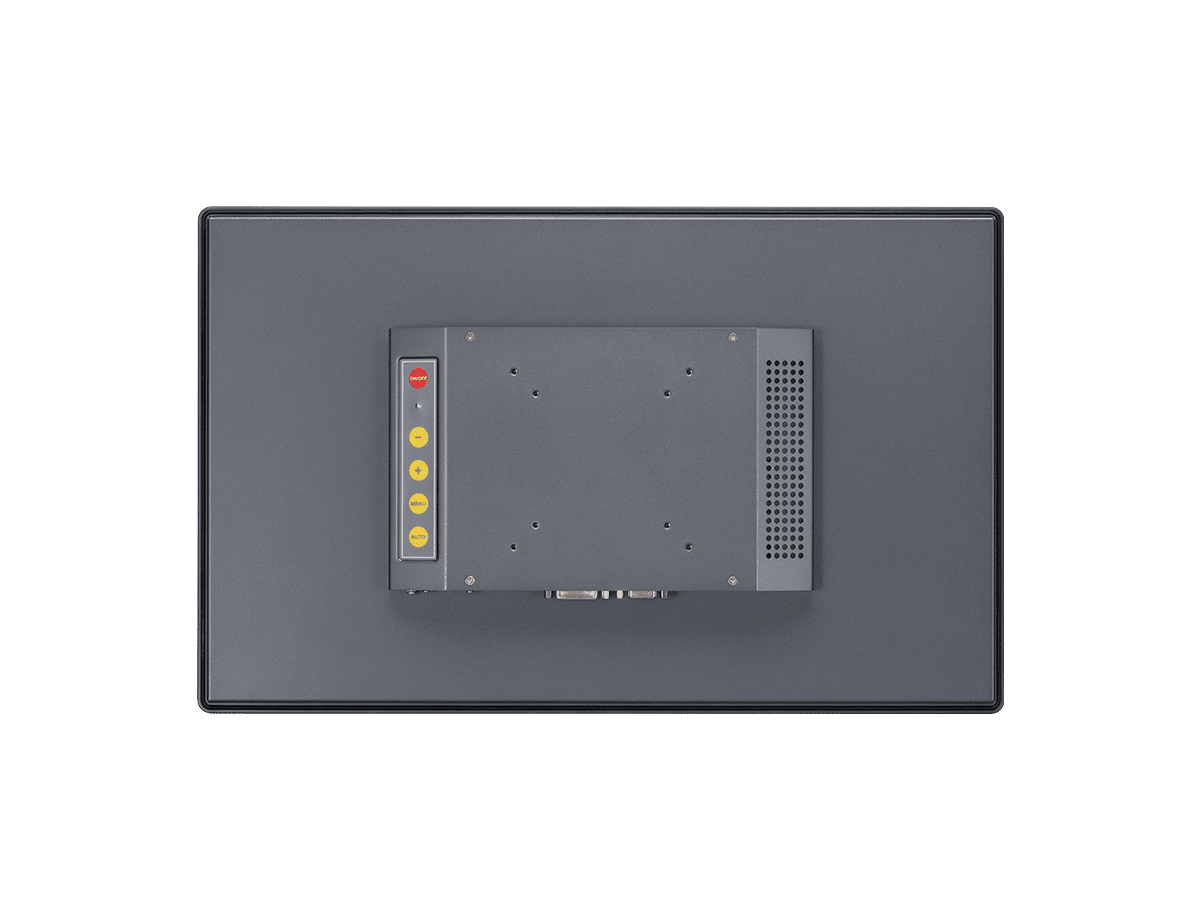

OSD Menu
| ON / OFF | Power On/Off |
|---|---|
| MENU | Menu / Confirm |
| Auto | Signal input swithch / Quit |
| + | Up / Increase |
| - | Down / Decrease |
Environmental
| Operating Temp. | -10 ~ 60°C (14 ~ 140°F), ambient w/ air flow |
|---|---|
| Storage Temp. | -40 ~ 70°C (-40 ~ 158°F) |
| Operating Humidity | 5 ~ 95% @ 40°C (non-condensing) |
| Vibration | 5 ~ 500Hz, 2Grms operation |
| Shock | Operation: 10G@11ms Non-operation: 30G@11ms |
Packing List
| Panel Hook (4pcs in 1 Package) | 2 packages |
|---|---|
| 2-pin DC-in Phoenix connector | 1 pcs |
| VGA Cable | 1 pcs |
| USB Cable | 1 pcs |
| Screw package for VESA | 1 package |
Ordering Information
| SM-181C | 18.5” (16:9) Industrial Touch Monitor, 10-point P-cap multi-touch |
|---|---|
| PAC-60W-FSP-SPA-US R1.0 | AC/DC Adapter Kit (w/ UKCA), 12V, 60W, 2 WIRE w/ US POWER CORD |
| PAC-60W-FSP-SPA-EU R1.0 | AC/DC Adapter Kit (w/ UKCA), 12V, 60W, 2 WIRE w/ EU POWER CORD |
| PAC-60W-FSP-SPA-UK R1.0 | AC/DC Adapter Kit (w/ UKCA), 12V, 60W, 2 WIRE w/ UK POWER CORD |
| PAC-60W-FSP-SPA-IN R1.0 | AC/DC Adapter Kit (w/ UKCA), 12V, 60W, 2 WIRE w/ IN POWER CORD |
| PAC-60W-FSP-SPA-JP R1.0 | AC/DC Adapter Kit (w/ UKCA), 12V, 60W, 2 WIRE w/ JP POWER CORD |
