G-M1A021
RS-232 / 422 / 485 Converters
新規
G-M1A021
RS-232 / 422 / 485 Converters
新規
Features
- USB to RS-232 / 422 / 485 Converter
- Plastic / Aluminum Housing
- Isolation Protection 2500 VDC
- Serial Interface RS-232 /422 / 485
仕様
General |
|
| Housing Option | Plastic housing / Aluminum housing |
|---|---|
| USB | USB 2.0 |
| Serial Interface | The RS-232, RS-422 and RS-485 cannot be used simultaneously - TXD, RXD, GND - TX+, TX-, RX+, RX- - TX+(DATA+), TX-(DATA-) |
| RS-422/485 Transmission Distance | Max.1200 m at 9.6 kbps; Max. 400m at 115.2 kbps |
| Connection | RS-232/422/485: Removable 8-Pin Terminal Block USB: Type B |
| Speed | From 300 to 115.2 k |
| Isolation Protection | 2500 VDC |
| Input Voltage Range | +5 V DC from USB |
| Driver Supported | Windows 98, 98SE, ME, 2000, Server 2003, XP and Server 2008, Windows 7 32,64-bit, Windows XP and XP 64-bit, Windows Vista and Vista 64-bit, Windows XP Embedded, Windows CE 4.2, 5.0 and 6.0 Linux 2.4 and greate |
MTBF (Conditions: Temperature: 25ºC) |
|
| Failure Rate | 117.103580 (FITs) |
| MTBF | 8,539,449 (Hours) |
Environmental |
|
| Operating Temp. | -10 ~ 70ºC (14 ~ 158ºF) |
|---|---|
| Storage Temp. | -25 ~ 85ºC (-13 ~ 185ºF) |
| Operating Humidity | 5% to 95% RH (noncondensing) |
Mechanical |
|
| Casing | PC |
| Flammability | UL-94 Fire-proof level |
| Dimension (W x H x D) | 100 x 21 x 107mm |

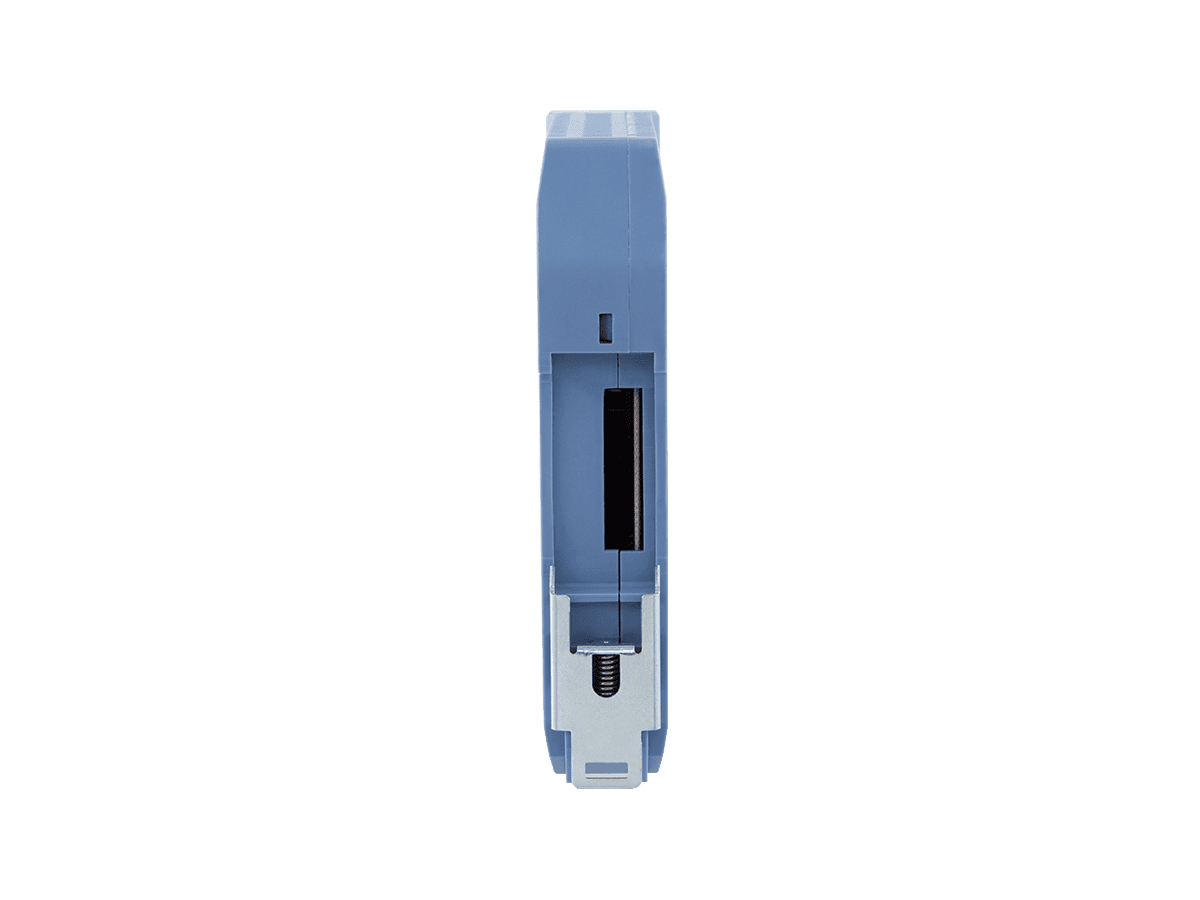

| Installation | DIN-Rail |
Port Pin Definition |
|
| RS-485 | TX+(DATA+) and TX-(DATA-) |
| RS-422 | TX+(DATA+), TX-(DATA-), RX+ and RX |
| RS-232 | TXD, RXD and GND |
