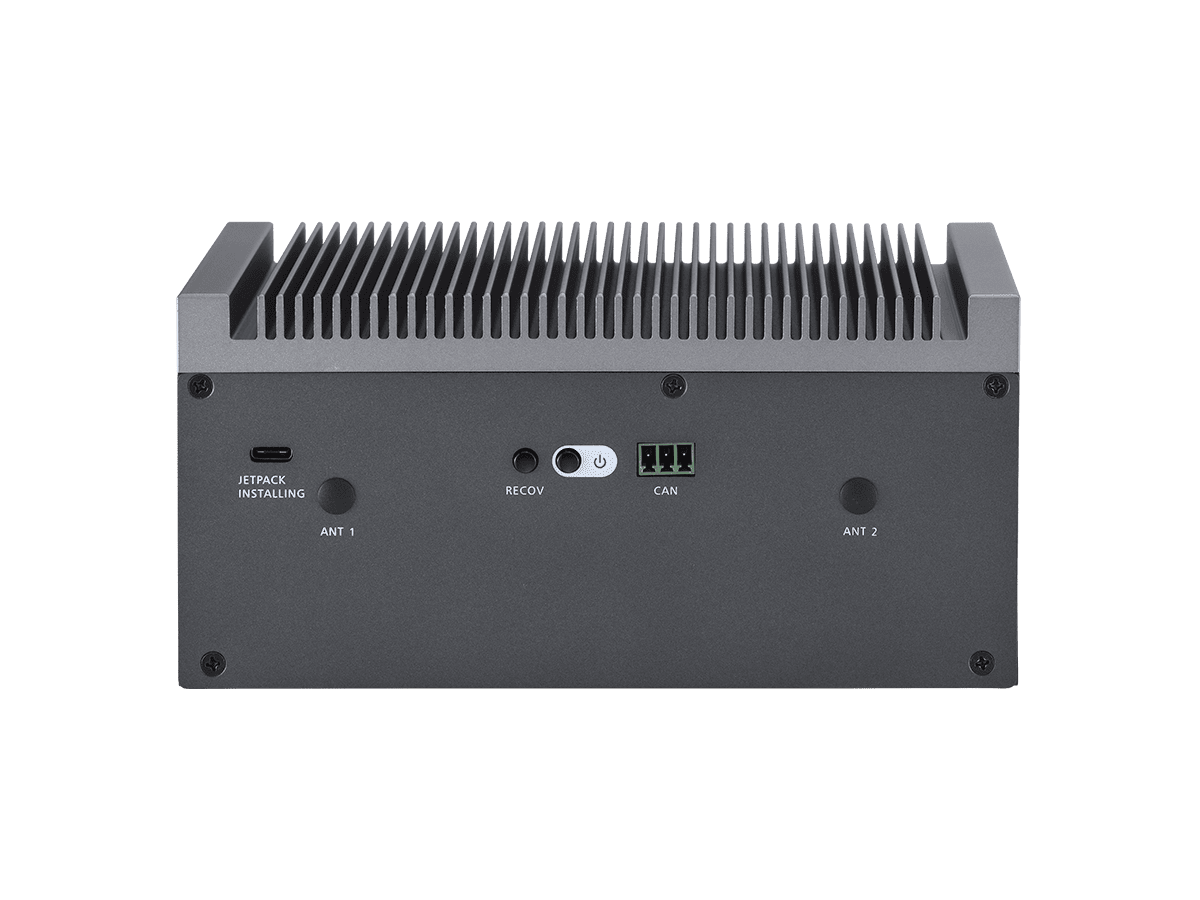

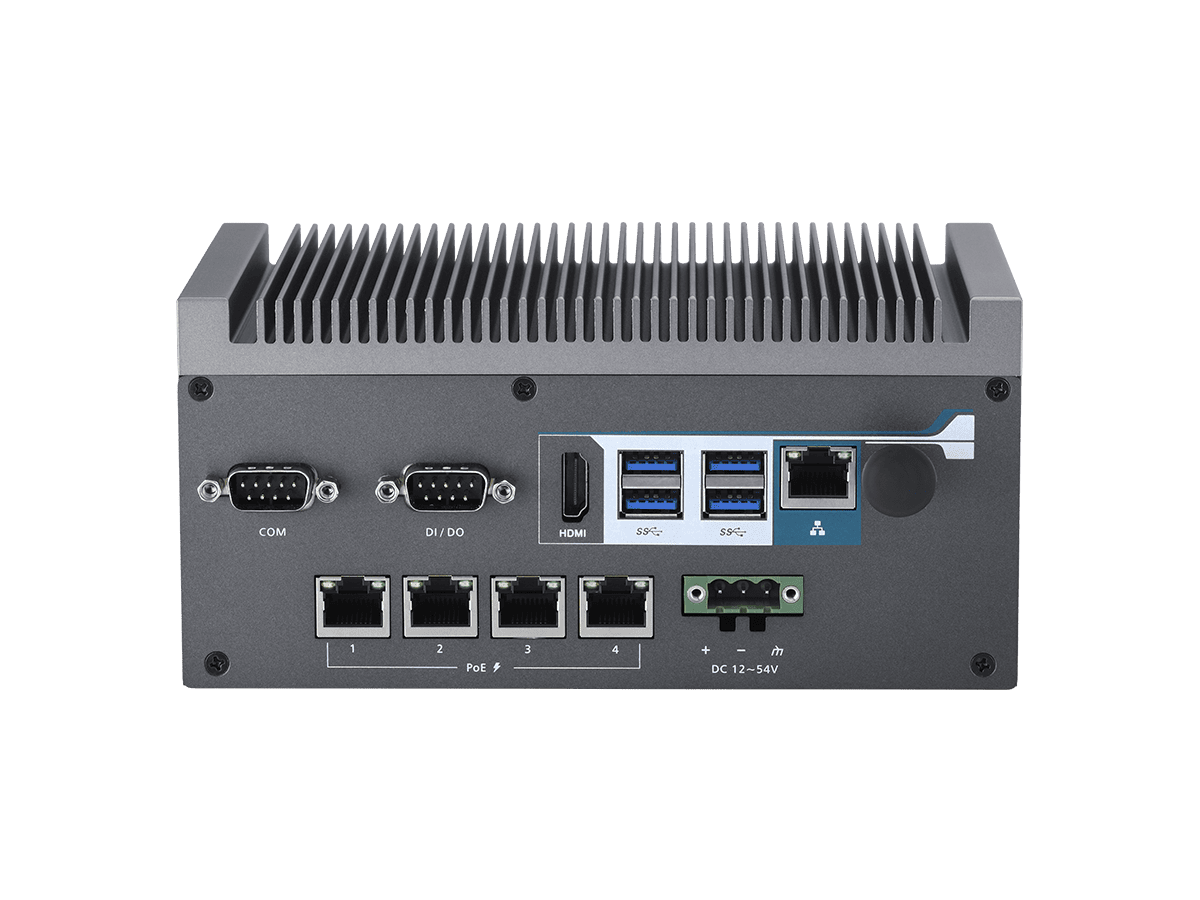

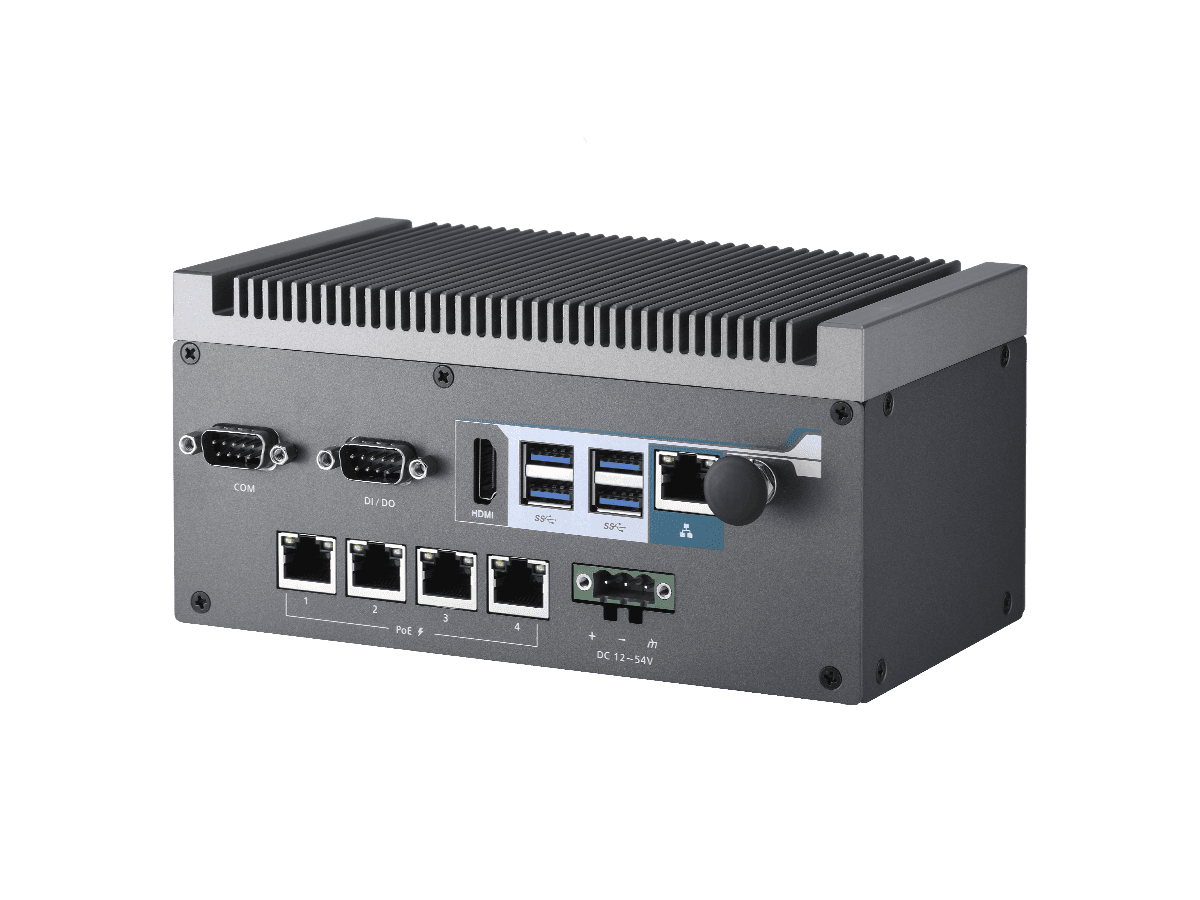

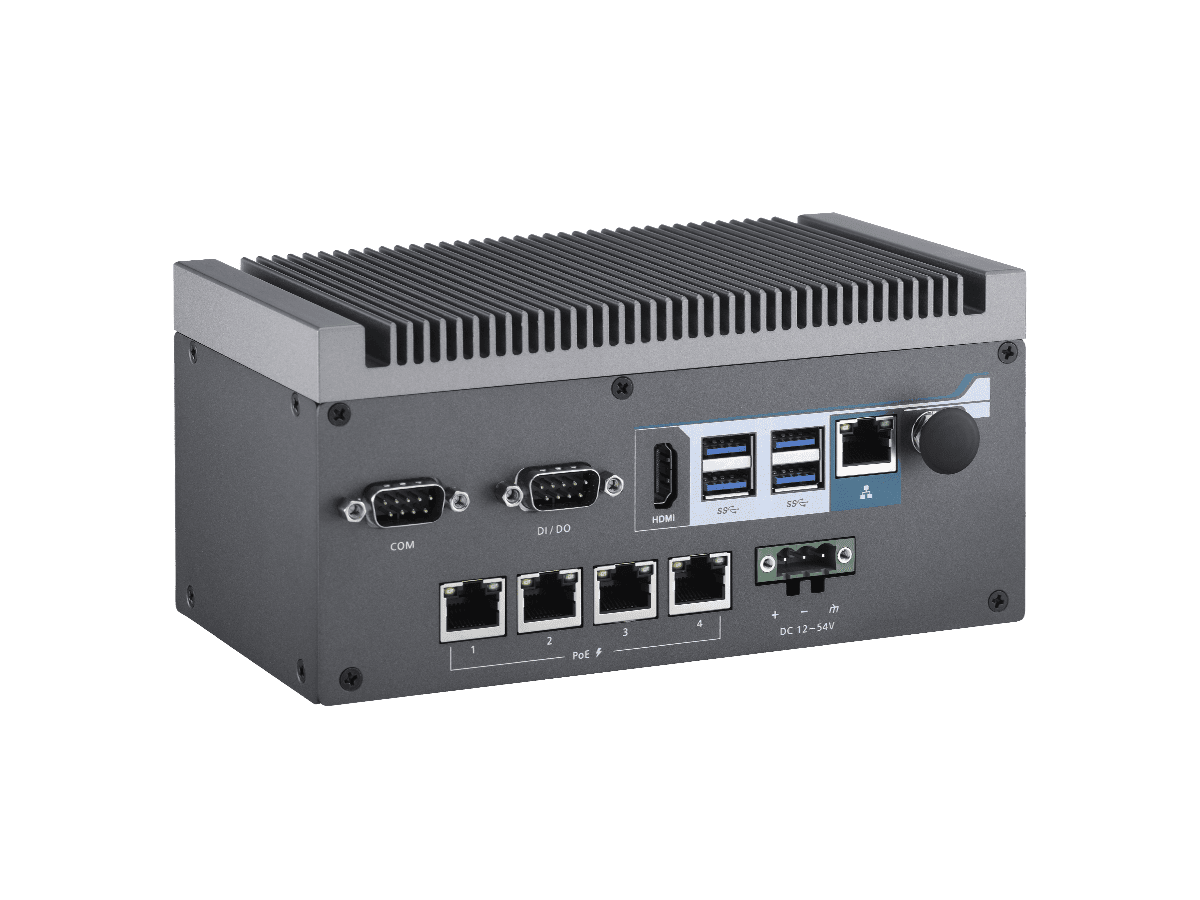

AEC-4201
NVIDIA® Jetson Orin™ NX AI 嵌入式电脑
New
规格表
System |
|
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit (AEC-4201-8) 8-core Arm® Cortex®-A78AE v8.2 64-bit (AEC-4201-16) |
|---|---|
| Memory | 8GB LPDDR5 DRAM (AEC-4201-8) 16GB LPDDR5 DRAM (AEC-4201-16) |
| GPU | 1024-core NVIDIA Ampere™ architecture GPU with 32 Tensor Cores |
| Storage | 1 x M.2 M-Key (2280), 128GB NVMe SSD (default), optional up to 2TB |
I/O |
|
| Serial Port | 1 x RS-232/422/485 port |
| GPIO | 1 x DB9 for 6-bit GPIO |
| LAN | 1 x GbE port |
| USB Port | 1 x USB 2.0 port w/ USB Type C recovery 4 x USB 3.2 Gen1 ports w/ Type A connector |
| Expansion | 1 x M.2 M-key 2280 Socket (for NVMe SSD) 1 x M.2 E-key 2230 Socket (for Wi-Fi module) 1 x M.2 B-key 3042/3052 Socket (for 4G/5G module) 1 x SIM slot 1 x CAN 2.0 (3-pin terminal block) |
| Video Port | 1 x HDMI 2.0, 3840 x 2160 4K 30Hz |
| PoE | 4 x GbE PoE + LAN w / RJ-45 connector |
Environmental |
|
| Operating Temp. | -20 ~ 65°C (-4 ~ 149°F), with 0.63 m/s air flow (TDP: 25W) |
| Storage Temp. | -40 ~ 85°C (-40 ~ 185°F) |
| Operating Humidity | 5 ~ 95% (non-condensing) |
| Relative Humidity | 95% @ 50°C |
| Vibration/Shock | 2Grms at 5 ~500Hz Random mode, 1hr/axis IEC 60068-2-64 |
Qualification |
|
| Certification | CE, FCC, EN50155(TBA), EN50121-3-2(TBA) |
|---|---|
Power Requirement |
|
| Power Input | DC 12~54V |
Mechanical |
|
| Button | 1 x Power Button, 1 x Force Recovery Button |
| Antenna | Antenna hole for Wi-Fi |
| Mounting | Wallmount |
| Weight | 2.0Kg |
| Dimensions (W x D x H) |
180 x 96(+) x 85.9 mm (7.09” x 3.78” x 3.38”) |
OS Support |
|
| OS | Ubuntu 22.04 / NVIDIA JetPack 6.2 |
Ordering Information |
|
| AEC-4201-08 | NVIDIA Jetson Module Orin NX 8GB, 1 x COM, 3 x DI/3 x DO, 1 x LAN, 4 x PoE, 4G/5G supported, 117 TOPS |
| AEC-4201-16 | NVIDIA Jetson Module Orin NX 16GB, 1 x COM, 3 x DI/3 x DO, 1 x LAN, 4 x PoE, 4G/5G supported, 157 TOPS |
