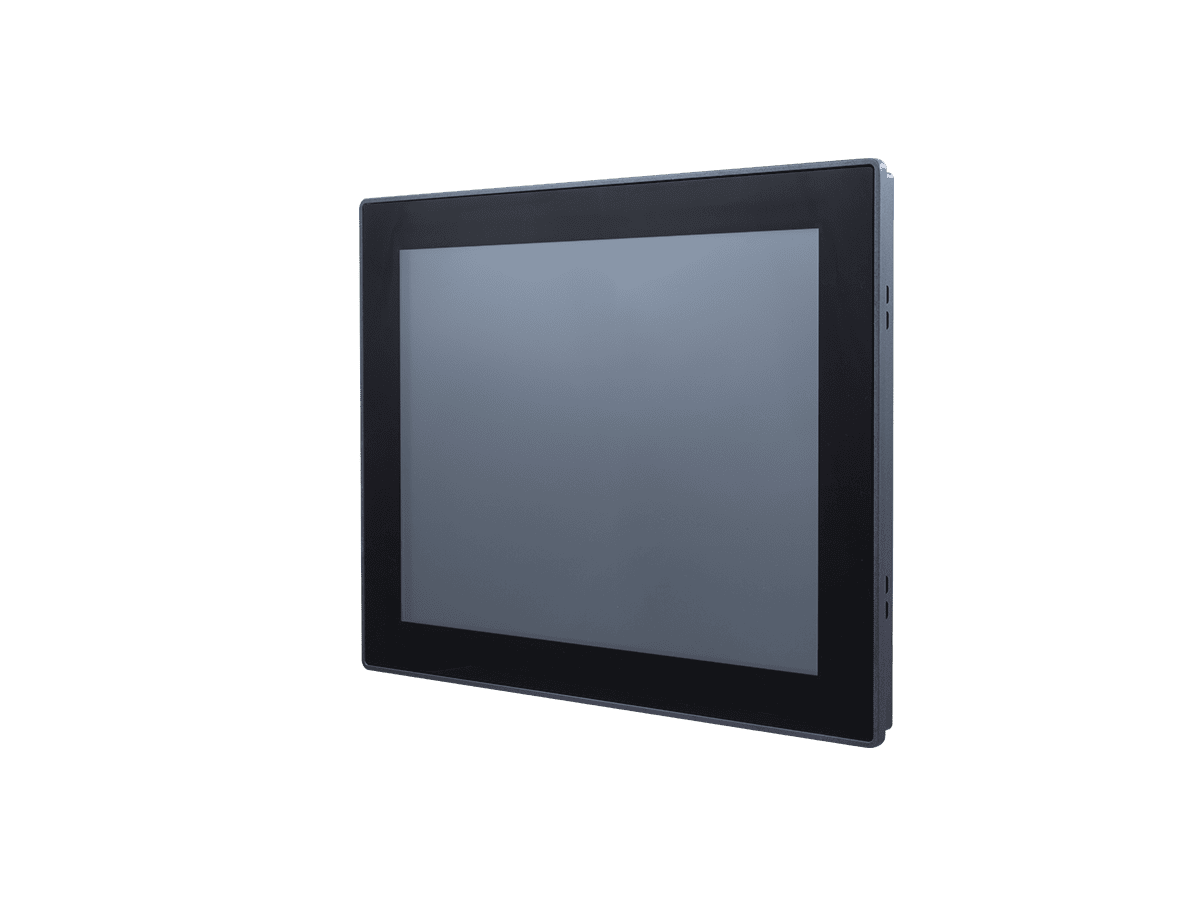

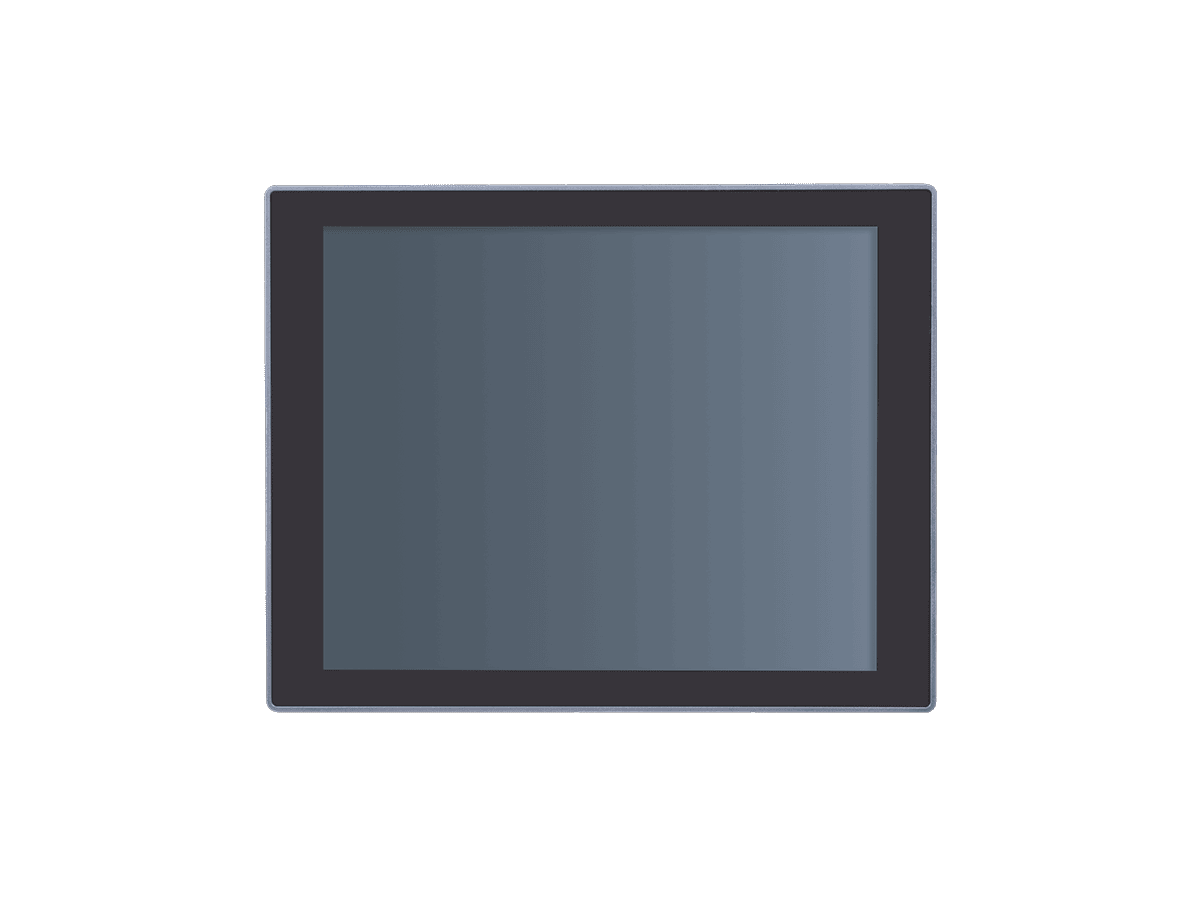

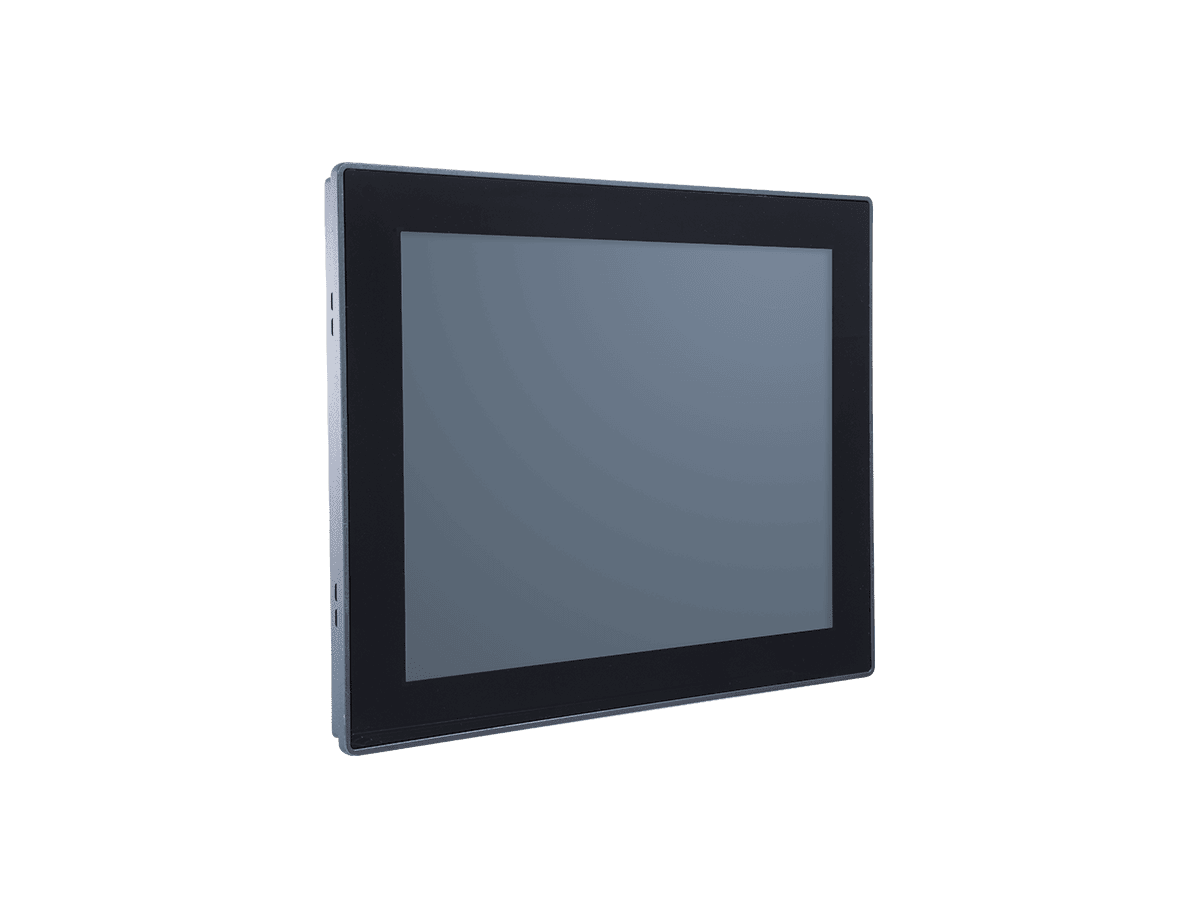

SP-120R-1J64
Industrial Fanless 12.1" Panel PC, w/ Intel® Elkhart Lake J6412 Processor
SP-120R-1J64
Industrial Fanless 12.1" Panel PC, w/ Intel® Elkhart Lake J6412 Processor
Features
- Intel® Celeron® J6412 CPU Elkhart Lake (2.0 GHz/2.6GHz)
- 12.1" LCD panel with LED backlight, front panel support IP66
- Industrial-grade true-flat 5-wire resistive touch screen
- Support Mini-PCIe/M.2 extension of multiple modules
- Support dual 2.5 GbE LAN
- Support remote ON-OFF
- Grounding protection for product shell
- Support standard VESA and panel mount
规格表
System
| CPU | Intel® Celeron® J6412 CPU Elkhart Lake (2.0GHz/2.6GHz) |
|---|---|
| Memory | 1 x DDR4 2133/2400/3200MHZ SO-DIMM slot, up
to 32GB *CTOS is available |
| Graphics | Intel® UHD Graphics for 10th Gen. Intel® Processors |
| LAN | 2 x Intel® I226-V 2.5GbE controllers |
| Watchdog Timer | 1~255 levels reset |

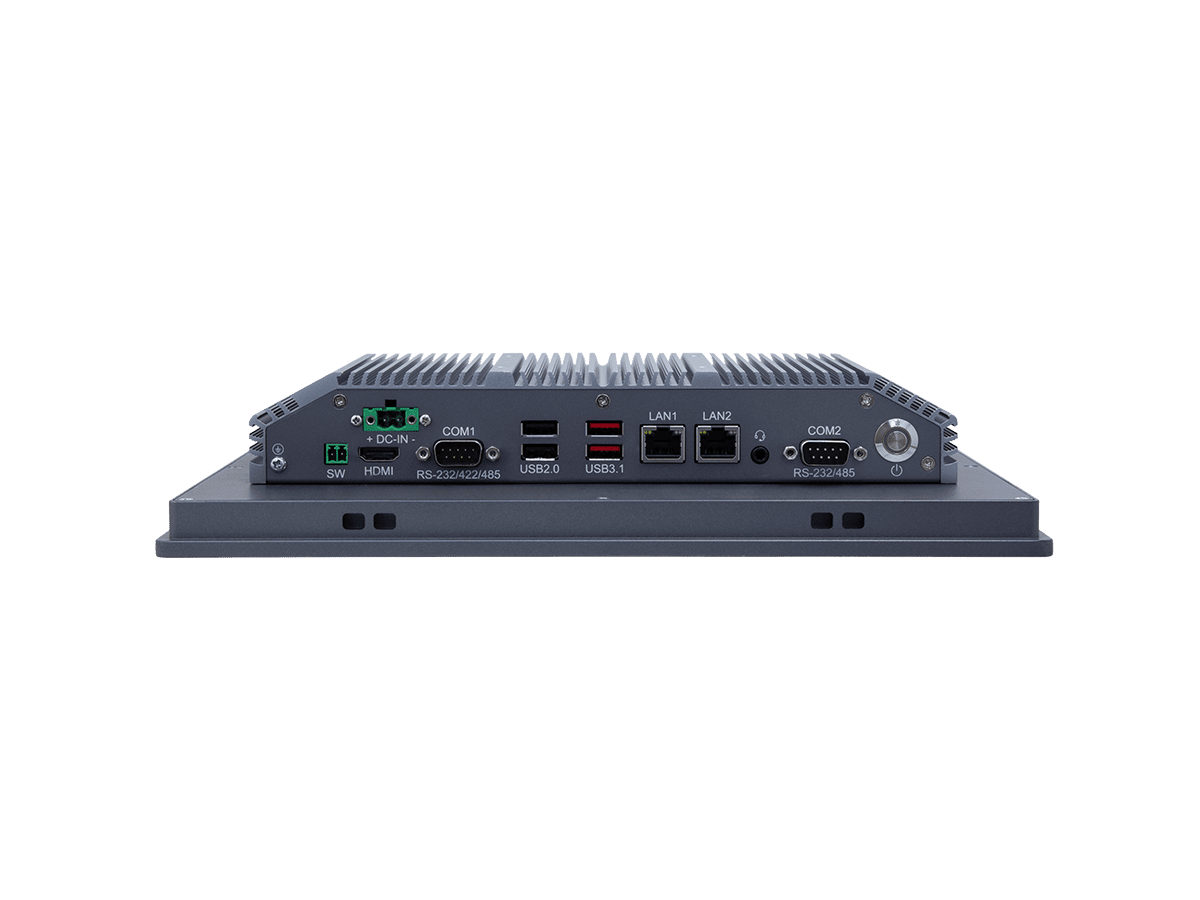

External I/O
| Serial Ports | 1 x RS232/RS422/RS485(COM1) 1 x RS232(default)/RS485(Jumper) |
|---|---|
| USB Ports | 2 x USB2.0, 2 x USB3.1 |
| LAN | 2 x RJ45 |
| Video Ports | 1 x HDMI (up to 4096x2160@60hz) |
| Remote On-Off | 1 x Remote ON-OFF |
Internal I/O
| Expansion | 1 x Mini-PCIe slot (PCIe/ USB2.0 signal supported) 1 x M.2 2230 slot (PCIe/ USB2.0 signal supported) 1 x M.2 2242 slot(SATA signal supported) 1 x SIM socket for 3G/4G 1 x 8bit GPIO 3.3V(jumper)/5V(default) power 2 x RS232 2 x USB2.0-For Touch 1 x SATA3.0/Power 5V for HDD |
|---|
Storage
| Device | 1 x M.2 M Key 2242 Slot (SATA signal) *CTOS is available |
|---|
Audio
| Type | 1 x Audio(Line-out & Mic-in 2 in 1) |
|---|---|
| Speaker | Realtek® ALC888S HD Audio codec 4Ω 3W speaker x2 |
Power System
| Power Input | DC 12~36V 1 x Power Connector (2P Phoenix) |
|---|
LCD Display
| Size / Type | 12.1" TFT LCD Panel |
|---|---|
| Max. Resolution | 1024 x 768 |
| Ratio | 4:3 |
| Luminance | 450 cd/m² |
| Contrast Ratio | 700:1 |
| Backlight | LED Backlight |
| Backlight Lifetime | 50,000 Hrs |
| Touch Screen | Industrial-grade true-flat 5-wire resistive touch screen |
| Touch | 35,000,000 times |
| View Angle (U/D/R/L) | 80°/80°/80°/80° |
Qualification
| Certification | CE, FCC |
|---|
Mechanical
| Mounting Type | Panel mount, Wall mount and VESA-mount (75 x 75mm) |
|---|---|
| Chassis | Aluminum for front Panel and heat-sink, SECC for Rear Cover |
| Dimensions (W x H x D) | 307(W) x 241.6(H) x 60(D)mm |
| Cut out | 299 x 233.6mm |
| Weight | 2.9 kg |
Environmental
| Operating Temp. | -20 ~ 60°C (-4 ~ 140°F), ambient w/ air flow (WT RAM & SSD) |
|---|---|
| Storage Temp. | -40 ~ 70°C (-40~ 158°F) |
| Operating Humidity | 5 ~ 95% (non-condensing) |
| Random Vibration | 5~500Hz, 2Grms operation |
| Sine Vibration | 5~500Hz, 2G Non-operation |
| Shock | 10g 11ms operation, 30g 11ms Non-operation |
Packing List
| SP-120R-1J64 | 1 pcs Panel PC |
|---|---|
| Panel Hook | 4 pcs in 1 package |
| Thermal PAD | 1 pcs for M.2 2242, 1 pcs for Memory |
| 2-pin terminal block | 1 pcs 5mm for Power-input, 1pcs 3.5mm for Remote on-off SW |
| Screw package | 1 pcs |
Ordering Information
| SP-120R-1J64 | Barebone 12.1" (4:3) Panel PC with Intel Celeron Elkhart Lake J6412, R-touch, HDMI*1, USB*4, LAN*2, COM*2, DC12-36V power input |
|---|---|
| SP-120R-1J64-R4S128 | 12.1" (4:3) Panel PC with 4GB RAM & 128GB SSD, Intel Celeron Elkhart Lake J6412, R-touch, HDMI*1, USB*4, LAN*2, COM*2, DC12-36V power input |
| SP-120R-1J64-R8S128 | 12.1" (4:3) Panel PC with 8GB RAM & 128GB SSD, Intel Celeron Elkhart Lake J6412, R-touch, HDMI*1, USB*4, LAN*2, COM*2, DC12-36V power input |
| PAC-60W-FSP-SPA-US R1.0 | AC/DC ADAPTER KIT (W/UKCA), 12V, 60W, 2 WIRE w/ US POWER CORD |
| PAC-60W-FSP-SPA-EU R1.0 | AC/DC ADAPTER KIT (W/UKCA), 12V, 60W, 2 WIRE w/ EU POWER CORD |
| PAC-60W-FSP-SPA-UK R1.0 | AC/DC ADAPTER KIT (W/UKCA),12V, 60W, 2 WIRE w/ UK POWER CORD |
| PAC-60W-FSP-SPA-IN R1.0 | AC/DC ADAPTER KIT (W/UKCA),12V, 60W, 2 WIRE w/ IN POWER CORD |
| PAC-60W-FSP-SPA-JP R1.0 | AC/DC ADAPTER KIT (W/UKCA),12V, 60W, 2 WIRE w/ JP POWER CORD |
