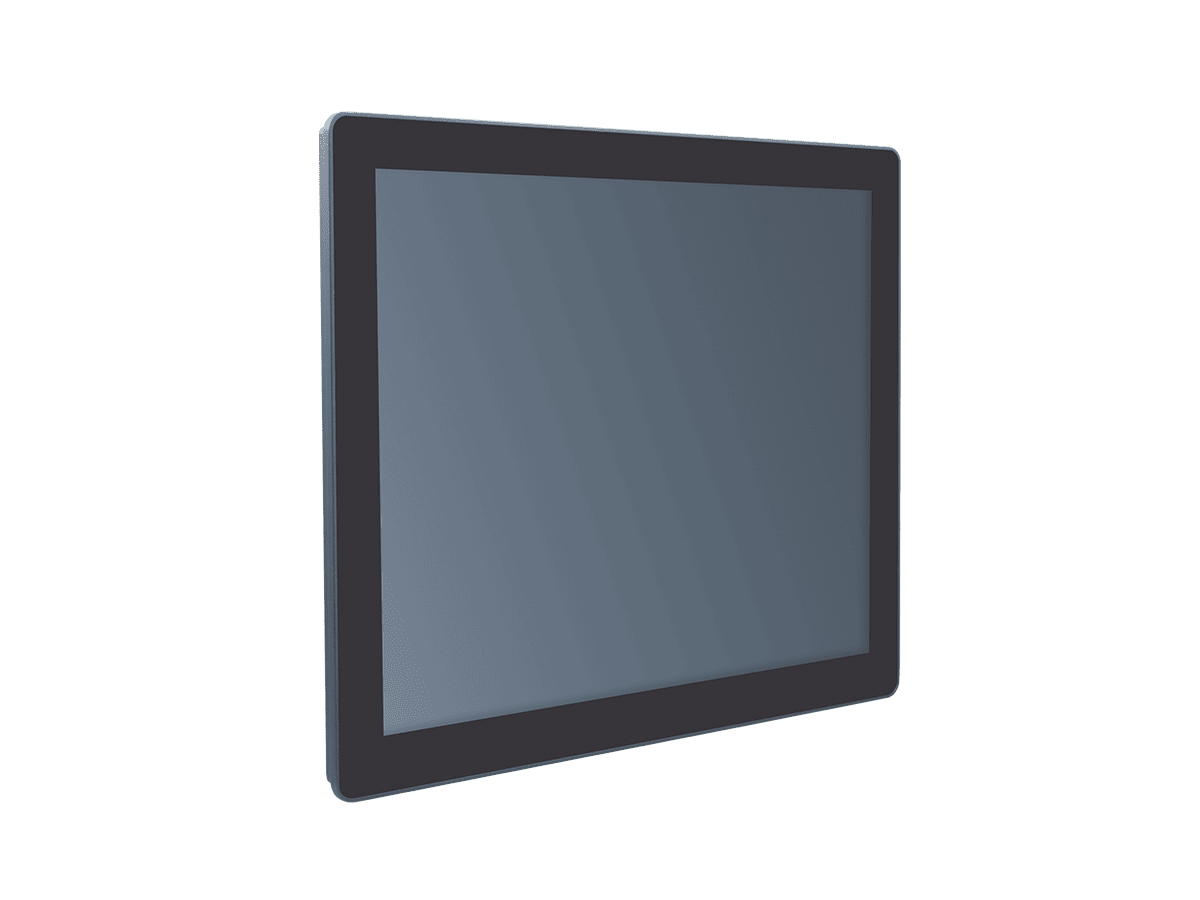

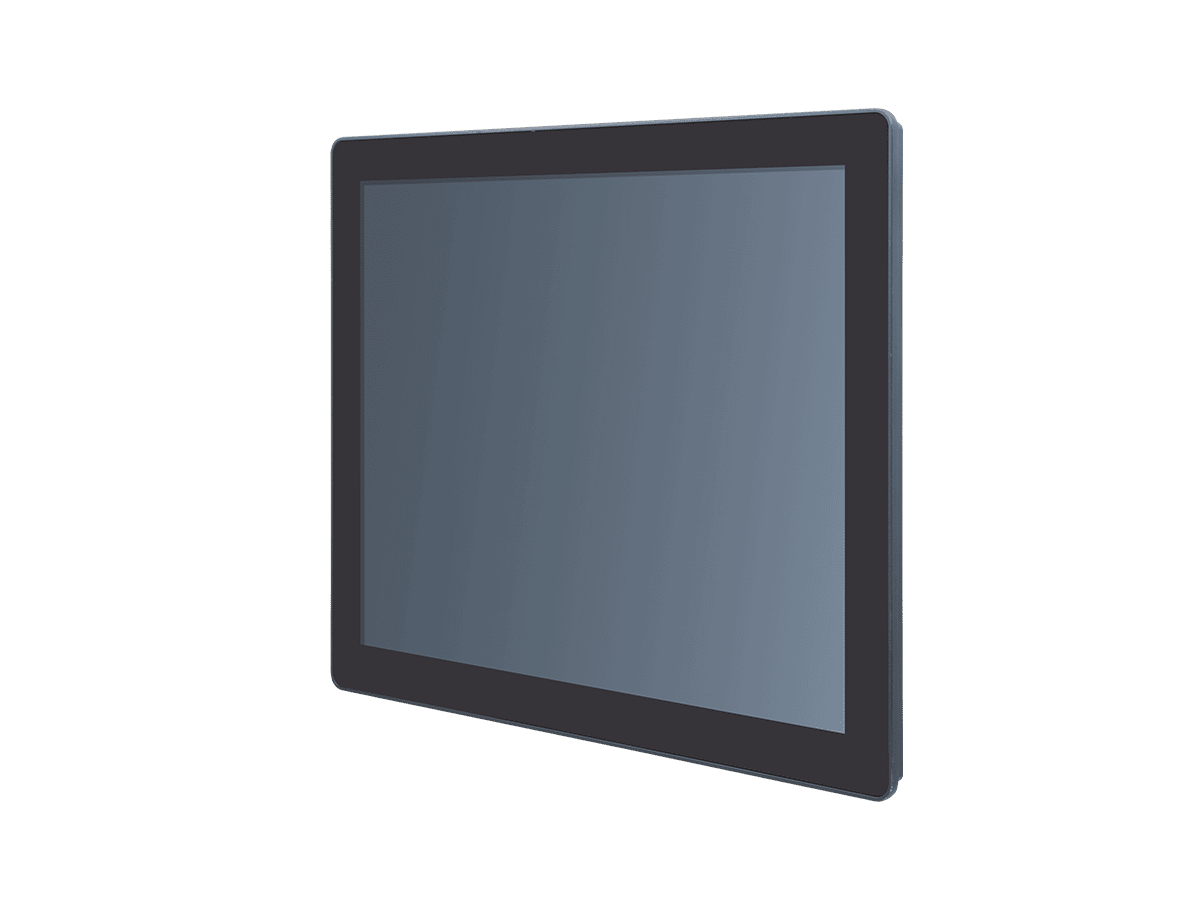

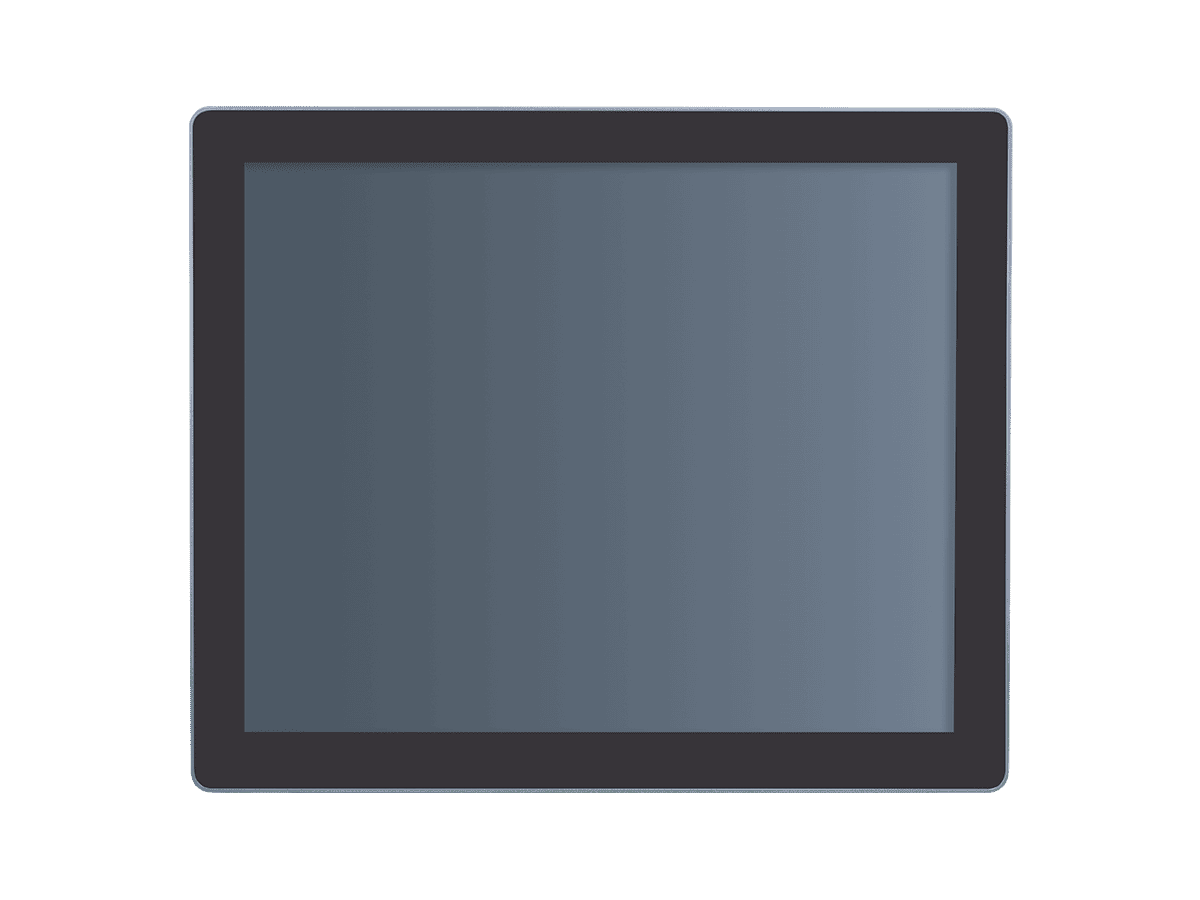

SP-170R-1J64
搭载 Intel® Elkhart Lake J6412 平台 17 英寸无风扇工业面板电脑
SP-170R-1J64
搭载 Intel® Elkhart Lake J6412 平台 17 英寸无风扇工业面板电脑
主要特点
- 板载 Intel® Celeron® J6412 四核心处理器，最高主频可达 2.6GHz
- 17 英寸 LCD 搭载 LED 背光，前面板支持 IP66 防护等级
- 铝合金机身设计，轻巧坚固且具备更佳的散热效果
- 工业级纯平面五线电阻式触摸屏
- 支持 Mini-PCIe / M.2 扩展插槽，支持多模块扩展
- 支持双 2.5GbE 网口
- 支持远程开关机 (Remote ON-OFF)
- 机壳具备接地保护设计
- 支持标准 VESA 与面板安装（或嵌入式安装）
- 支持 1 个 2.5 英寸 HDD/SSD 扩展
- 支持标准 VESA 与面板安装（或嵌入式安装）
规格表
System
| CPU | Intel® Elkhart Lake Celeron® J6412 processor (2.00 GHz/2.6GHz) |
|---|---|
| Memory | 1 x DDR4 2133/2400/3200hz SO-DIMM slot, up
to 32GB 4GB DDR4 SO-DIMM pre-installed*(CTOS) |
| Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
| LAN Chipset | 1 x Intel® I226-V 2.5GbE controllers |
| Watchdog Timer | Programmable 255 levels timer interval, from 1~255 sec/min |
LCD Display
| Size / Type | 17" TFT LCD Panel |
|---|---|
| Max. Resolution | 1280 x 1024 |
| Ratio | 4:3 |
| Luminance | 250 cd/m² |
| Touch Screen | 5-Wire Resistive Touchscreen |
| Touch | 35,000,000 times |
| Contrast Ratio | 1000:1 |
| View Angle (U/D/R/L) | CR ≥ 10,170° (H)/160° (V) ;CR ≥ 5,178° (H)/170° (V) |
| Backlight | LED Backlight |
| Backlight Lifetime | 50000 Hrs |

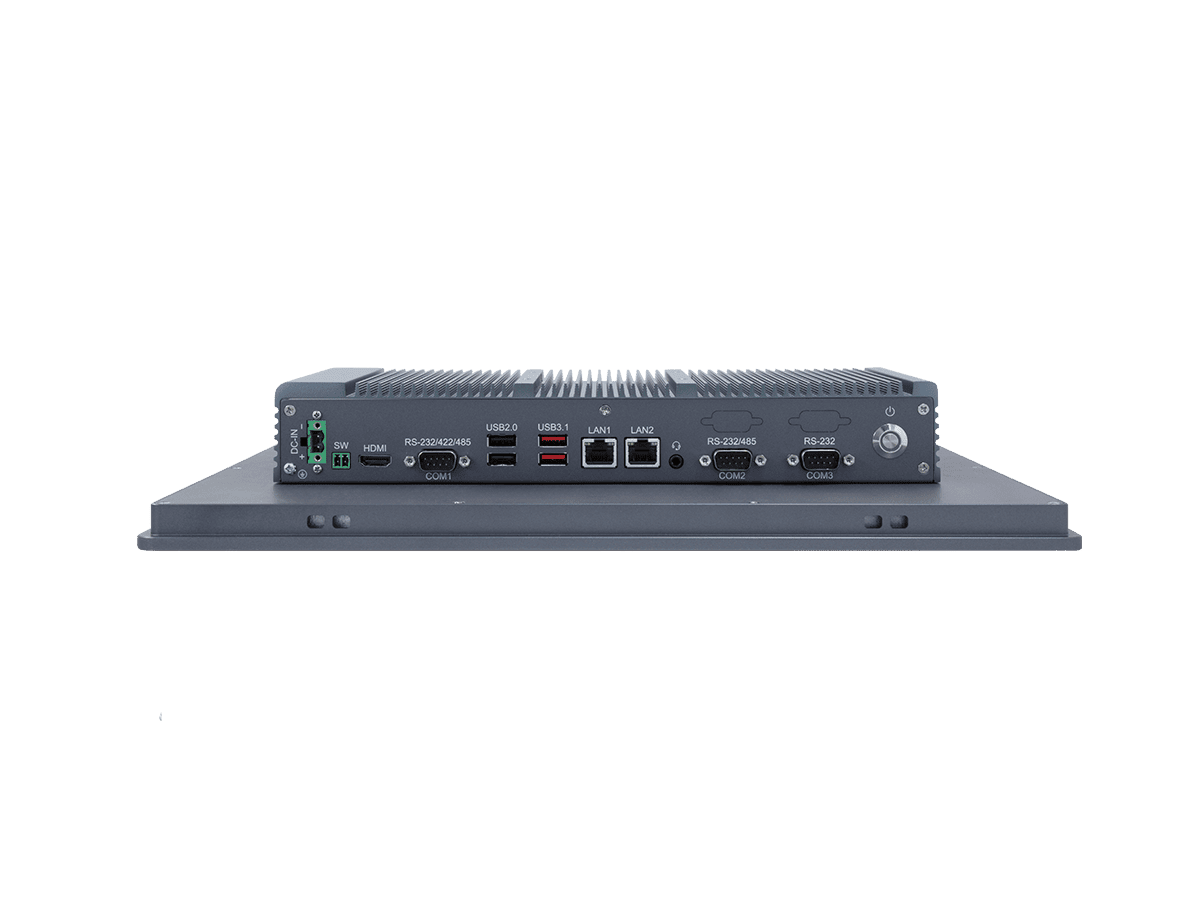

External I/O
| Serial Ports | 1 x RS232/RS422/RS485-COM1 1 x RS232(default)/RS485(Jumper)-COM2 1 x RS232-COM3 |
|---|---|
| USB Ports | 2 x USB2.0, 2 x USB3.1 |
| LAN | 2 x RJ45 |
| Video Ports | 1 x HDMI (up to 4096x2160@60hz) |
| Remote On-Off | 1 x Remote ON-OFF |
Internal I/O
| Expansion | 1 x Mini-PCIe slot (PCIe/ USB2.0 signal supported) 1 x M.2 2230 slot (PCIe/ USB2.0 signal supported) 1 x M.2 2242 slot(SATA signal supported) 1 x SIM socket for 3G/4G 1 x 8bit GPIO 3.3V(jumper)/5V(default) power 2 x RS232 - COM4 2 x RS232(RX/TX) - COM5/6 2 x USB2.0 - For Touch 1 x SATA 3.0/Power 5V for HDD |
|---|
Mechanical
| Mounting Type | Panel Mount, Wall and VESA-mount (75 x 75mm) |
|---|---|
| Chassis | Aluminum for front Panel and heat-sink, SECC for Rear Cover |
| Weight (Net) | 5.2 kg |
| Dimension (W x H x D) | 392.4(W) x 327.7(H) x 66(D)mm |
| Cut out | 382.2 x 317.5mm |
| Ingress Protection | Front panel IP66 |
Environmental
| Operating Temp. | -10 ~ 50°C ambient w/ air flow (WT RAM & SSD) |
|---|---|
| Storage Temp. | -40 ~ 70°C |
| Operating Humidity | 5 ~ 95% (non-condensing) |
| Random Vibration | 5~500Hz, 2Grms operation |
| Sine Vibration | 5~500Hz, 2G Non-operation |
| Shock | 10g 11ms operation, 30g 11ms Non-operation |
Qualification
| Certification | CE/FCC |
|---|
Storage
| Device | 1 x M.2 2242 SSD slot 128GB M.2 SSD pre-installed*(CTOS) |
|---|
Audio
| Type | 1 x Audio(Line-out & Mic-in 2 in 1) |
|---|---|
| Speaker | Realtek® ALC888S HD Audio codec 4Ω3W speakerx2 |
OS
| OS | Windos 10/11, Ubuntu 22.04 |
|---|
Power System
| Power Input | DC 12~36V 1 x Power Connector (2P Phoenix) |
|---|
Ordering Information
| SP-170R-1J64 | Barebone 17” (4:3) Panel PC with Intel Celeron Elkhart Lake J6412, R-touch, HDMI*1, USB*4, LAN*2, COM*2, DC12- 36V power input |
|---|---|
| SP-170R-1J64-R4S128 | 17” (4:3) Panel PC with 4GB RAM & 128GB SSD, Intel Celeron Elkhart Lake J6412, R-touch, HDMI*1, USB*4, LAN*2, COM*2, DC12- 36V power input |
| PAC-60W-FSP-SPA-US R1.0 | AC/DC ADAPTER KIT (W/UKCA),12V,60W,2 WIRE w/ US POWER CORD |
| PAC-60W-FSP-SPA-EU R1.0 | AC/DC ADAPTER KIT (W/UKCA),12V,60W,2 WIRE w/ EU POWER CORD |
| PAC-60W-FSP-SPA-UK R1.0 | AC/DC ADAPTER KIT (W/UKCA),12V,60W,2 WIRE w/ UK POWER CORD |
| PAC-60W-FSP-SPA-IN R1.0 | AC/DC ADAPTER KIT (W/UKCA),12V,60W,2 WIRE w/ IN POWER CORD |
| PAC-60W-FSP-SPA-JP R1.0 | AC/DC ADAPTER KIT (W/UKCA),12V,60W,2 WIRE w/ JP POWER CORD |
