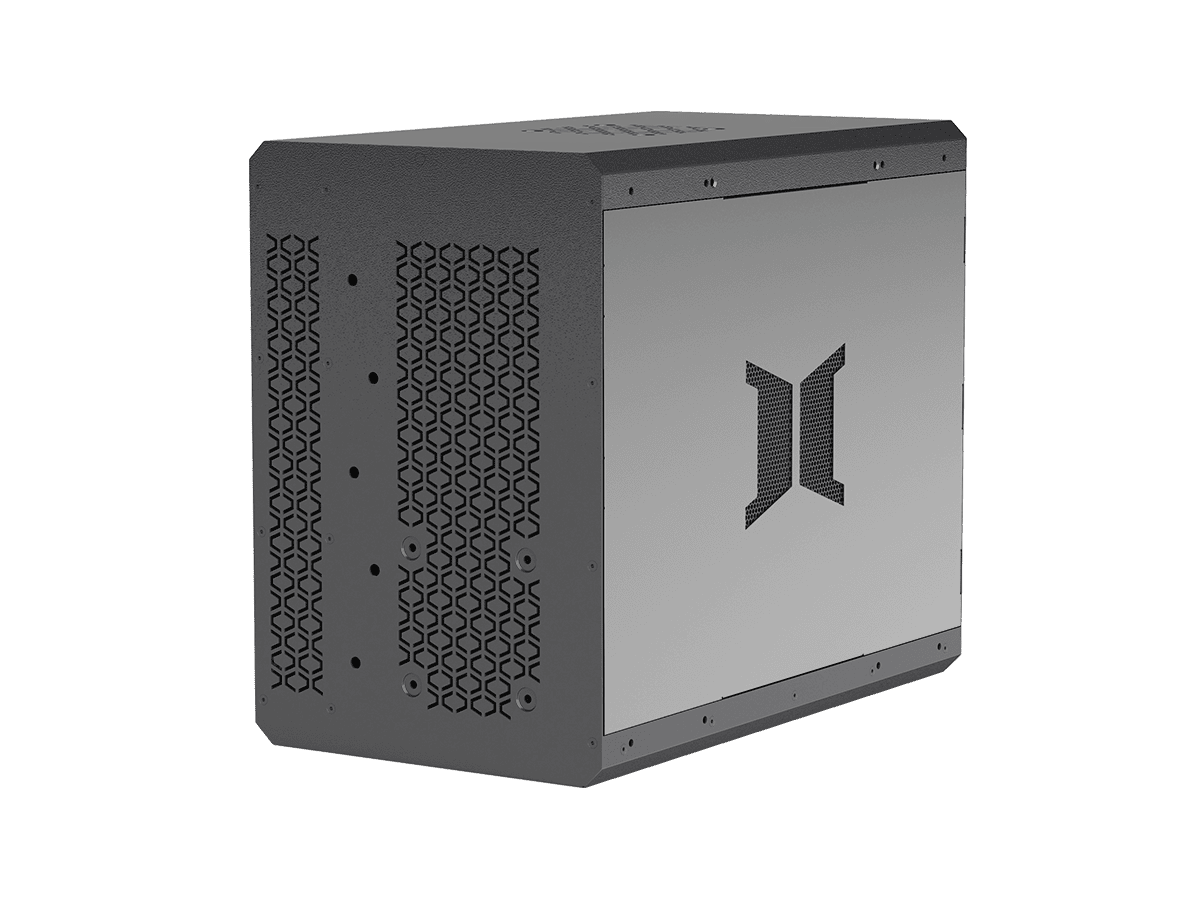

FPC-9309W-G5

Robuste Edge-AI-Computing-Plattform mit Unterstützung für NVIDIA^® RTX-5090 GPU-Karte und Intel^® Core™ Ultra Prozessor (Serie 2)

Neu

Hauptmerkmale

Technische Daten

System
CPU	Intel^® Core™ Ultra Processors (Series 2) in LGA1851 socket (35W / 65W CPU)
Memory	4 x DDR5 U-DIMM sockets, Supporting 5600MHz SDRAM up to 192GB (ECC /Non-ECC)
Chipset	Intel^® W880E
Graphics	Integrated Intel^® HD Graphics
ATA	2 x Serial ATA ports with 600MB/s HDD transfer rate
LAN Chipset	4 x Intel^® WGI226LM 2.5GigE LAN
Watchdog Timer	1~255 levels reset
I/O Interface
Serial Port	2 x RS-232/422/485 configurable (default RS-232) 2 x RS-232
USB Port	8 x USB 3.2 Gen2 (10Gbps) / 2.0 ports 1x USB 2.0 (Internal pin header)
LAN	4 x RJ-45 ports for GbE/2.5GbE
Video Port	2 x HDMI 2.1 up to 4K@60Hz 2 x Display Port 2.1 up to 4K@60Hz
Digital I/O	1x DB25 connector for DIO (8 in /8 out) port
Optional port	1x RJ-45 for Optional OOB port (Option)
Audio	Mic-in / Line-out
Expansion Bus	1 x mini-PCI Express Slot interconnected with SIM card sockets for optional WiFi/BT/3G/LTE/GPS (PCIex1+USB2.0, Full Size) 1 x M.2 E key ( 2230) with PCIex1+USB2.0, for ireless 2 x M.2 B key ( 2242/3052) w/ (PCIex1+USB3.0+SATA ) interconnected with SIM for 5G / LTE expansion or for storage (either one) 2 x PCIe x16 slots for 600W GPU card or Dual 300W GPU 3 x PCIe x 8 slots ( via 4 lanes)
Environmental
Operating Temp.	65W TDP CPU : -20°C ~ 55°C (-4°F ~ 131°F) 35W TDP CPU : -20°C ~ 70°C (-4°F ~ 158°F) w/ NVIDIA^® RTX-5090 : -20°C ~ 45°C (-4°F ~112°F)
Storage Temp.	-40°C ~ 85°C (-40°F ~ 185°F)

Environmental
Operating Humidity	10% ~ 95% @ 50°C (non-condensing)
Vibration	Comply with MIL-STD-810G, Method 514.6, Category 4 w/ SSD
Shock	Comply with MIL-STD-810G, Method 516.6,Table 516.6-II, 20G
Power Requirement
Power Input	DC 24~48V input (w/ 4 pin DC input terminal block --++ )
Ignition Switch	2-pin teminal block: IGN / Remote SW (defalut IGN)
Storage
Type	2 x 2.5”/3.5” drive bays (outside accessible) 2 x M.2 M key NVMe SSD (2242/2280) with PCIe x 4
Mechanical
Construction	Metal
Mounting	Wall-mount
Weight	7.4 kg (16.31Ib)
Dimensions (W x D x H)	220 x 380 x 320 mm
Qualification
Certification	CE, FCC Class A
OS Support
System	Windows 10/11 IOT Enterprise 2021 Linux (Kernal 6.11)
Ordering Information
FPC-9309W-G5	Ruggedized Edge AI Computing Platform supporting NVIDIA^® RTX-5090 GPU Card, Intel^® Core™ Ultra Processor (Series 2)
