ARTS-1550 Series
Intel® Amston Lake 탑재 차량용 팬리스 Box PC, PoE+ 2.5GbE 포트 4개 지원
신규
ARTS-1550 Series
Intel® Amston Lake 탑재 차량용 팬리스 Box PC, PoE+ 2.5GbE 포트 4개 지원
신규
Features
- Intel® Amston Lake x7433RE processor
- Rugged -40°C to 70°C fanless operation
- Support single DDR5 slot up to 16GB
- 4x PoE+ 2.5GbE ports via RJ45/M12 x-coded w/ 60W power budget
- 2 x Isolated CAN2.0(A/B), Isolated 2KV 4-DI/4-DO, 2 x COM
- 1 x M.2 B Key (USB3.0+USB2.0) w/SIM slot for 4G/5G/LTE module
- 1 x M.2 B Key (SATA+USB2.0) for storage or GNSS module
- 1 x full-size mini-PCIe (PCIe x1+USB 2.0) w/SIM for WiFi/BT/LTE module
- Outside accessible 1x2.5” HDD tray and 1xSD card slot
- Dual-Display for 2 x HDMI
- E-Mark certified & MIL-STD-810H Shock/ Vibration compliant
- Support dTPM2.0 & Windows®11
혹독한 환경을 위한 고성능 솔루션
ARTS-1550은 까다로운 차량 환경을 위해 설계된 강력한 팬리스 산업용 컴퓨터입니다. E-Mark 인증과 MIL-STD-810H 규격을 충족하여 모바일 애플리케이션에서 안정적인 동작과 강한 충격 및 진동에 대한 내성을 보장합니다. 내장된 CAN 2.0 (A/B) 인터페이스는 차량 전자 시스템과의 원활한 통합을 지원합니다.
산업 환경 요구 충족

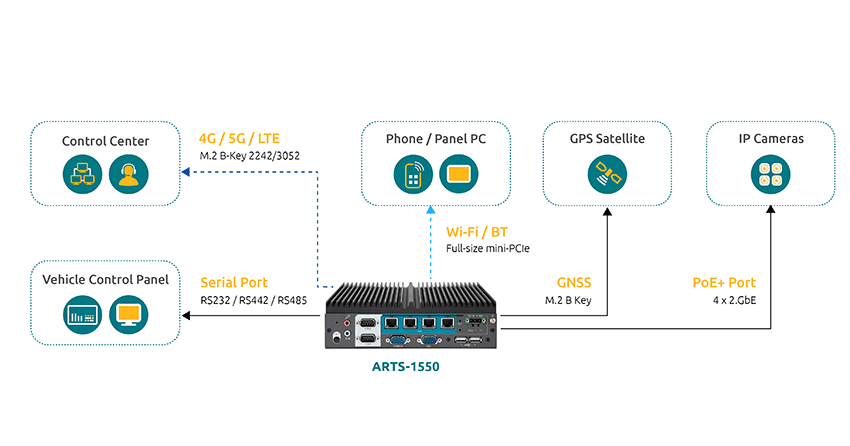

ARTS-1550 시리즈는 모바일 감시에 특히 적합하며, 네 개의 2.5GbE PoE+ 포트를 탑재해 IP 카메라 배선 및 설치를 크게 단순화합니다. 또한 직렬 COM 포트와 다수의 확장 슬롯을 제공하여 4G/5G/LTE, GNSS, Wi-Fi, Bluetooth 등 통신 모듈을 지원함으로써 다양한 IoT 기기 연결 요구를 충족합니다.
사양
System
| CPU | Intel® Atom® x7433RE processor (Quad-Core SoC, 3.4GHz, TDP 9W) |
|---|---|
| Memory | 1 x DDR5 SO-DIMM sockets, support 4800MHz up to 16GB |
| LAN Chipset | 4 x Intel® i226-IT 2.5GbE controller |
| Watchdog Timer | 1~255 levels reset |
| TPM | Support dTPM2.0 |
I/O
| Serial Port | 1 x RS-232/422/485 by DB-9 Connector (non-isolated) 1 x RS-485 by DB-9 Connector (non-isolated) |
|---|---|
| USB Port | 2 x USB-A 3.2 Gen2 (10Gbps) port 4 x USB-A 2.0 port |
| LAN | 4 x PoE+ 2.5GbE ports by RJ45 (P4) with LED (PoE) 4 x PoE+ 2.5GbE ports by M12 x-coded (M4) with LED (Link, PoE, Active) |
| PoE | 4 x 802.3af or 2x 802.3at w/ 60W power budget |
| Display | 2 x HDMI 2.0, resolution up to 3840x2160@60Hz |
| Audio | 2x 3.5mm Audio Jack for Mic-in and Line-out |
| Expansion Bus | 1 x M.2 B-Key 2242/3052 (USB 3.0+USB 2.0) w/ SIM slot for 4G/5G/LTE module *Outside accessible SIM slot *Support Dual SIM (optional) 1 x full-size mini-PCIe (PCIe x1+USB 2.0) w/ SIM slot for Wi-Fi/BT/LTE module *Outside accessible SIM slot |
| Digital I/O | 4 x DI & 4 x DO w/ 2kV isolation by DB-15 connector |
| CANBus | 2 x Isolated CAN2.0(A/B) in 1 x DB-9 connector |
| Others | Support accelerometer(G-Sensor) and Gyroscope 5 x Antenna holes |
Environmental
| Operating Temp. | -40°C ~ 70°C (-40°F ~158°F) |
|---|---|
| Storage Temp. | -40°C ~ 85°C (-40°F ~ 185°F) |
| Operating Humidity | 10% ~ 95% @ 70°C (non-condensing) |
| Vibration | Operating, MIL-STD-810H, Method 514.8, Category 4 |
| Shock | Operating, MIL-STD-810H, Method 516.8, Procedure I, functional shock=20g |
Qualification
| Certification | CE, FCC Class A, E-Mark |
|---|
OS Support
| System | Windows 10® IoT / Windows 11® IoT / Linux Ubuntu 22.04 |
|---|
Storage
| Type | 1 x outside accessible drive tray for 2.5” SATA SSD/
HDD up to 15mm height (SATA3) 1 x outside accessible SD card socket 1 x M.2 B-Key 2242/2280 (SATA+USB 2.0) for storage or GNSS module |
|---|
Power Requirement
| Power Input | DC 9~36V input, 3-Pin Terminal Block type with IGN PWR control (V+, V-, IGN) |
|---|---|
| Power Consumption | Max. 100W |
Mechanical
| LED indicator | 1 x Green LED indicator for WWAN and WLAN 1 x Red LED indicator for SATA (2.5” SATA SSD and M.2 SATA SSD) |
|---|---|
| Button | 1 x Power Button with dual LED color (Red in
standby, Green in Power-on) 1 x Reset Button (accessible only with a tip) |
| Construction | Aluminum alloy |
| Mounting | Desktop (default) / Wall-mount (optional) |
| Weight | 2.4 kg |
| Dimensions (W x D x H) | 210 x 58 x 190 mm |
Ordering Information
| ARTS-1550-P4 | Intel® Atom® Processor x7433RE w/ 4 x PoE+ 2.5GbE LAN ports via RJ45 |
|---|---|
| ARTS-1550-M4 (BTO) | Intel® Atom® Processor x7433RE w/ 4 x PoE+ 2.5GbE LAN ports via M12 x-coded |
액세서리
Standard Accessories
-
CLB-1550
Cable-Lock Bracket for ARTS-155X Series
Optional Accessories
-
PAC-120W6B-FSP-ES
19V/6.3A, 120W AC/DC Adapter Kit -
PAC-180W6C-FSP-ES
24V/7.5A, 180W AC/DC Adapter Kit -
DDR5 8G/16G RAM
DDR5-5600 8G/16G SO-DIMM Module -
WiFi-AT4550
Atheros QCNFA324 mPCIe Wi-Fi+BT Module Kit (w/ 2 x 30cm RF Cable) -
ANT-D11
1 x Wi-Fi Dual-band 2.4G/5G Antenna -
ANT-H11
1 x 2dBi HSUPA Antenna Kit -
LTE-4450
Quectel EG25-G mPCIe LTE Cat 4 Module Kit (for Global, w/ 1 x 25cm RF Cable) -
WMK-1973
Wall Mounting Bracket Kit for ARTS-1550 Series
