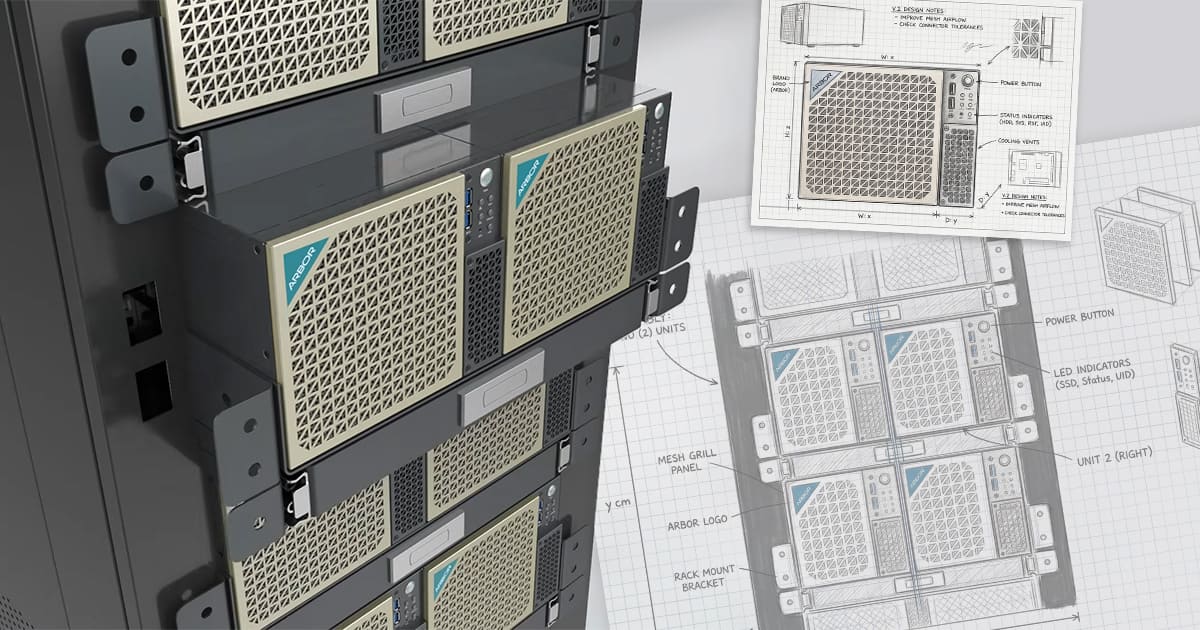

EdgeX-6000Sistema Edge AI HPC ad Alta Densità GPU

Serie Edge AI HPC

Nuovo

Caratt. chiave

Processore: Singolo AMD EPYC™ Embedded 8004 Series, fino a 64C/128T
Memoria: DDR5 4800 MHz a 6 canali con ECC, fino a 576GB (96GB per DIMM)
Espansione ad alta densità: Fino a 4 GPU dual-slot (PCIe x16) o 8 schede single-slot (PCIe x8)
Storage frontale accessibile: 4 x E1.S EDSFF SSD (9.5mm)
I/O frontale: 2 x USB 3.2 Gen1, LED di stato
I/O posteriore: 2 x DP, 3 x COM, 4 x USB 3.2 Gen2, 2 x 2.5GbE, 2 x 10GbE
Supporta AMD ROCm™ software stack per carichi di lavoro AI e HPC
Gestione MicroBMC per controllo remoto

Datasheet

Specifica

System
CPU	AMD EPYC™ Embedded 8004 Siena series (SP6 socket), Up to 64C/128T, single processor, TDP max 225W
Memory	6 channel DDR5 4800 MHz with ECC, up to 576GB (96GB per DIMM)
BIOS	AMI UEFI BIOS
TPM	dTPM2.0
I/O
USB Port	Front: 2 x USB 3.2 Gen1 ports Type A Rear: 4 x USB 3.2 Gen2 ports Type A
LAN Port	2 x 10GbE RJ45 2 x 2.5GbE RJ45
Video Port	2 x DP1.4a 7680×4320 @60Hz (8K)
Serial Port	3 x RS-232/422/485 COM port COM3 support Console function
Storage
Storage	1x M.2 M key support NVMe 2280 storage 4x E1.S EDSFF SSDs (9.5mm) or 2 x SATA3 2.5” SSD (Option)
Expansion Slots
	4 x PCIe x16 slots (Gen5 x16 link) for dual-slot cards or 8 x PCIe x16 slots (Gen5 x8 link) for single-slot cards
Environmental
Operating Temp.	0 ~ 65°C (32 ~ 149°F) without GPU card
Storage Temp.	-40 ~ 60°C (-40 ~ 140°F)
Operating Humidity	10 ~ 95% @60°C (non-condensing)

Environmental
Vibration	(For Edge AI HPC without GPU card) Comply with IEC 60068-2-6
Shock	(For Edge AI HPC without GPU card) Comply with IEC 60068-2-27
Qualification
Certification	CE, FCC, CB
Power Requirement
Power Input	2400W CRPS PSU, up to 3200W
Mechanical
Weight	10 Kg
Dimension (W x H x D)	216 x 170 x 495 mm (8.5” x 6.69” x 19.49”)
OS support
System	Windows Server 2022, Ubuntu 24.04 (by customer request)
Ordering Information
EdgeX-6000-E858000	AMD EPYC™ Embedded 8534P, 3200W PSU with NVIDIA^® Quadro^® A1000 MXM
EdgeX-6000-E838001	AMD EPYC™ Embedded 8324P, 2400W PSU with NVIDIA^® Quadro^® A1000 MXM
EdgeX-6000-E808002	AMD EPYC™ Embedded 8024P, 800W PSU

Scarica

Descrizione	Misura	Tipo	Versione	Data	Scarica
Descrizione EdgeX-6000 Datasheet	Misura -	Tipo pdf	Versione	Data 2026-01-29	Scarica Scarica
