ARTS-1550 系列

車載無風扇 Box PC，搭載 Intel^® Amston Lake，配備 4 組 PoE+ 2.5GbE 埠

New

主要特點

加入比較

ARTS-1550 專為嚴苛車載環境設計，採用強固無風扇工業電腦，通過 E-Mark 認證與 MIL-STD-810H 標準，確保在行動應用中能穩定運作並抵抗強烈震動與衝擊。內建 CAN 2.0 (A/B) 介面，可無縫整合車載電子系統。

ARTS-1550 系列特別適用於行動監控，內建四個 2.5GbE PoE+ 埠，大幅簡化 IP 攝影機佈線與安裝。同時具備多樣化 I/O 連接，包括序列埠與多組擴充插槽，可支援 4G/5G/LTE、GNSS、Wi-Fi 與藍牙等通訊模組，滿足各類 IoT 裝置的連接需求。

規格表

System
CPU	Intel^® Atom^® x7433RE processor (Quad-Core SoC, 3.4GHz, TDP 9W)
Memory	1 x DDR5 SO-DIMM sockets, support 4800MHz up to 16GB
LAN Chipset	4 x Intel^® i226-IT 2.5GbE controller
Watchdog Timer	1~255 levels reset
TPM	Support dTPM2.0
I/O
Serial Port	1 x RS-232/422/485 by DB-9 Connector (non-isolated) 1 x RS-485 by DB-9 Connector (non-isolated)
USB Port	2 x USB-A 3.2 Gen2 (10Gbps) port 4 x USB-A 2.0 port
LAN	4 x PoE+ 2.5GbE ports by RJ45 (P4) with LED (PoE) 4 x PoE+ 2.5GbE ports by M12 x-coded (M4) with LED (Link, PoE, Active)
PoE	4 x 802.3af or 2x 802.3at w/ 60W power budget
Display	2 x HDMI 2.0, resolution up to 3840x2160@60Hz
Audio	2x 3.5mm Audio Jack for Mic-in and Line-out
Expansion Bus	1 x M.2 B-Key 2242/3052 (USB 3.0+USB 2.0) w/ SIM slot for 4G/5G/LTE module Outside accessible SIM slot Support Dual SIM (optional) 1 x full-size mini-PCIe (PCIe x1+USB 2.0) w/ SIM slot for Wi-Fi/BT/LTE module *Outside accessible SIM slot
Digital I/O	4 x DI & 4 x DO w/ 2kV isolation by DB-15 connector
CANBus	2 x Isolated CAN2.0(A/B) in 1 x DB-9 connector
Others	Support accelerometer(G-Sensor) and Gyroscope 5 x Antenna holes
Environmental
Operating Temp.	-40°C ~ 70°C (-40°F ~158°F)
Storage Temp.	-40°C ~ 85°C (-40°F ~ 185°F)
Operating Humidity	10% ~ 95% @ 70°C (non-condensing)

Environmental
Vibration	Operating, MIL-STD-810H, Method 514.8, Category 4
Shock	Operating, MIL-STD-810H, Method 516.8, Procedure I, functional shock=20g
Qualification
Certification	CE, FCC Class A, E-Mark
OS Support
System	Windows 10^® IoT / Windows 11^® IoT / Linux Ubuntu 22.04
Storage
Type	1 x outside accessible drive tray for 2.5” SATA SSD/ HDD up to 15mm height (SATA3) 1 x outside accessible SD card socket 1 x M.2 B-Key 2242/2280 (SATA+USB 2.0) for storage or GNSS module
Power Requirement
Power Input	DC 9~36V input, 3-Pin Terminal Block type with IGN PWR control (V+, V-, IGN)
Power Consumption	Max. 100W
Mechanical
LED indicator	1 x Green LED indicator for WWAN and WLAN 1 x Red LED indicator for SATA (2.5” SATA SSD and M.2 SATA SSD)
Button	1 x Power Button with dual LED color (Red in standby, Green in Power-on) 1 x Reset Button (accessible only with a tip)
Construction	Aluminum alloy
Mounting	Desktop (default) / Wall-mount (optional)
Weight	2.4 kg
Dimensions (W x D x H)	210 x 58 x 190 mm
Ordering Information

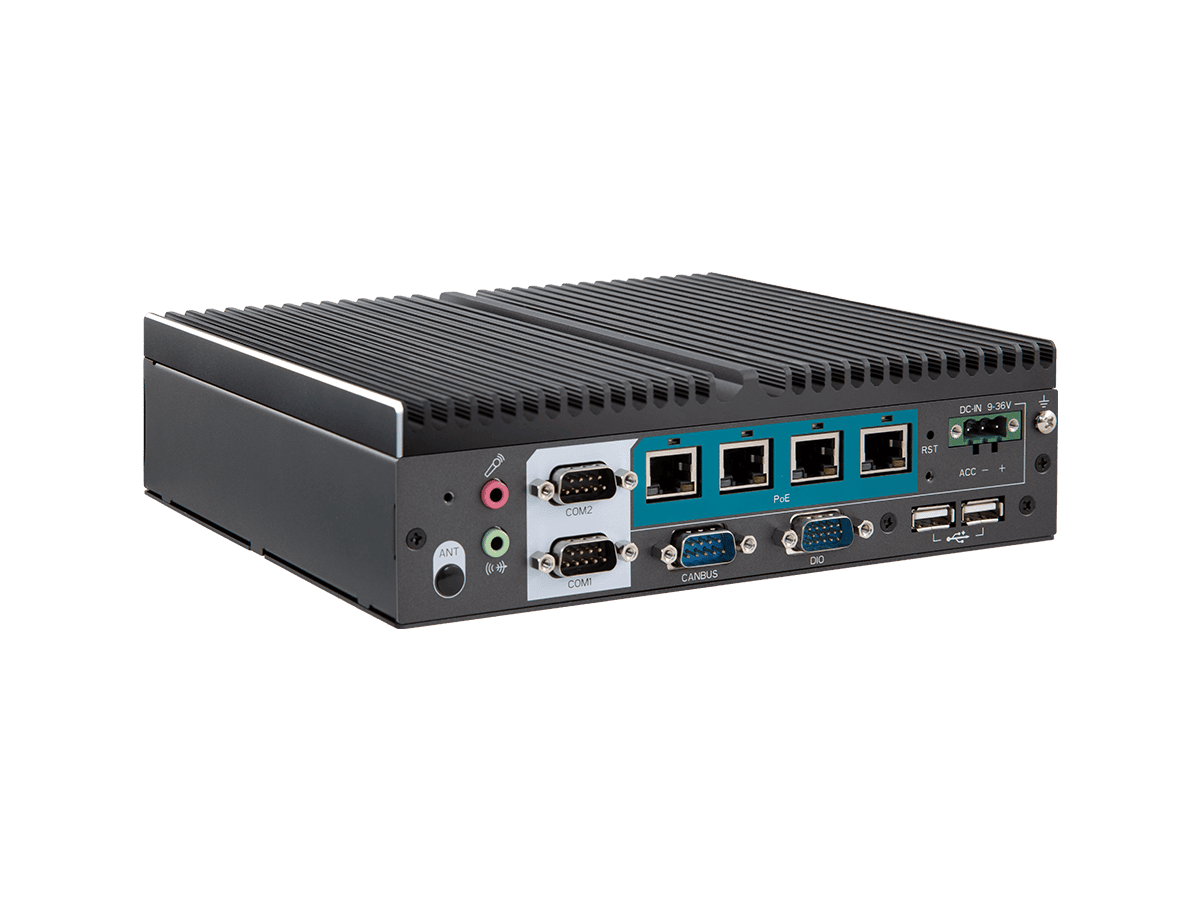

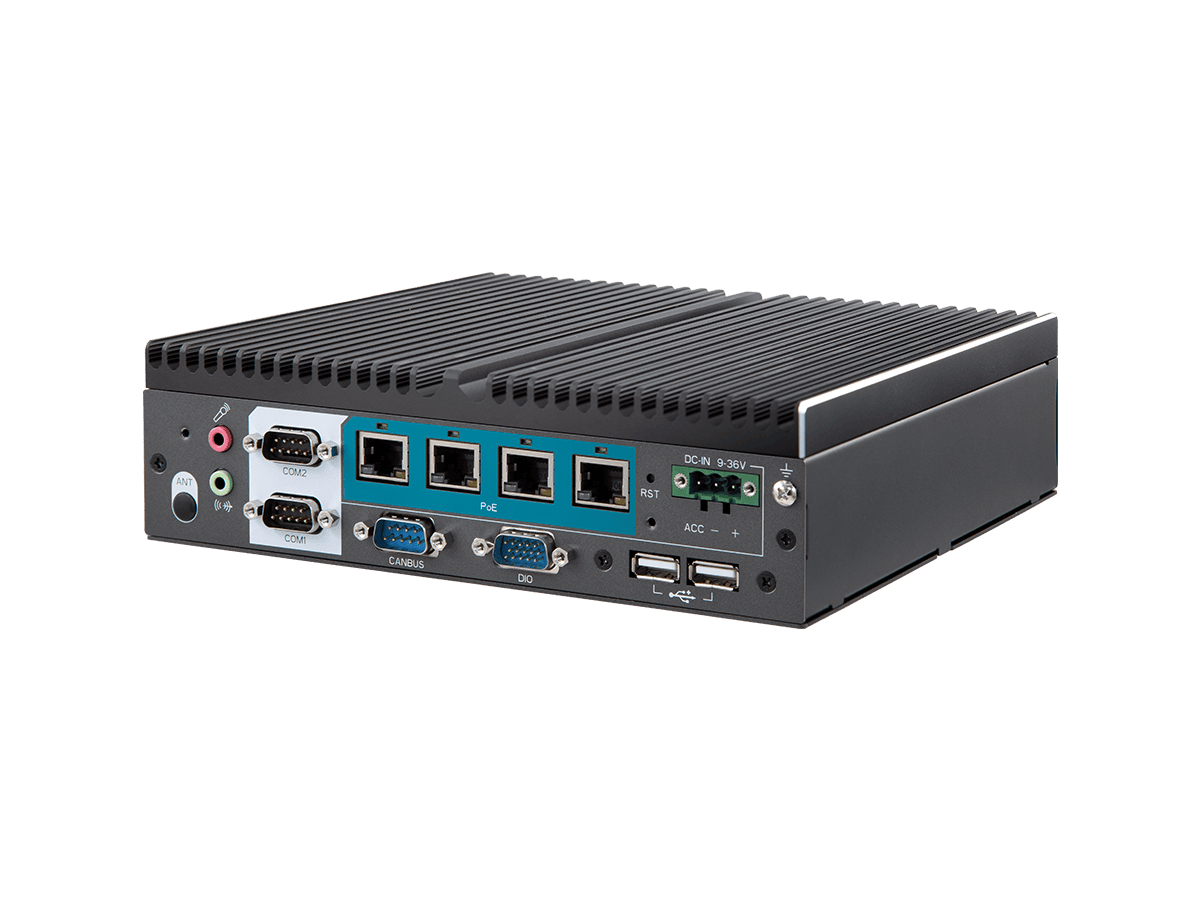

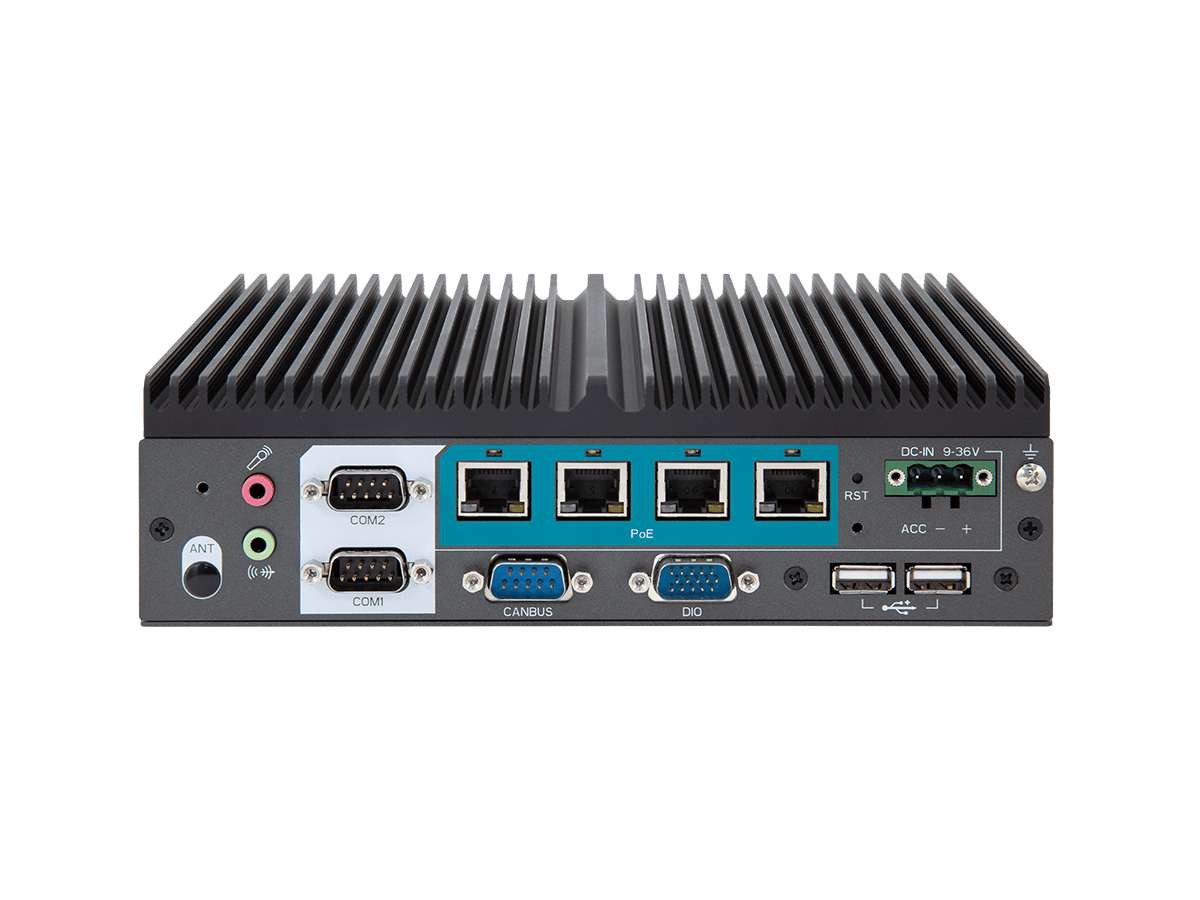

ARTS-1550-P4	Intel^® Atom^® Processor x7433RE w/ 4 x PoE+ 2.5GbE LAN ports via RJ45

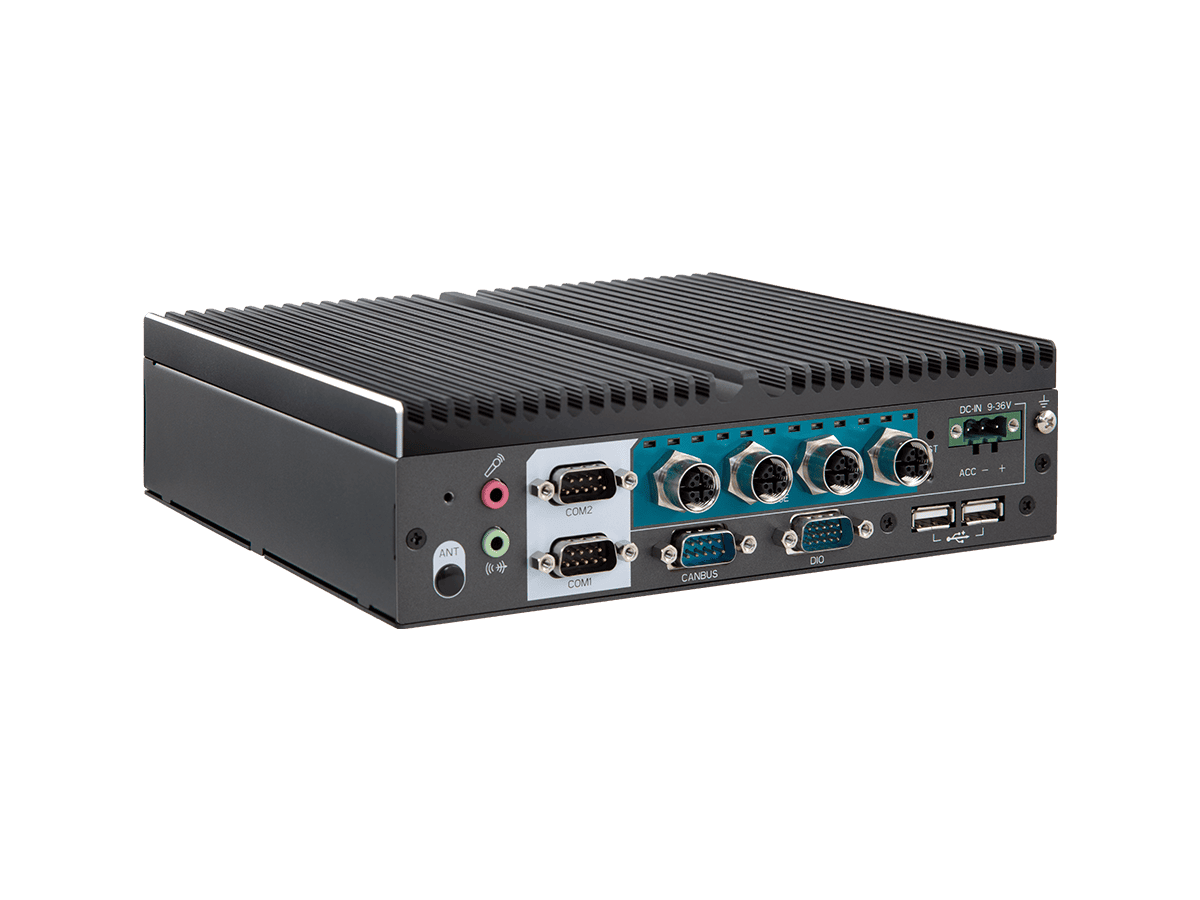

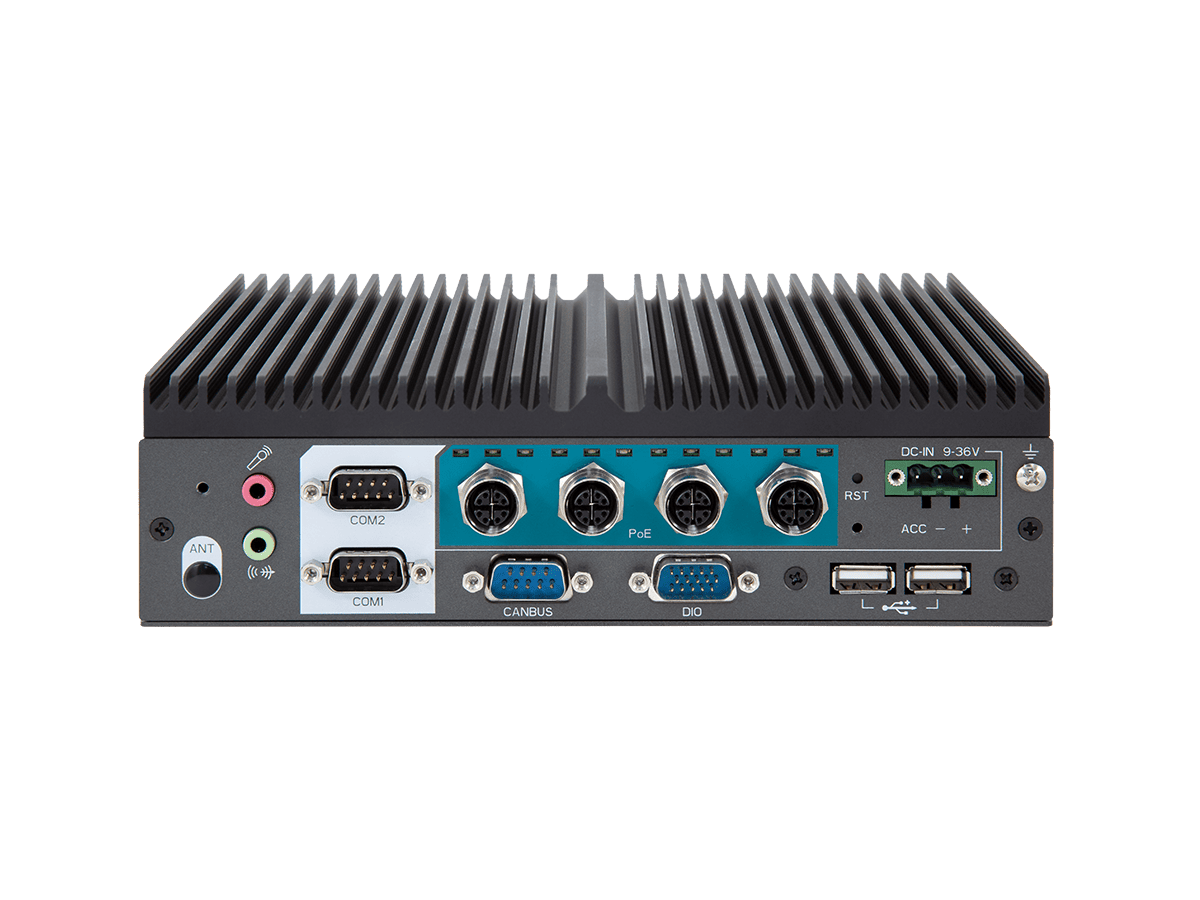

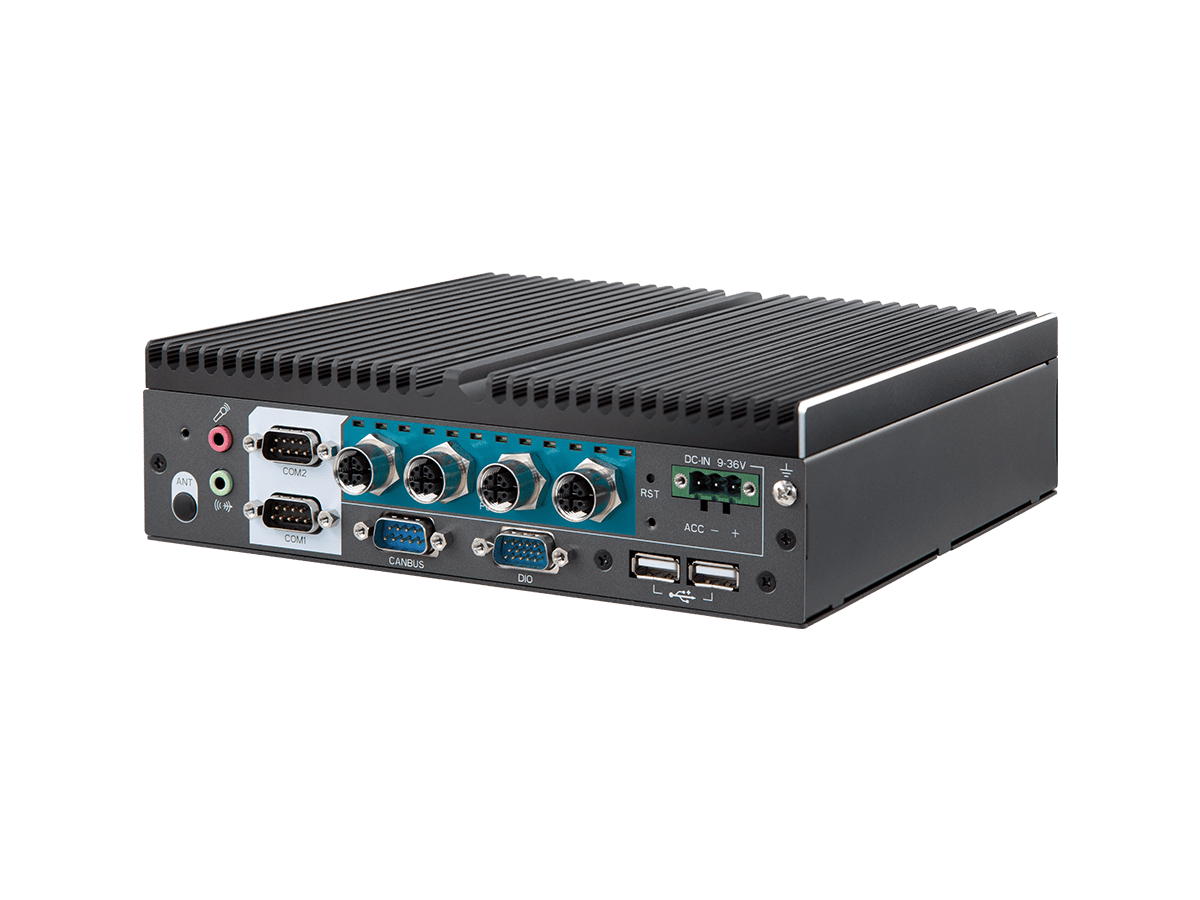

ARTS-1550-M4 (BTO)	Intel^® Atom^® Processor x7433RE w/ 4 x PoE+ 2.5GbE LAN ports via M12 x-coded

配件

PAC-120W6B-FSP-ES
19V/6.3A, 120W AC/DC Adapter Kit
PAC-180W6C-FSP-ES
24V/7.5A, 180W AC/DC Adapter Kit
DDR5 8G/16G RAM
DDR5-5600 8G/16G SO-DIMM Module
WiFi-AT4550
Atheros QCNFA324 mPCIe Wi-Fi+BT Module Kit (w/ 2 x 30cm RF Cable)
WiFi-MT1440
MediaTek MT7921AUN M.2 B-Key Wi-Fi 6E+BT Module Kit (w/ 2 x 25cm RF Cable)
LTE-4450
Quectel EG25-G mPCIe LTE Cat 4 Module Kit (for Global, w/ 1 x 25cm RF Cable)
ANT-T15
1 x Wi-Fi 6E Tri-band 2.4G/5G/6G Dipole Antenna Kit
ANT-H11
1 x 2dBi HSUPA Antenna Kit

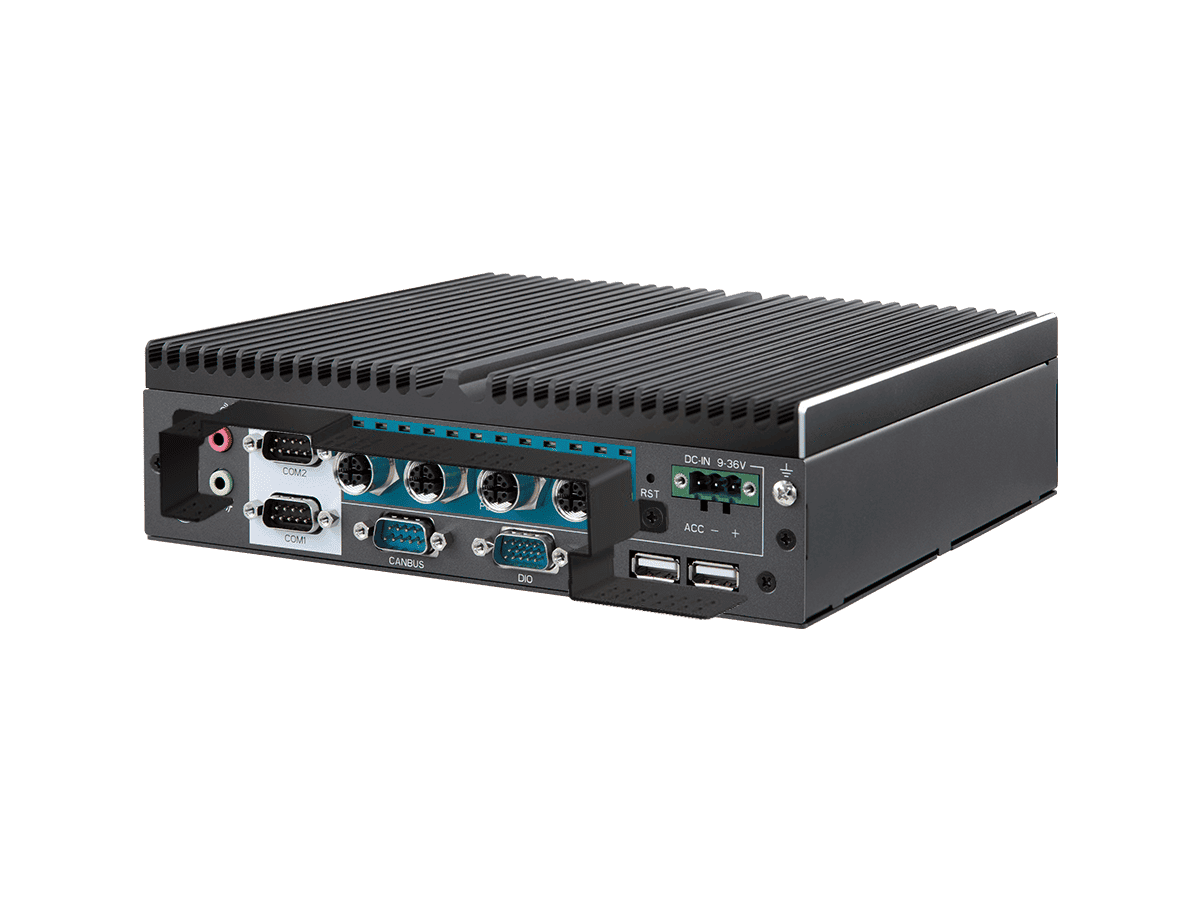

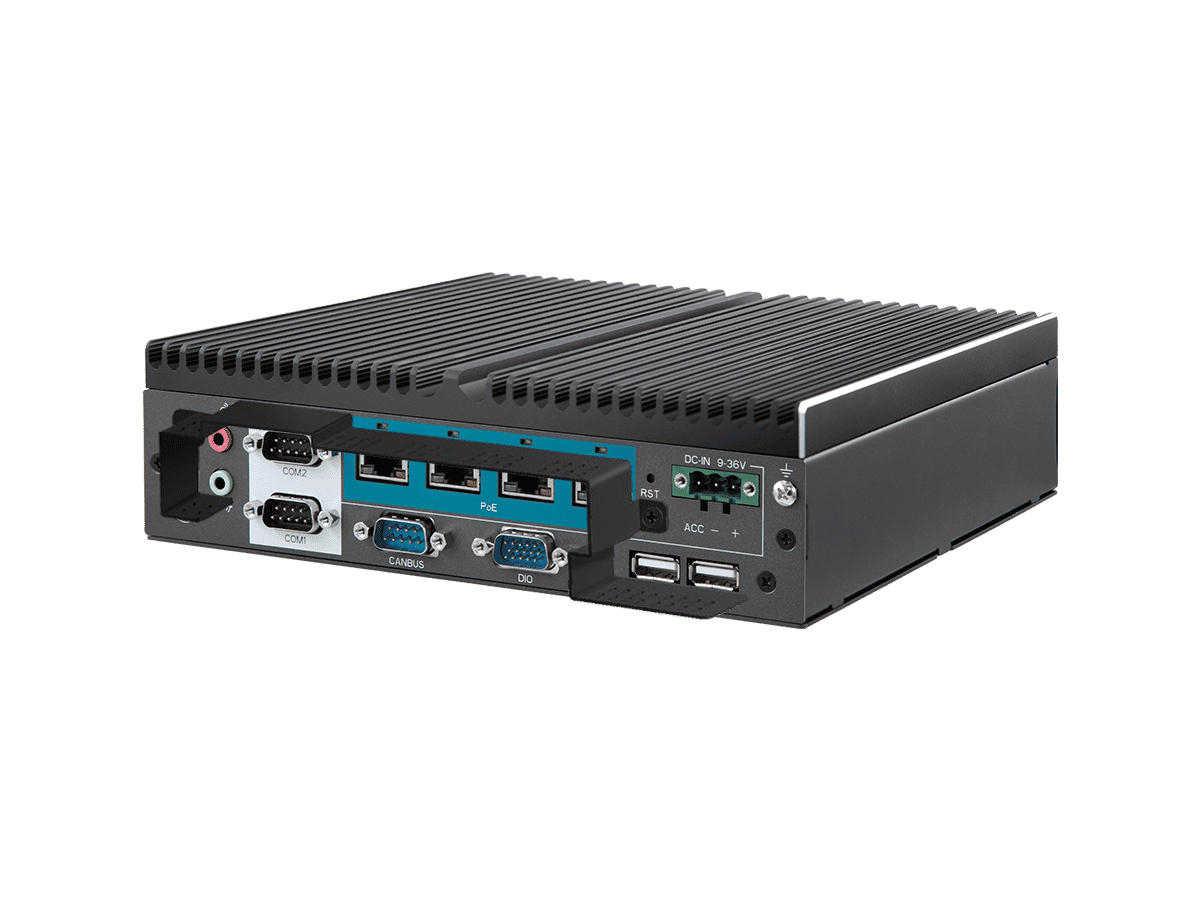

WMK-1973
Wall Mounting Bracket Kit for ARTS-1550 Series
