ARTS-7550
搭載 Intel® Amston Lake CPU 的 IP69K 防水無風扇電腦
New

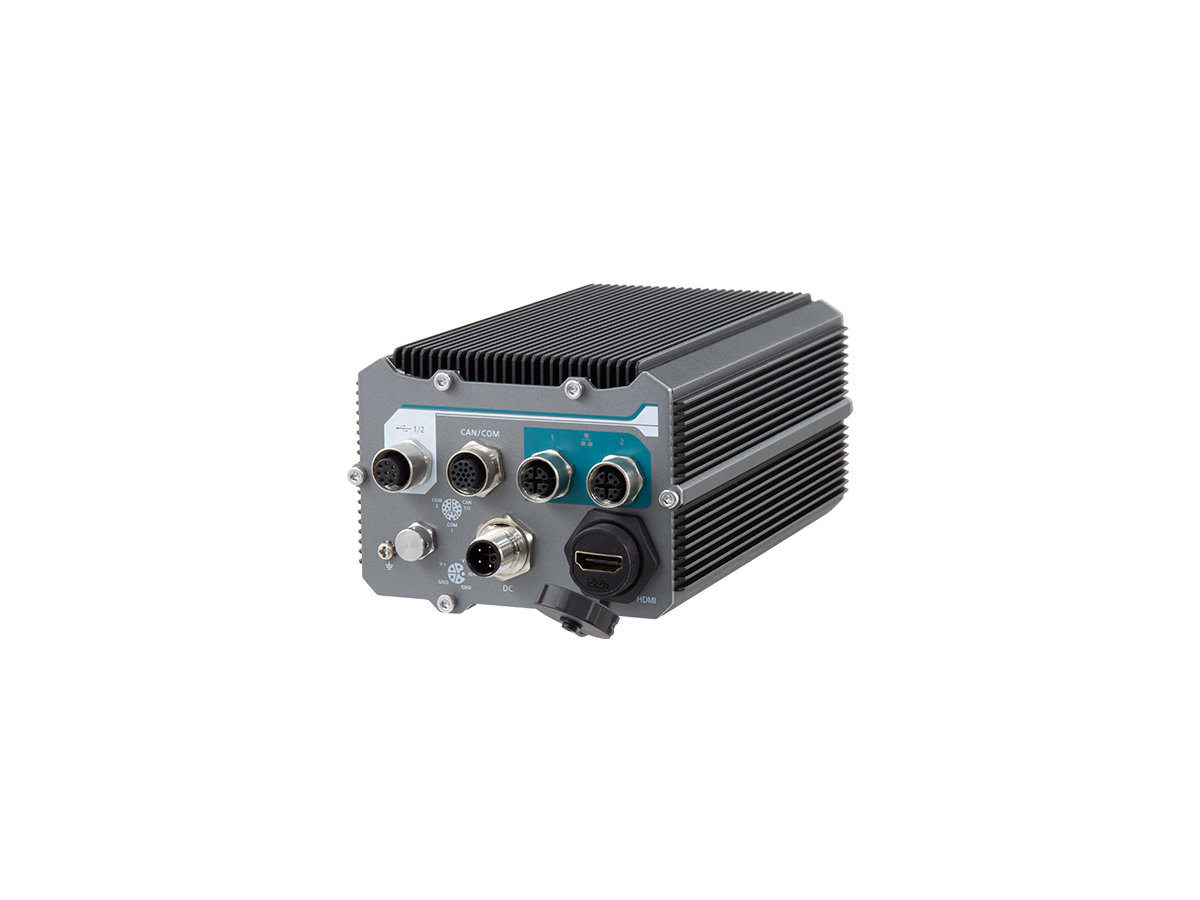

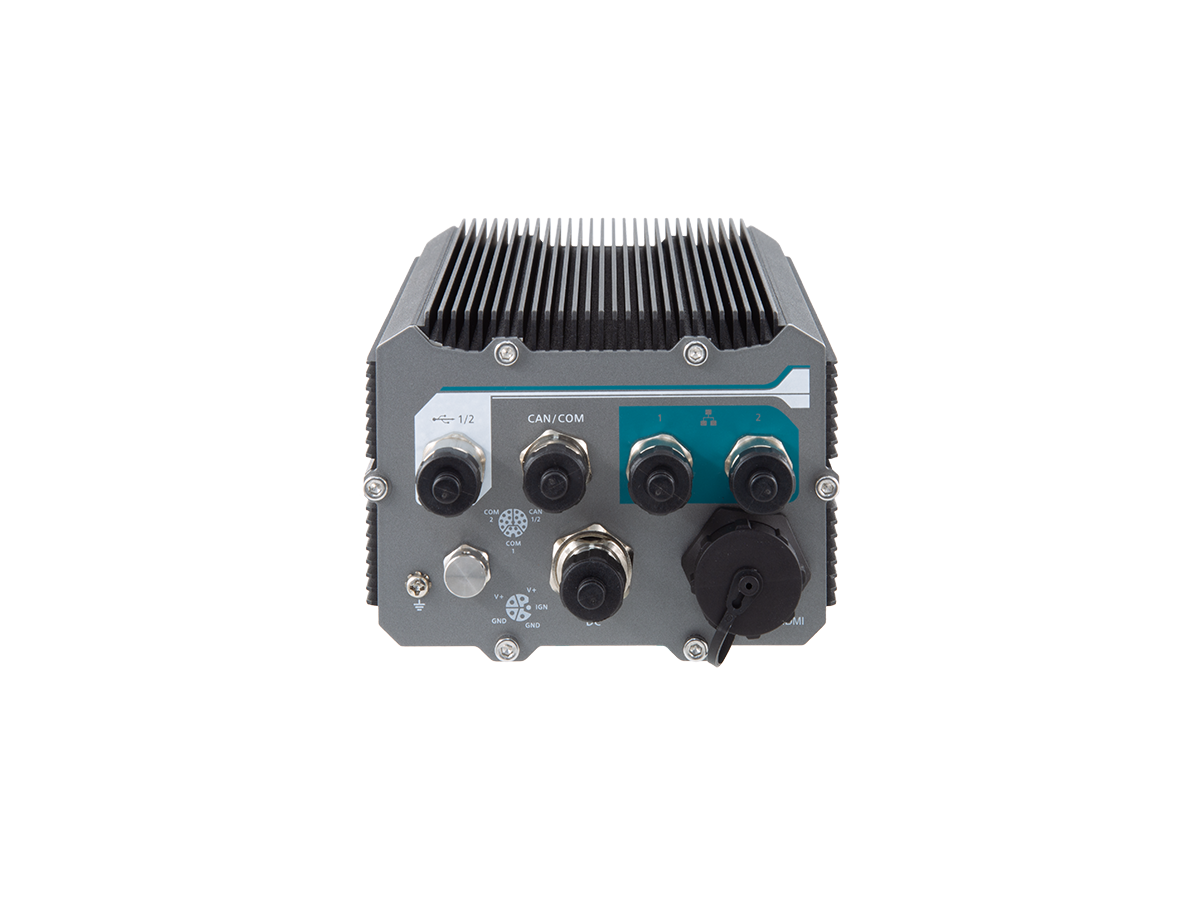

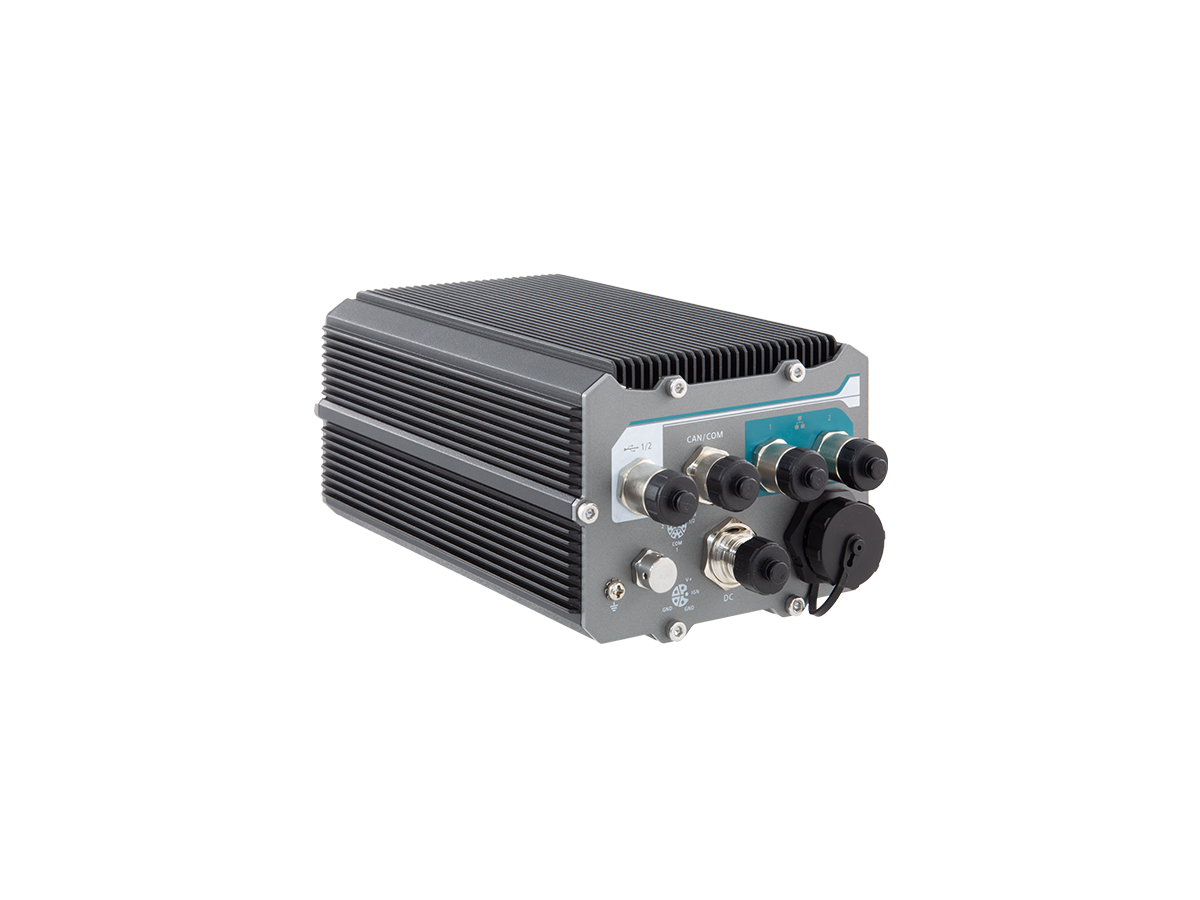

ARTS-7550 搭載 Intel® Amston Lake CPU 的 IP69K 防水無風扇電腦
搭載 Intel® Amston Lake CPU 的 IP69K 防水無風扇電腦
New
主要特點
即將推出
- 支援 IP69K 防塵防水等級
- 搭載 Intel® Amston Lake x7433RE 處理器
- 支援 -40°C 至 70°C 寬溫強固型無風扇運作
- 2 組 2.5GbE LAN 網路埠 (透過 M12 X-Coded 接頭)
- 2 組隔離式 CAN FD、1 組隔離式 RS-232，以及 1 組隔離式 RS-232 (選配)/422/485 序列埠 (透過 M12 A-Coded 接頭)
- 1 組 M.2 B-Key 插槽 (附 1 組 nano SIM 卡插槽，支援 Wi-Fi/BT/4G/5G/GPS)
- 1 組 HDMI 防水接頭
- 8V 至 35V 直流輸入，內建車載點火電源控制 (Ignition power control)
- 符合 E-Mark 車規標準與 MIL-STD-810H 軍規防震防摔認證
- 支援 dTPM 2.0 與 Windows® 11
規格表
System |
|
| CPU | Intel® Amston Lake x7433RE processor (Quad-Core SoC, 3.4GHz, TDP 9W) |
|---|---|
| Memory | 1 x DDR5 SO-DIMM sockets, support 4800MHz up to 16GB |
| Graphics | Integrated Intel® UHD Graphics |
| LAN Chipset | 2 x Intel® i226-IT 2.5GbE controller |
| TPM | Support dTPM2.0 |
I/O |
|
| Serial Port / CANBus | 2 x isolated CAN FD, 1 x isolated RS-232, and 1 x isolated RS-232 (optional)/422/485 via one combo M12 A-coded connector |
| USB Port | 2 x USB 2.0 ports via one M12 A-coded connector |
| LAN | 2 x 2.5GbE LAN ports via two M12 X-coded connectors |
| Display | 1 x HDMI waterproof connector, resolution up to 3840 x 2160@60Hz |
| Expansion Bus | 1 x M.2 B-key 2242/3042/3052 (PCIe Gen3 x1 + USB3.0 +USB2.0), w/ 1 x nano SIM card slot for 4G/5G/GPS module *Outside accessible SIM slot |
| Sensors | Onboard G-sensor / Gyroscope combining accelerometer (G-Sensor) and Gyroscope |
Storage |
|
| Type | 1 x M.2 M-key 2280 (SATA3 + PCIe Gen3 x2) for storage |
Power Requirement |
|
| Power Input | 8 - 35V DC-input with ignition power control via one M12 L-coded connector |
Environmental |
|
| Operating Temp. | -40°C ~ 70°C (-40 ~ 158°F) |
|---|---|
| Storage Temp. | -40°C ~ 85°C (-40 ~ 185°F) |
| Operating Humidity | 10% ~ 90%, non-condensing |
| Vibration | MIL-STD-810H, Method 514.8, Category 4 |
| Shock | MIL-STD-810H, Method 516.8, Procedure I |
Mechanical |
|

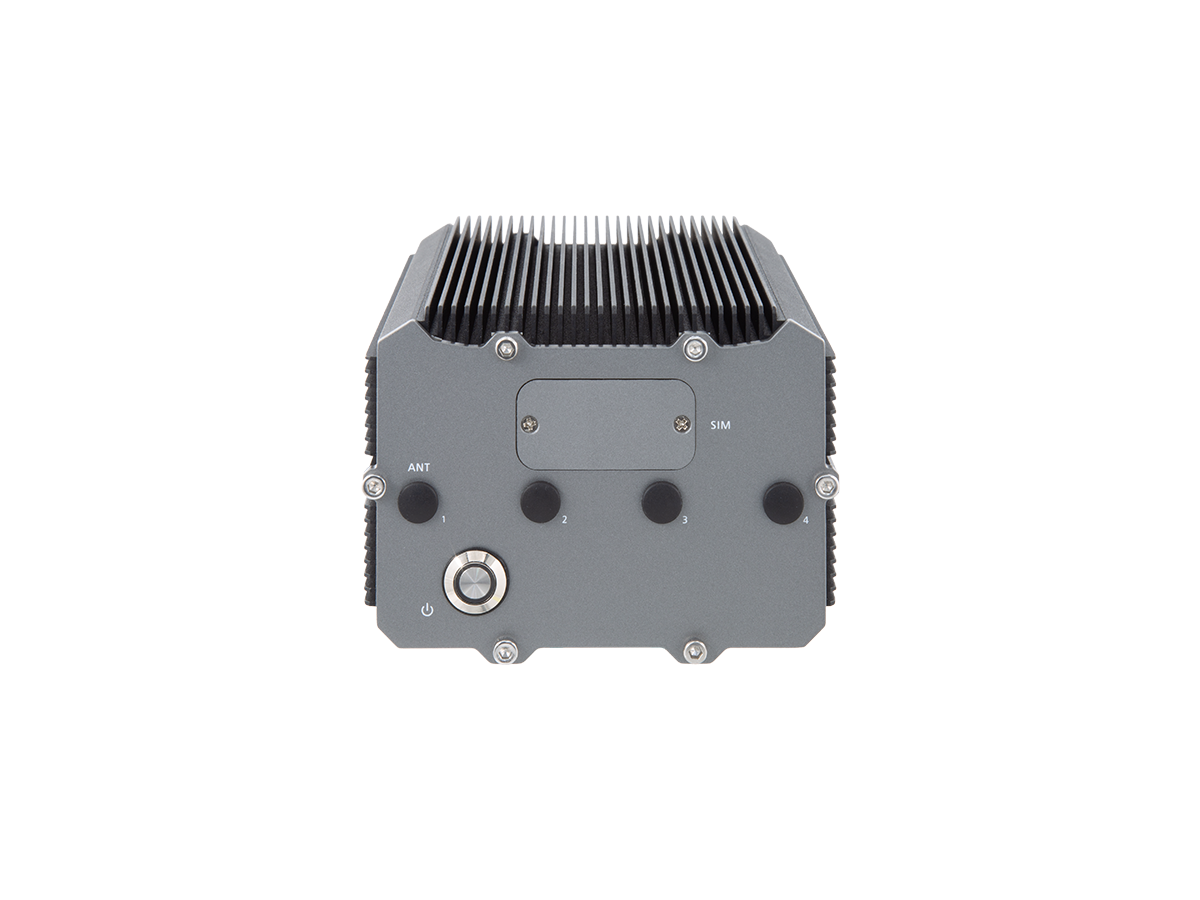

| Button | 1 x Waterproof power button with LED |
| SIM Slot | 1 x Outside accessible SIM card slot (waterproof) |
| Antenna | 4 x Antenna holes |
| Mounting | Wall-mount (standard accessories) |
| Weight | 1.2kg |
| Dimensions (W x H x D) |
106 x 78 x 159 mm (4.17" x 3.07" x 6.26") |
| Waterproof | IP69K Waterproof |
Qualification |
|
| Certification | CE/FCC Class A, E-Mark compliant |
OS Support |
|
| System | Windows® 10 / Windows® 11 / Linux Ubuntu 22.04 |
配件
Standard Accessories
-
WMK-7550
Wall Mounting Bracket Kit for ARTS-7550 Series
Optional Accessories
-
PAC-60W8A-MW-ES
12V/5A, 60W AC/DC Adapter, -30~+70°C, w/ EU & USA Power Cord -
CBL-M12L5-PWR-200CM
Power Cable, M12 5P(L-CODED) TO 3P OPEN, Length: 200CM -
CBL-M12-7550
ARTS-7550 M12 cable kit, including:
2x CBL-M12X8M-RJ45-50CM
1x CBL-M12A8M-2U2TA-50CM
1x CBL-M12A17M-3DB9-50CM -
WiFi-MT1440
MediaTek MT7921AUN M.2 B-Key Wi-Fi 6E+BT Module Kit (w/ 2 x 25cm RF Cable) -
ANT-P15
IP67 2.4G/5G/6G WIRELESS ANTENNA KIT W/ CABLE FOR WiFi-MT1440
