M1016

10.1” Healthcare Infotainment Terminal

M1016

10.1” Healthcare Infotainment Terminal
主要特點
  • Quad-Core ARM Cortex-A35 CPU 1.5G Hz, Android-based
  • Bedside infotainment and medical thin-client application
  • 10.1” LCD display
  • 10-point Projected Capacitive Multi-Touch
  • Support Android 8.1
  • H.265/HEVC Video Decode
  • IEC & EN 60601-1 (Edition 3.1) and IEC & EN 60601-1-2 (Edition 4th) certified
  • PoE connectivity (PD)
  • Operating temperature: 0~40°C
加入比較
規格表

System

CPU ARM Quad-Core Cortex-A35 1.5GHz (SoC)
GPU Mali-G31 MP2
Memory 2GB DDR4 memory soldered on board
Storage 16GB eMMC Flash soldered on board

Peripherals and Devices

Camera 2MP front-facing camera
WLAN & Bluetooth 1 x WLAN 802.11 a/b/g/n/ac & Bluetooth 5.0 + BLE

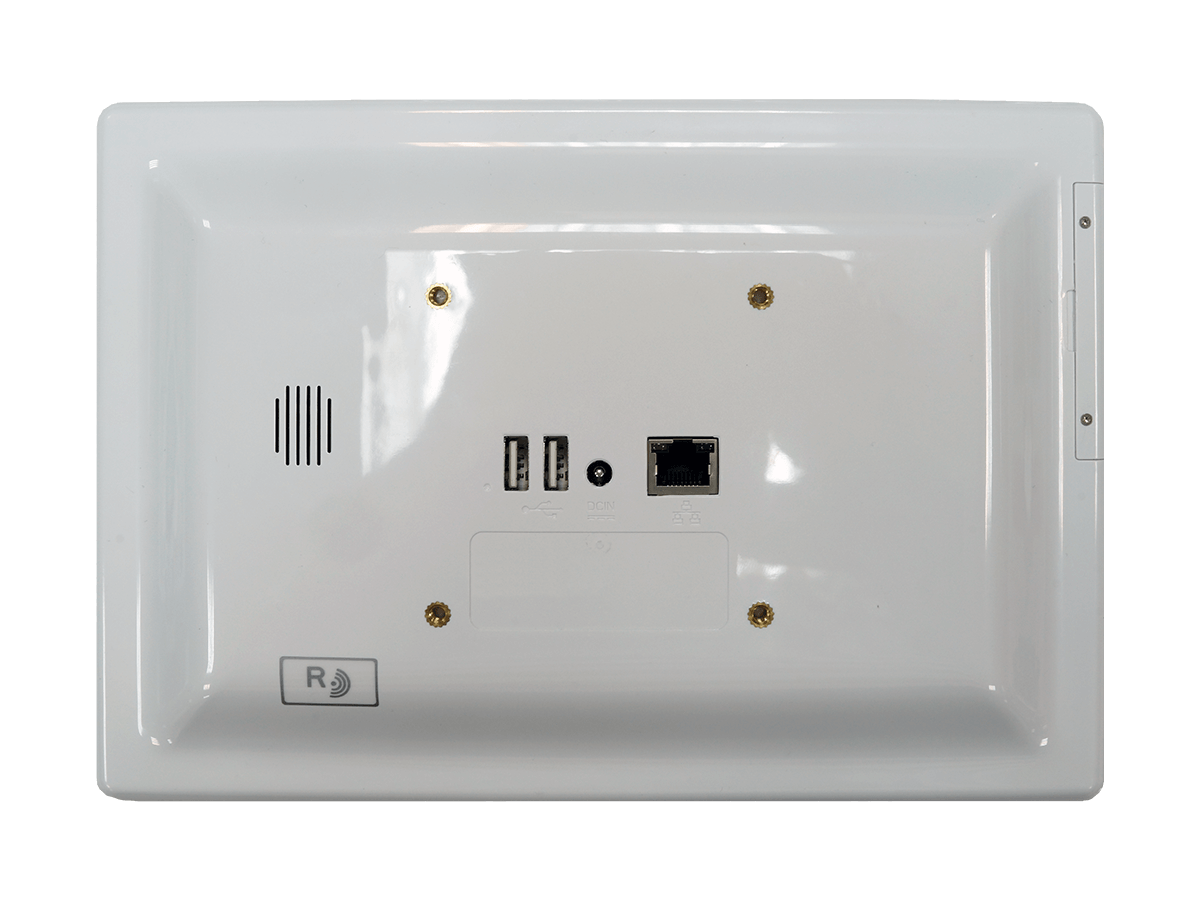

I/O Interface

SD Card 1 x microSDHC/microSD card socket (hidden) (Max.32GB)
Audio 1 x 3W stereo speaker
1 x 3.5mm earphone jack
1 x built-in microphone
LAN 1 x RJ-45 10/100M with PoE PD support
USB Port 2 x USB 2.0 Type-A port
1 x OTG micro-USB 2.0 (hidden)

Button & Indicator

Button 1 x Power on/off button
2 x Volume up/down buttons
1 x Reset button (hidden)
LED Green: DC Jack
Orange: PoE

Touch Screen

Type 10-point Projected Capacitive Multi-Touch

LCD Display

Size/Type 10.1” TFT, MIPI type
Max. Resolution 1280 x 800 (WXGA)
Contrast Ratio 800:1 (typ.)
Backlight Type LED
Brightness 250 nits
View Angle (U/D/R/L) 85°/85°/85°/85° (typ.)
配件

Optional Accessories

  • PAC-M025W
    25W medical-grade AC/DC adapter kit
