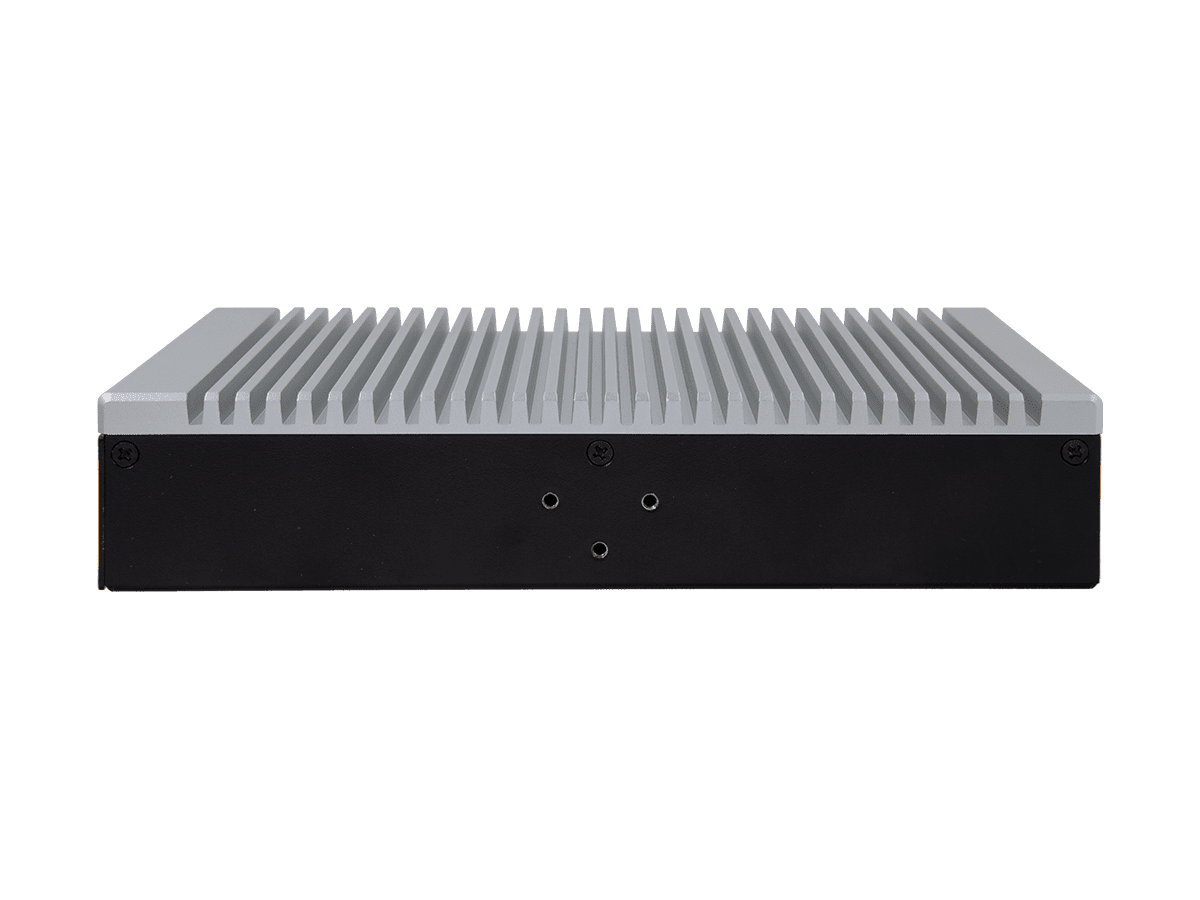

SB-226-1J64
Industrial Fanless Rugged Controller w/ Intel® Elkhart Lake Celeron® J6412 Processor
New
SB-226-1J64
Industrial Fanless Rugged Controller w/ Intel® Elkhart Lake Celeron® J6412 Processor
New
Features
- Intel® Celeron® J6412 CPU Elkhart Lake(2.0 GHz/2.6GHz)
- 1 x SDRAM DDR4 3200 MHz (max. 32G)
- Support 2 Gigabit LAN
- Support M.2 SSD, MiniPCIE, mSATA
- Support Wide DC input 12~36V
- Support Over-voltage and Reserved Power Insertion Protection
規格表
System
| CPU | Intel® Celeron® J6412 CPU Elkhart Lake (2.0 GHz/2.6GHz) |
|---|---|
| Memory | 1 x DDR4 SO-DIMM socket, supporting 3200 MHz SDRAM up to 32GB |
| Chipset | Integrated in CPU |
| Graphics | Intel® UHD Graphics for 10th Gen. Intel® Processors |
| LAN Chipset | 2 x Intel® I210-AT GbE Controllers |
| Watchdog Timer | 1~255 levels reset |
External I/O
| Serial Ports | 1 x RS232/422/485(default RS-232) with auto flow control 4 x RS485 ± 2KV protection 1 x RS232 |
|---|---|
| USB Ports | 4 x USB3.1 2 x USB 2.0 (optional by internal) |
| LAN | 2 x RJ45 |
| Video Ports | 1 x HDMI (Max Resolution: 4096x2160@60Hz) |
| Power Button | 1 x Power button w/LED |
| GPIO | 1 x 4bit programmable GPIO (3.3V default / 5V optional) |
Internal I/O
| Expansion Slot | 1 x full-size MiniPCIe slot |
|---|---|
| SIM Card | 1 x SIM Card socket for 3G/4G module |
Storage
| Device | 1 x M.2 M Key 2242 slot (SATA signal) 1 x MiniPCIe slot for mSATA *CTOS is available |
|---|
Audio
| Type | 1 x Audio(Line-out & Mic-in) (Chipset 888S/897) |
|---|
Power System
| Power Input | 12-36V DC, 2-pin phoenix connector |
|---|
OS
| System | Windows 10/11, Ubuntu 22.04 |
|---|
Qualification
| Certification | CE, FCC |
|---|
Mechanical
| Construction | Aluminum Alloy |
|---|---|
| Mounting | Desk-Mount, Wall-Mount |
| Dimensions (W x H x D) | 200 x 130 x 44 mm |
| Weight (Net) | 1.5kg |
Environmental
| Operating Temp. | -20 ~ 60°C (-4 ~ 140°F), ambient w/ air flow (WT RAM & SSD) |
|---|---|
| Storage Temp. | -40 ~ 85°C (-40 ~ 185°F) |
| Operating Humidity | 5% ~ 95% @ 40°C (non-condensing) |
| Vibration | 5~500Hz, 2Grms operation |
| Shock | Operation: 10G@11ms Non-operation: 30G@11ms |
Packing List
| SB-226-1J64 | 1 pcs BOX PC |
|---|---|
| Thermal PAD | 1 pcs for Memory, 1 pcs for M.2 2242 |
| 2-pin terminal block | 1 pcs 5mm for Power-input |
| DIP-19 Terminal block | 1 pcs for serial & GPIO ports |
| Wall-mount bracket | 2 pcs |
| Screw Package | 1 pcs |
Ordering Information
| SB-226-1J64 | Barebone Fanless System with Intel® Celeron Elkhart Lake J6412 , 2 x LAN, 6 x COM, 4 x USB(up to 6), 1 x HDMI, DC12-36V power input |
|---|---|
| SB-226-1J64-R4S128 | Fanless System with commercial 4GB RAM & 128GB SSD, Intel® Celeron Elkhart Lake J6412, 2 x LAN, 6 x COM, 4 x USB(up to 6), 1 x HDMI, DC12-36V power input |
| SB-226-1J64-R8S128 | Fanless System with commercial 8GB RAM & 128GB SSD, Intel® Celeron Elkhart Lake J6412, 2 x LAN, 6 x COM, 4 x USB(up to 6), 1 x HDMI, DC12-36V power input |
| SPA BOX PC DIN RAIL KIT | DIN Rail Bracket w/Screw, 35mm W25, 25X47.8mm |
| PAC-60W-FSP-SPA-US R1.0 | AC/DC Adapter Kit (w/ UKCA), 12V, 60W, 2 WIRE w/ US POWER CORD |
| PAC-60W-FSP-SPA-EU R1.0 | AC/DC Adapter Kit (w/ UKCA), 12V, 60W, 2 WIRE w/ EU POWER CORD |
| PAC-60W-FSP-SPA-UK R1.0 | AC/DC Adapter Kit (w/ UKCA), 12V, 60W, 2 WIRE w/ UK POWER CORD |
| PAC-60W-FSP-SPA-IN R1.0 | AC/DC Adapter Kit (w/ UKCA), 12V, 60W, 2 WIRE w/ IN POWER CORD |
| PAC-60W-FSP-SPA-JP R1.0 | AC/DC Adapter Kit (w/ UKCA), 12V, 60W, 2 WIRE w/ JP POWER CORD |
