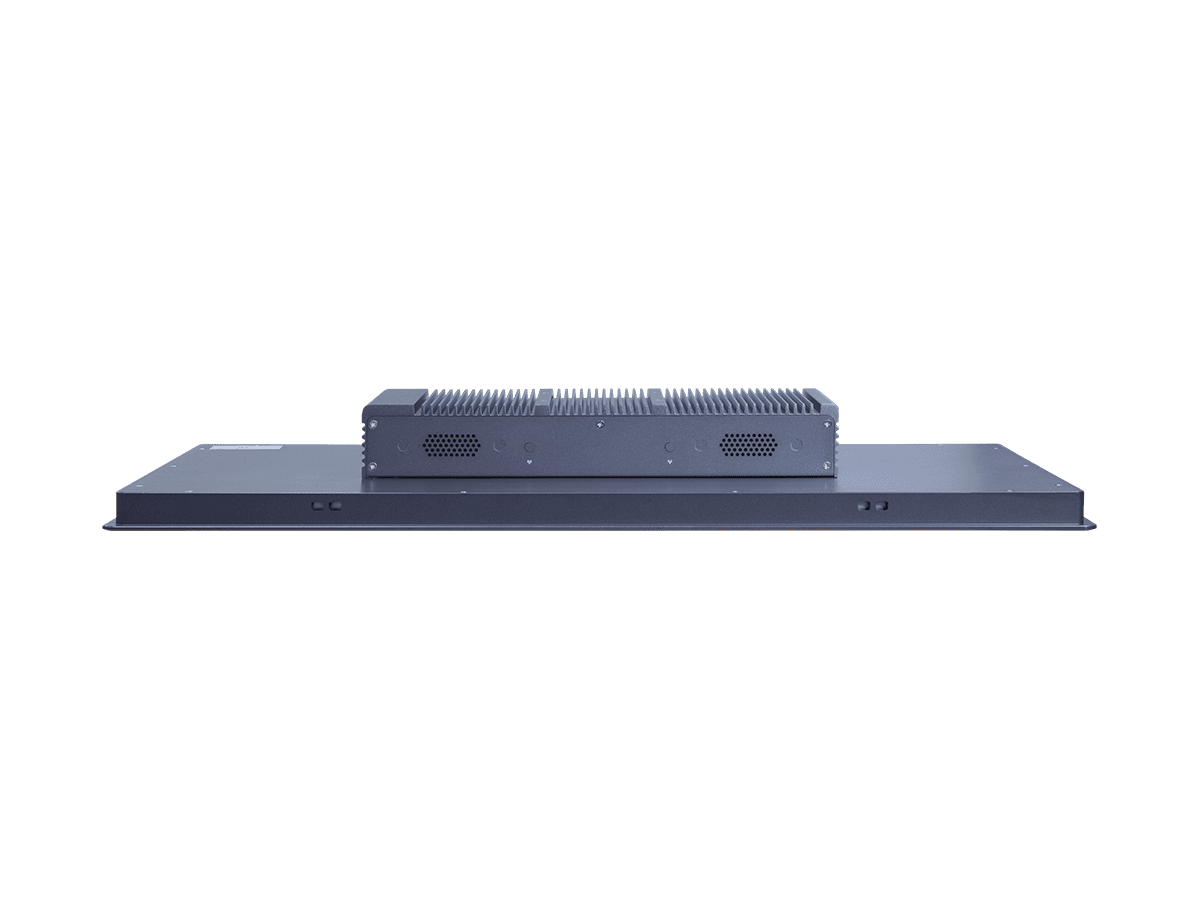

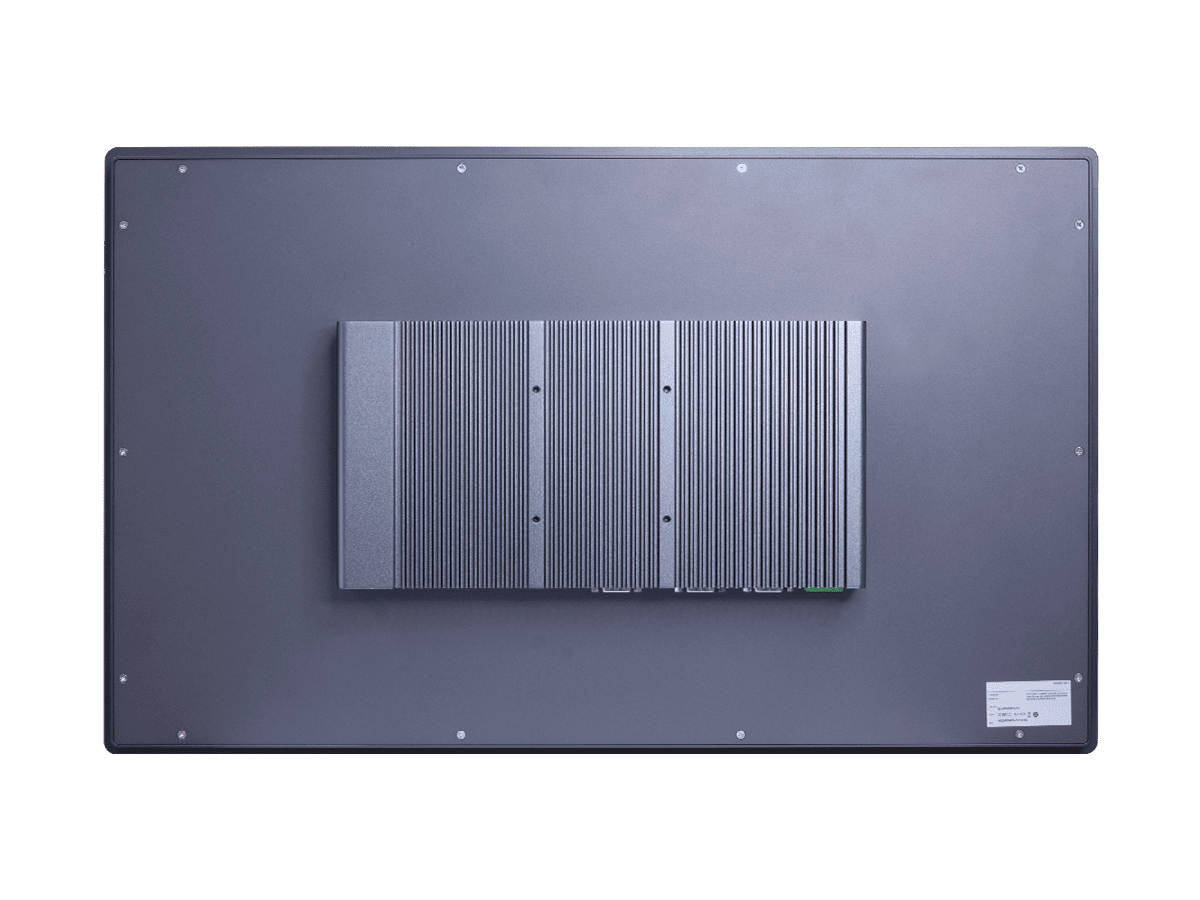

SP-241C-1N305
Industrial Fanless 23.8" Panel PC w/ Intel® Alder Lake-N Core i3 Processor N-series
New
SP-241C-1N305
Industrial Fanless 23.8" Panel PC w/ Intel® Alder Lake-N Core i3 Processor N-series
New
Features
- Intel® Alder Lake-N Core i3-N305 Processor (8 Cores, Up to 3.8GHz)
- 23.8 inches FHD LCD with LED backlight, front panel support IP66
- Industrial-grade 10 points project capacitive touch screen
- 1 x DDR5 4800MHz SO-DIMM Slot, up to 16GB
- Support 2 x 2.5GbE LAN
- Wide voltage 10~36V DC-IN, lockable Phoenix connector
- Support remote ON-OFF
- Grounding protection for product shell
- Support 1 x 2.5 inches HDD/SSD expansion
- Support standard VESA and panel mount
- Support Over-Voltage & Reversed Power Insertion Protection
規格表
System
| CPU | Intel® Core™ i3-N305 Processor (6M Cache, 8 Cores, Up to 3.8GHz) |
|---|---|
| Memory | 1 x DDR5 SO-DIMM sockets, supporting 4800 MHz SDRAM up to 16GB |
| Chipset | Integrated in CPU |
| Graphics | Integrated Intel® UHD Graphics |
| LAN Chipset | 2 x Intel® I226-V 2.5GbE controllers |
| Watchdog Timer | 1~255 levels reset |
LCD Display
| Size / Type | 23.8 inches TFT LCD Panel |
|---|---|
| Max. Resolution | 1920(H) x 1080(V) |
| Ratio | 16:9 |
| Luminance | 250 nits |
| Contrast Ratio | 3000:1 |
| Backlight Type | LED |
| Backlight Lifetime | 30,000 Hrs |
| Touch Type | 10 points project capacitive touch screen |
| Touch | 35,000,000 times |
| View Angle | CR ≥ 10, 178° (H) / 178° (V) |

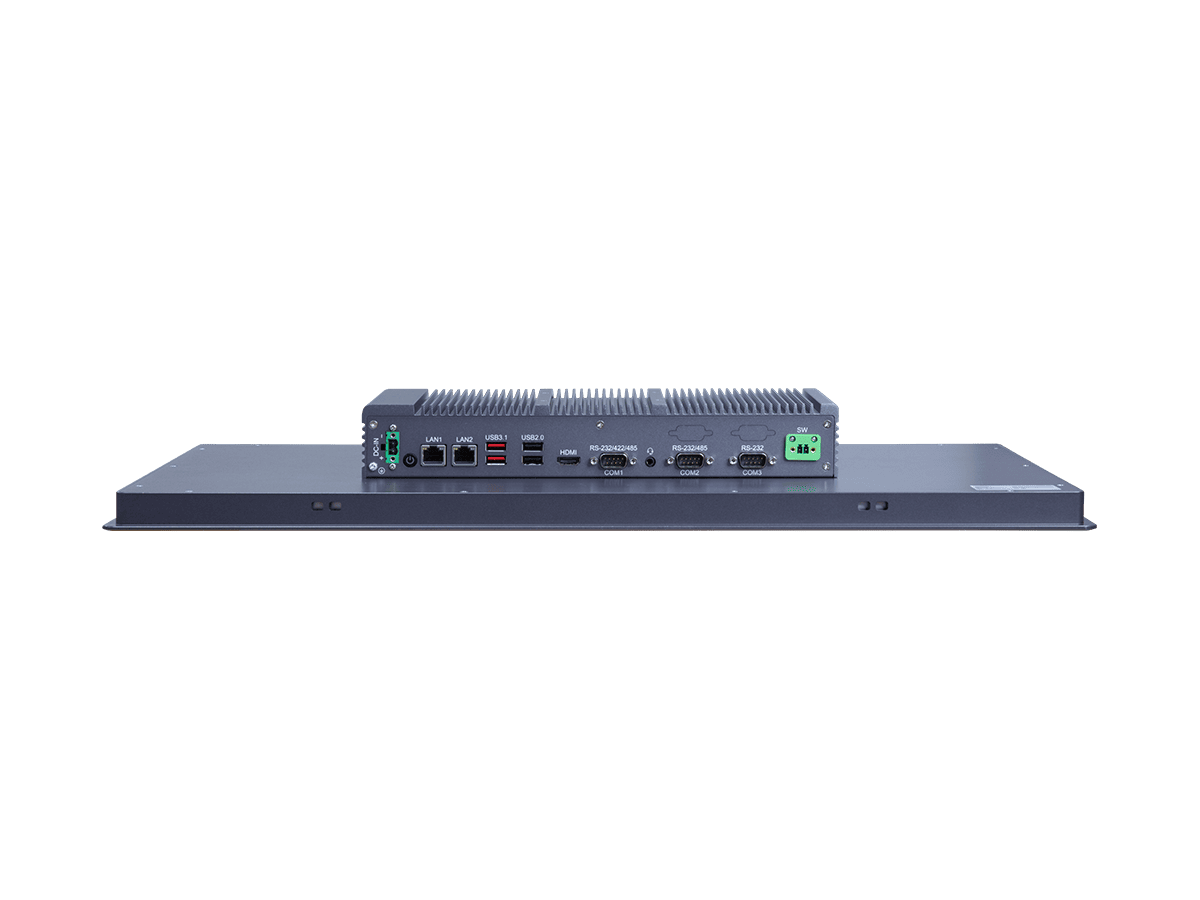

External I/O
| Serial Ports | 1 x RS232/422/485 (COM1) with DB9 1 x RS232(default)/485(Jumper)(COM2) with DB9 1 x RS232(COM3) with DB9 |
|---|---|
| USB Ports | 2 x USB 3.2, 2 x USB 2.0 |
| LAN | 2 x RJ45 |
| Video Ports | 1 x HDMI®(up to 4096 x 2160@60Hz) |
| Remote On-Off | 1 x Remote On/Off Switch |
Storage
| Device | 1 x M.2 M key 2242/2280 slot (SATA signal) 1 x M.2 M key 2242/2280 slot (PCIe x4 NVMe signal) (OEM Request) 1 x SATA 3.0 (2.5” HDD/SSD drive bay) *CTOS is available |
|---|
Audio
| Type | 1 x Audio (Line-out & Mic-in 2 in 1) (Chipset ALC888S) |
|---|---|
| Speaker | 2 x 4Ω 3W speakers |
Power System
| Power Input | 10~36VDC, 2-pin Phoenix connector |
|---|
OS
| OS | Windows 10/11, Ubuntu 22.04 |
|---|
Qualification
| Certification | CE, FCC |
|---|
Internal I/O
| Expansion | 1 x M.2 E key 2230 (PCIe x1/USB 2.0 signal) support CNVi 1 x 8bit GPIO 3.3V(jumper)/5V(default)Power voltage(optional) 2 x RS232 (optional) |
|---|
Mechanical
| Front Panel | Aluminum alloy |
|---|---|
| Heat-Sink | Aluminum alloy |
| Rear Cover | SECC |
| Power button | 1 x Power button w/LED |
| Dimension (W x H x D) | 594.3(W) x 366.6(H) x 70(D) mm |
| Cut out | 581.3 x 353.6 mm |
| Mounting | Panel mount, Wall mount and VESA-mount (75 x 75mm) |
| Weight | 8.2 Kg |
| Ingress Protection | Front Panel IP66 |
Environmental
| Operating Temp. | -10 ~ 60°C (14 ~ 140°F), ambient w/ air flow (WT RAM & SSD) |
|---|---|
| Storage Temp. | -40 ~ 70°C (-40~ 158°F) |
| Operating Humidity | 5 ~ 95% @40°C (non-condensing) |
| Vibration | 5~500Hz, 2Grms operation |
| Shock | Operation: 10G@11ms Non-operation: 30G@11ms |
Packing List
| SP-241C-1N305 | 1 pcs Panel PC |
|---|---|
| 2-pin terminal block | 1 pcs 5mm for Power-input, 1 pcs 3.5mm for Remote on-off SW |
| 22-pin SATA & Power cable | 250mm, 1 pcs |
| Thermal Pad | 4 pcs for M.2 2242/Memory, 1 pcs for CPU |
| Panel Hook | 4 pcs per bag, 2 bags in total |
| Screw package | 1 pcs |
Ordering Information
| SP-241C-1N305 | 23.8"(16:9) Panel PC, Intel® Core™ i3-N305 Processor, HDMI*1, USB*4, LAN*2, COM*5, DC10~36V power input |
|---|---|
| SP-241C-1N305-R8S128 | 23.8"(16:9) Panel PC with commercial 8GB RAM & 128GB SSD, Intel® Core™ i3-N305 Processor, HDMI*1, USB*4, LAN*2, COM*5, DC10~36V power input |
| PAC-120W-FSP-SPA-US R1.0 | AC/DC Adapter Kit (w/ UKCA), 19V, 120W, 2 WIRE w/ US POWER CORD |
| PAC-120W-FSP-SPA-EU R1.0 | AC/DC ADAPTER KIT (W/ UKCA), 19V, 120W, 2 WIRE w/ EU POWER CORD |
| PAC-120W-FSP-SPA-UK R1.0 | AC/DC ADAPTER KIT (W/ UKCA), 19V, 120W, 2 WIRE w/ UK POWER CORD |
| PAC-120W-FSP-SPA-IN R1.0 | AC/DC ADAPTER KIT (W/ UKCA), 19V, 120W, 2 WIRE w/ IN POWER CORD |
| PAC-120W-FSP-SPA-JP R1.0 | AC/DC ADAPTER KIT (W/ UKCA), 19V, 120W, 2 WIRE w/ JP POWER CORD |
| 8bit GPIO cable | 200mm, DB9M TO HSG2*5P(2.0), 8bit GPIO, W/O BRACKET, W/SCREW |
| COM4 cable | 150+/-10mm, DB9M TO HSG2*5P(2.0), 9-Wire COM4, W/O BRACKET, W/SCREW |
| COM5 cable | 150+/-10mm, DB9M TO HSG2*5P(2.0), 3-Wire COM5, W/O BRACKET, W/SCREW |
