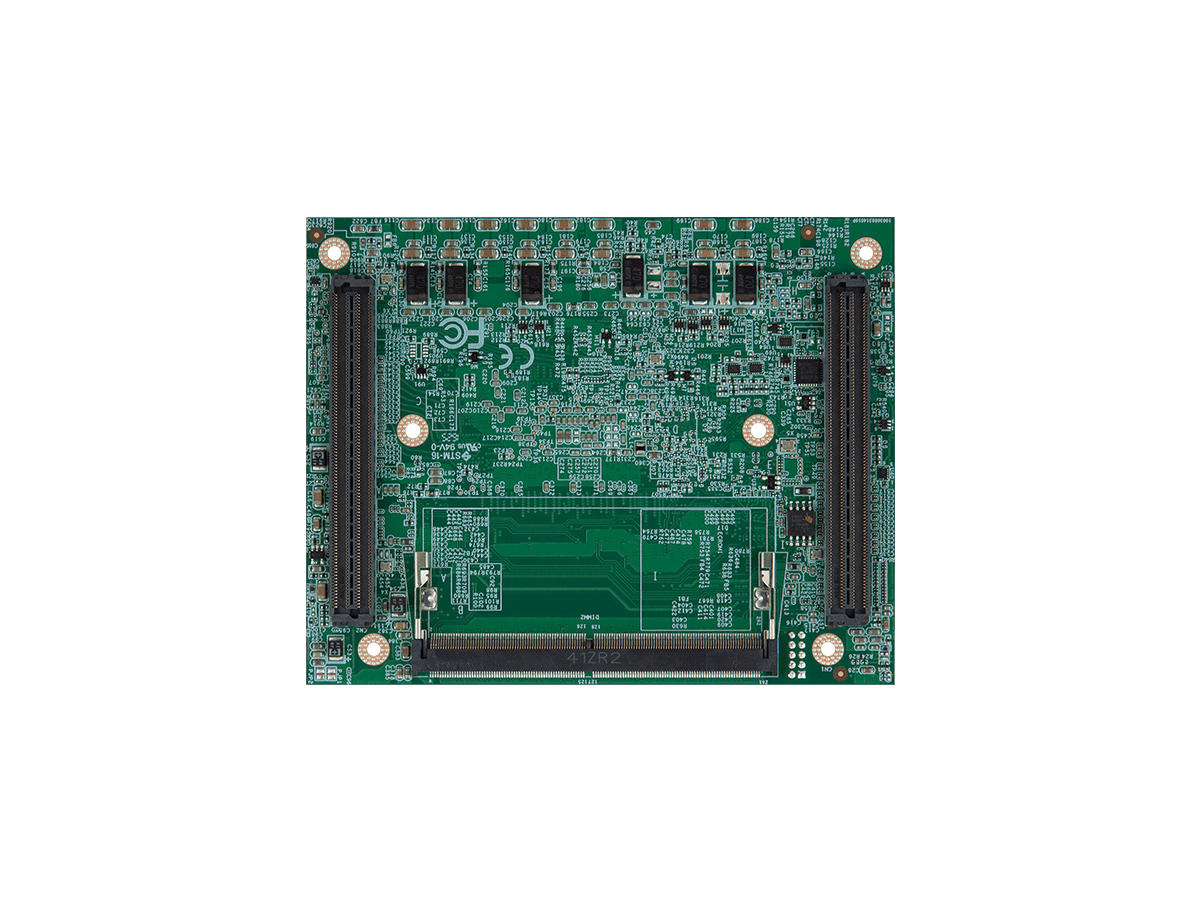

COMX-A300
Intel® Core™ Ultra processors (Arrow Lake/Meteor Lake U/H) CPU, COM-HPC Client Size A Module
New
COMX-A300
Intel® Core™ Ultra processors (Arrow Lake/Meteor Lake U/H) CPU, COM-HPC Client Size A Module
New
Features
- COM-HPC® Client Size A Module
- Intel® Core™ Ultra Processor (Arrow Lake/Meteor Lake U/ H-series)
- Intel® Xe LPG graphic up to 128EU, 4 independent 4K display
- Dual-CH DDR5 up to 96GB 6400MT/s SO-DIMM
- Support Max. 4 independent displays
- 8.5V~20V Wide Range Voltage Input
- Multiple I/O expansion: 2.5GbE, PCIe Gen5, USB4 & USB3.2 Gen2, SATA3.0
規格表
System |
|
| CPU | Intel® Core™ Ultra Series 2 Processor Core Ultra 7 255H / 255U / 155H/ 155U Core Ultra 5 255H / 255U / 125H/ 125U |
|---|---|
| Memory | 2 x 262-pin DDR5 SO-DIMM sockets, supporting up to 96GB 6400 MHz SDRAM |
| Graphics | Intel® ARC (H only) Xe LPG+ graphics |
| Graphic Interface | 3 x DDI ports and 1 eDP |
| SATA | 2 x SATA (share with PCIe) |
| LAN Chipset | 2 x Intel® I226LM 2.5GbE controllers |
| Watchdog Timer | 1~255 levels reset |
| TPM | Onboard TPM 2.0 |
I/O |
|
| Serial Port | GPIO: 12 bit GPIO (default 6 input / 6 output) I2C Baud Rate: 400KHz SMBus Baud Rate: 100KHz UART TX/RX signal only |
| USB Ports | 2x USB4 2x USB 3.2 Gen2 8x USB 2.0 |
| LAN | 2 x Ethernet with TSN & WOL support |
I/O |
|
| Audio | 2 x Soundwire Supports HD link or I2S or 2 x Soundwire |
|---|---|
| Expansion Bus | 4 x PCIEx1 Gen4 (Lane 0-3), configurable to x1, x2, x4 2 x PCIEx4 Gen4 (Lane 4-7, 8-11) 1 x PCIEx4 Gen4 (Lane 12-15) shared with optional onboard NVMe 4 x PCIEx1 Gen4 (Lane 16-19), *BOM optional and configurable to x1, x2, x4 1 x PCIEx8 Gen5 (Lane 32-39), Processor H only |
OS support |
|
| System | Windows® 10 IoT Enterprise 64-bit / Windows® 11 IoT Enterprise 64-bit, Linux (Ubuntu 20.04) |
Mechanical & Environmental |
|
| Power Requirement | 8.5V~20V wide range voltage input, +5VSB |
| Operating Temp. | -20 ~ 60°C (-4 ~ 140°F) |
| Storage Temp. | -40 ~ 85°C (-40~ 185°F) |
| Operating Humidity | 10 ~ 95% @60°C (non-condensing) |
| Dimension (W x H x D) |
95 x 120 mm (3.74” x 4.72”) |
