ARTS-7670

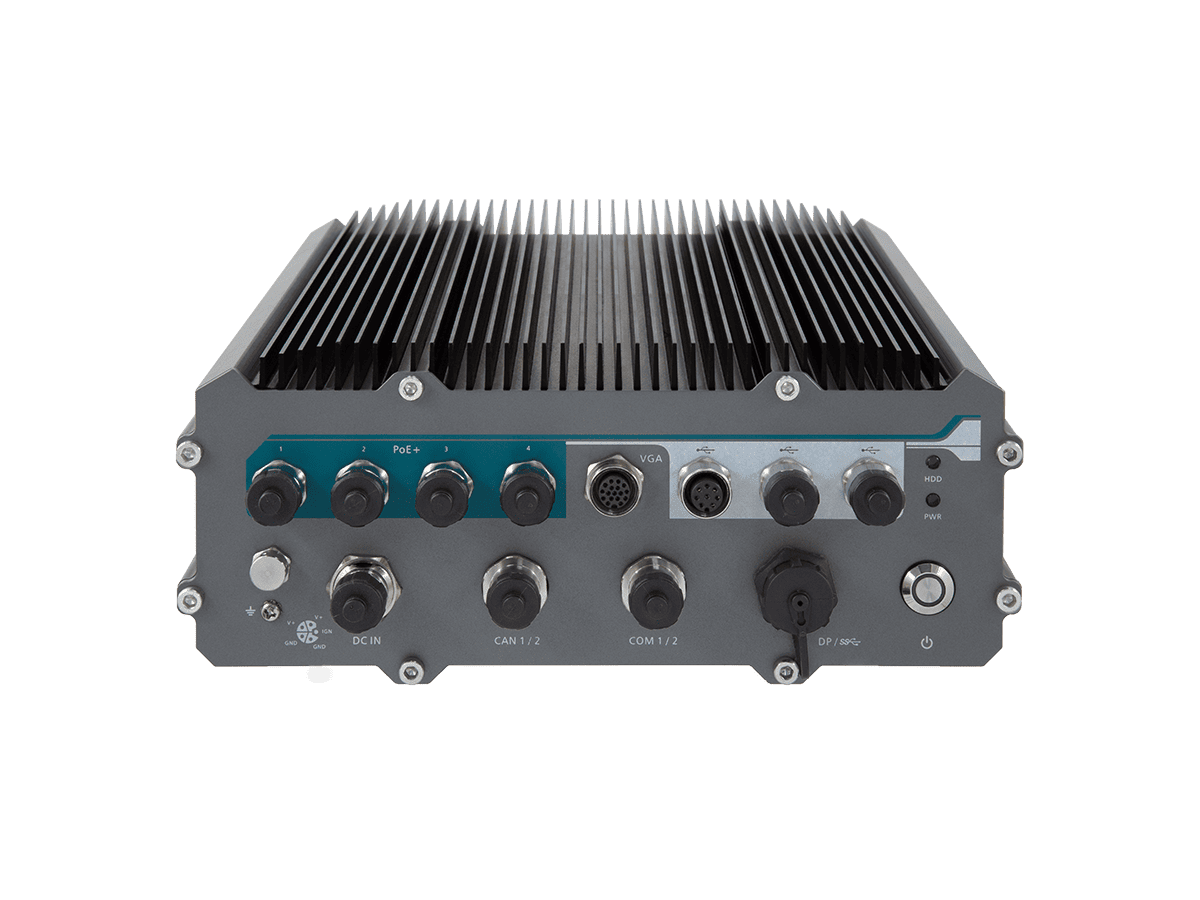

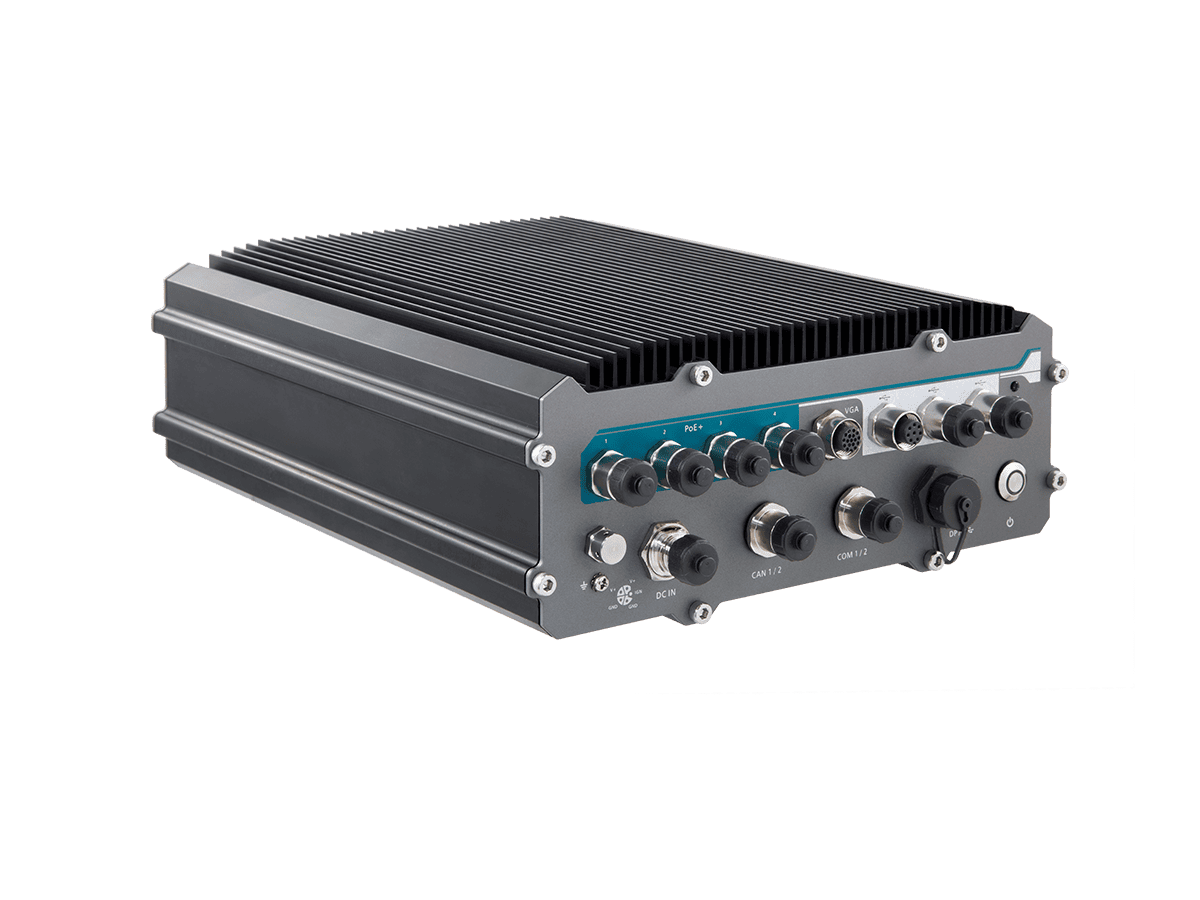

ARTS-7670 Rugged IP69K Waterproof Fanless Industrial PC with Intel® Core™ CPU for Edge Computing
- IP69K-rated dustproof and waterproof
- Intel® 14th/13th/12th-Gen. Core™ 35W/ 65W CPU
- Rugged -40°C to 70°C fanless operation
- 4 x PoE+ 2.5GbE ports via M12 X-coded with 100W power budget
- 1 x waterproof USB3.2 Type-C port support DisplayPort and USB3.2 dual output
- 2 x isolated CAN FD port via M12 A-coded
- 6 x USB 2.0, 1 x isolated RS-232 and 1 x isolated RS-422/485 ports
- 9V to 48V DC input with built-in ignition power control
- E-Mark compliant & MIL-STD-810H Shock/ Vibration certified
- Support dTPM2.0 & Windows®11
Why Choose ARBOR ARTS-7670?
The ARTS-7670 combines IP69K waterproof protection, high performance Intel® Core™ processing, vehicle grade power design, and rich industrial I/O into a single rugged platform, making it the ideal edge computer for applications where reliability, performance, and environmental resilience are critical.
Built for Vehicle & Outdoor IoT
The ARBOR IP69K Extreme PC is designed for harsh vehicle and outdoor environments. Featuring a fully fanless design and IP69K-rated protection, it delivers reliable edge computing for transportation, Vehicle IoT, and outdoor monitoring applications.
Extreme Rugged Design for Harsh Environments
The ARBOR ARTS-7670 is an IP69K rated rugged waterproof edge computer purpose built for extreme environments, outdoor deployments, and in vehicle AI computing. Featuring a fully sealed enclosure, the system provides superior protection against dust, water ingress, and high pressure, high temperature wash downs, making it suitable for installations exposed to rain, mud, vibration, or frequent cleaning. Its fanless thermal design eliminates moving parts that are prone to failure, significantly enhancing long term reliability and reducing maintenance at remote or mobile sites. Certified to MIL STD 810H for shock and vibration and compliant with E Mark vehicle standards, the ARTS-7670 operates reliably across a wide temperature range from –40°C to +70°C, ensuring stable performance in heavy vehicles, mining equipment, and smart transportation infrastructure.
Vehicle Optimized Power, Expansion & Secure Platform
Designed specifically for mobile and in vehicle installations, the ARTS-7670 supports a wide range 9V to 48V DC power input with tolerance up to 60V, ensuring stable operation under fluctuating vehicle power conditions. An onboard accelerometer (G-Sensor) and Gyroscope enable motion detection, orientation awareness, and enhanced system reliability for dynamic and vibration-prone environments. The platform offers strong scalability through dual DDR5 SO DIMM slots supporting up to 96GB memory, an M.2 PCIe Gen4 x4 NVMe slot, and two 2.5 inch SATA drive bays with RAID 0/1 support. Wireless and communication expansion is available via mini PCIe and M.2 B key slots, allowing integration of Wi Fi, Bluetooth, 4G, or 5G modules with dual SIM capability. For security and system integrity, the ARTS-7670 integrates dTPM 2.0 and supports Windows® 11 and mainstream industrial operating systems, making it a secure and future ready edge computing platform for smart transportation, outdoor edge AI, industrial automation, and rugged IoT gateway deployments.
High Performance Edge AI Computing & Industrial I/O
Powered by Intel® 12th, 13th, and 14th Generation Core™ processors with 35W and 65W TDP options and built on the Intel® Q670E industrial chipset, the ARTS-7670 delivers the computing performance required for real time analytics, edge AI inference, machine vision, and mission critical control systems. To support data intensive edge workloads, the platform integrates four 2.5GbE PoE+ ports using M12 X coded connectors, providing up to 100W total PoE power for AI cameras and IP sensors. Vehicle and industrial communications are further enabled through dual isolated CAN FD interfaces and isolated RS 232, RS 422, and RS 485 serial ports, ensuring stable and noise resistant data transmission in electrically harsh environments. For display and peripheral connectivity, a waterproof USB 3.2 Type C port supports both DisplayPort video output and high speed data transfer, complemented by an M12 based VGA output and multiple USB ports for legacy and industrial devices.
System |
|
| CPU | Intel® 12/13/14th-Gen. Core™ CPU (LGA1700 socket, 65W/ 35W) |
|---|---|
| Memory | 2 x DDR5 SO-DIMM sockets, support 4800 MHz up to 96GB |
| Chipset | Intel® Q670E platform controller |
| Graphics | Integrated Intel® UHD Graphics |
| LAN Chipset | 4 x Intel® i226-IT 2.5GbE controller |
| TPM | Support dTPM2.0 |
| Watchdog Timer | 1~255 levels reset |
I/O |
|
| Serial Port | 1 x isolated RS-232 port (COM1) and 1 x isolated RS-422/485 ports (COM2) (via 1 x M12 A-coded, 8-pin connector) |
| USB Port | 1 x USB 3.2 Gen1 (5 Gbps) port in type-C waterproof connector 6 x USB 2.0 (via 3 x M12 A-coded, 8-pin connector) |
| LAN | 4 x PoE + 2.5GbE port via M12 X-coded |
| PoE | IEEE 802.3at PoE+ PSE for 4 x 2.5GbE ports 100W total power budget |
| CANBus | 2 x isolated CAN FD port (via 1 x M12 A-coded, 8-pin connector) |
| Display | 1 x DisplayPort in Type-C waterproof connector,
resolution up to 4096x2304@60Hz 1 x VGA (M12 A-coded, 17-pin connector), resolution up to 1920x1200@60Hz |
| Expansion Bus | 2 x full-size mini–PCIe (PCIe Gen3x1 + USB2.0) w/ 1 x SIM card slot for Wi-Fi/BT/LTE module 1 x M.2 B-key 3042/3052 (PCIe Gen3x1 + USB3.0 +USB2.0) w/ 2 x SIM cards slot for 4G/5G module |
| Others | Support accelerometer(G-Sensor) and Gyroscope |
Storage |
|
| Type | 1 x M.2 M-key 2242/2280 (PCIe Gen4x4) for storage 2 x 2.5” SATA HDD/ SSD ; supports RAID 0/1 |
Power Requirement |
|
| Power Input | 9V to 48V DC input with built-in ignition power control, MAX 60V (M12 L-coded, 5-pin) |
Environmental |
|
| Operating Temp. | with 35W CPU: -40°C ~ 70°C with 65W CPU: -40°C ~ 70°C (configured as 35W TDP mode) -40°C ~ 50°C (configured as 65W TDP mode) |
|---|---|
| Storage Temp. | -40°C ~ 85°C (-40°F ~ 185°F) |
| Operating Humidity | 10% ~ 90% (non-condensing) |
| Vibration | MIL-STD-810H, Method 514.8, Category 4 |
| Shock | MIL-STD-810H, Method 516.8, Procedure I |
Mechanical |
|
| Button | 1 x waterproof Power button with LED (Green) |
| LED indicator | 1 x PWR LED (Green), 1 x HDD LED (Red)) |

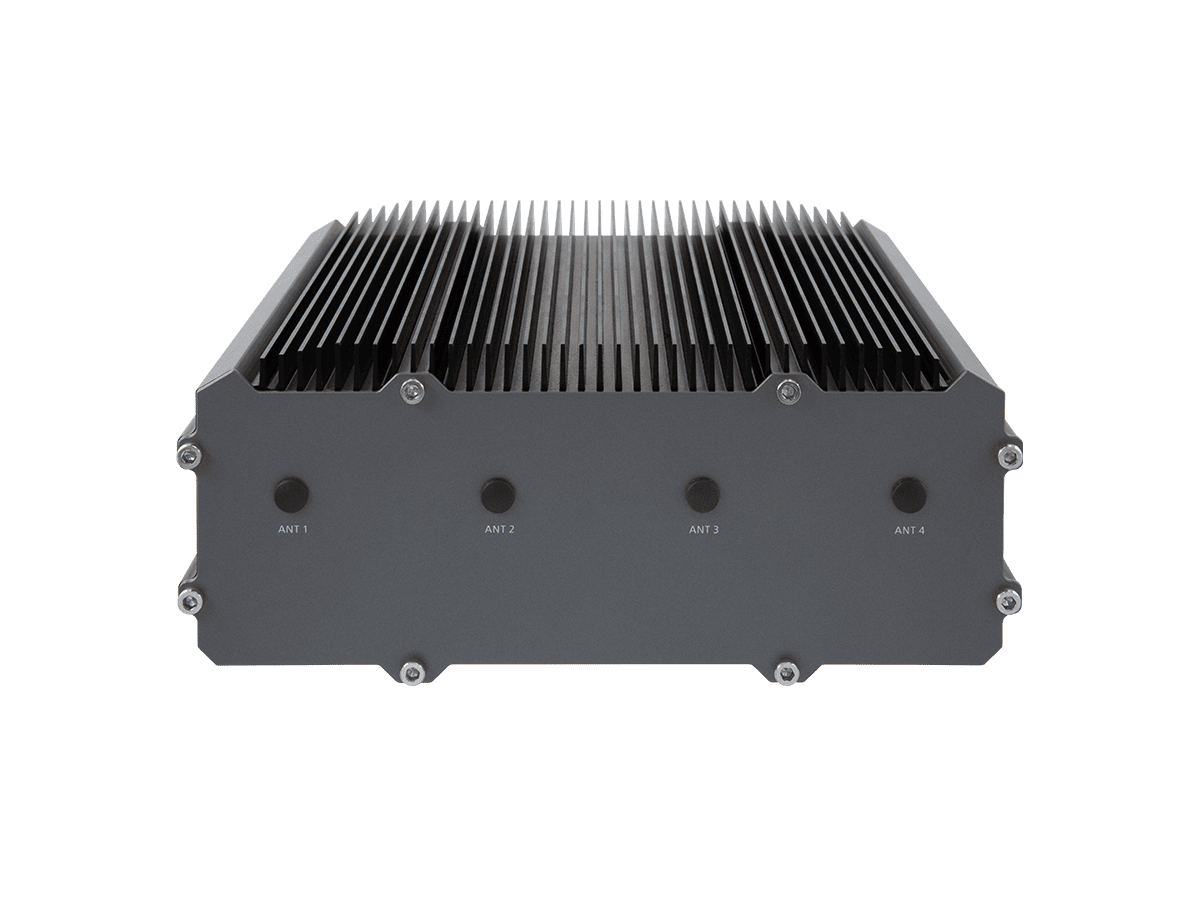

| Antenna | 4 x Antenna holes (with rubber cover pre-installed) |
| Mounting | Desktop/ Wall-mount |
| Weight | 4.2 kg |
| Dimensions (W x H x D) |
264 x 92 x 225 mm |
| Waterproof | IP69K-rated dustproof and waterproof |
Qualification |
|
| Certification | CE/FCC Class A, E-Mark compliant |
OS Support |
|
| System | Windows 10® / Windows 11® / Linux Ubuntu 22.04 |
Standard Accessories
-
WMK-7670
Wall Mounting Bracket Kit for ARTS-7670 Series
Optional Accessories
-
PAC-280W8C-MW-ES
24V/11.67A, 280W AC/DC Adapter , -30~+70°C, w/ EU & USA Power Cord -
CBL-M12L5-PWR-200CM
Power Cable, M12 5P (L-CODED) TO 3P OPEN, Length: 200CM -
CBL-M12-7670
ARTS-7670 M12 cable kit, including:
4x CBL-M12X8M-RJ45-50CM
3x CBL-M12A8M-2U2TA-50CM
1x CBL-M12A8M-2DB9COM2-50CM
1x CBL-M12A8M-1DB9CAN2-50CM
1x CBL-M12A17M-VGA-150CM -
WiFi-AT4550
Atheros QCNFA324 mPCIe Wi-Fi+BT Module Kit (w/ 2 x 30cm RF Cable) -
LTE-4450
Quectel EG25-G mPCIe LTE Cat 4 Module Kit (for Global, w/ 1 x 25cm RF Cable) -
ANT-P14
IP67 2.4G/5G/6G WIRELESS ANTENNA KIT W/ CABLE FOR WiFi-AT4550 -
ANT-P11
IP67 5G/4G LTE ANTENNA KIT W/ CABLE FOR LTE-4450
