Gladius GT-500-V

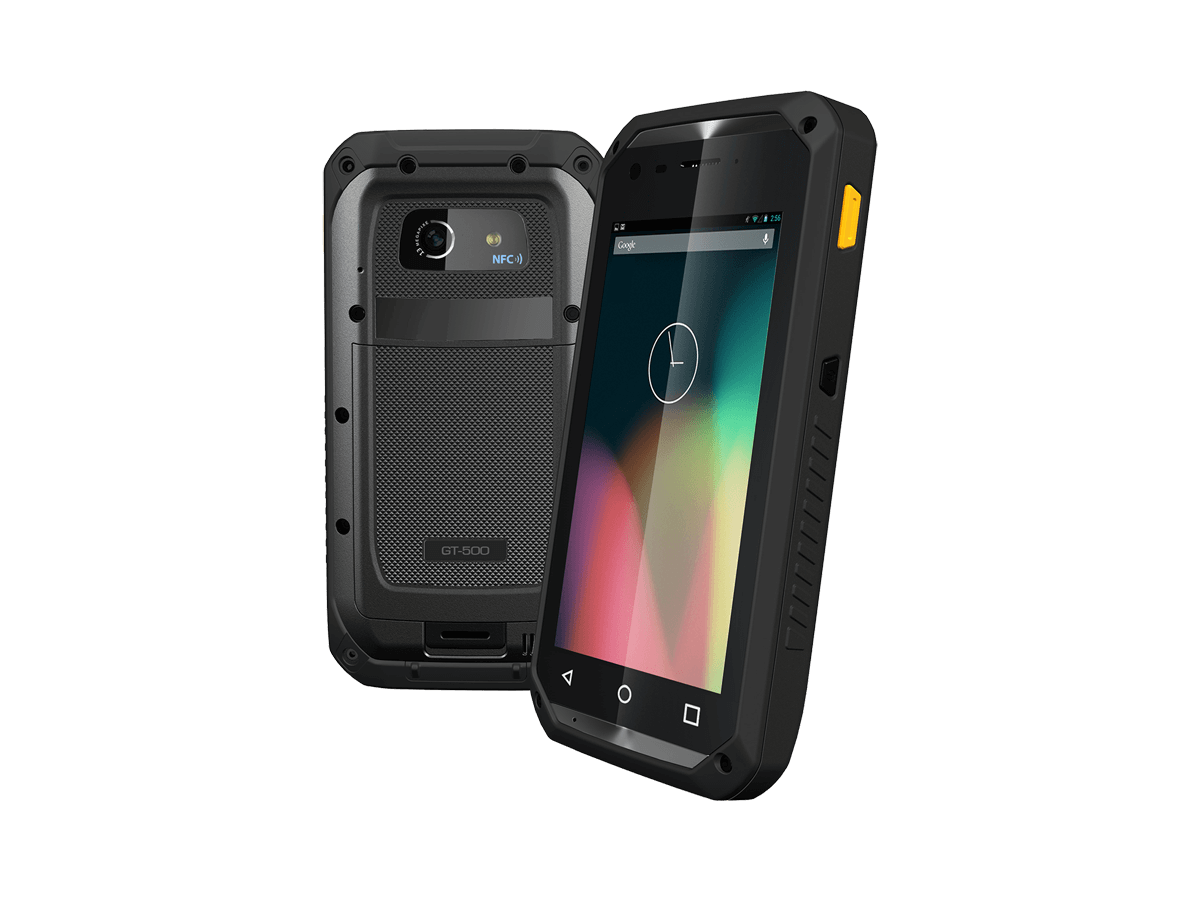

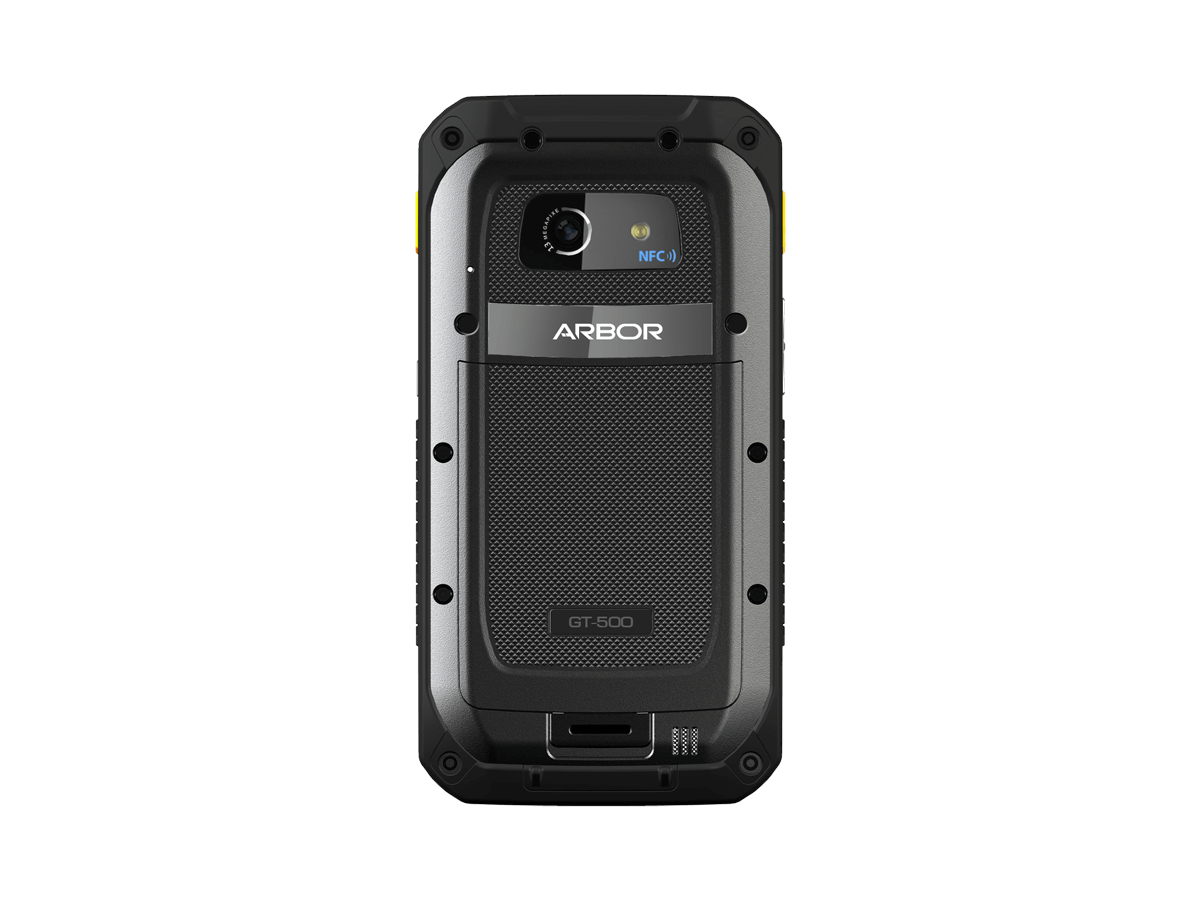

5" Rugged Android™ Handheld for Verizon Network
Gladius GT-500-V
Gladius GT-500-V
Gladius GT-500-V

Gladius GT-500-V

5" Rugged Android™ Handheld for Verizon Network
Features
  • Verizon approved
  • Supports Android 7.0
  • Quad-core ARM Cortex-A53 1.3GHz
  • Multiple Connectivity including WLAN, Bluetooth and NFC
  • 2G/3G/LTE data connectivity support, voice calls not supported
  • IP67 rated water and dust resistance.
  • Drop proof: Up to 1.2m
  • Accelerometer, magnetometer, gyroscope, light sensor, GPS & pressure sensor
  • Built-in 1D/2D barcode scanner (optional)
    • Add To Compare
    Specification

    System

    CPU Quad Core ARM Cortex-A53 1.3GHz
    OS Android 7.0
    Memory 3GB LPDDR2
    Flash 16 GB eMMC

    LCD Display

    Size/Type 5“ TFT LCD
    Resolution 720(W) x 1280(H)
    Brightness 500 nits
    Touch Screen 5-point capacitive multi-touch (PCT)

    Peripherals and Devices

    Camera Front: 5MP
    Rear: 13MP AF with Flashlight
    Sensor Magnetometer (M-Sensor/E-Compass)
    Accelerometer (G-sensor)
    Gyroscope
    Pressure sensor
    Proximity sensor
    Ambient light sensor
    Barcode Scanner 2D barcode reader with physical trigger buttons
    Audio & Vibrator 1 x built-in microphone
    1 x built-in speaker (0.5W)
    1 x vibrator
    1 x 3.5mm stereo headphone/microphone combo jack
    FM radio

    Wireless

    WLAN Integrated Wi-Fi 802.11a/b/g/n
    Bluetooth Integrated Bluetooth 4.1 (BLE, HS compliant)
    WWAN Frequency Bands Europe/Middle East/Africa/South Korea/Thailand:
    EC25-E
    LTE FDD: B1/B3/B5/B7/B8/B20
    LTE TDD: B38/B40/B41
    WCDMA: B1/B5/B8
    GSM: B3/B8
    North America
    EC25-A:
    LTE FDD: B2/B4/B12
    WCDMA: B2/B4/B5
    EC25-V:
    LTE FDD: B4/B13
    Nimbelink Module / LTE: B2/B4/B13
    Australia/New Zealand/Taiwan/Brazi:
    EC25-AU:
    LTE FDD: B1/B2/B3/B4/B5/B7/B8/
    B28
    LTE TDD: B40
    WCDMA: B1/B2/B5/B8
    GSM: B2/B3/B5/B8
    EC25-AUT:
    LTE FDD: B1/B3/B5/B7/B28
    WCDMA: B1/B5
    EC25-AUTL:
    LTE FDD: B3/B7/B28
    Japan:
    EC25-J:
    LTE FDD: B1/B3/B8/B18/B19/B26
    LTE TDD: B41
    WCDMA: B1/B6/B8/B19
    Navigation GPS
    NFC ISO14443A/B, ISO15693, MIFARE, Felica

    I/O Interface

    USB Port 1 x micro USB 2.0 port High Speed
    SD Slot 1 x microSD card slot (up to 64G)
    SIM Socket 1 x micro-SIM (3FF) socket supporting LTE
    Pogo pin Extra power pins for docking

    Power Supply

    Battery Type Lithium-ion rechargeable battery
    Customer replaceable (for maintenance)
    Battery Capacity Standard 4800mAh
    High capacity battery 7800mAh (optional)
    Adapter Input AC100~240C, 50~60 Hz
    Adapter Output 5V/2A

    Mechanical & Environmental

    Protection IP67, up to 1.2m drop resistance.
    Operating Temp. -10°C ~ 50°C (14°F ~ 122°F)
    Storage Temp. -20°C ~ 60°C (-4°F ~ 140°F)
    Operating Humidity 5~95% RH
    Dimensions (W x H x D) 86 x 165.79 x 25.85mm (3.39” x 6.53 x 1.02”)
    Weight 385g (0.85lb) (with battery)

    Key

    Volume Yes
    Barcode trigger Yes

    Ordering Information

    7405001810041M 5” Rugged Handheld Device LTE with 2D BCR (US)
    7405001810051M 5” Rugged Handheld Device LTE with 2D BCR (EU)
    7405001810061M 5” Rugged Handheld Device Wifi with 2D BCR
    Accessories

    Standard Accessories

    • Micro USB Cable
    • Rechargeable Li-ion battery pack (pre-installed)
    • Quick Start Guide

    Optional Accessories

    • Power Adapter
      Universal power adapter, 5V/2A
    • Hand Strap
      165(L) x 40(W) mm hand strap
    • Battery Charger
      4-in-1 battery charger
    • Cradle
      Desktop cradle, 2A/5V DC input
