ART10-ECA
ART10-ECA 10” Rugged Windows Tablet with Intel® Twin Lake Processor
- 10.1" IPS TFT LCD 1200*1920(FHD)
- Embedded 1D/2D barcode scanner (Optional)
- Extremely thinnest industrial tablet under 15mm
- 1m (3.3ft.) drop resistance
- Fully rugged IP65 to protect from dust and water
- Optical Bonding for Sunlight readable
Built-in Barcode Scanner, Real-Time Data Capture Made Simple
The ART10-ECA is equipped with a high-performance built-in 1D/2D barcode scanner that enables accurate and efficient real-time data capture. Whether used in dimly lit warehouses, fast-paced retail environments, or dynamic field service operations, the scanner ensures consistent and precise reading performance. By streamlining inventory tracking and mobile workflows, it significantly boosts operational efficiency and reduces the risk of manual errors, making it an ideal companion for any environment where accuracy and speed are essential.
High-Speed, Low-Latency Wireless Performance
With next-generation Wi-Fi 6E technology, the ART10-ECA redefines wireless communication by tapping into the exclusive 6GHz band. This reduces signal congestion and interference, resulting in faster, more reliable connectivity. Supporting 160MHz channels, the device effortlessly handles bandwidth-intensive applications such as 8K video streaming, cloud-based computing, and real-time collaboration. Designed to support the growing demands of smart infrastructure and enterprise IoT ecosystems, it delivers ultra-low latency and stable connections, even in device-dense environments.

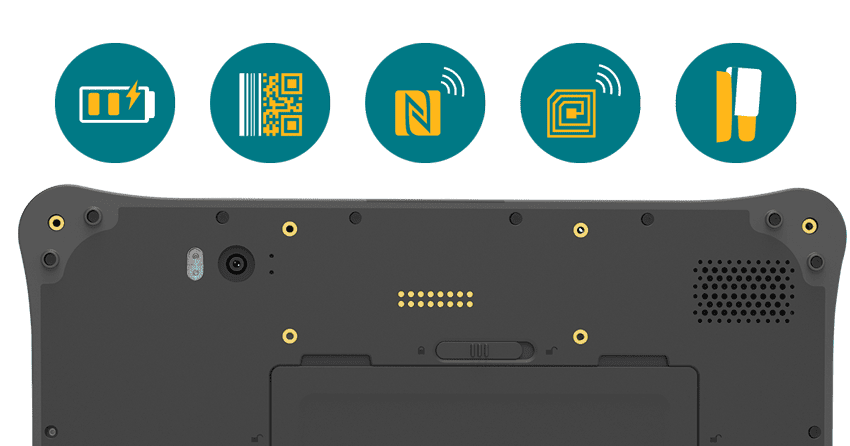

Modular Expansion via Pogo-Pin Header
To meet the evolving needs of specialized applications, the ART10-ECA features a pogo-pin header design that enables seamless modular expansion. Users can easily connect custom accessory modules, such as additional I/O, sensors, or payment systems, without the need for tools or major hardware changes. This flexible, future-proof design allows for rapid customization and deployment, empowering integrators and enterprises to adapt the device to diverse scenarios with minimal effort.
System |
|
| CPU | Intel® Twin Lake N150 |
|---|---|
| OS | Windows 11 IoT Enterprise 24H2 |
| Memory | LPDDR5 8GB |
| Storage | UFS 128GB |
LCD Display |
|
| Size / Type | 10.1" IPS TFT LCD |
| Resolution | 1200 x 1920 (FHD) |
| Brightness | 400 cd/m² (MIN) |
Peripherals and Devices |
|
| Sensor | Accelerometer (G-sensor) |
| Barcode Scanner | Zebra SE4710 (Optional) |
| Audio | 2 x built-in microphone 1 x built-in speaker |
| Camera | Front: 5MP ; Rear: 5MP |
Wireless |
|
| WLAN | Wi-Fi 6E |
| Bluetooth | BT 5.4 |
I/O Interface |
|
| USB Port | 1 x USB-C support USB 3.0, DP, PD3.0 1 x USB-A support USB 3.0 |
Qualification |
|
| Certification | CE(Planning), FCC(Planning), TELEC(Planning) |
Power Supply |
|
| Power Input | 20V DC/ 2.25A through USB-C port |
|---|---|
| Battery Capacity | 1 x 7.6V, 5000mAh, 38Wh (Removable battery pack) |
Key |
|
| Physical Buttons | Volume, Barcode Trigger, Power Button |
Mechanical & Environmental |
|
| Operating Temp. | -10°C ~ 50°C (14°F ~ 122°F) (AC mode) |
| Storage Temp. | -30°C ~ 70°C (-22°F ~ 158°F) |
| ESD | ±8kV Air-discharge ±4kV Contact-discharge |
| Relative Humidity | 10% ~ 90% RH |
| Dimension (W x H x D) |
246.1 x 164.2 x 14.9 mm (9.69” x 6.46” x 0.59”) |
| Weight | 950g (w/ Battery) |
Multi-function Expansion |
|
| Pogo-pin | Down-side, USB 2.0 |
*All specifications are subject to change without notice.
Standard Accessories
-
Lithium Battery
1 x Li-polymer Battery, 7.6V, 5000mAh -
PD Adapter
45W USB-C PD Adapter, AC Input: 100-240VAC, 50/60Hz, 1.5A; DC Output: 20VDC/2.25A
Optional Accessories
-
Hand Strap
Hand Strap -
Shoulder Strap
Shoulder Strap -
Office Dock - STD (coming soon)
1 x USB 2.0 Type-C (only for charging)
1 x USB 2.0 Type-C (support data only)
3 x USB 2.0 Type-A (support data)
1 x RJ-45 Ethernet Port (10/100 Mbps)
1 x COM port (RS232/422/485)
1 x 8-pin POGO for Docking (USB 2.0 data and Power output for ART10-ECA)
1 x 4-pin POGO for Docking (power supply for single battery charging)
