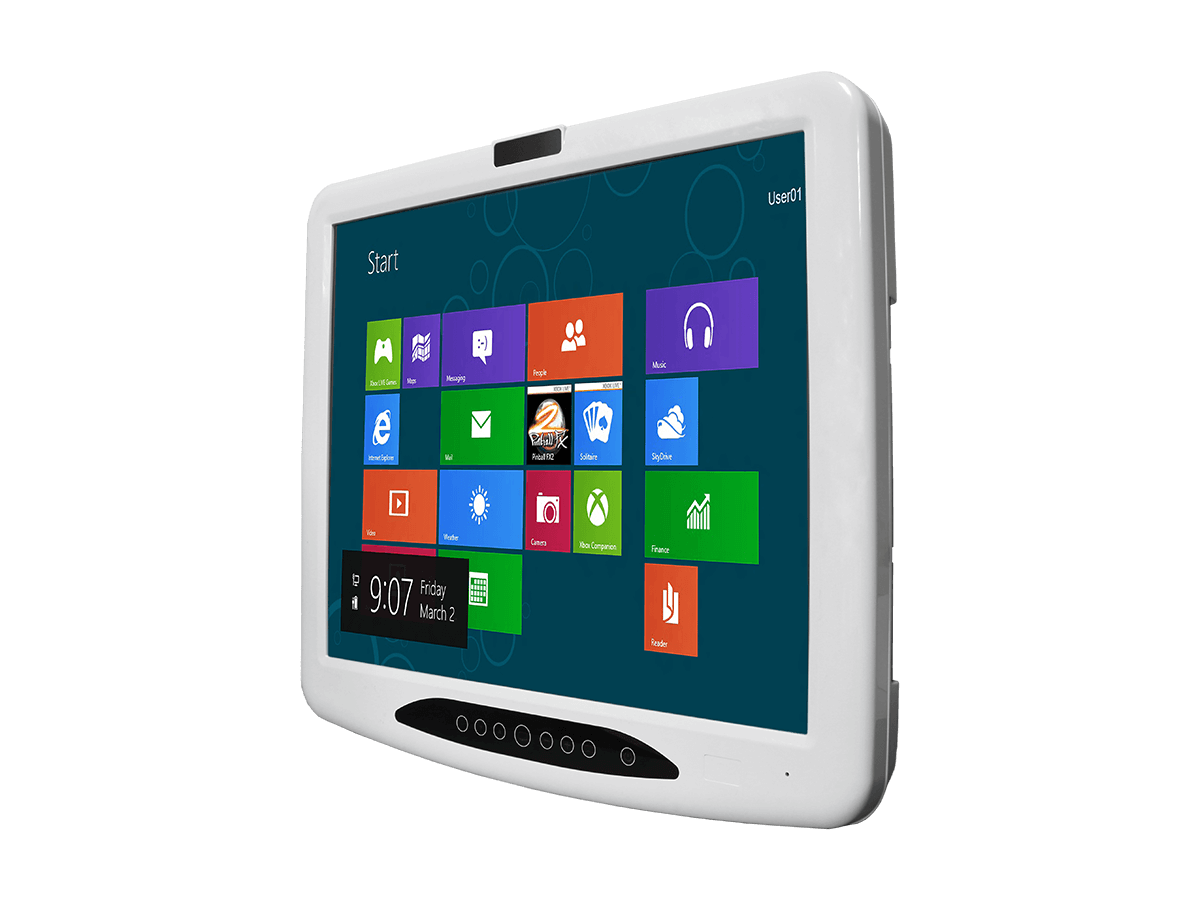

M1922

19” Fanless Intel® Medical Station

M1922

19” Fanless Intel® Medical Station
Features
  • Fanless Design
  • Applicable for Clinical Station, Nursing and PACS
  • Soldered Onboard 4th Generation Intel® Core™ i5-4402E
  • 19 inch LCD with Resistive Touch
  • IEC & EN 60601-1 (Edition 3.1), IEC & EN 60601-1-2 (Edition 4th) and UL60601-1 certified

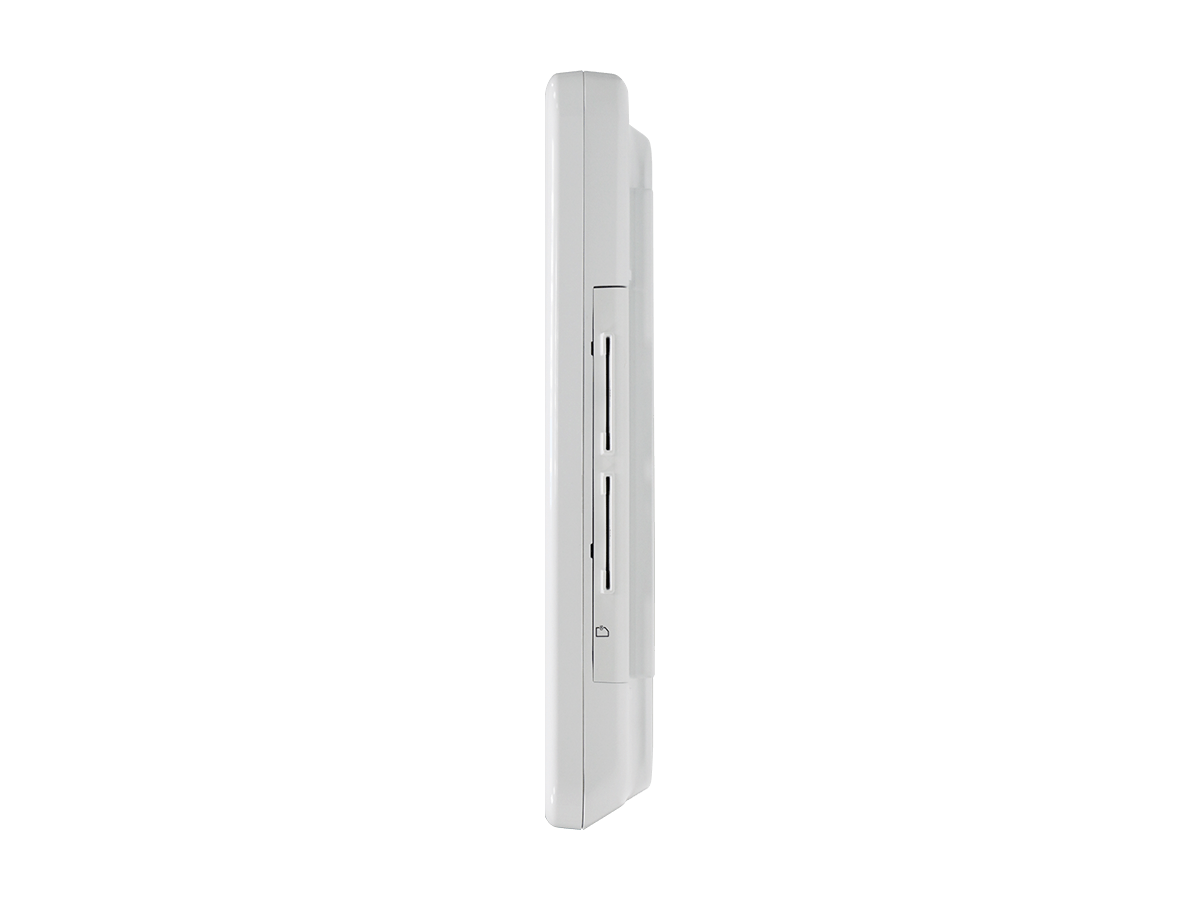

  • Streamline Appearance - 59mm in Thickness
  • Multi-connectivity (Bluetooth, WLAN and GbE)
  • RFID & NFC Reader, 5.0 Megapixel Camera, Dual Smart Card Readers, and Slim DVD-RW
  • Optional Alternative of External Battery or PCIe x16 Expansion Box
  • Isolated Serial Ports, USB and LAN Ports
  • Multi-expansion (3 x RS-232, 5 x USB, 2 x LAN, 1 x DisplayPort and 1 x SD Card)
Add To Compare
Specification

System

CPU Soldered Onboard 4th Generation Intel® Core™ i5-4402E dual-core 1.6 GHz
Graphics Controller Intel® HD Graphics 4600
Memory 4GB DDR3L SO-DIMM memory module installed
Chipset Intel® QM87
Storage 32GB mSATA SSD installed
2.5” 80GB SSD (optional)

Peripherals and Devices

Camera 1 x 5.0 MP front facing CMOS camera with auto-focus (optional)
WLAN & Bluetooth 1 x WLAN 802.11 a/b/g/n & Bluetooth 4.0 LE, class 2
RFID & NFC 1 x 13.56MHz RFID & NFC reader with ISO 14443A/14443B/15693 support (optional)
Smart Card Reader 2 x Smart Card Reader slots
DVD-RW 1 x Slim DVD-RW (optional)

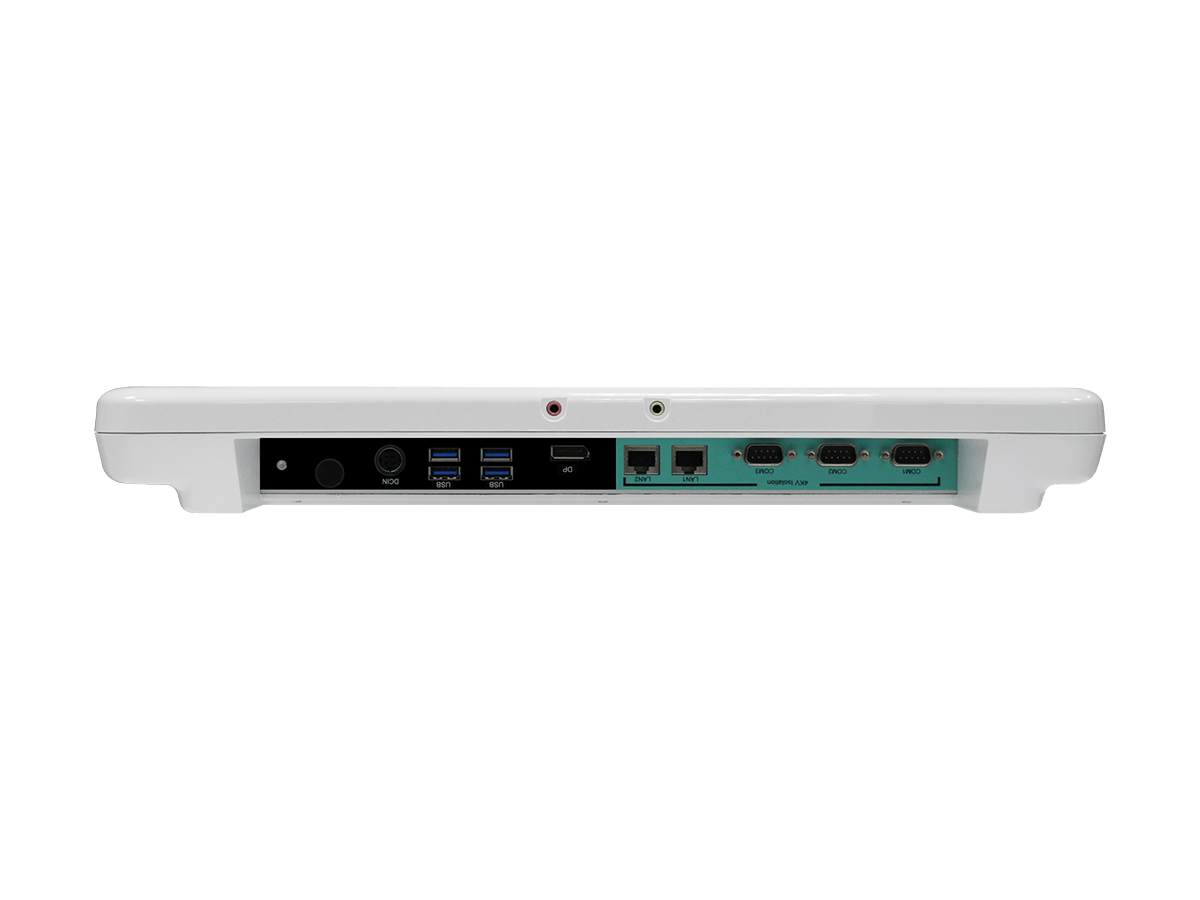

I/O Interface

SD Slot 1 x SD/SDHC card slot
Audio 1 x microphone, 2 x 3W speakers
1 x Mic-in, 1 x Line-out
Video output 1 x DisplayPort
Video input 1 x SDI connector (optional)
LAN 2 x Intel® RJ-45 GbE with 4KV isolation
Serial Port 2 x RS-232 port with 4KV isolation
1 x RS-232/422/485 with 4KV isolation
USB Port 4 x USB 3.0 ports
1 x USB 2.0 port with 4KV isolation (12MB/Bits) (on the top)
Expansion 1 x for the alternative of external battery or PCIe x16 expansion box (optional, max. 25W)

Button & Indicator

Button 1 x Power on/off button
1 x Menu button
1 x Touch and LCD on/off button
1 x Brightness up button
1 x Brightness down buton
1 x Volume up button
1 x Volume down button
1 x Programmable button

Touch Screen

Type Analog Resistive Touch
Light Transparency 80% (typ.)
Controller Interface USB interface

LCD Display

Size/Type 19" TFT Active Matrix Panel
Max. Resolution 1280 x 1024 (SXGA) with 16.7M colors
Luminance 350 cd/m² (typ.)
Contrast Ratio 1000:1 (typ.)
Backlight Type LED
View Angle (U/D/R/L) 80°/80°/85°/85° (typ.)

Power Requirement

Adapter Input 100 ~ 240VAC (full range)
Adapter Output DC 18V, 5.55A, 100W with medical certificate
Battery Type Li-battery pack
Battery Capacity 1 x 7800mAh 9-cell external battery pack (optional)

OS Support

Windows Embedded Standard 7 (WS7E / WS7P)
Windows Embedded 8 Standard / Windows Embedded 8.1 Industry Pro
Windows 10 IoT Enterprise LTSB
Linux: Ubuntu / Fedora

Ordering Information

M1922-4402E 19” Fanless Intel Core™ i5-4402E Medical Station with WLAN and Bluetooth

Mechanical & Environmental

Operating Temp. 0 ~ 40°C (32 ~ 104°F)
Storage Temp. -20 ~ 60°C (-4 ~ 140°F)
Operating Humidity 10 ~ 95% @ 45ºC (non-condensing)
Dimensions (W x H x D) 399.4 x 459.5 x 59 mm (15.72” x 18.09” x 2.32”)
Net Weight 7.5 kg (16.53 lb)
Vibration 5 ~ 500Hz, 1G random operation (SSD only)
Shock 10G peak (11m/sec)
Mounting VESA-75 compatible (M4)
IP Rating Compliance design with IP65 (front touch panel)
Operational Altitude Below 2000m
Regulatory CE, FCC Part 18 Subpart C
IEC & EN 60601-1 Safety (Edition 3.1), IEC & EN 60601-1-2 EMC (Edition 4th)
UL60601-1
Accessories

Standard Accessories

  • PAC-M100W
    100W medical-grade AC/DC adapter kit

Optional Accessories

  • ARM-Kits
    VESA-75/100 medical arms

Optional Configuration (CTOS* Kit) (Not Sold Separately)

  • RFID & NFC-1920
    RFID & NFC module kit for M192X
  • CAM-1920
    5.0MP CMOS camera module kit for M192X
  • DVDRW-1920
    Slim DVD-RW drive module kit for M192X
  • SSD-80G-192X
    2.5” Intel® 80GB SSD kit for M192X
  • eBAT-1920
    7800mAh 9-cell external battery pack for M192X
  • eEXP-1920
    PCIe x16 expansion module kit for M192X
