New ARBOR PC/104 SBC Module with single-chip, quad-core Intel® Atom™ processor E3800 family

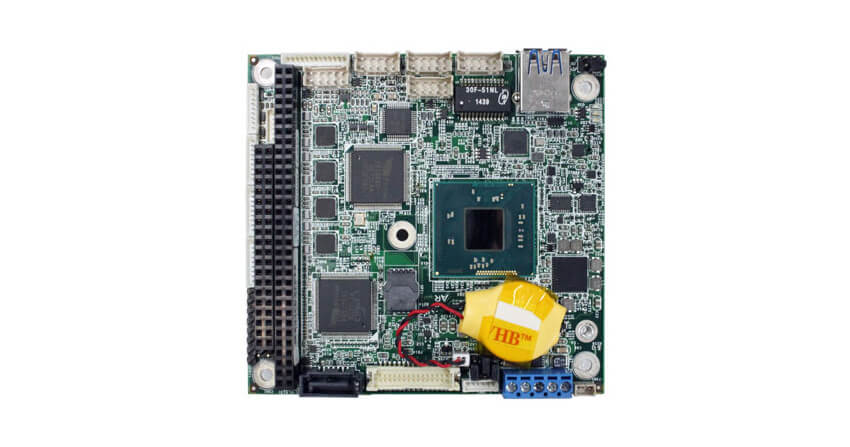

ARBOR Technology, a leading IPC provider of embedded computing solutions, announces the release of Arbor Em104-i230F PC/104 SBC Module. The SBC module is based on the new Intel® Atom™ processors E3800 family (formerly codenamed “Bay Trail”).
The PC/104 (96 x 90 mm) SBC Module offers a compelling entry price for this form factor, and the Intel® Atom™ processors E3800 family features a low thermal design power (TDP) from 6 watts to 10 watts. Innovations include a large L2 cache shared by multiple cores and a faster Intel HD graphics unit compared with the previous generation. This turns new applications into visual experiences.
The SBC Module supports Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI) set, which is more relevant than ever in practical applications. This allows developers to offload particularly compute-intensive packaging and encryption routines of the well-known cryptographic algorithm AES (Advanced Encryption Standard) into hardware, thereby enabling high performance encryption without putting a significant burden on the CPU cores.

The Em104-i230F SBC Module provides up to 8 GB fast DDR3L memory via one SO-DIMM socket. The integrated graphics is significantly more powerful than the previous model and supports DirectX 11, OpenGL 3, OpenCL 1.2 and high-performance, flexible hardware decoding to decode even multiple high-resolution full HD videos in parallel. Graphics interface supports Analog RGB with the resolution up to 2,048 x 1,536 pixels and the dual channels 24-bit LVDS, support two independent displays.

Legacy support PC/104 expansion. Two SATA interfaces with one SATA connector and one mSATA socket up to 3 Gb/s enable fast and flexible system extension. Thanks to native USB 3.0 support, the board achieves fast data transmission with low power consumption. A total of two USB 2.0 ports are provided, and one USB 3.0 SuperSpeed port is supported. High interconnectivity is available through dual Gigabit Ethernets ports. Versatile I/O functions include four COM ports, PS/2 Keyboard and Mouse. Completing the feature set are the Watchdog Timer and 8-bit Digital I/O. Intel® High Definition Audio.

The Em104-i230F provide -40 ~ 85°C Wide Range Operating Temperature.
The following CPU variants are supported by the SBC Module:
COM/Processor Cores Cache [M] Clock [GHz] SDP/TDP [W] Operating Temp. Remark
Em104-i230F-E3845 4 2 1.91 -/10 -40 ~ 85°C
Em104-i230F-E3825 2 1 1.33 -/6 -40 ~ 85°C
