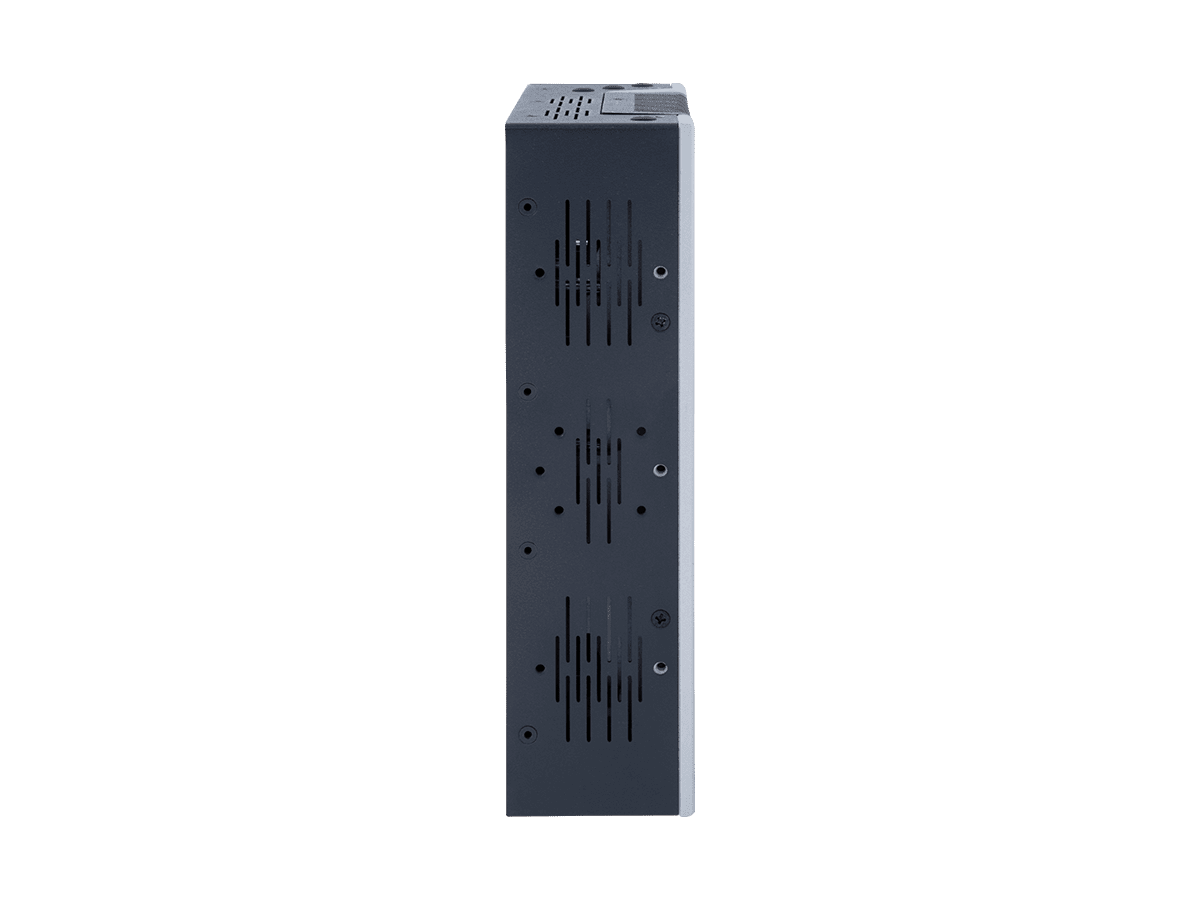

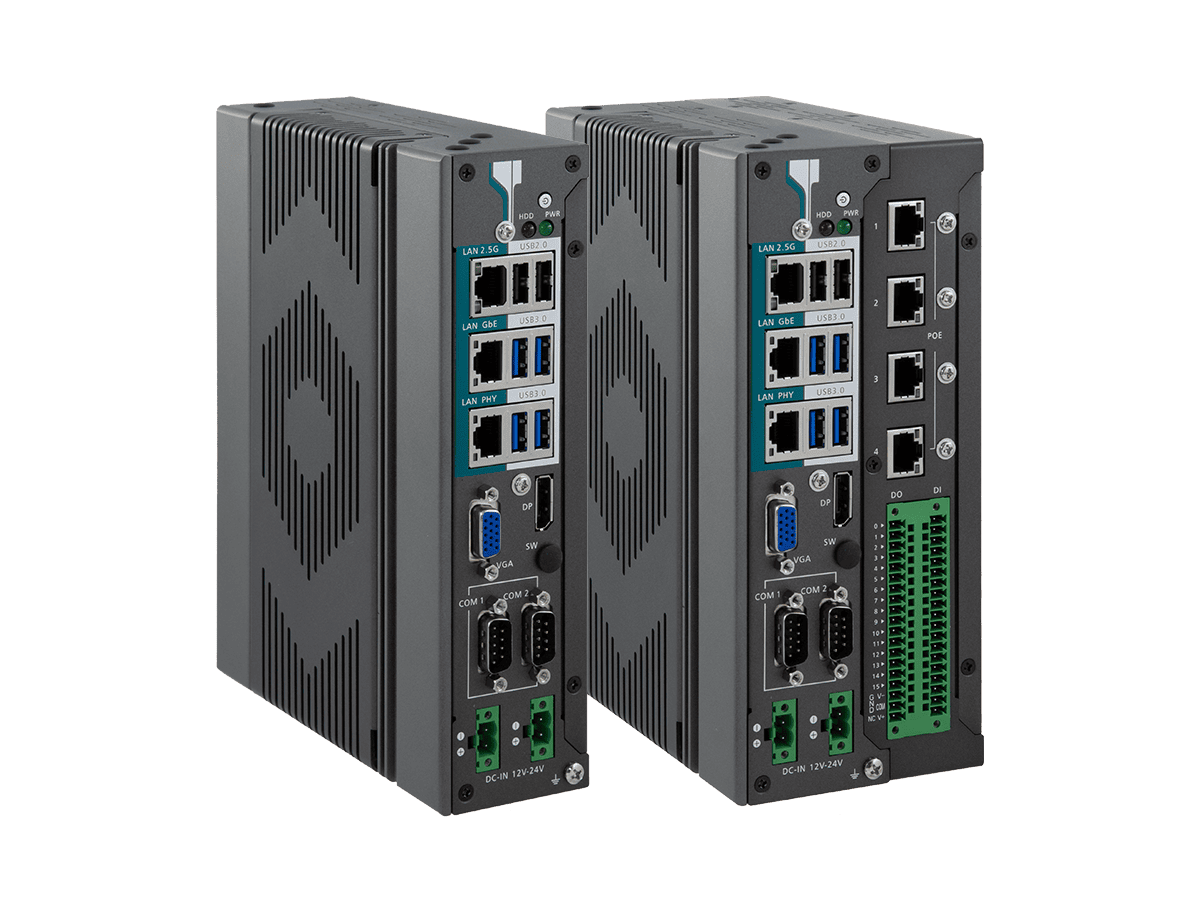

ARES-1983H

Machine Vision Controller with Intel^® 14th / 13th / 12th Gen. Core™ i9/i7/i5/i3 Processor

New

Features

Compatible with the Intel^® OpenVINO™ toolkit
Socket LGA1700 for Intel^® 14th/13th/12th Core™ i9/i7/i5/i3 Processor
Fansink Design - Active Cooling without Dust Accumulation
Modular Design - Easily expandable and customizable
Support up to 6 x USB & 7 x LAN(4 w/ PoE)
DI/DO with 1.5KV Isolation Protection, DI supports Connection of Dry & Wet Contact Devices
M.2 2242/2280 M-Key Slot support SATA & NVMe(Gen4 x4)
2 x Internal USB 2.0 Type-A ports for HW License Key & Security Dongle
Dual-Display for 1 x VGA and 1 x DisplayPort

Add To Compare

ARBOR's Edge Computing Solutions are the most suitable devices for factory safety solutions. With its advanced PoE ports, the ARES-1983H Series can support predictive analytics and real-time monitoring, which are crucial for executing effective preventive maintenance programs. This highly advanced technology targets your specific requirements, delivering an exceptional user experience.

Specification

System

CPU	Intel^® 14^th/13^th/12^th Core™ i9/i7/i5/i3 processor in LGA1700 Socket (Max.65W)
Memory	1 x 260-pin DDR5 SO-DIMM sockets, supporting 5600MHz SDRAM up to 32GB
Chipset	Intel^® H610E
Graphics	Integrated Intel^® UHD Graphics 730/770
LAN Chipset	1 x Intel^® i226LM 1 x Intel^® i219LM 5 x Intel^® i210AT (4 x for GbE PoE)
Watchdog Timer	1~255 levels reset
TPM	dTPM 2.0

I/O Interface

Serial Port	1 x RS232(Default)/422/485 1 x RS232
USB Port	2 x USB-A 3.2 Gen2 (10Gbps) 2 x USB-A 3.2 Gen1 (5Gbps) 2 x USB-A 2.0 2 x Internal USB-A 2.0
LAN	1 x 2.5GbE port 2 x GbE ports 4 x GbE PoE ports(IEEE802.3af) (For ARES-1983H-MV)
Video Port	1 x DisplayPort 1.4 (DP++), up to 4096x2304@60Hz 1 x VGA, up to 1920x1200@60Hz
Digital I/O	16 x DI & 16 x DO w/1.5kV isolation (For ARES-1983H-MV)
Expansion Bus	1 x M.2 E-key 2230 slot (PCIe 3.0 x1 + USB2.0 + CNVi) 1 x mPCIe (PCIe 3.0 x1 + USB 2.0, Full size) w/ 1 x nano SIM card slot

Environmental

Operating Temp.	w/ 35W TDP CPU: -20 ~ 60 °C, ambient w/ air flow w/ 65W TDP CPU: -20 ~ 50°C, ambient w/ air flow
Storage Temp.	-30 ~ 70°C (-22 ~ 158°F)
Operating Humidity	10 ~ 95% @ 60°C (non-condensing)
Vibration	5~500Hz 3 Grms X,Y,Z axis w/SSD, according to IEC 68-2-64
Shock & Crash	10G peak acceleration (11 m sec. duration), operation 30G peak acceleration (11 m sec. duration), nonoperation According to IEC 68-2-27

Qualification

Certification	CE, FCC Class A

OS Support

System	Windows 10 / Windows 11 / Ubuntu

Storage

Type	1 x M.2 M-key 2242/2280 slot (PCIe x4 + SATA) 1 x 2.5” HDD/SDD internal drive bay (For ARES-1983H-MV)

Power Requirement

Power Input	DC 12~24V via 2-pin terminal block
Max. Power Consumption	ARES-1983H (w/ 65W TDP CPU): 110W ARES-1983H-MV(w/ 65W TDP CPU): 170W

Mechanical

Construction	Metal + Aluminum
Mounting	Wall-mount (standard) DIN-rail (optional w/ CTOS bracket)
Weight	ARES-1983H: 2.5kg ARES-1983H-MV: 3.1kg
Dimensions (W x D x H)	ARES-1983H: 55 x 164 x 210mm ARES-1983H-MV: 90 x 164 x 210mm

Ordering Information

ARES-1983H	ARES-1983 w/ H610E Chipset, 3 x LAN, 2 x COM, 6 x USB, 1 x DP, 1 x VGA, 1 x M.2 E-Key, 1 x mPCIe & 1 x M.2 M-Key

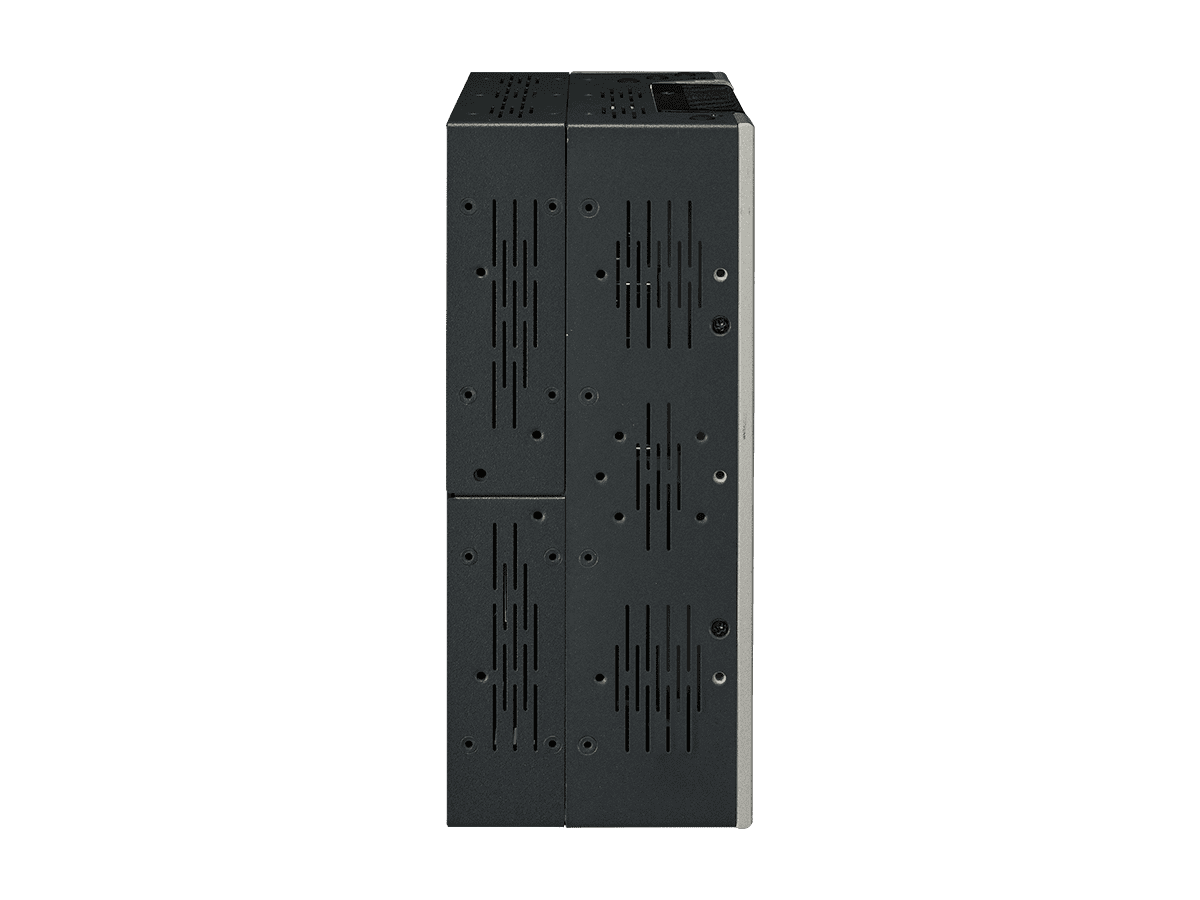

ARES-1983H-MV	ARES-1983H w/ 4 x GbE PoE, 16 x isolated DI + 16 x isolated DO & 1 x 2.5” SSD/HDD tray

Accessories

Standard Accessories

WMK-1973
Wall Mounting Bracket Kit for ARES Series

Optional Accessories (*CTOS Kit)

PAC-120W6B-FSP-ES
19V/6.3A, 120W AC/DC Adapter Kit
PAC-180W6C-FSP-ES
24V/7.5A, 180W AC/DC Adapter Kit
WIFI-AT3550
Atheros QCNFA324 M.2 Wi-Fi+BT Module Kit (w/ 2 x 30cm RF Cable)
ANT-D11
1 x Wi-Fi Dual-band 2.4G/5G Antenna Kit
ANT-H11
1 x 2dBi HSUPA Antenna Kit
LTE-4450
Quectel EG25-G mPCIe LTE Cat 4 Module Kit
(for Global, w/ 1 x 25cm RF Cable)
MK-5C-8G/16G/32G DIMM Memory ASSY Kit
8G/16G/32G DDR5 Memory Kit (w/ Heatsink)
DRK-002
DIN Rail Mounting Bracket Kit for ARES Series
Intel^® Core™ i9-14900
Intel^® 14th Gen. 65W processor, 24C/32T, 2GHz, L2: 32MB
Intel^® Core™ i7-14700
Intel^® 14th Gen. 65W processor, 20C/28T, 2.1GHz, L2: 28MB
Intel^® Core™ i5-14400
Intel^® 14th Gen. 65W processor, 10C/16T, 2.5GHz, L2: 9.5MB
Intel^® Core™ i3-14100
Intel^® 14th Gen. 60W processor, 4C/8T, 3.5GHz, L2: 5MB
Intel^® Core™ i9-14900T
Intel^® 14th Gen. 35W processor, 24C/32T, 1.1GHz, L2: 32MB
Intel^® Core™ i7-14700T
Intel^® 14th Gen. 35W processor, 20C/28T, 1.3GHz, L2: 28MB
Intel^® Core™ i5-14500T
Intel^® 14h Gen. 35W processor, 14C/20T, 1.7GHz, L2: 11.5MB
Intel^® Core™ i3-14100T
Intel^® 14th Gen. 35W processor, 4C/8T, 2.7GHz, L2: 5MB
Intel^® Core™ i9-13900E
Intel^® 13th Gen. 65W processor, 24C/32T, 1.8GHz, L2: 32MB
Intel^® Core™ i7-13700E
Intel^® 13th Gen. 65W processor, 16C/24T, 1.9GHz, L2: 24MB
Intel^® Core™ i5-13500E
Intel^® 13th Gen. 65W processor, 14C/20T, 2.4GHz, L2: 11.5MB
Intel^® Core™ i3-13100E
Intel^® 13th Gen. 60W processor, 4C/8T, 3.3GHz, L2: 5MB
Intel^® Core™ i9-13900TE
Intel^® 13th Gen. 35W processor, 24C/32T, 1GHz, L2: 32MB
Intel^® Core™ i7-13700TE
Intel^® 13th Gen. 35W processor, 16C/24T, 1.1GHz, L2: 24MB
Intel^® Core™ i5-13500TE
Intel^® 13th Gen. 35W processor, 14C/20T, 1.3GHz, L2: 11.5MB
Intel^® Core™ i3-13100TE
Intel^® 13th Gen. 35W processor, 4C/8T, 2.4GHz, L2: 5MB
Intel^® Core™ i9-12900E
Intel^® 12th Gen. 65W processor, 16C/24T, 2.3GHz, L2: 14MB
Intel^® Core™ i7-12700E
Intel^® 12th Gen. 65W processor, 12C/20T, 2.1GHz, L2: 12MB
Intel^® Core™ i5-12500E
Intel^® 12th Gen. 65W processor, 6C/12T, 2.9GHz, L2: 7.5MB
Intel^® Core™ i3-12100E
Intel^® 12th Gen. 60W processor, 6C/12T, 2.9GHz, L2: 7.5MB
Intel^® Core™ i9-12900TE
Intel^® 12th Gen. 35W processor, 16C/24T, 1.1GHz, L2: 14MB
Intel^® Core™ i7-12700TE
Intel^® 12th Gen. 35W processor, 12C/20T, 1.4GHz, L2: 12MB
Intel^® Core™ i5-12500TE
Intel^® 12th Gen. 35W processor, 6C/12T, 1.9GHz, L2: 7.5MB
Intel^® Core™ i3-12100TE
Intel^® 12th Gen. 35W processor, 4C/8T, 2.1GHz, L2: 5MB

Download

Description	Size	Type	Version	Date	Download
Description ARES-1983H Series Datasheet	Size -	Type pdf	Version	Date 2025-01-06	Download Download
Description ARES-1983H Series User's Manual	Size -	Type pdf	Version V1.1	Date 2025-01-07	Download Download
