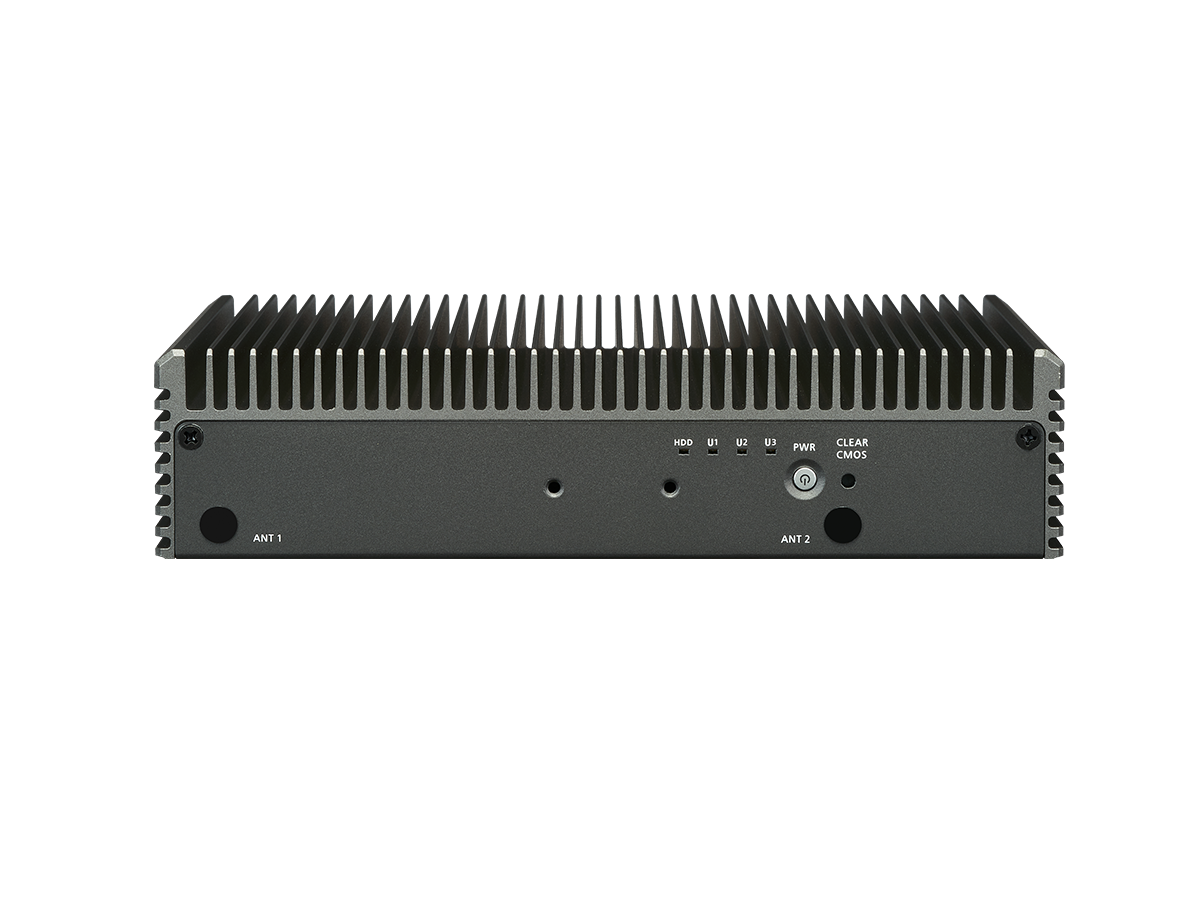

ARES-2000 Series
Ultra Compact Fanless BOX PC w/ Intel® 14th Gen Raptor Lake U Series Processors
New
ARES-2000 Series Ultra-Compact Edge Computer
Ultra Compact Fanless BOX PC w/ Intel® 14th Gen Raptor Lake U Series Processors
New
Features
- Intel® Core™ 5 Processor 120U
- Ultra-Compact & Fanless Design
- Supports up to 3 x USB Ports
- Supports 2 x 2.5GbE LAN Ports (up to 3 x 2.5GbE via expansion)
- Supports up to 3 x Simultaneous Displays
Specification
System |
|
| CPU | Intel® Core™ 5 Processor 120U |
|---|---|
| Memory | 1 x 262-pin DDR5 SO-DIMM socket |
| Chipset | SoC |
| Graphics | Integrated Intel® Graphics |
| LAN Chipset | Intel® i226LM |
| Watchdog Timer | 1~255 levels reset |
| TPM | TPM 2.0 (fTPM/dTPM) |
I/O |
|
| Serial Port | 1 x RS232/422/485 (via RJ45 connector) |
| USB Port | 2 x USB-A 3.2 Gen2 1 x USB-C 3.2 supports DP Alt. (4096 x 2304 @ 60 Hz) & 10W power output (5V/2A) |
| LAN | ARES-2000-LAN: 3 x 2.5GbE ports ARES-2000-CAN: 2 x 2.5GbE ports ARES-2000-JC1: 2 x 2.5GbE ports |
| Video Port | 2 x HDMI 2.0 & 1 x USB-C 3.2 support DP Alt. support up to 3 x simultaneous displays |
| Expansion (ARES-2000-JC1 Only) |
1 x M.2 B-Key 2242/3042 Slot (PCIe x2, USB3.0/USB2.0) + SIM Slot for LTE, via expansion card |
| CANBus (ARES-2000-CAN Only) |
2 x 2kV isolated CAN FD via terminal block |
| Audio (ARES-2000-JC1 Only) |
1 x Audio Jack (Line-out & Mic-in) |
Storage |
|
| Type | 1 x M.2 M-key 2242 Slot (PCIe Gen4 x4, SATA) |
Power Requirement |
|
| Power Input | DC 9~36V, DC in + Remote Switch |
| Power Consumption | Max. 90W |
Environmental |
|
| Operating Temp. | -20°C~ 60°C (-4°F ~ 140°F), ambient w/ air flow |
|---|---|
| Storage Temp. | -40°C ~ 80°C (-40°F ~ 176°F) |
| Operating Humidity | 10 ~ 95% @60°C (non-condensing) |
| Vibration | MIL-STD-810H, Method 514.8, Category 4, operating |
| Shock & Crash | MIL-STD-810H, Method 516.8, Procedure I, functional shock=20g, operating |
Qualification |
|
| Certification | CE, FCC Class A |
Mechanical |
|
| Construction | Metal + Aluminum |
| Mounting | Wall-mount (standard) DIN-rail (optional w/ CTOS bracket) VESA (optional w/ CTOS bracket) |
| Weight | 1.1 kg |
| Dimension (W x D x H) |
188 x 120 x 44 mm (7.40" × 4.72" × 1.73") |
OS support |
|
| System | Windows 10 / Windows 11 / Ubuntu |
Ordering Information |
|

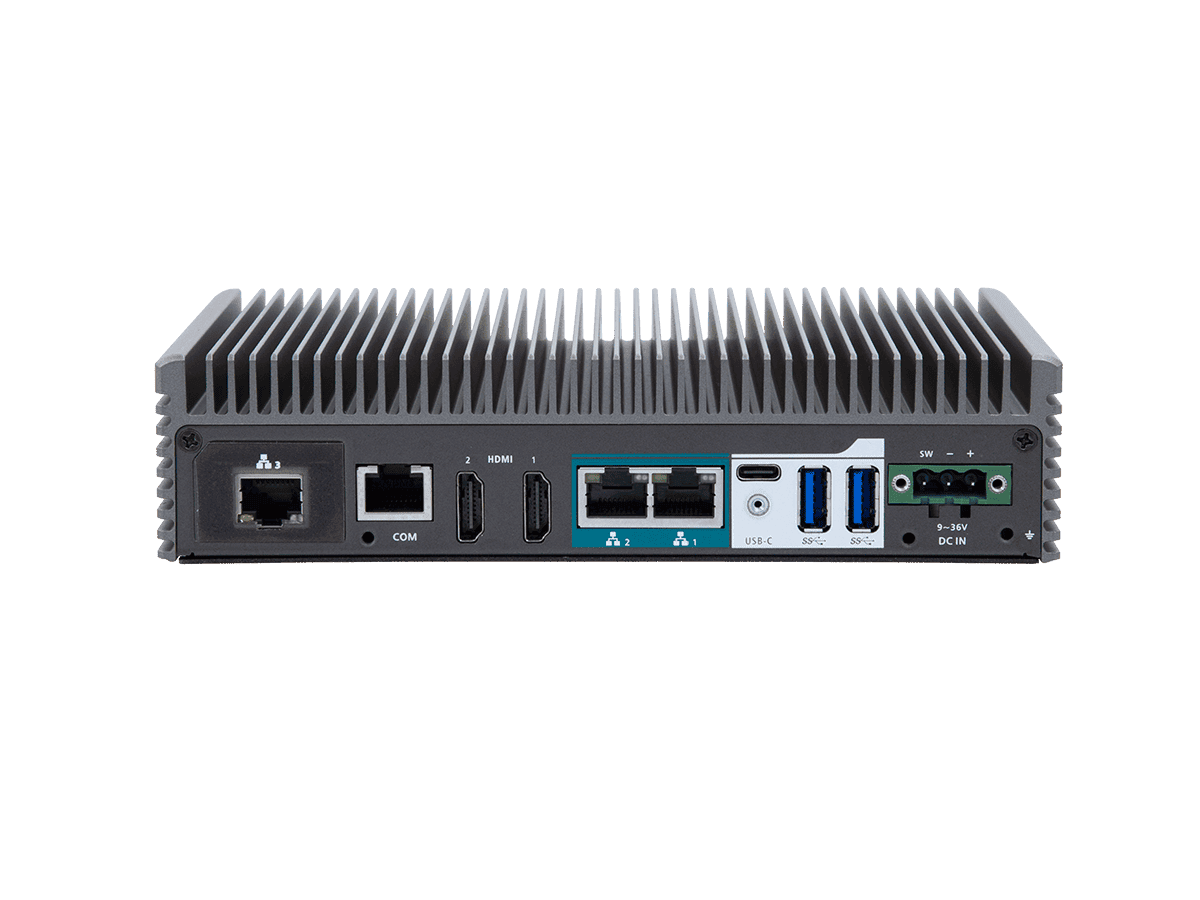

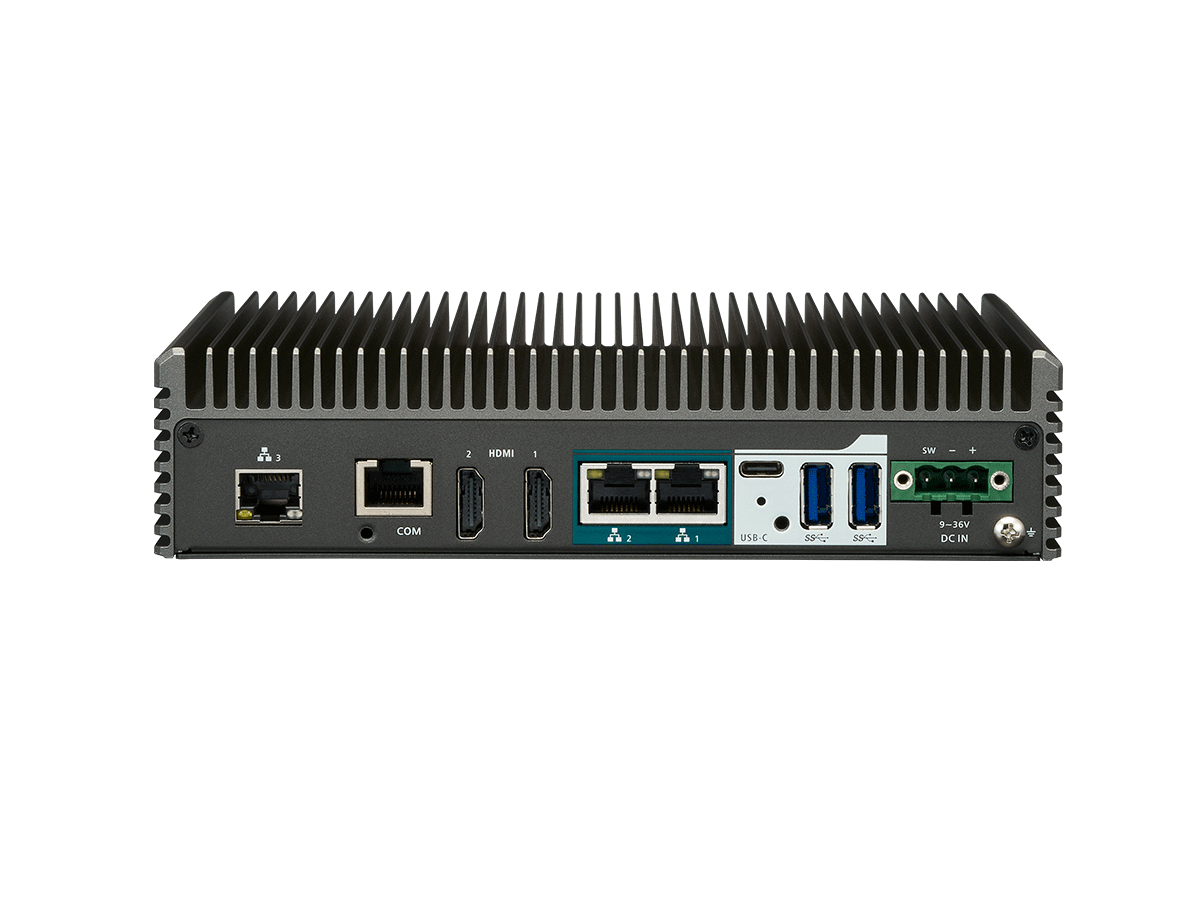

| ARES-2000-LAN | ARES-2000 w/ Core 5 120U, 3 x LAN, 3 x USB, 2 x HDMI, 1 x COM, 1 x M.2 M-Key |

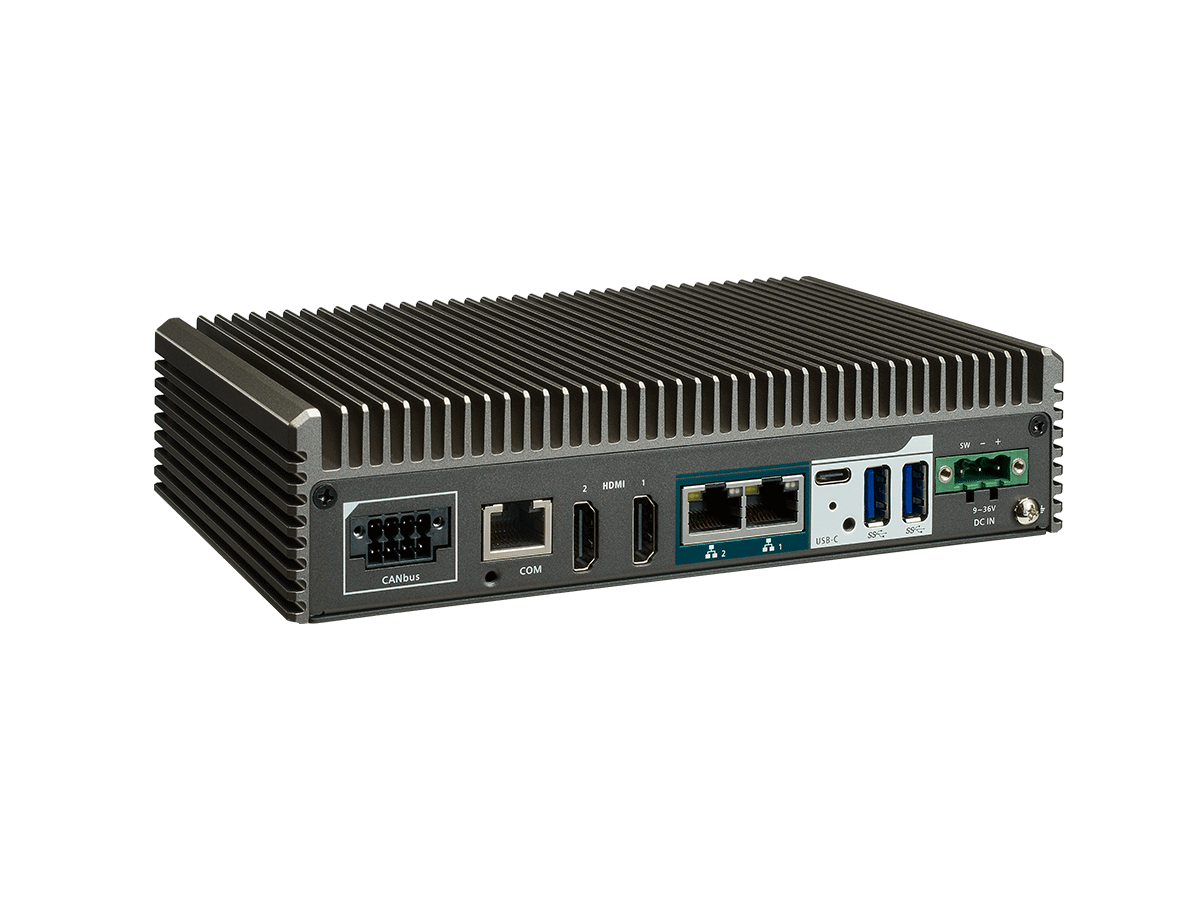

| ARES-2000-CAN | ARES-2000 w/ Core 5 120U, 2 x CANBus, 2 x LAN, 3 x USB, 2 x HDMI, 1 x COM, 1 x M.2 M-Key |

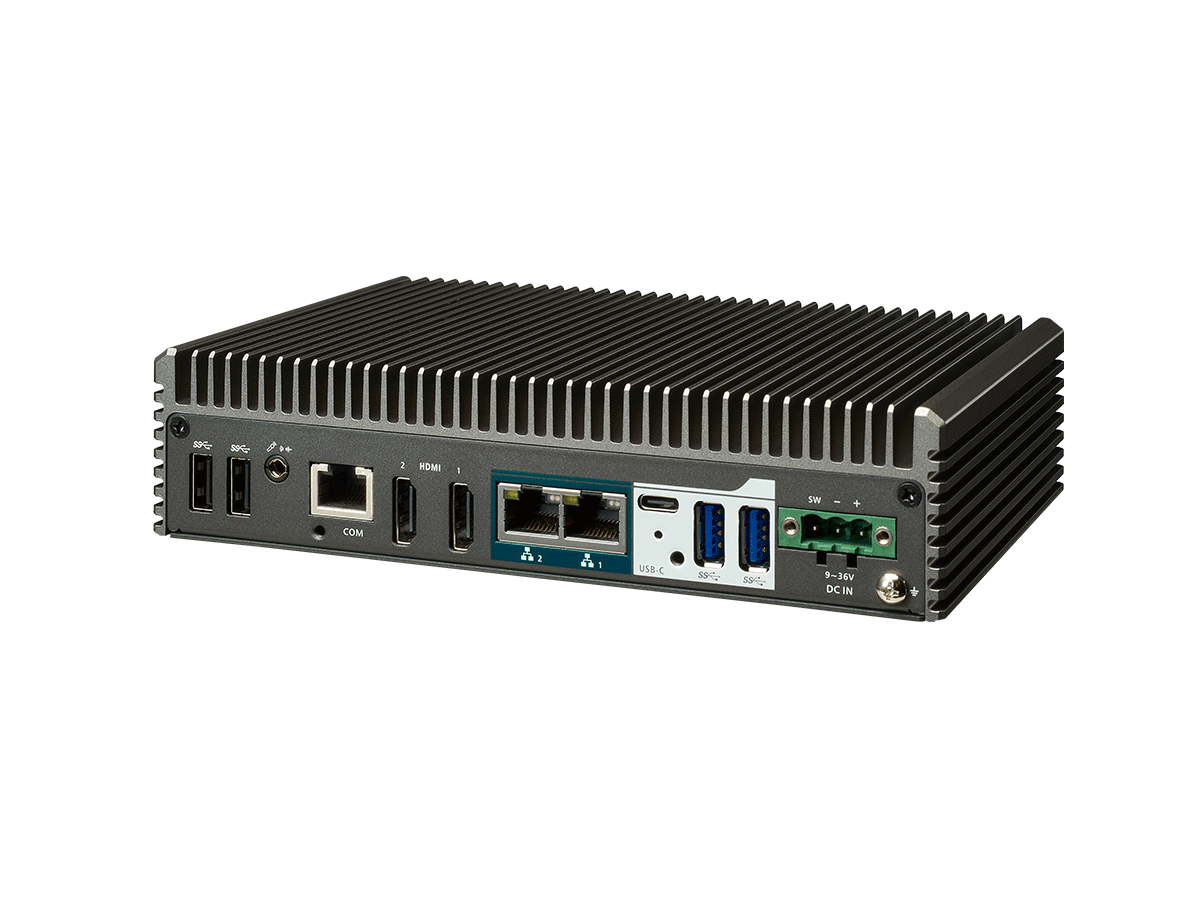

| ARES-2000-JC1 | ARES-2000 w/ Core 5 120U, 1 x AUDIO JACK, 2 x LAN, 5 x USB, 2 x HDMI, 1 x COM, 1 x M.2 M-Key |
Accessories
Standard Accessories
-
CLB-2000
Cable-Lock Bracket for ARES-2000 Series -
WMK-1973
Wall Mounting Bracket Kit for ARES Series
