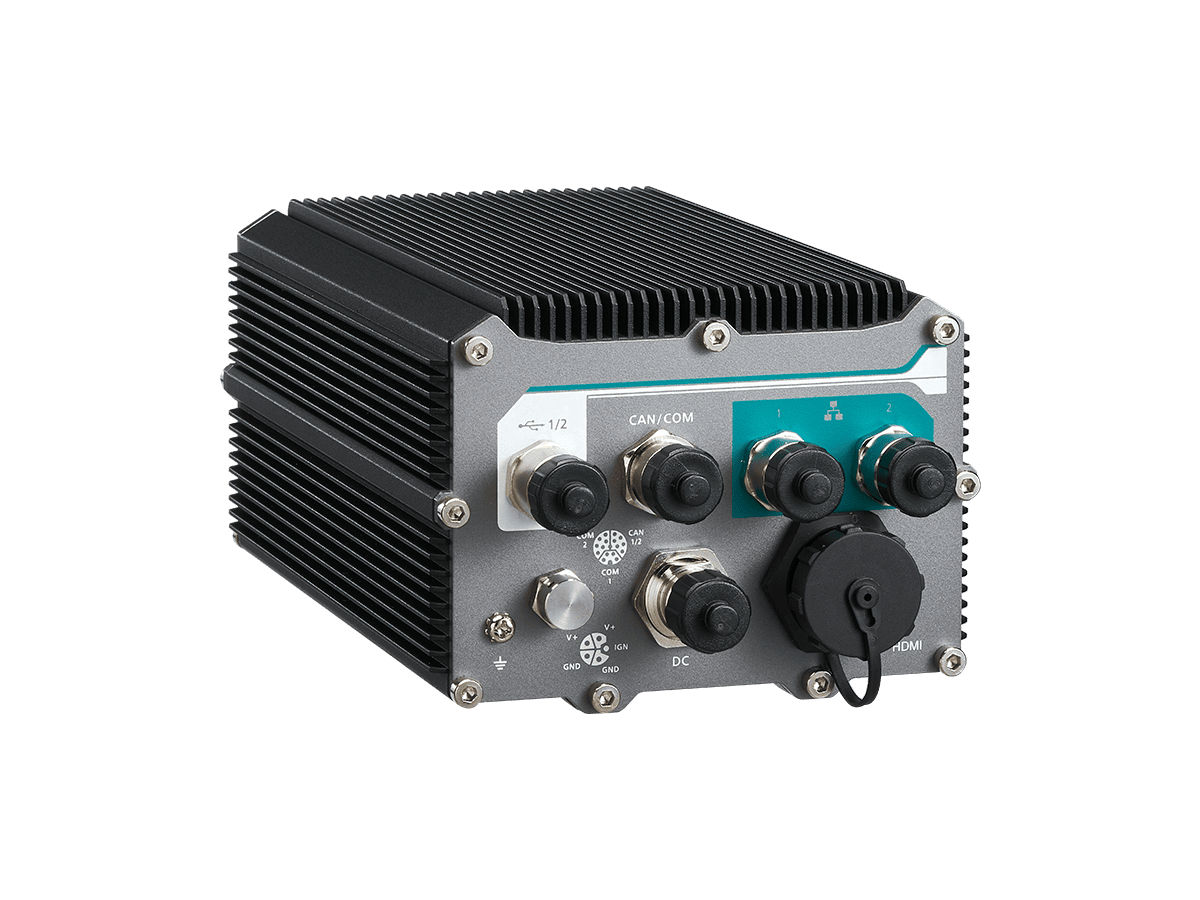

ARTS-7550 IP69K Waterproof Fanless Computer with Intel® Amston Lake CPU

IP69K Waterproof Fanless Computer with Intel^® Amston Lake CPU

New

Features

IP69K-rated dustproof and waterproof
Intel^® Amston Lake x7433RE processor
Rugged -40°C to 70°C fanless operation
2 x 2.5GbE LAN ports via M12 X-coded
2 x isolated CAN FD, 1 x isolated RS-232, and 1 x isolated RS-232 (optional)/422/485 via M12 A-coded connector
1 x M.2 B-key w/ 1 x nano SIM card slot for Wi-Fi/BT/4G/5G/GPS
1 x HDMI waterproof connector
8V to 35V DC input with built-in ignition power control
E-Mark compliant & MIL-STD-810H Shock/ Vibration certified
Support dTPM 2.0 & Windows^® 11

Datasheet

Specification

System
CPU	Intel^® Amston Lake x7433RE processor (Quad-Core SoC, 3.4GHz, TDP 9W)
Memory	1 x DDR5 SO-DIMM sockets, support 4800MHz up to 16GB
Graphics	Integrated Intel^® UHD Graphics
LAN Chipset	2 x Intel^® i226-IT 2.5GbE controller
TPM	Support dTPM2.0
I/O

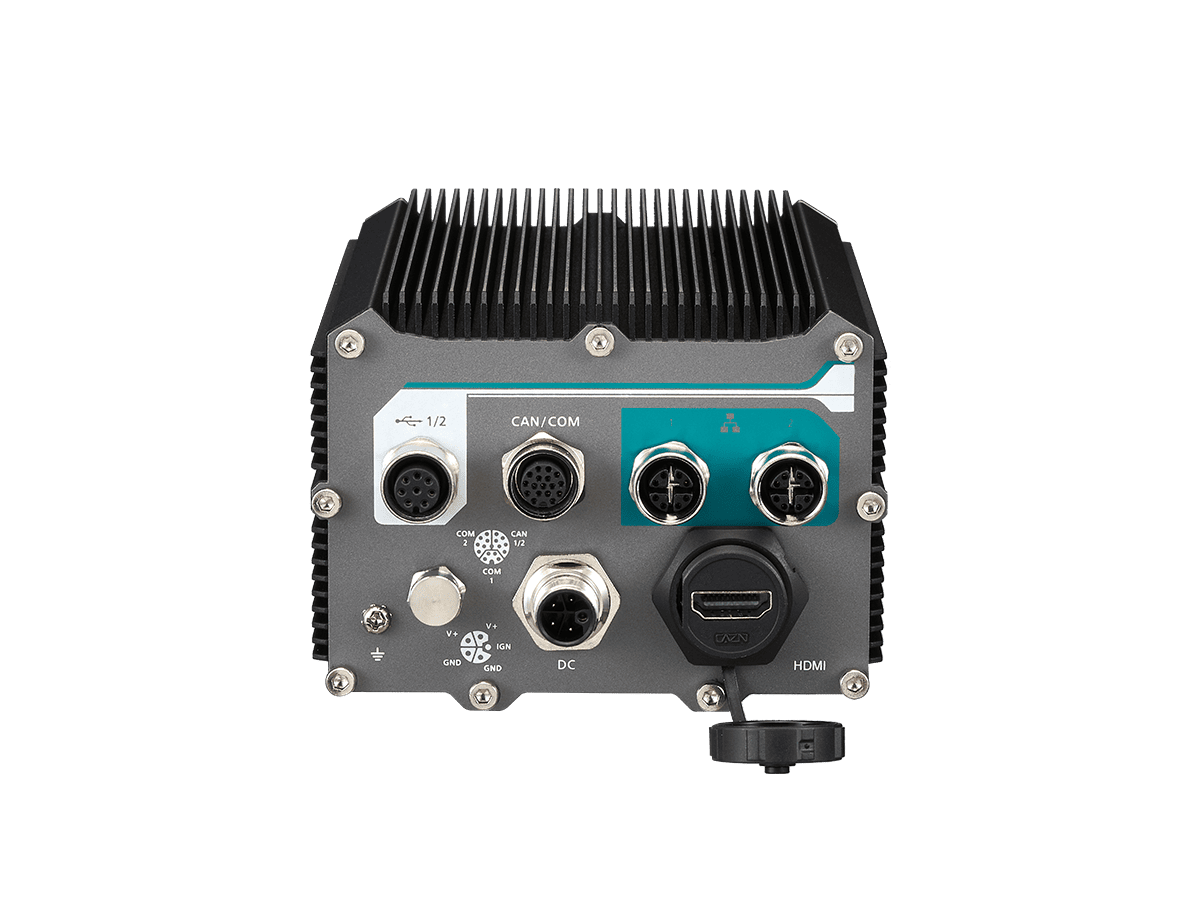

Serial Port / CANBus	2 x isolated CAN FD, 1 x isolated RS-232, and 1 x isolated RS-232 (optional)/422/485 via one combo M12 A-coded connector
USB Port	2 x USB 2.0 ports via one M12 A-coded connector
LAN	2 x 2.5GbE LAN ports via two M12 X-coded connectors
Display	1 x HDMI waterproof connector, resolution up to 3840 x 2160@60Hz
Expansion Bus	1 x M.2 B-key 2242/3042/3052 (PCIe Gen3 x1 + USB3.0 +USB2.0), w/ 1 x nano SIM card slot for 4G/5G/GPS module *Outside accessible SIM slot
Sensors	Onboard G-sensor / Gyroscope combining accelerometer (G-Sensor) and Gyroscope
Storage
Type	1 x M.2 M-key 2280 (SATA3 + PCIe Gen3 x2) for storage
Power Requirement
Power Input	8 - 35V DC-input with ignition power control via one M12 L-coded connector

Environmental
Operating Temp.	-40°C ~ 70°C (-40 ~ 158°F)
Storage Temp.	-40°C ~ 85°C (-40 ~ 185°F)
Operating Humidity	10% ~ 90%, non-condensing
Vibration	MIL-STD-810H, Method 514.8, Category 4
Shock	MIL-STD-810H, Method 516.8, Procedure I
Mechanical

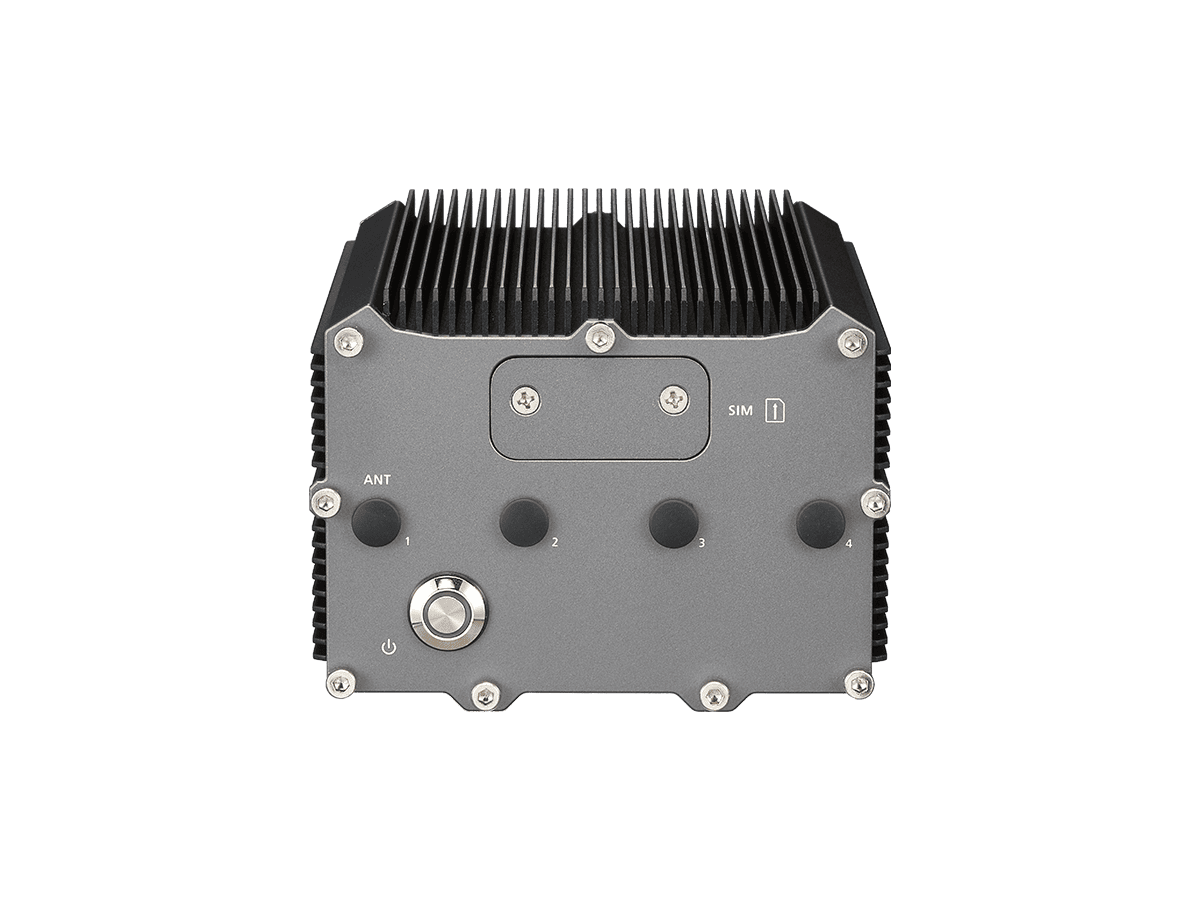

Button	1 x Waterproof power button with LED
SIM Slot	1 x Outside accessible SIM card slot (waterproof)
Antenna	4 x Antenna holes
Mounting	Wall-mount (standard accessories)
Weight	1.2kg
Dimensions (W x H x D)	106 x 78 x 159 mm (4.17" x 3.07" x 6.26")
Waterproof	IP69K Waterproof
Qualification
Certification	CE/FCC Class A, E-Mark compliant
OS Support
System	Windows^® 10 / Windows^® 11 / Linux Ubuntu 22.04

Accessories

PAC-60W8A-MW-ES
12V/5A, 60W AC/DC Adapter, -30~+70°C, w/ EU & USA Power Cord
CBL-M12L5-PWR-200CM
Power Cable, M12 5P(L-CODED) TO 3P OPEN, Length: 200CM
CBL-M12-7550
ARTS-7550 M12 cable kit, including:
2x CBL-M12X8M-RJ45-50CM
1x CBL-M12A8M-2U2TA-50CM
1x CBL-M12A17M-3DB9-50CM
WiFi-MT1440
MediaTek MT7921AUN M.2 B-Key Wi-Fi 6E+BT Module Kit (w/ 2 x 25cm RF Cable)
ANT-P15
IP67 2.4G/5G/6G WIRELESS ANTENNA KIT W/ CABLE FOR WiFi-MT1440
