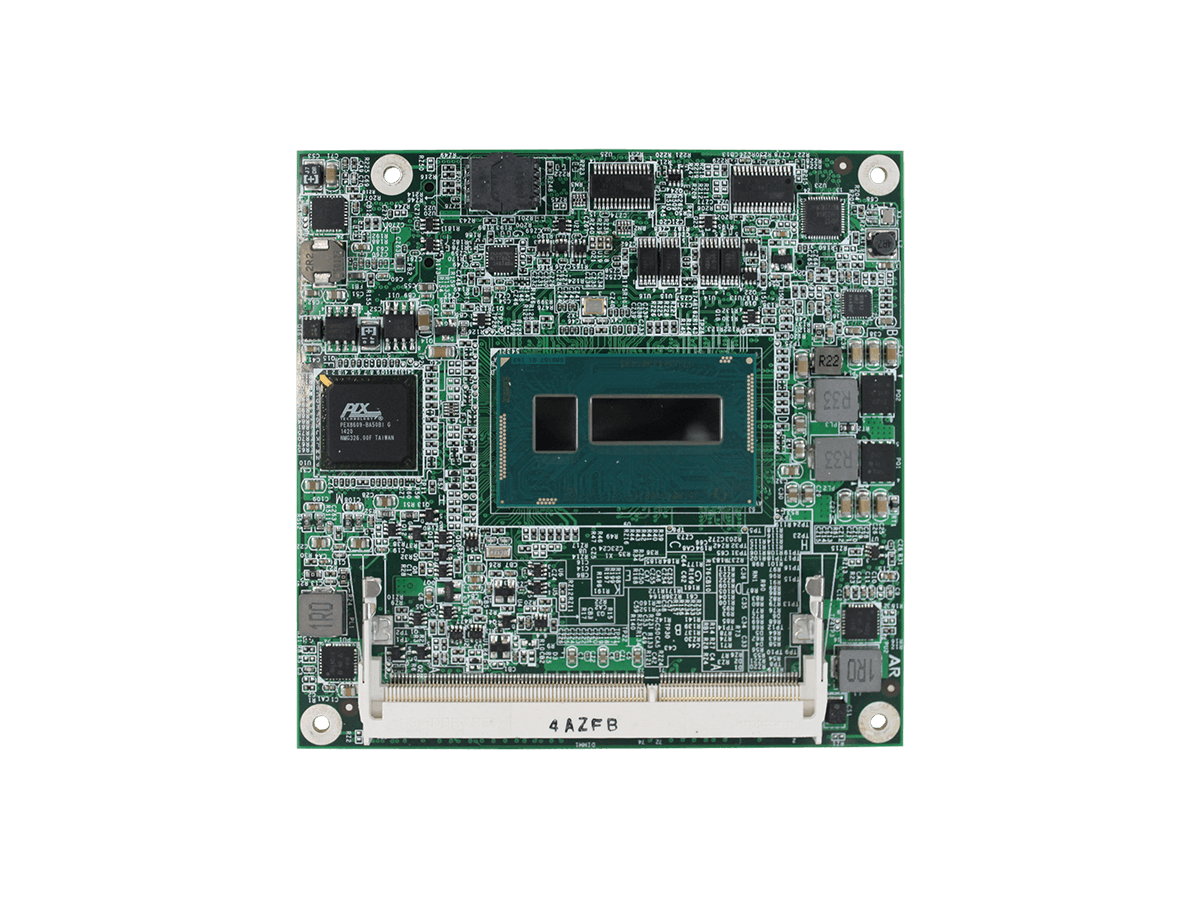

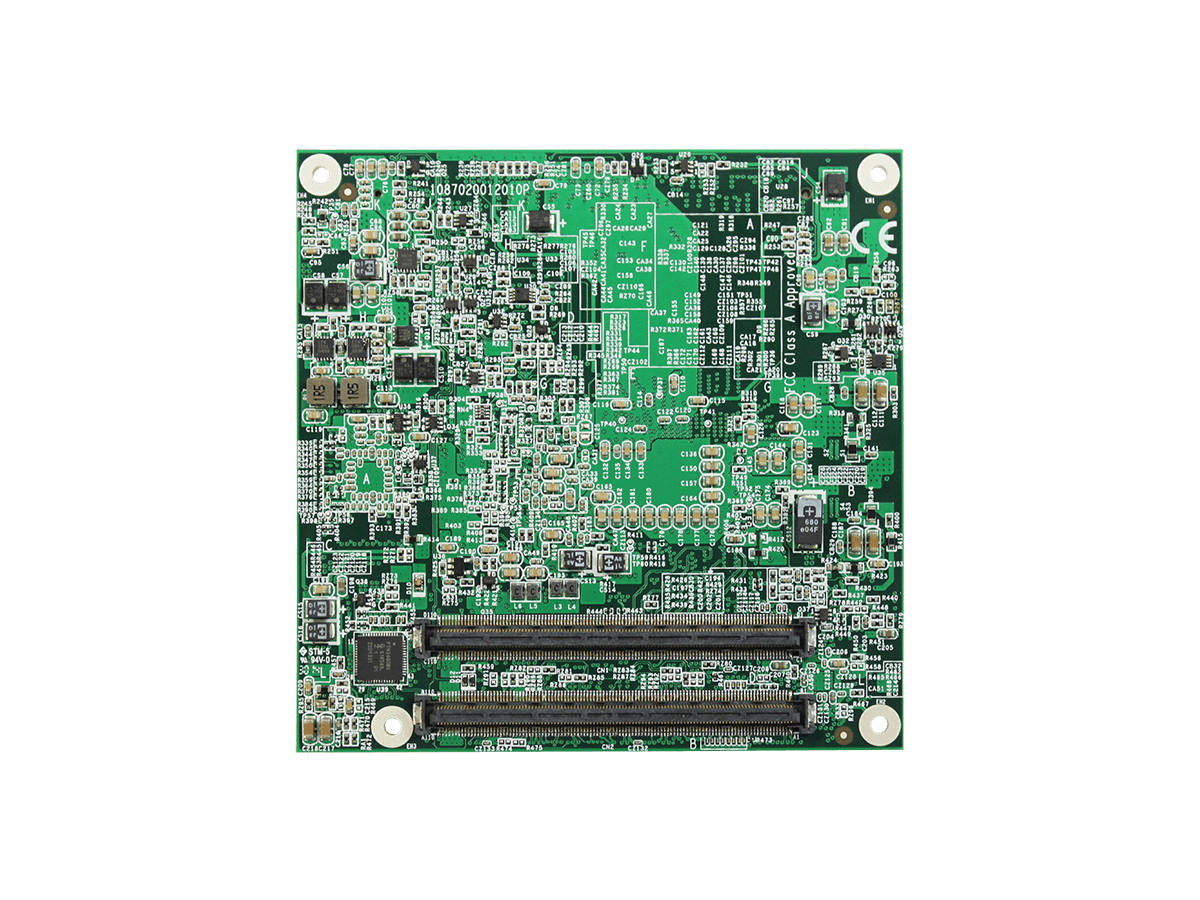

EmETXe-i88U0

5th Generation Intel^® Core™ Processor COM Express^® Compact Type 6 CPU Module

Features

Specification

CPU	Soldered Onboard 5th Generation Intel^® Core™ Processor i7-5650U 2.2GHz
Memory	1 x DDR3L SO-DIMM socket, supporting up to 8GB 1600MT/s SDRAM
BIOS	AMI UEFI BIOS
Watchdog Timer	1~255 levels reset

USB Port	8 x USB 2.0 ports 2 x USB 3.0 ports
Expansion Bus	8 x PCIex1 Gen.2, LPC
DIO	8-bit Digital Input/ Output
Storage	3 x Serial ATA ports with 600MB/s HDD transfer rate
Ethernet Chipset	1 x Intel^® i218LM PCIe GbE PHY with iAMT
Audio	HD audio link
TPM	Supports TPM (OEM Request)

Graphics Chipset	Integrated Intel^® Graphics
Graphics Interface	LCD: Dual Channels 24-bit LVDS, with resolution up to 1920x1200 2 x DDI ports

Windows 7 32-bit/64-bit
Windows 8 32-bit/64-bit
Linux: Ubuntu

EmETXe-i88U0	5th Generation Intel^® Core™ i7-5650U COM Express^® Compact Type 6 CPU module

Accessories

HS-88U0-F2-T*	Heat spreader with threaded standoffs 95x95x11mm, not compatible with WT series
HS-88U0-F2-NT*	Heat spreader without threaded standoffs 95x95x11mm, not compatible with WT series
HS-0000-W4	Universal evaluation heat sink kit with thermal pad 125x95x22mm, only used on a flat-type heat spreader
HS-88U0-C1	Heat sink with FAN 95x95x30.5mm
CPF-0000-C1	FAN, 4500RPM, 60x60x20mm
PBE-1702	COM Express^® Type 6 evaluation carrier board with Super IO F71869ED in ATX form factor
CBK-04-1702-00	Cable kit 1 x SATA cable 2 x Serial port cables 1 x USB cable

* For Wide-Temparature range operation, it is suggested to use HS-88U0-F2-T or HS-88U0-F2-NT in conjunction with HS-0000-W4.

Download

Description	Size	Type	Version	Date	Download
Description EmETXe-i88U0 Datasheet	Size 474 KB	Type pdf	Version	Date 2022-01-05	Download Download
Description EmETXe-i88U0 Quick Installation Guide	Size 692 KB	Type pdf	Version V1.0	Date 2022-03-08	Download Download
Description EmETXe-i88U0 Manual	Size 3 MB	Type pdf	Version V1.0	Date 2022-03-14	Download Download
