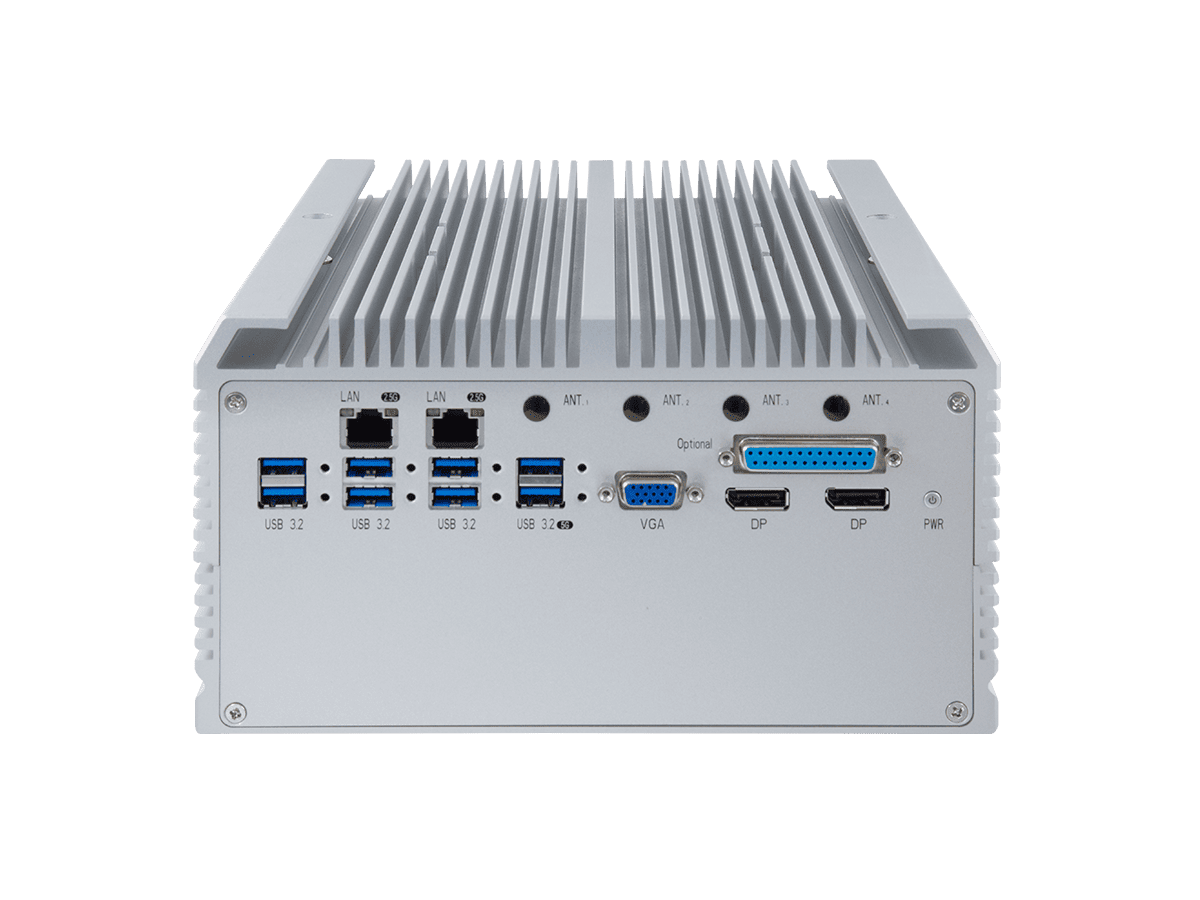

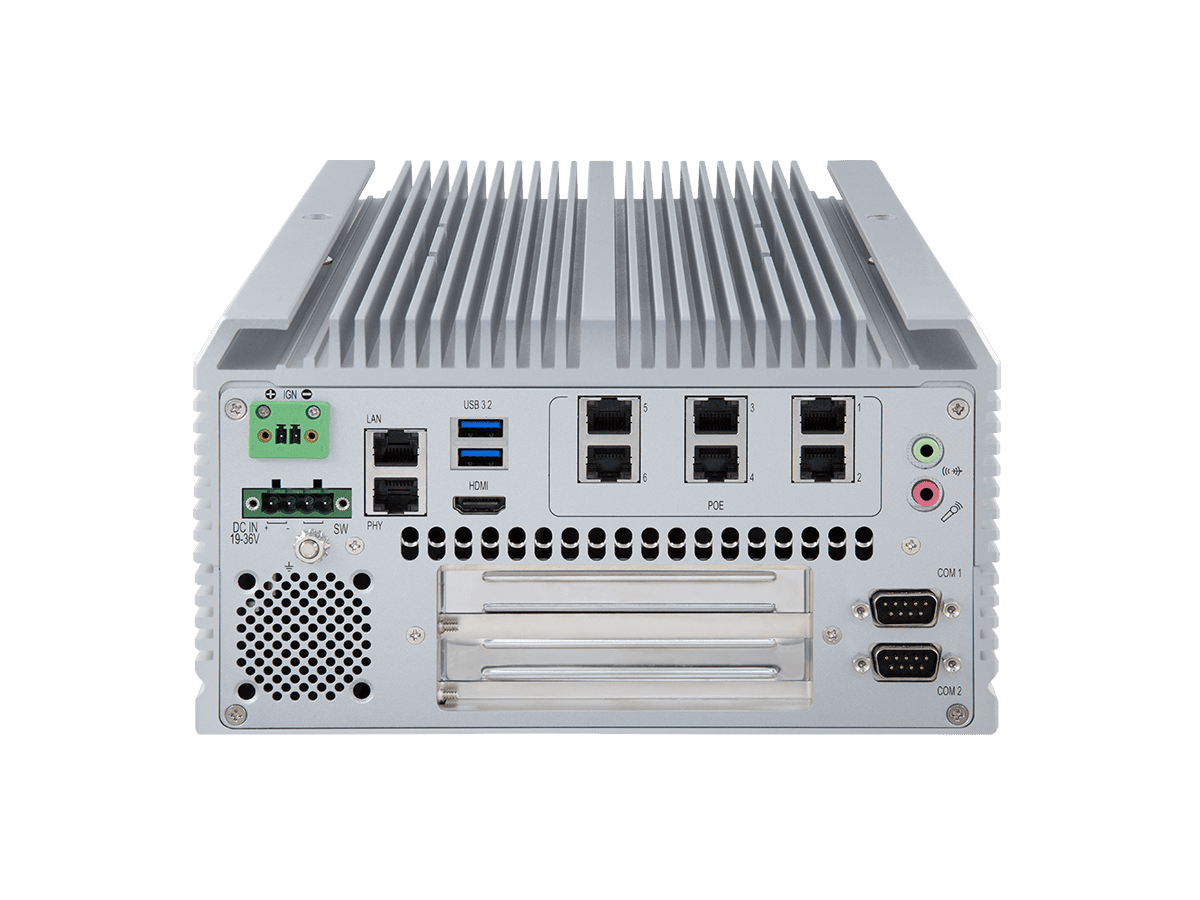

FPC-9202-P6 Machine Vision Controller with 6 GbE PoE

Machine Vision Controller with Intel^® 12th/13th/14th Gen Core™ i9/i7/i5/i3 Processor with 6 x GbE PoE

New

Features

Datasheet

Specification

System
CPU	Intel^® 14^th Gen. Core™ i9/i7/i5/i3 Processor in LGA1700 socket
Memory	2 x 262-pin DDR5 SO-DIMM sockets, supporting 5600 MHz SDRAM up to 96GB
Chipset	Intel^® Q670E
Graphics	Integrated Intel^® HD Graphics
ATA	2 x Serial ATA ports with 600MB/s HDD transfer rate
LAN Chipset	2 x Intel^® WGI226LM 2.5GbE LAN 1 x Intel^® WGI210AT GbE controller 1 x Inte^® WGI219LM GbE controller w/ iAMT 6 x Intel^® WGI210AT PCIe controller for PoE
Watchdog Timer	1~255 levels reset
I/O Interface
Serial Port	2 x RS-232/422/485 configurable ports via DB-9 connectors (Default RS-232)
USB Port	8 x USB 3.2 Gen2 (10Gbps) ports 2 x USB 3.2 Gen1 (5Gbps) ports Internal USB dongle (Optional)
LAN	4 x RJ-45 ports for GbE/2.5GbE 6 x RJ-45 ports for PoE
Video Port	1 x HDMI 1 x DB-15 female connector for Analog RGB 2 x DP female connector for digital video output
Selectable Port	1 x DB25 connector for DIO (8 in/8 out) port or LPT port (either one, default is DIO)
Audio	Mic-in / Line-out
Expansion Bus	1 x full-size Mini-card interconnected with SIM card for optional Wi-Fi/3G/4G/GPS or I/O Expansion (PCIe x1+ USB2.0) 1 x M.2 E key (2230) with PCIe x1 + USB2.0, for Wireless 1 x M.2 B key (2242/2280/3052) w/ (PCIe x2 + USB3.0/2.0) interconnected with SIM for 5G / LTE expansion or for storage (either one) 1 x PCIe x8 slot (via x4 lanes) 1 x PCIe x16 slot
Environmental
Operating Temp.	-20 ~ 50°C (-4 ~ 122°F), ambient w/ air flow (w/ 35W TDP CPU, fanless)
Storage Temp.	-40°C ~ 85°C (-40°F ~ 185°F)

Environmental
Operating Humidity	10 ~ 95% @ 70°C (non-condensing)
Vibration	Comply with MIL-STD-810G, Method 514.6
Shock	Comply with MIL-STD-810G, Method 516.6, Table 516.6-II, 40G
Qualification
Certification	CE, FCC Class A
Power Requirement
Power Input	DC 19 ~ 36V input (w/ 4-pin DC input terminal block, combining remote power on/off switch)
Ignition Switch	2-pin terminal block: IGN, GND
Power Consumption	180W (typical)
Storage
Type	2 x 2.5” drive bays 1 x M.2 M key (PCIe Gen4 x4 + SATA)
Mechanical
Construction	Aluminum Alloy
Mounting	Wall-mount
Weight	7 kg (15.43 lb)
Dimension(W x H x D)	225 x 292 x 120 mm (8.86” x 11.50” x 4.72”)
OS Support
System	Windows 10 IoT Enterprise 64-bit / Windows 11 IoT Enterprise 64-bit Linux (Ubuntu 22.04)
Ordering Information
FPC-9202-P6	Machine Vision Controller with Intel^® 14th Gen Core™ Processor with 6 x GbE PoE (Up to 35W TDP CPU)
