IEC-6700
IEC-6700 Digital Signage Box PC with Intel® Core™ Ultra Series 3
Coming Soon
- Intel® Core™ Ultra Series 3 Processors (Panther Lake-H)
- 2 x 262-pin SO-DIMM DDR5 7200/6400MHz up to 128GB (64GB per DIMM)
- 1 x USB4/Thunderbolt™ 4, 4 x USB3.2 Gen2, 2 x M.2 Key M,1 x M.2 Key E (Wi-Fi 7 Module)
- 2 x Intel 2.5 Gigabit LAN
- Supports Quad display, 2 x HDMI 2.1, 1 x DP 2.1 (from USB4), 1 x DP 1.4a (from Type-C)
- Intel® PTT
- Supports Intel® vPro Essentials, VMD RAID 0/1
- 19V/120W Power Adapter
- TAA Compliant
Industrial-Grade AI Performance
The ARBOR IEC-6700 is an ultra-compact system powered by Intel® Core™ Ultra Series 3 Processors (Panther Lake-H). Delivering up to 180 TOPS of AI inference performance, it is purpose-built for advanced visual analysis, including facial recognition, object detection, and emotion recognition. Unlike basic multi-media players, this NUC-sized powerhouse is a dedicated platform for high-performance AI and multimedia applications.
Empower Robotics with VLA-Powered Physical AI Solutions
Transform traditional automation into intelligent, adaptive systems with our VLA-powered Physical AI solution. Powered by high-performance edge computing, robotic arms can perceive, analyze, and interact with dynamic environments in real time. Low-latency AI processing enhances precision, operational flexibility, and workplace safety, enabling smarter, more efficient human-robot collaboration across industrial applications.

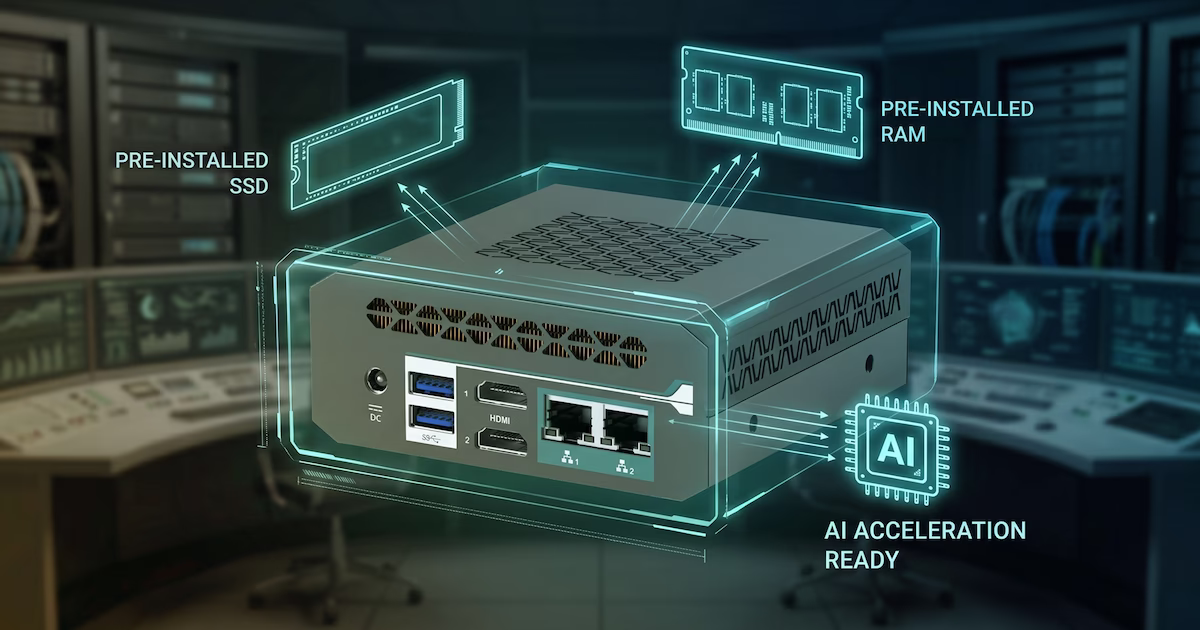

Rapid Deployment Ready
Designed to accelerate time-to-market, IEC-6700 is a pre-integrated, AI-ready platform. It comes out-of-the-box with pre-installed RAM, SSD, and AI acceleration to reduce deployment complexity. This scalable solution offers the out-of-the-box convenience required for space-constrained, mission-critical applications.
System |
|
| CPU | Intel® Core™ Ultra Series 3 Processor (Panther Lake-H Ultra X7 358H, 4P+8E+4LPE) |
|---|---|
| Memory | 2 x 262-pin DDR5 SO-DIMM sockets, supporting 7200MHz up to 128GB (64GB per DIMM) |
| Graphics | Intel® Graphics |
| LAN Chipset | Intel® I226LM with 10/100/1000/2500 Mbps,
supports vPro 1 x Intel® I226V with 10/100/1000/2500 Mbps |
| TPM | Intel® PTT |
| Watchdog Timer | 1 ~ 255 levels reset |
I/O |
|
| Serial Port | 1 x RS-232/422/485 |
| USB Port | 2 x USB3.2 Gen2 (Type-A) 1 x USB2.0 (Type-A) 1 x USB4/Thunderbolt™ 4 (supports DP2.1 display output) 1 x USB3.2 Gen2x2 (Type-C, supports DP1.4a display output) |
| LAN | 2 x RJ-45 port |
| Video Port | 2 x HDMI 2.1 Max resolution up to 7680x4320@60Hz 2 x DisplayPort 2.1/ 1.4a, DP++ Max resolution up to 4096x2160@60Hz Supports Quad-Display (Included 2 outputs from Type-C) |
| Audio | 1 x headphone & microphone combo jack |
| Expansion Slot | 1 x Wi-Fi 7 + BT 6.0 (M.2 Key E, 2230 PCIe x1, USB 2.0 and CNVi for Wireless) |
Storage |
|
| Storage | 1 x M.2 (KEY M, 2242/2280) with PCIe Gen5 x4 for SSD 1 x M.2 (KEY M, 2242) with PCIe Gen4 x4 for SSD Intel® VMD RAID 0/1, supported by identical interface (PCIe) |
Environmental |
|
| Operating Temp. | 0 ~ 50°C (32 ~ 122°F) |
|---|---|
| Storage Temp. | -40 ~ 85°C (-40 ~ 185°F) |
| Operating Humidity | 5 ~ 90% (non-condensing) |
| Storage Humidity | 5 ~ 90% (non-condensing) |
Qualification |
|
| Certification | CE, FCC |
Power Requirement |
|
| Power Input | DC 12-24V input |
Mechanical |
|
| Mounting | VESA mount kit |
| Weight | 515g |
| Dimensions (W x D x H) |
115.4 x 108 x 44.5 mm (4.54” x 4.25” x 1.75”) |
OS Support |
|
| System | Windows 11; Linux: Ubuntu |
