LYNC-715-4200G4
Fanless 15" Industrial Panel PC with Intel® Pentium® N4200 Processor
LYNC-715-4200G4
Fanless 15" Industrial Panel PC with Intel® Pentium® N4200 Processor
Features
- Intel® Apollo Lake-based panel PC
- Fewer cables, fanless design
- 151" 1024 x 768 XGA LCD display w/ LED backlight
- Front bezel with completely covered membrane
- Flush front panel, IP65-compliant
- Brightness control button
- Outside-accessible push-pull CFast socket
- Outside-accessible USB port with rubber cover on the front bezel
- Serial Ports (RS-485), w/ auto-flow control
- 1 x MiniCard socket for Wi-Fi module
- 2 x SMA antenna holes for optional Wi-Fi function
- 9~36V wide-range DC input with reverse protection
Specification
System
| CPU | Intel® N4200 Quad-Core Processor 1.10GHz |
|---|---|
| Memory | Soldered onboard 4GB DDR3L SDRAM |
| LAN Chipset | 1 x Intel® i210IT GbE controller 1 x Realtek® 8111E GbE controller |
| Watchdog Timer | 1~255 levels reset |
LCD Display
| Size / Type | 15" TFT LCD Panel |
|---|---|
| Max. Resolution | 1024 x 768, XGA |
| Max. Colors | 16.7M |
| Luminance | 350 cd/m² |
| Touch Screen | 5-wire Analog Resistive |
| View Angle (U/D/R/L) | 80°/ 80°/ 80°/ 80° |

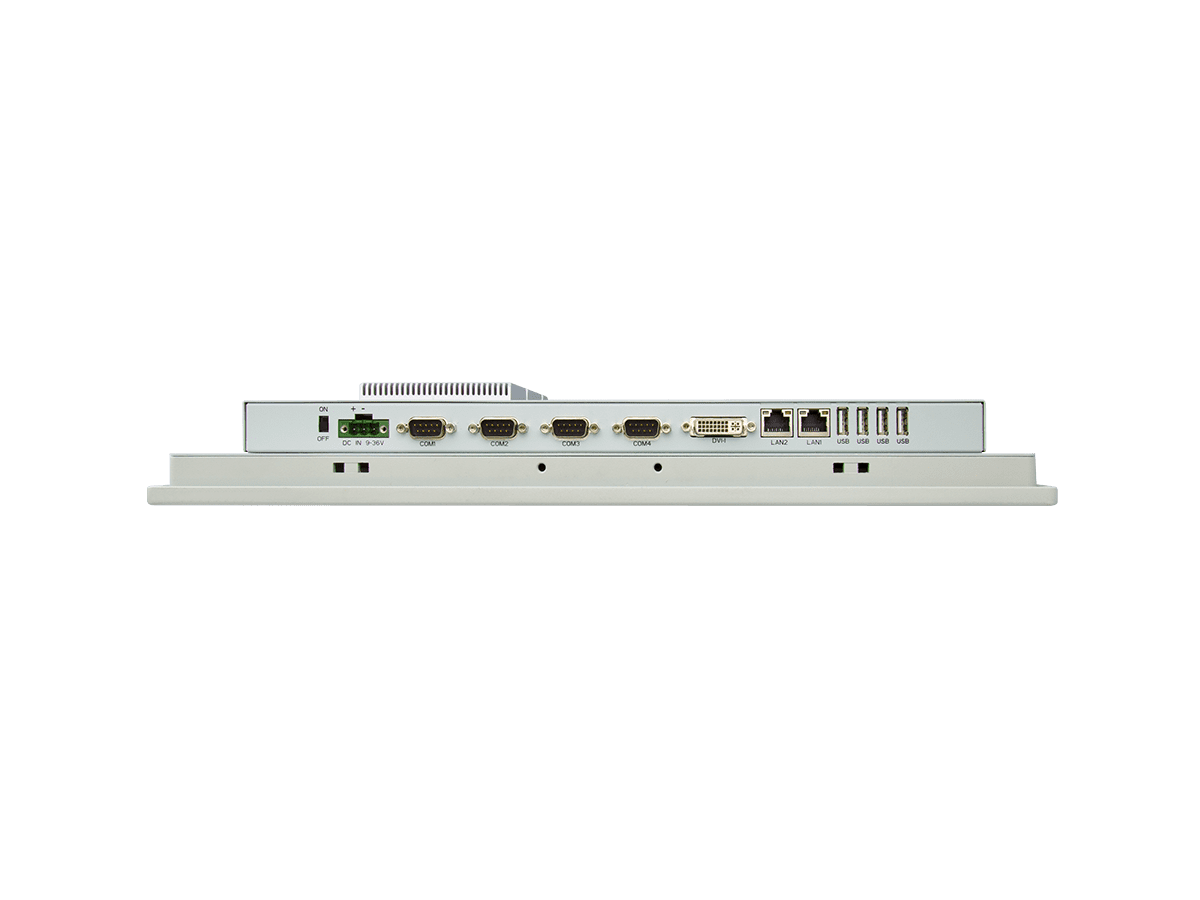

External I/O
| Serial Ports | 4 x DB-9 connectors for COM1~4 (COM1 ~ COM4 are RS-232/485 configurable) |
|---|---|
| USB Ports | 4 x Type-A USB 2.0 ports (rear) 1 x Type-A USB 2.0 port with rubber cover on front bezel |
| LAN | 2 x RJ-45 GbE ports |
| Video Ports | 1 x DVI-I connector (support DVI only) |
| Wi-Fi | 2 x SMA antenna holes for optional Wi-Fi function |
Storage
| 1st Device | 1 x outside-accessible CFast slot |
|---|---|
| 2nd Device | 1 x 2.5” drive bay |
Audio
| Speaker | 2 x 1.5W speakers (optional) |
|---|
Button & Indicator
| Function Key | Brightness up/down, Screen on/off |
|---|---|
| LED Indicator | Power on LED |
Power System
| Power Input | DC 9 ~ 36V |
|---|---|
| Power Consumption | Max. 23.37W (w/o I/O cards) |
Mechanical
| Mounting Type | Panel mount, VESA-75 / 100 mounting |
|---|---|
| Chassis | Panel-mounting chassis, aluminum front bezel and SECC steel chassis |
| Weight (Net) | 3.6 kg (without VESA bracket) |
| Dimensions (W x H x D) | 325.86 x 258.86 x 53.50 mm (12.8” x 10.2” x 2.11”) |
Environmental
| Operating Temp. | -20 ~ 55ºC (-4 ~ 131°F) |
|---|---|
| Storage Temp. | -20 ~ 70ºC (-4 ~ 158ºF) |
| Operating Humidity | 10 ~ 95% RH @ 55°C (non-condensing) |
| Vibration | 5 ~ 500Hz, 2Grms X,Y,Z axis (with CFast/SSD) |
| Shock | Operating 20G, 11ms X,Y,Z axis (with CFast/SSD) |
Qualification
| Certification | CE, FCC Class A |
|---|
Expansion
| Expansion Bus | 1 x Mini-card socket (Full Size) |
|---|
OS Support
| System | Windows®10 (64bit) |
|---|
Ordering Information
| LYNC-715-4200G4 | 15” Intel® N4200 Quad-Core™ processor industrial panel PC with 4GB memory |
|---|
Accessories
Optional Accessories
-
PAC-60W6A-FSP-ES
12V/5A 60W AC/DC power adapter kit -
VMB-715
LYNC-715 VESA-mount bracket kit, w/ 75 x 75 mm & 100 x 100 mm VESA supports
Optional Configuration (CTOS* Kit)
-
64 / 128 / 256GB SSD
2.5" SSD MLC 64 / 128 / 256GB -
WiFi-AT4550
Atheros, QCNFA324 Wi-Fi module w/ 2 x 30cm internal wiring -
ANT-D11
1 x Wi-Fi Dual-band 2.4G / 5G antenna -
ADK-712
LYNC-71x audio kit -
SCK-722C
Assembly kit for SiP-41B/42B
(Note: SCK-722C can only be installed with VMB-712 Mounting Bracket)
