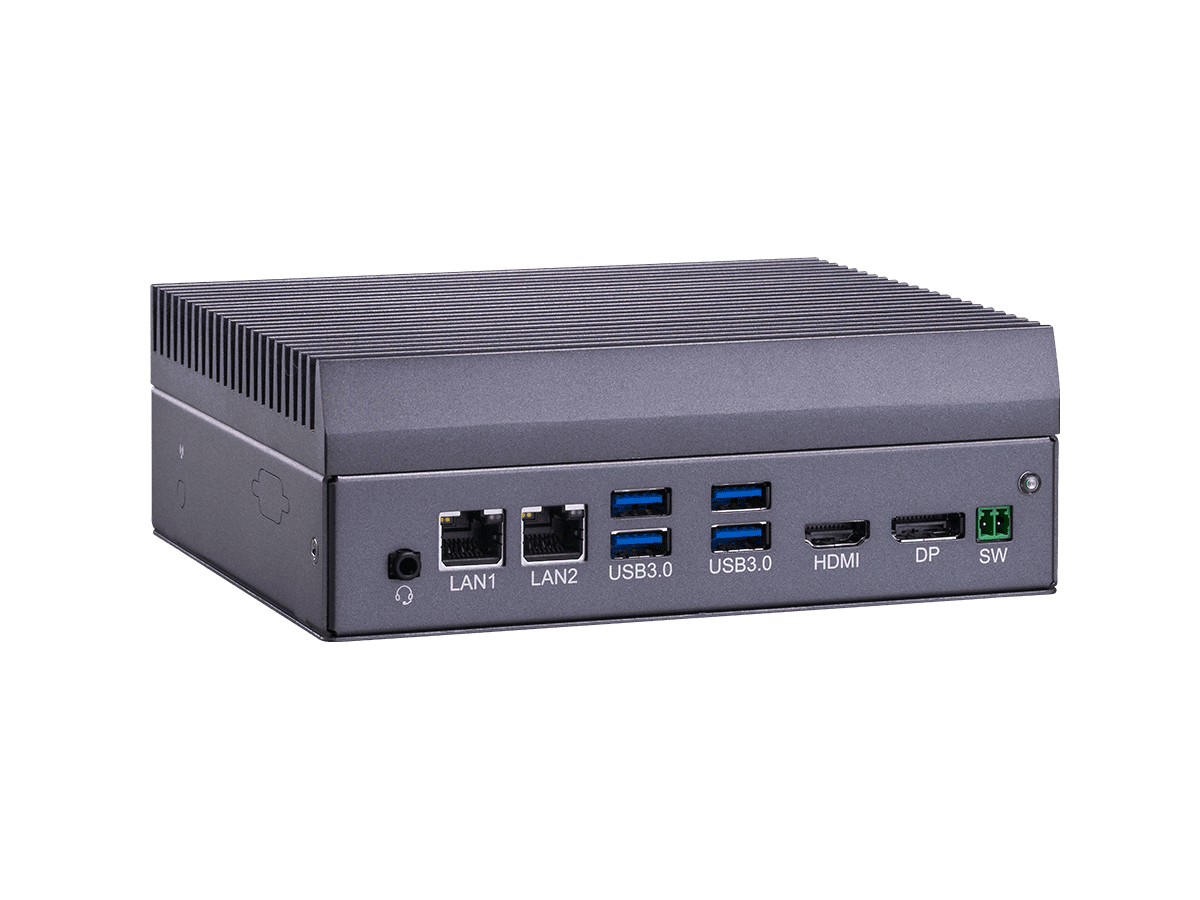

SB-122-RPLU
Industrial Fanless BOX PC w/ Intel® 13th Raptor Lake U Series Processor
New
SB-122-RPLU Industrial Fanless BOX PC with Intel® 13th Gen Raptor Lake U Processor
Industrial Fanless BOX PC w/ Intel® 13th Raptor Lake U Series Processor
New
Features
- 13th Generation Intel® Core i5 / i3 Processors (Raptor Lake)
- 1 x DDR5 5200MHz SO-DIMM Slot, up to 48GB
- Support 1 x GbE & 1 x GbE PHY
- Support DP++/HDMI video output
- Support M.2 2242 (SATA) & 2280 (NVMe)
- Small size (Palm-size), convenient to install
- Support Over-voltage & Reversed Power Insertion Protection
Specification
System |
|
| CPU | Intel® 13th Core™ i5/ i3 Processors (Raptor Lake U series) |
|---|---|
| Memory | 1 x 262-pin DDR5 SO-DIMM socket, supporting 5200MHz SDRAM up to 48GB |
| Chipset | Integrated in CPU |
| Graphics | Integrated Intel® UHD Graphics |
| LAN Chipset | 1 x Intel® I210-AT GbE 1 x Intel® I219-LM GbE PHY |
| Watchdog Timer | 1~255 levels reset |
| TPM | Nuvoton NPCT760AABYX TPM 2.0 chip |
Storage |
|
| Device | 1 x M.2 B Key 2242 Slot (SATA signal) 1 x M.2 M Key 2280 Slot (NVMe, PCIe x4 signals) *CTOS is available |
Audio |
|
| Type | 1 x Audio (Line-out & Mic-in) (Chipset ALC888S) |
Power System |
|
| Power Input | DC 12~24V 2-pin Phoenix connector |
| LED | 1 x Power LED |
OS |
|
| OS | Windows 10/11, Ubuntu 22.04 |
Qualification |
|
| Certification | CE, FCC |

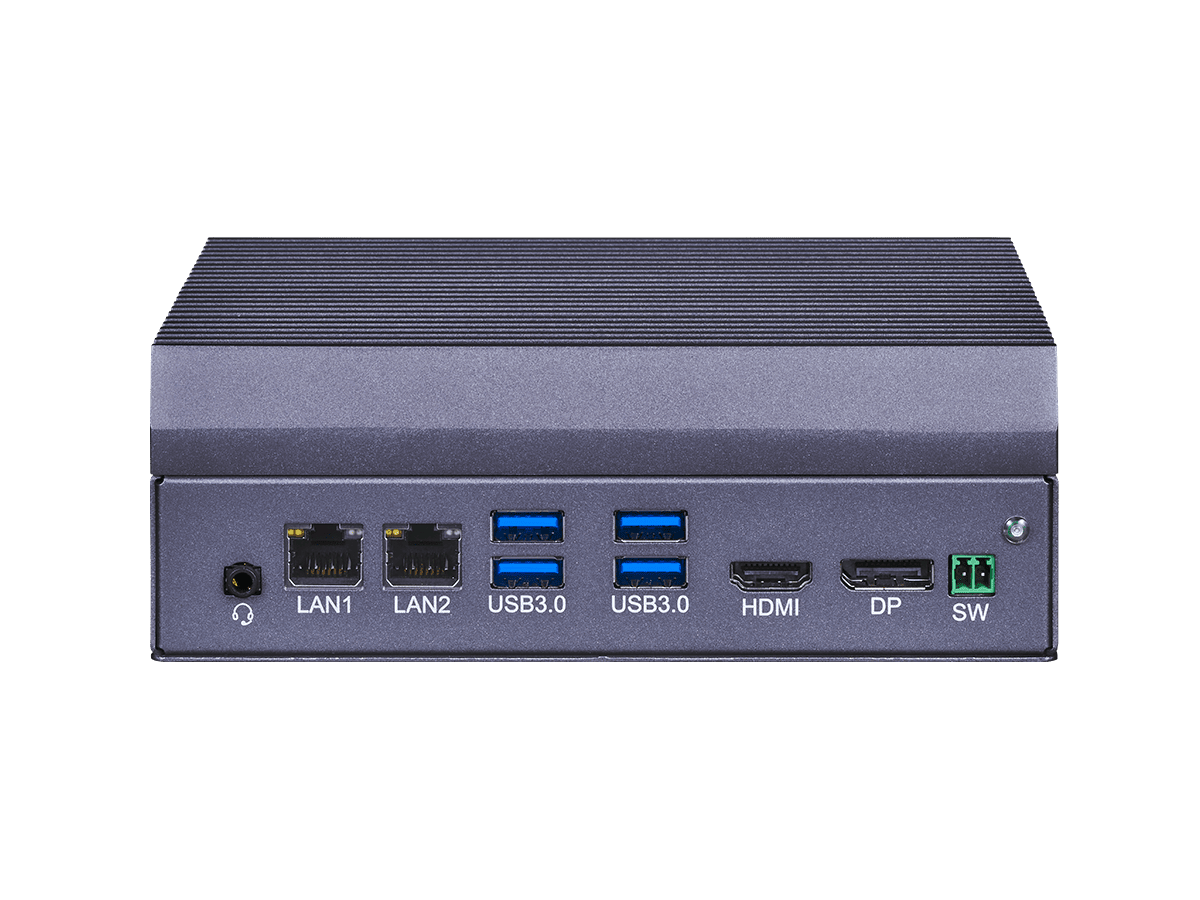

External I/O |
|

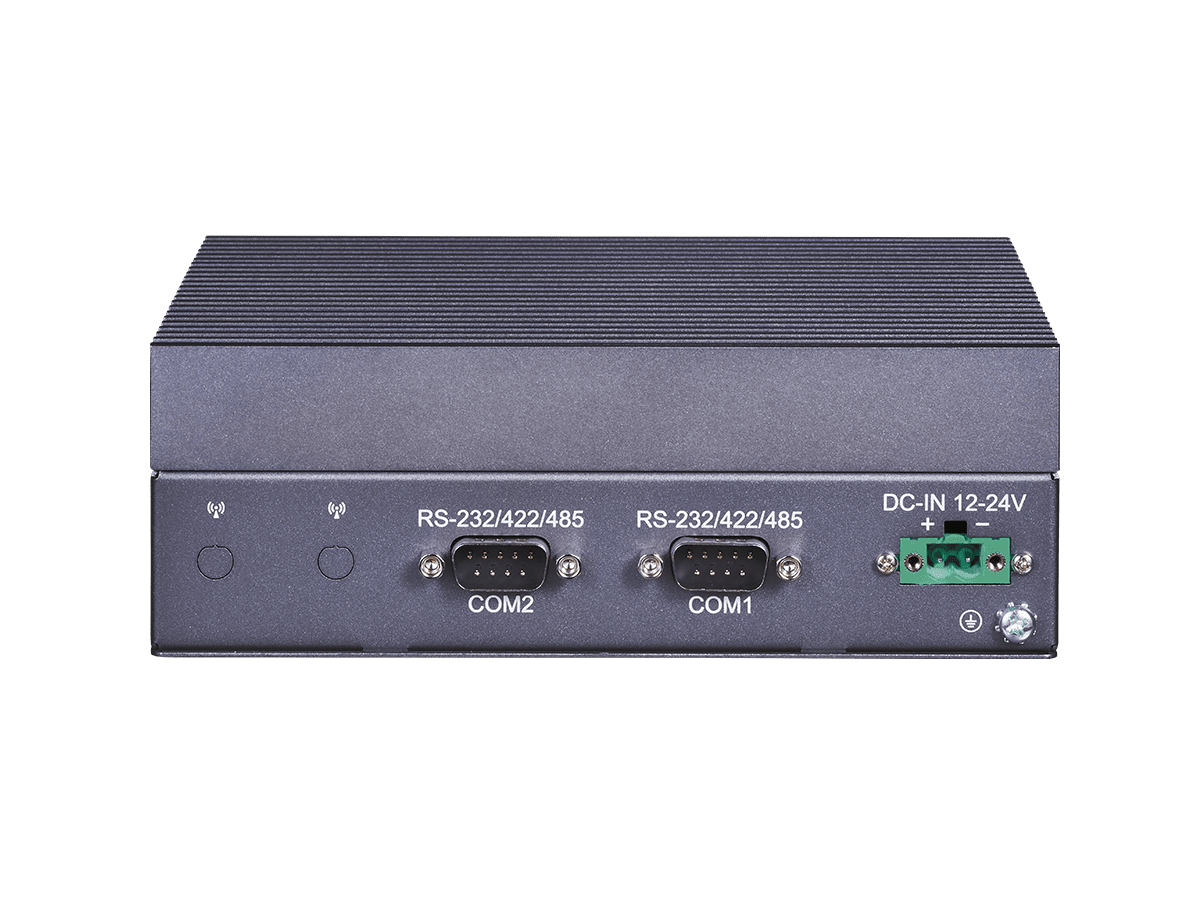

| Serial Ports | 2x RS-232/422/485(default RS-232) with Auto flow control |
| USB Ports | 4 x USB3.0 |
| LAN | 2 x RJ45 |
| Video Ports | 1 x HDMI®(Max Resolution: 4096x2304@60Hz) 1 x DP++ (Max Resolution: 4096x2304@60Hz) |
Internal I/O |
|
| Expansion | 1 x M.2 E Key (PCIe / USB signal) 1 x M.2 B Key 2242/3042 slot (PCIe / SATA / USB signal supported) 1 x M.2 M Key 2280 Slot (NVMe, PCIe x4 signals) [Note: M.2 2242 SATA, M.2 3042 share one card slot, only one of the cards can be inserted] 1 x 8bit Programmable GPIO pin header |
| SIM card | 1 x Nano SIM card Socket for 4G/5G module |
Mechanical |
|
| Construction | Aluminum alloy |
|---|---|
| Mounting | Wall-mount |
| Dimension (W x H x D) | 166 x 140 x 57.9 mm |
| Weight | 2.5 Kg |
Environmental |
|
| Operating Temp. | -20 ~ 50°C (32 ~122°F), ambient w/ air flow(WT RAM & SSD) |
| Storage Temp. | -40 ~ 85°C (-40 ~ 185°F) |
| Operating Humidity | 5% ~ 95% @ 40°C (non-condensing) |
| Vibration | 5~500Hz, 2Grms operation |
| Shock | Operation: 10G@11ms Non-operation: 30G@11ms |
Packing List |
|
| SB-122-113X5U | 1pc BOX PC |
| Thermal PAD | 1pc for Memory |
| 2-pin terminal block | 1pc 5mm for Power-input, 1pc 3.5mm for Remote ON/OFF SW |
| Wall-mount bracket | 2pcs |
| Screw package | 1 pcs |
Ordering Information |
|
| SB-122-11315U | Barebone Fanless System with Core i3-1315U |
| SB-122-11335U | Barebone Fanless System with Core i5-1335U |
| 8bit GPIO Cable | 200mm, DB9M*1 TO HSG1*10P(1.25) |
| PAC-120W-FSP-SPA-US R1.0 | AC/DC ADAPTER KIT (w/ UKCA), 19V, 120W, 2 WIRE w/ US POWER CORD |
| PAC-120W-FSP-SPA-EU R1.0 | AC/DC ADAPTER KIT (W/ UKCA), 19V, 120W, 2 WIRE w/ EU POWER CORD |
| PAC-120W-FSP-SPA-UK R1.0 | AC/DC ADAPTER KIT (W/ UKCA), 19V, 120W, 2 WIRE w/ UK POWER CORD |
| PAC-120W-FSP-SPA-IN R1.0 | AC/DC ADAPTER KIT (W/ UKCA), 19V, 120W, 2 WIRE w/ IN POWER CORD |
| PAC-120W-FSP-SPA-JP R1.0 | AC/DC ADAPTER KIT (W/ UKCA), 19V, 120W, 2 WIRE w/ JP POWER CORD |
