SB-244-MTLU Automation Box PCs

Industrial Fanless BOX PC w/ Intel® Core Ultra Meteor Lake U Series Processor
New
Features
  • Intel® Core Ultra 7 / 5 Processors (Meteor Lake U series)
  • 1 x DDR5 5600MHz SO-DIMM Slot, supporting up to 48GB
  • Support 1 x GbE PHY interface & 3 x GbE LAN ports
  • Support DP 1.4a/HDMI 2.1 TMDS video output
  • Support M.2 M key slot 2242 (SATA) / 2280 (NVMe)
  • Slim form factor design for space-constrained installations
  • Support Intel® vPro Essentials, RAID 0/1
  • Support Over-voltage & Reversed Power Insertion Protection
  • Delivers up to 22 TOPS (INT8) of AI performance
Specification

System

CPU Intel® Core Ultra 7/5 Processors (Meteor Lake U series) [cite: 6, 17, 18]
Memory 1 x 262-pin DDR5 SO-DIMM socket, SDRAM up to 48GB [cite: 6]
Chipset Integrated in CPU
Graphics Integrated Intel® Graphics
LAN Chipset 1 x Intel® I219-LM GbE PHY (LAN1)
3 x Intel® I210-AT GbE (LAN2/3/4)
Watchdog Timer 1~255 levels reset
TPM Nuvoton NPCT760AABYX TPM 2.0 chip

External I/O

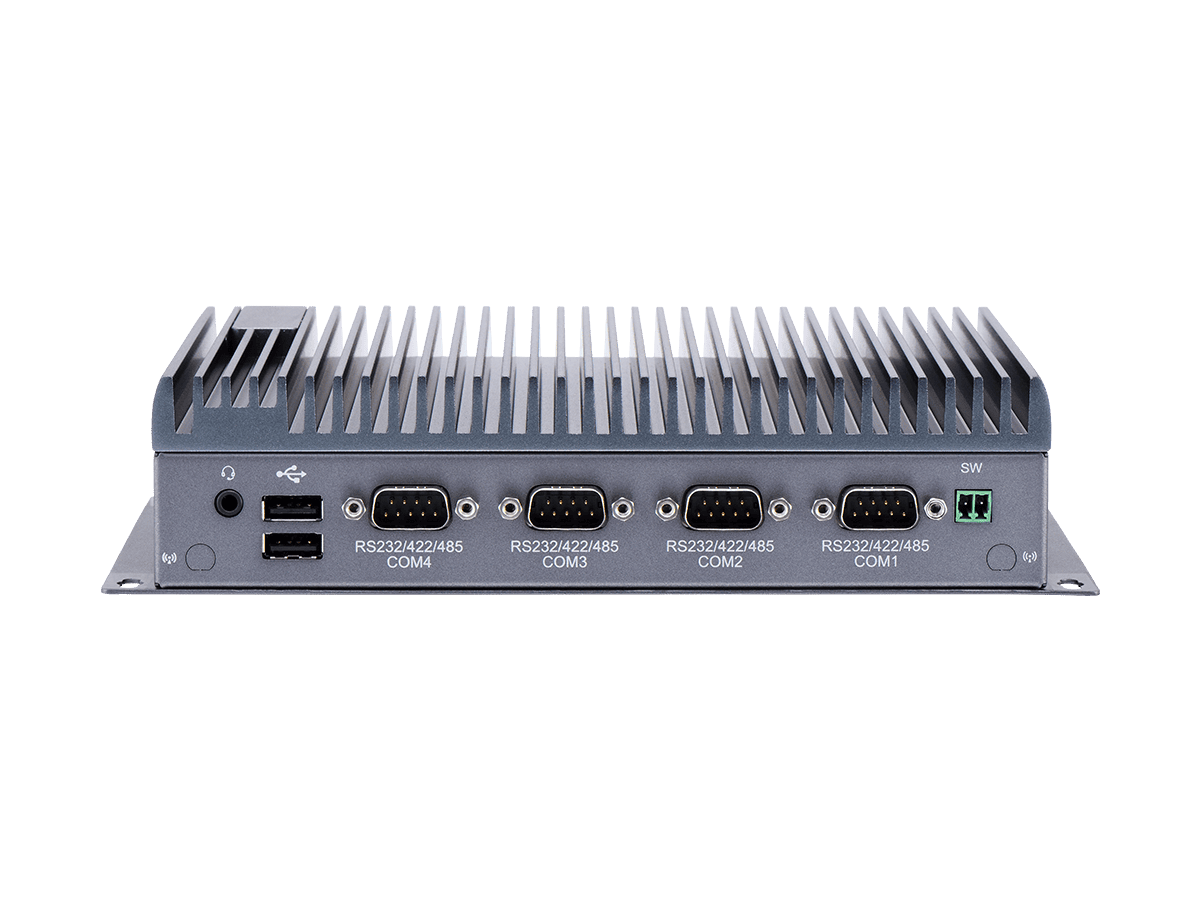

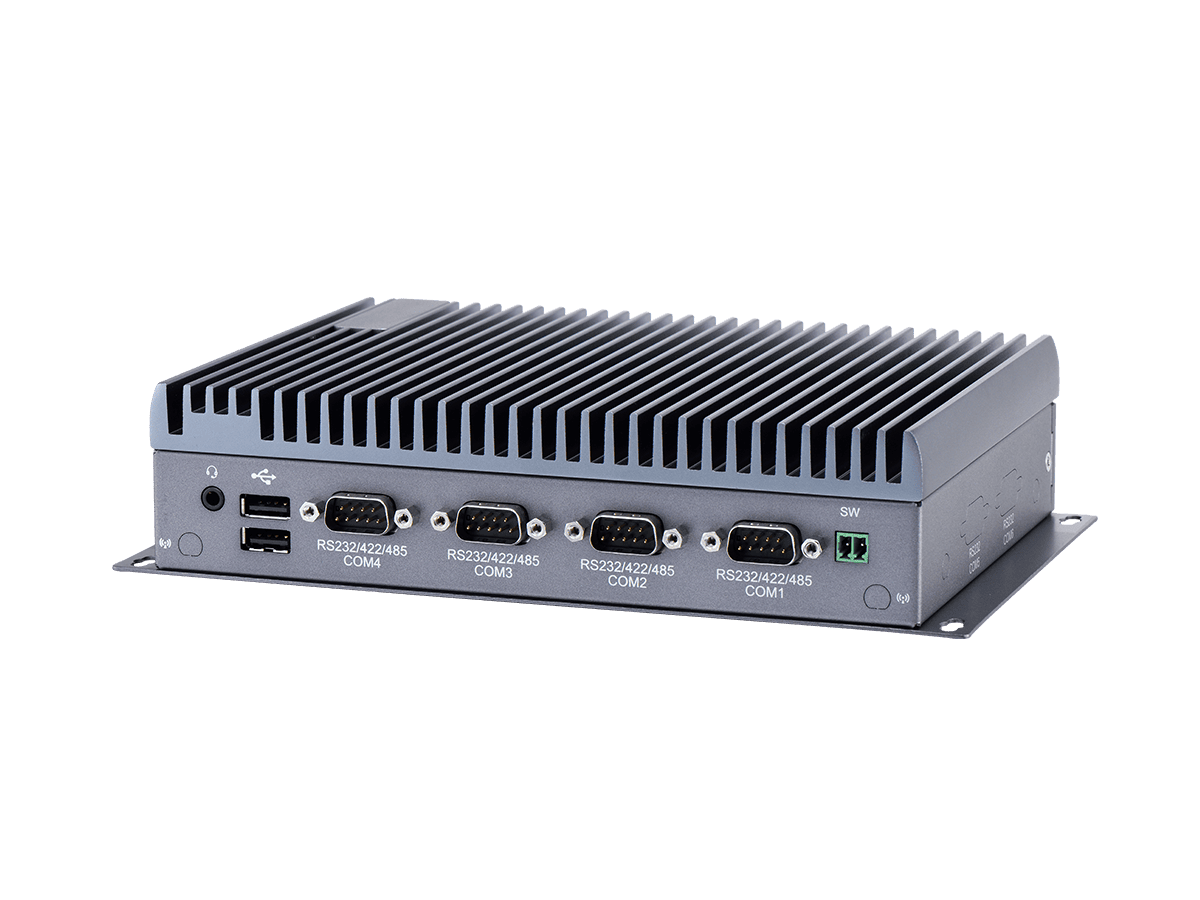

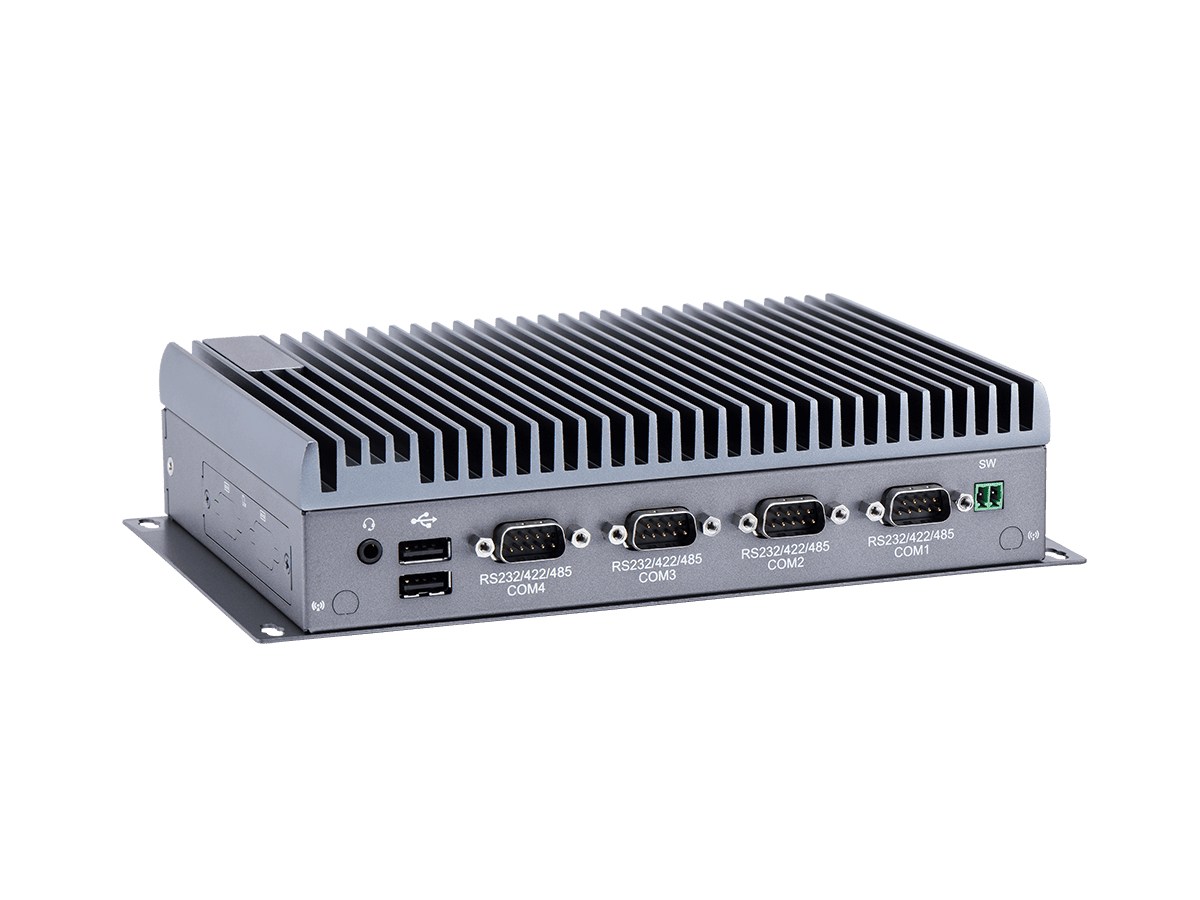

Serial Ports 4 x RS-232/422/485 (default RS-232) with Auto flow control
USB Ports 2 x USB3.2 Gen2
4 x USB2.0

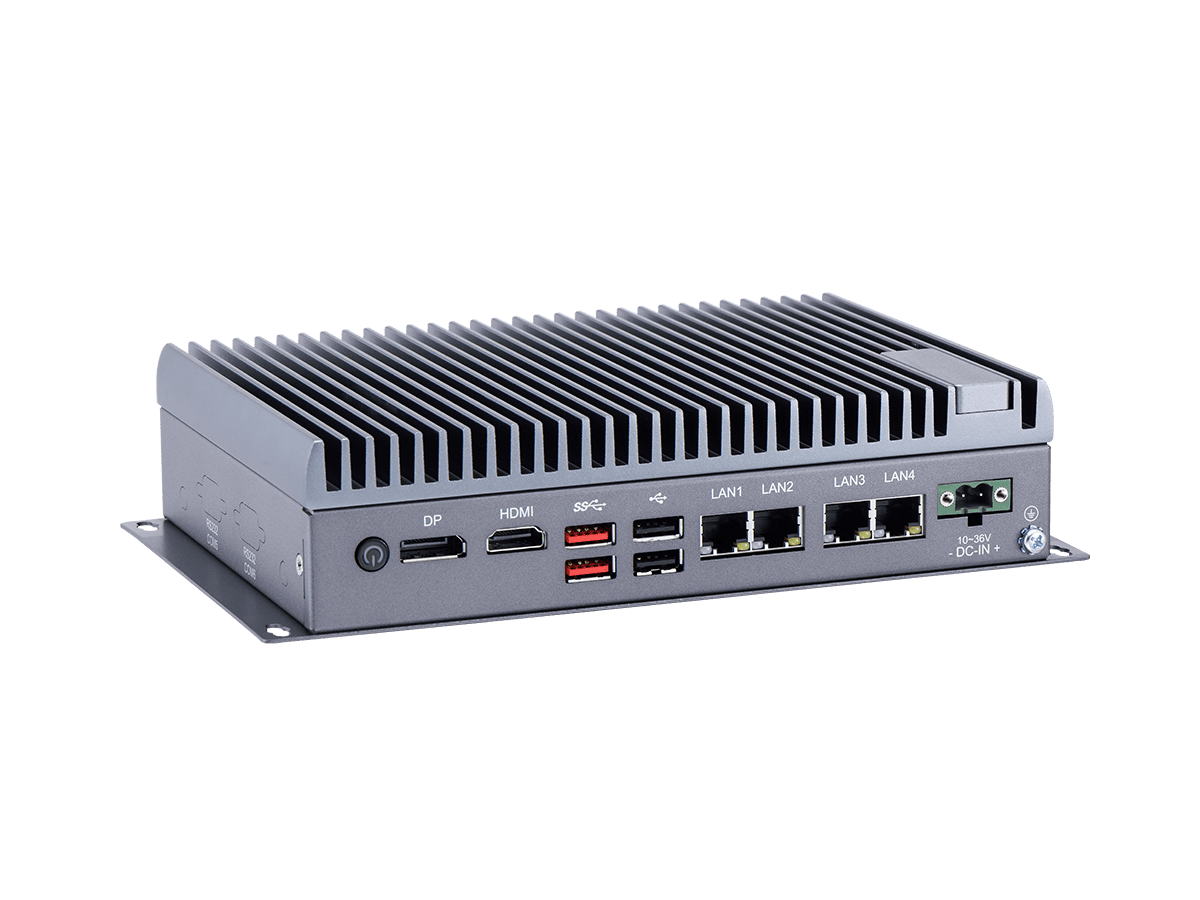

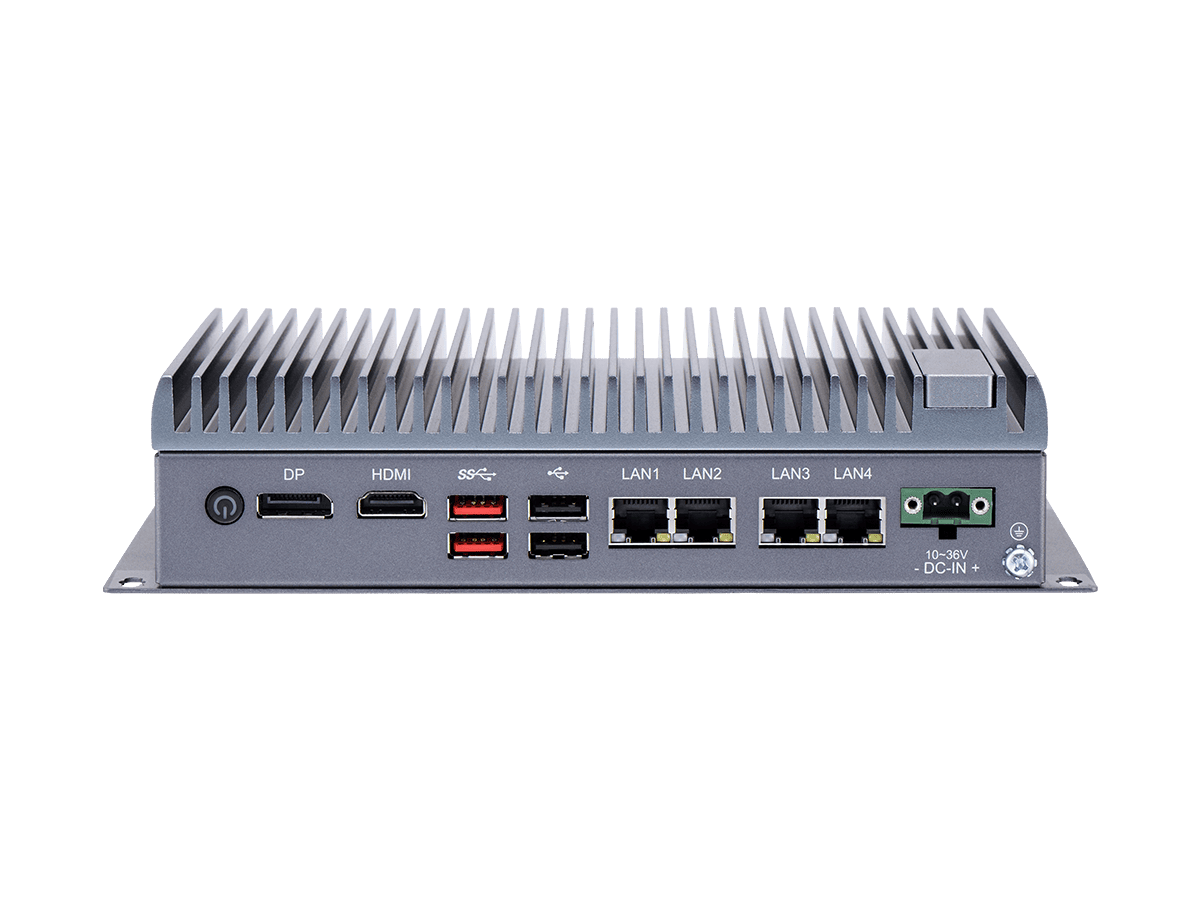

LANs 4 x RJ45
Video Ports 1 x HDMI 2.1 TMDS (up to 4096x2304 @60Hz)
1 x DP1.4a (up to 7680x4320 @60Hz)
Power Button 1 x Power button w/LED
Remote on-off 1 x SW

Internal I/O

Expansion Slot 1 x Full-size Mini-PCIe slot (PCIe/USB signal)
1 x M.2 E Key 2230 slot (PCIe/USB signal)
1 x M.2 M Key 2242 Slot (SATA signal)
1 x M.2 M Key 2280 slot (PCIe x4 signals, NVMe)

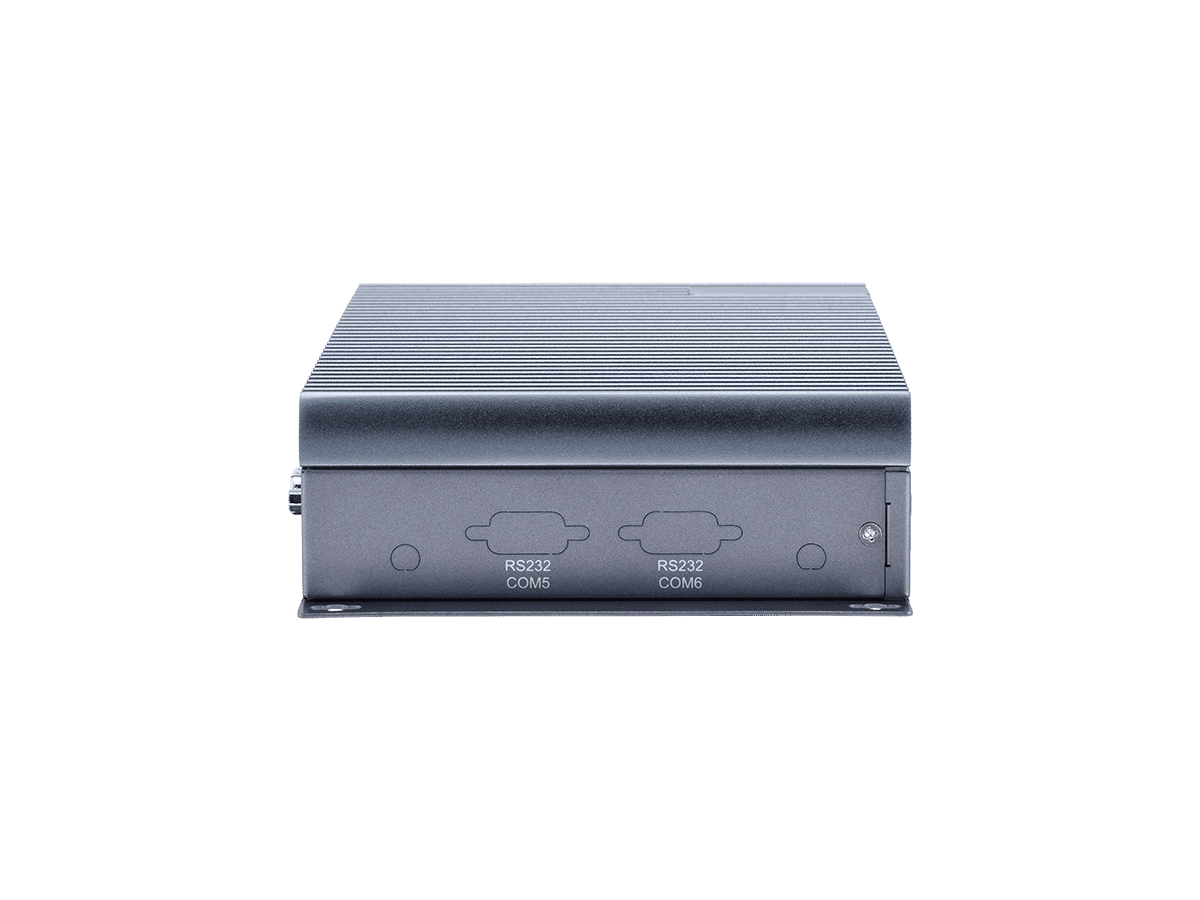

2 x RS-232 by 3-wire pin header (via optional Cable kit)
1 x 8bit Programmable GPIO pin header (via optional Cable kit)
1 x Nano SIM card slot (for Telecom Mini-PCIe module)

Storage

Device 1 x M.2 M Key 2242 slot (SATA signals)
1 x M.2 M Key 2280 Slot (PCIe x4 signals, NVMe)
1 x 2.5” SATA3.0 drive bay
[Note: Support RAID 0/1 via M.2 2242 & 2.5” drive bay]
*CTOS is available

Audio

Type 1 x Audio (Line-out & Mic-in)
(Chipset ALC888S)

Power

Power Input DC 10-36V (2-pin Phoenix connector)

OS

Type Windows 10, Windows 11, Ubuntu 24.04

Qualification

Certification CE, FCC

Mechanical

Construction Aluminum alloy
Mounting Desk-mount, Wall-mount, DIN-Rail(optional)
VESA-mount (75x75mm, 100x100mm optional)
Dimensions 200 x 140 x 49.2 mm
Weight (Net) 1.8kg

Environmental

Operating Temp. -20 ~ 60°C (-4 ~140°F), ambient w/ air flow (WT RAM & SSD)
Storage Temp. -40 ~ 85°C (-40 ~ 185°F)
Operating Humidity 5% ~ 95% @ 40°C (non-condensing)
Vibration 5~500Hz, 2Grms operation
Shock Operation: 10G@11ms
Non-operation: 30G@11ms

Packing List

SB-244-Ux1X5U 1pc BOX PC
Thermal PAD 1pc for Memory, 2pcs for M.2 2280
2-pin terminal block 1pc 5mm for Power-input, 1pc 3.5mm for Remote ON/OFF SW
22-pin SATA & Power cable 1pc 150mm
Screw Package 1pc

Ordering Information

SB-244-U7155U Barebone Fanless System with Core Ultra 7-155U
SB-244-U5125U Barebone Fanless System with Core Ultra 5-125U
8bit GPIO Cable 250mm, DB9M x 1 TO HSG1 x 10P(1.25)
RS232 Y Cable 250mm, DB9M x 2 TO HSG2 x 3P(2.0), RS232, W/O BRACKET, W/SCREW
SB-244-MTLU-VESA-MOUNT VESA Mount Bracket w/ Screw, 233 x 130 x 10.5 mm
SPA BOX PC DIN RAIL KIT DIN Rail Bracket w/ Screw, 35mm W25, N/A, 25 x 47.8
PAC-120W-FSP-SPA-US R1.0 AC/DC Adapter Kit (w/ UKCA), 19V, 120W, 2 WIRE w/ US POWER CORD
PAC-120W-FSP-SPA-EU R1.0 AC/DC Adapter Kit (w/ UKCA), 19V, 120W, 2 WIRE w/ EU POWER CORD
PAC-120W-FSP-SPA-UK R1.0 AC/DC Adapter Kit (w/ UKCA), 19V, 120W, 2 WIRE w/ UK POWER CORD
PAC-120W-FSP-SPA-IN R1.0 AC/DC Adapter Kit (w/ UKCA), 19V, 120W, 2 WIRE w/ IN POWER CORD
PAC-120W-FSP-SPA-JP R1.0 AC/DC Adapter Kit (w/ UKCA), 19V, 120W, 2 WIRE w/ JP POWER CORD
