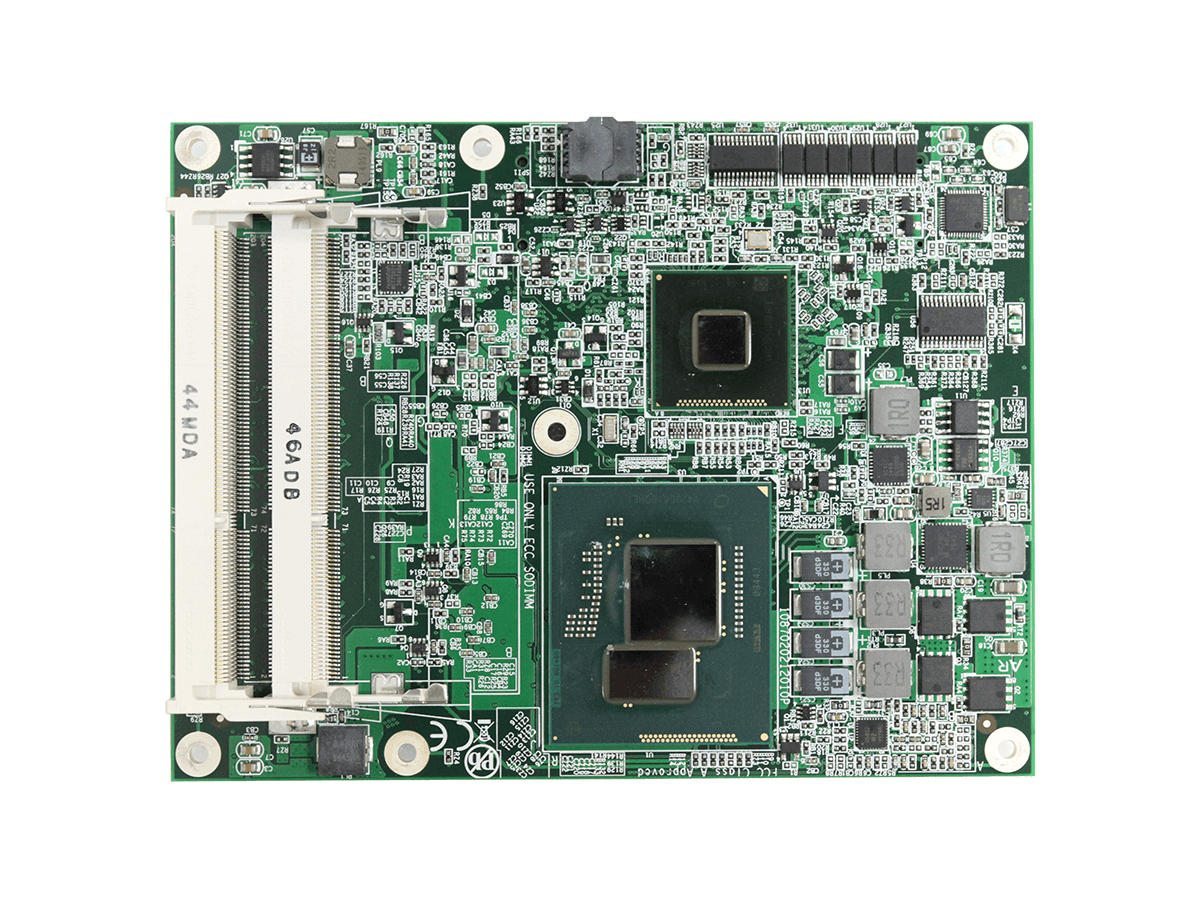

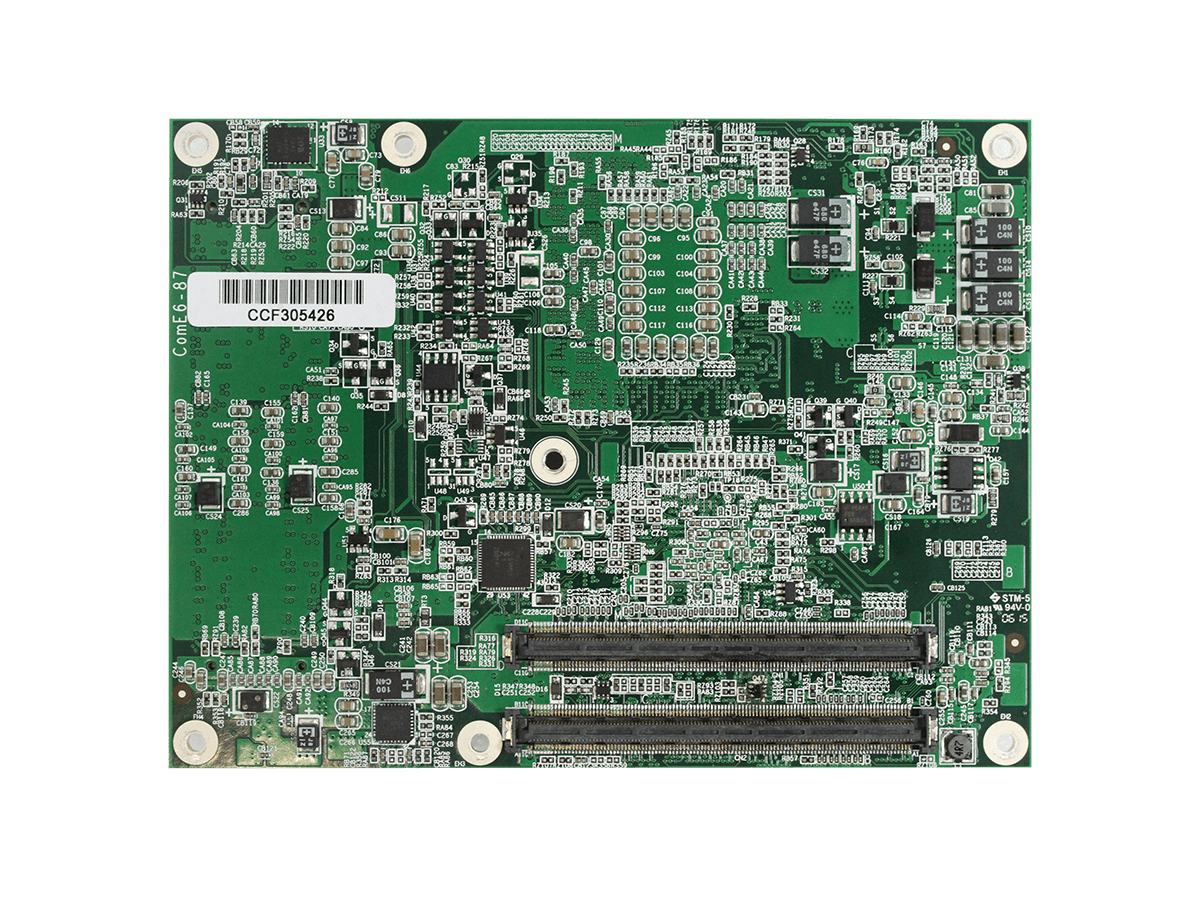

EmETXe-i87M2
Wide-temperature COM Express® Basic Type 6 CPU Module
EmETXe-i87M2
Wide-temperature COM Express® Basic Type 6 CPU Module
Features
- Soldered onboard 4th Generation Intel® Core™ processor
- Intergrated Gigabit Ethernet
- Dual Channels 24-bit LVDS and 2 x DDI ports
- Support 3 independent displays
- Support Intel VT-d Technology
- Wide Range Operating Temp.: -40 ~ 85°C
Specification
System
| CPU | Soldered onboard 5th Generation Intel® Core™ i7-5700EQ 2.0GHz |
|---|---|
| Chipset | Intel® PCH QM87 |
| Memory | 2 x DDR3L ECC SO-DIMM sockets, supporting 1600MHz up to 16GB SDRAM |
| BIOS | AMI UEFI BIOS |
| Watchdog Timer | 1~255 levels reset |
I/O Interface
| USB Port | 8 x USB 2.0 ports 4 x USB 3.0 ports |
|---|---|
| Expansion Bus | 1 x PCIe x16 Generation 3 lanes 6 x PCIe x1 Generation 2 lanes |
| DIO | 8-bit Programmable |
| Storage | 4 x Serial ATA ports: - 2 ports with 600MB/s HDD transfer rate - 2 ports with 300MB/s HDD transfer rate SATA RAID 0, 1, 5, 10 supported |
| Ethernet Chipset | 1 x Intel® i218LM PCIe PHY |
| Audio | HD link |
| TPM | TPM supported |
Mechanical & Environmental
| Power Requirement | +12V, +5VSB |
|---|---|
| Power Consumption | 1.13A@12V, 0.31A@5V, 0.36A@3.3V with i7-5700EQ (Typical) |
| Operating Temp. | -40 ~ 85ºC (-40 ~ 185ºF) |
| Operating Humidity | 0 ~ 95% @ 85ºC (non-condensing) |
| Dimension (L x W) | 125 x 95 mm (4.9" x 3.7") |
Display
| Graphics Chipset | Integrated Intel® HD Gen 7.5 |
|---|---|
| Graphics Interface | Analog RGB supporting up to 1920x1200@60Hz LCD: Dual Channels 24-bit LVDS, with resolution up to 1920x1200@60Hz 3 x DDI ports |
OS support
| Windows 7 64-bit Windows 8 64-bit Linux: Ubuntu |
Ordering Information
| EmETXe-i87M2-5700EQ | 5th Generation Intel® Core™ i7-5700EQ 2.6GHz/ QM87 WT COM Express® CPU module |
|---|
Accessories
Optional Accessories
| HS-87M2-C2 | Cooler 125x95x34mm |
|---|---|
| PBE-1702 | COM Express® Type 6 evaluation carrier board (ATX form factor) |
| CBK-04-1702-00 | Cable kit 1 x USB cable 2 x COM port cables 1 x SATA cable |
