EmETXe-i88U4

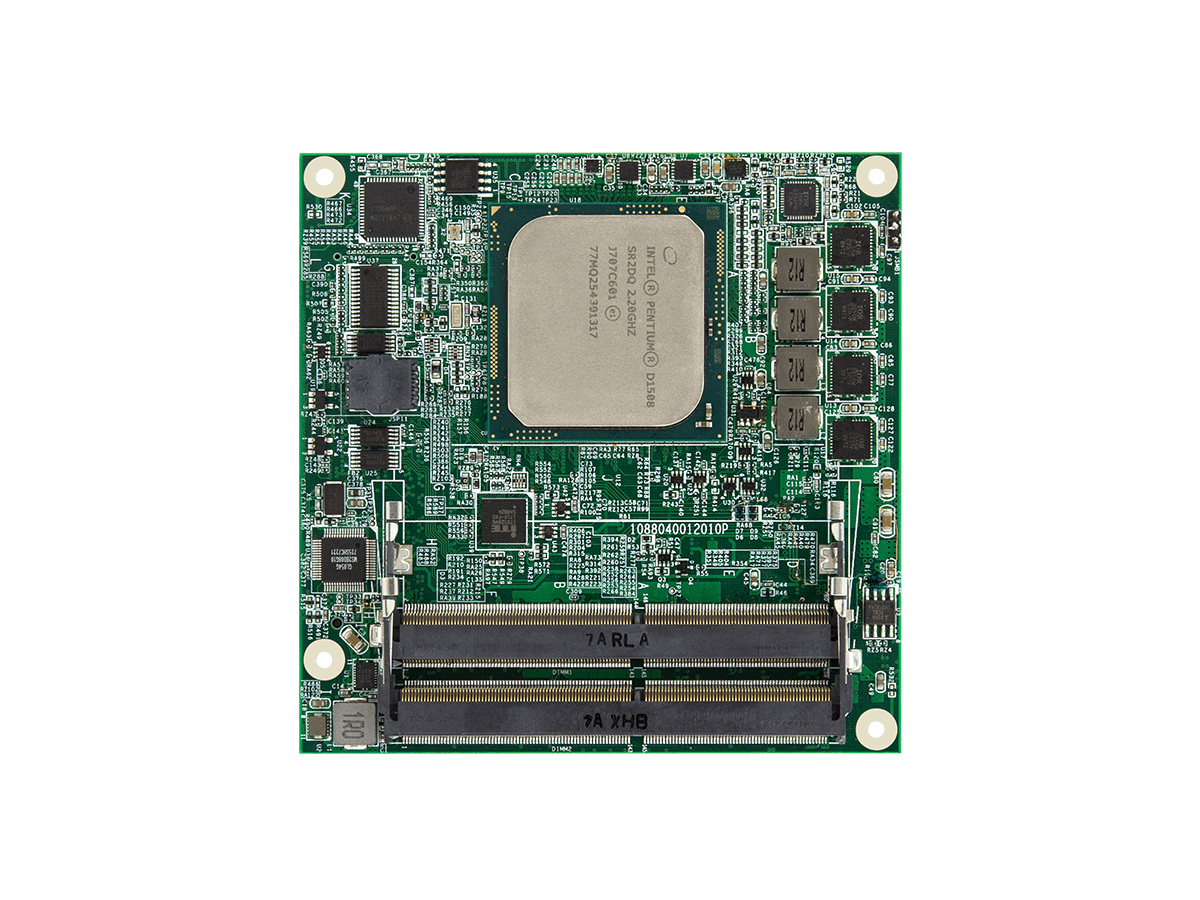

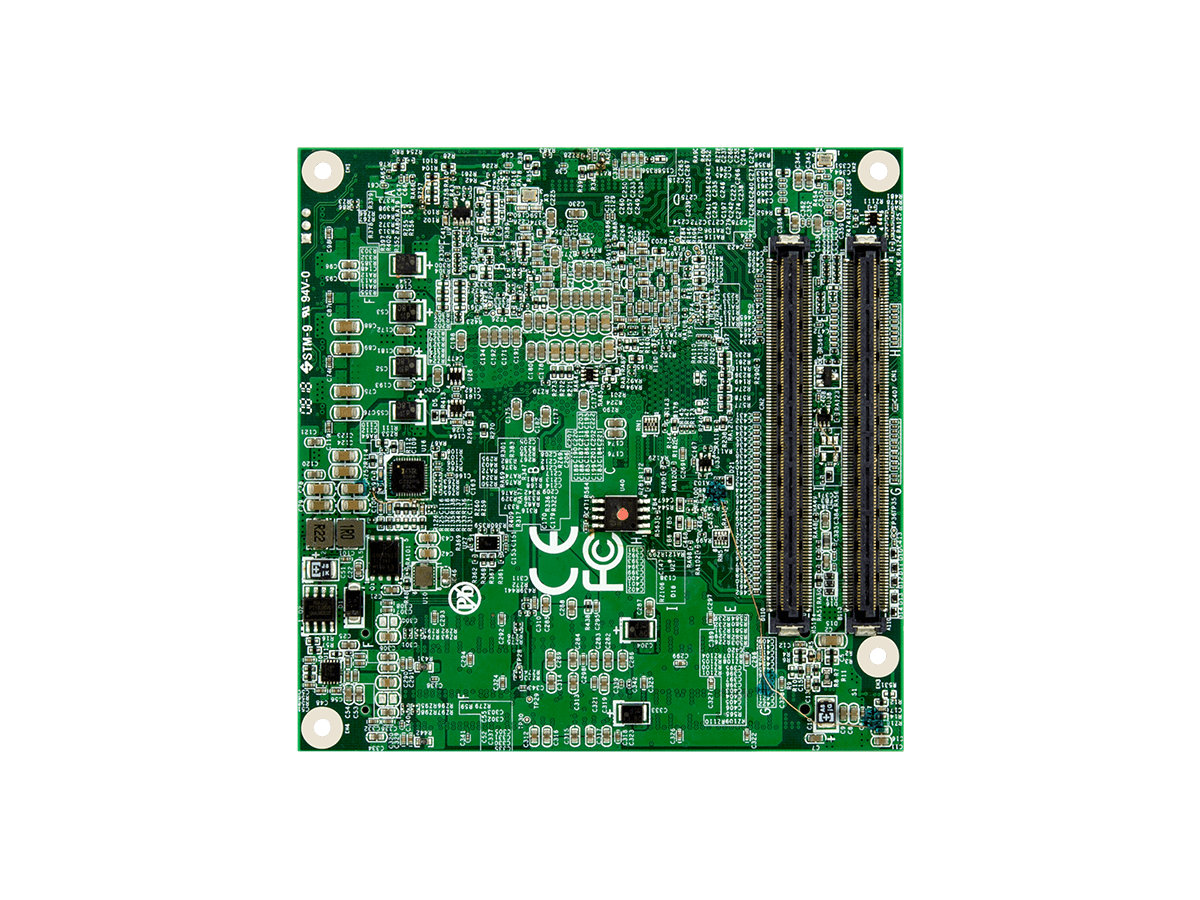

Intel® Xeon D-1539/D-1508/D-1527 Processor COM Express® Compact Type 6 CPU Module
EmETXe-i88U4
Intel® Xeon D-1539/D-1508/D-1527 Processor COM Express® Compact Type 6 CPU Module
Features
- Soldered onboard Intel® Xeon D-1539/D1508/D-1527 processor
- Supports two ECC SO-DIMM Sockets
- PCIex16 for Graphics
- Supports one Ethernet
- Operating Temp.: 0 ~ 60°C
Specification
System
| CPU | Soldered onboard Intel® Xeon D-1539 1.6GHz/D-1508 2.2GHz/D-1527 2.2GHz processor |
|---|---|
| Memory | 2 x DDR4 ECC SO-DIMM sockets |
| BIOS | AMI UEFI BIOS |
| Watchdog Timer | 1~255 levels reset |
I/O Interface
| USB Port | 8 x USB 2.0 ports (EHCI supported) 4 x USB 3.0 ports |
|---|---|
| Serial Port | 2 x UART ports (RX/TX only) |
| Expansion Bus | 1 x PCIex16 lane, 8 x PCIex1 lanes, I2C Interface |
| Storage | 4 x Serial ATA ports with 600MB/s HDD transfer rate |
| Ethernet Chipset | 1 x Intel® Ethernet controller i21x series |
| Digital I/O | 8-bit Digital Input/ Output |
| TPM Function | TPM supported (OEM request) |
Mechanical & Environmental
| Power Requirement | +12V, 5VSB |
|---|---|
| Power Consumption | 2.38A@12V(D-1539 typical) |
| Operating Temp. | 0 ~ 60ºC (32 ~ 140ºF) |
| Operating Humidity | 10 ~ 95% @ 60ºC (non-condensing) |
| Dimension (L x W) | 95 x 95 mm (3.7” x 3.7”) |
OS support
| Windows 8.1
Windows 10 IoT Linux: Ubuntu Linux: Ubuntu |
Ordering Information
| EmETXe-i88U4-D1539 | Intel® Xeon D-1539 COM Express® Compact Type 6 CPU Module |
|---|---|
| EmETXe-i88U4-D1508 | Intel® Xeon D-1508 COM Express® Compact Type 6 CPU Module |
| EmETXe-i88U4-D1527 | Intel® Xeon D-1527 COM Express® Compact Type 6 CPU Module |
Accessories
Optional Accessories
| HS-88U4-C1 | Heat sink with Fan (95 x 95 x 36.5 mm) |
|---|---|
| PBE-1705-F1 | COM Express®COM Express® Type 6 evaluation carrier board with SIO F71869ED module in ATX form factor |
| CBK-03-1705-00 | Cable kit 1 x SATA cable 2 x COM Flat cables |
