PBH-1200
COM-HPC Client Type Module Evaluation Board
New

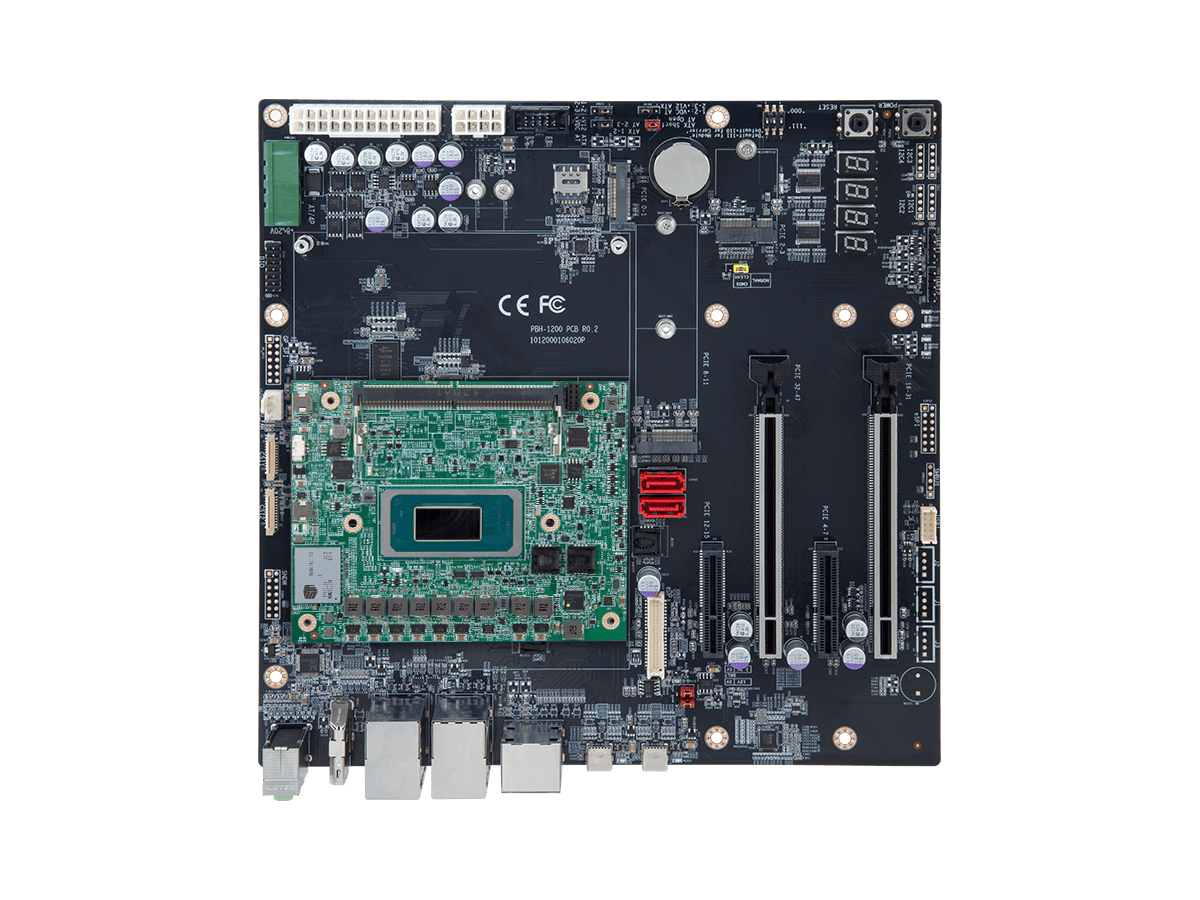

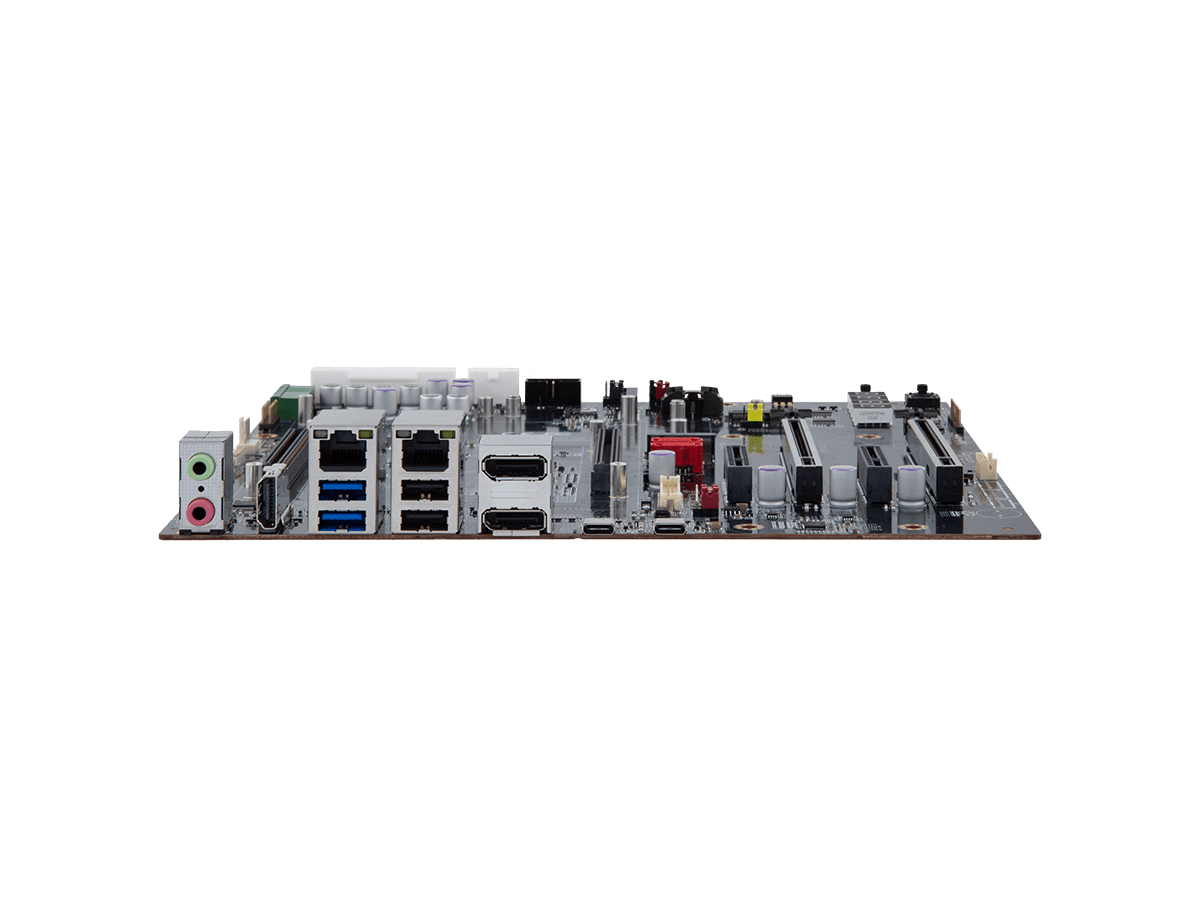

PBH-1200 COM-HPC Client Development Board with PCIe Gen5 and USB4
COM-HPC Client Type Module Evaluation Board
New
Features
- COM-HPC® Evaluation Board Support COM-HPC® Client Type Modules (Type A/B/C)
- Micro-ATX Form Factor with Full PCI Express Expansions
- Support Multiple Independent Displays: DP, HDMI, eDP and USB Type C (DP Alt mode)
- Multiple I/O Expansion: 2.5 GbE, PCIe Gen5, USB4 & USB3.2 Gen2, SATA 3.0, MIPI CSI
- Wide-range voltage input: 8V ~ 20V
Specification
I/O |
|
| Serial Bus | 2 x MIPI CSI (11 x 2P) Connectors 1 x SMBus (5 x 1P) Pin Header 2 x I2C Bus (5 x 1P) Pin Headers 2 x UART Bus (5 x 1P) Pin Headers 1 x GP_SPI (7 x 2P) Pin Header |
|---|---|
| USB | 2 x USB 4.0 Type-C ports (w/ DP Alt Mode) 2 x USB 3.2 Gen2 Type-A ports (Combo connector with RJ45) 2 x USB 2.0 Type-A ports (Combo connector with RJ45) 2 x USB 2.0 ports (5 x 2P) Pin Headers (Shared USB 2.0 with M.2 B-Key and M.2 E-Key slots) |
| Expansion | 2 x PCIe x16 slots 2 x PCIe x4 slots 1 x M.2 M-Key slot 2242, 2260 and 2280 1 x M.2 B-Key slot 3042, 2242, 2260 and 2280 + micro-SIM card slot 1 x M.2 E-Key slot 2230 and 3030 |
| Ethernet | 2 x 2.5GbE RJ45 |
| SATA | 2 x Serial ATA 3.0 ports |
| Fan | 1 x 4P Smart Fan Header |
| BIOS Socket | 1 x BOOT_SPI (SPI Socket) |
| GPIO | 1 x GPIO (7 x 2P) Pin Header |
| System Status LED | 4 x 7-Segment Postcode LEDs |
| Button | Power on/off Reset |
Display |
|
| Graphic Interface | 2 x DisplayPort ports 1 x HDMI port 1 x eDP port |
OS support |
|
| System | Windows 10 IoT Enterprise 64-bit Windows 11 IoT Enterprise 64-bit Linux (Ubuntu 20.04) |
|---|---|
Power Requirement |
|
| Power Input | ATX: Vin, VSB; AT: Vin Vin: 8V ~ 20V; VSB: 4.75V ~ 5.25V |
Mechanical & Environmental |
|
| Operating Temp. | -20°C ~ 60°C (-4°F ~ 140°F) |
| Storage Temp. | -40°C ~ 85°C (-40°F ~ 185°F) |
| Operating Humidity | 40ºC @95% relative humidity, non-condensing |
| Storage Humidity | 60ºC @95% relative humidity, non-condensing |
| Dimension | 244 x 244 mm (9.6” x 9.6”) |
Ordering Information |
|
| PBH-1200 | COM-HPC Client Type Module Evaluation Board in Micro-ATX Form Factor |
